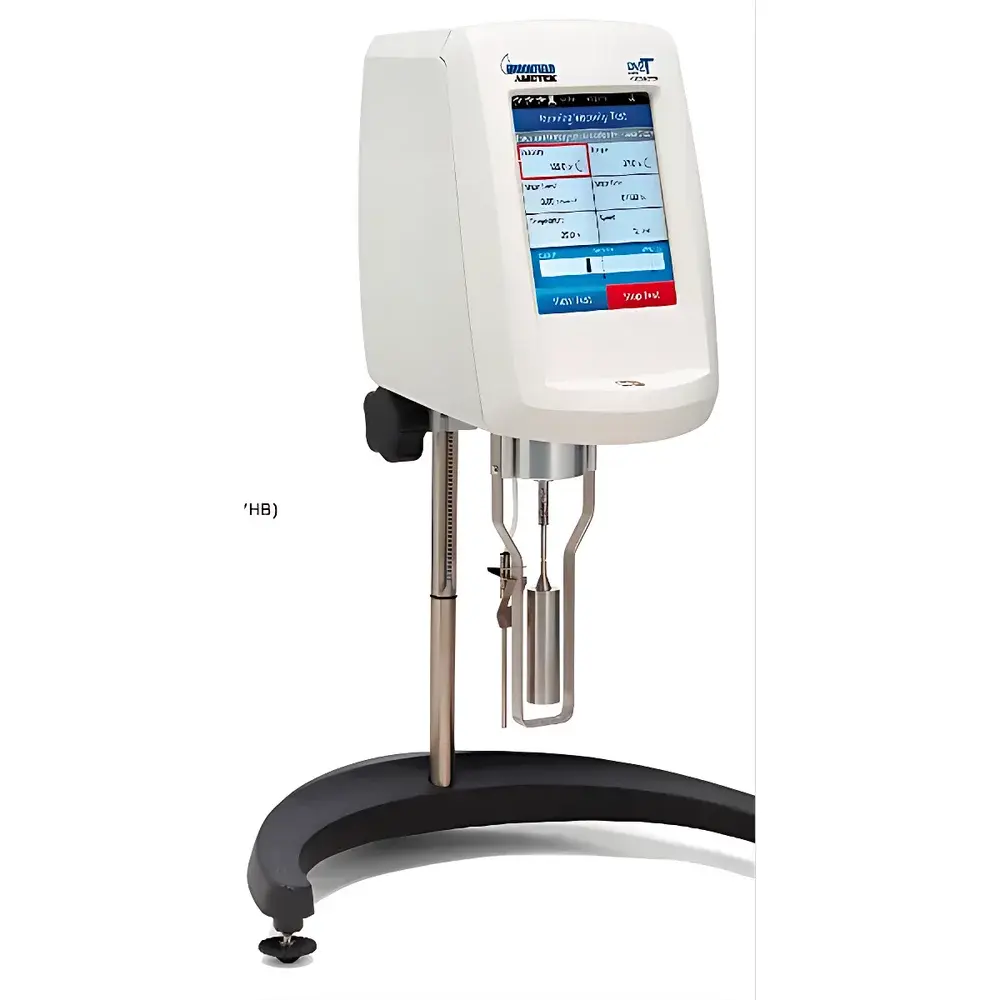

Brookfield DV2TLV Low-Viscosity Viscometer

Overview

The Brookfield DV2TLV Low-Viscosity Viscometer is a precision-engineered benchtop rotational viscometer designed specifically for accurate and repeatable measurement of low-viscosity Newtonian and non-Newtonian fluids in laboratory and quality control environments. Based on the well-established Couette flow principle, it employs a rotating spindle immersed in the sample while measuring torque resistance—converted directly into dynamic viscosity (mPa·s) with high linearity across its calibrated range of 1–200 mPa·s. Unlike inline or process viscometers, the DV2TLV operates as a controlled, operator-initiated test platform optimized for method development, formulation validation, and routine QC checks where reproducibility and traceability are critical. Its modular architecture supports interchangeable spindles (including ultra-low-torque LV series spindles) and optional temperature-controlled accessories, enabling consistent measurements under defined thermal conditions when paired with external circulators or Peltier units.

Key Features

• Full integration with RheoCalc T software v3.x for automated test sequencing, real-time data acquisition, and post-processing analysis.
• FDA 21 CFR Part 11-compliant functionality including multi-level user authentication, role-based access control, electronic signatures, and time-stamped audit trails for GLP/GMP-regulated environments.
• Programmable test protocols via intuitive wizard interface—enabling rapid setup of ramp, hold, cycle, or custom shear-rate profiles without scripting.
• Onboard data averaging across single-step or full-sequence tests to improve statistical robustness and reduce operator-induced variability.
• Advanced rheological modeling support: Bingham plastic, Casson, Power Law (Ostwald-de Waele), and Herschel-Bulkley models for yield stress and flow curve characterization.
• Simultaneous visualization and overlay of up to five independent data sets for comparative analysis—ideal for batch-to-batch consistency evaluation or raw material qualification.
• Secure local database with password protection and export-ready formats (CSV, PDF, XML) compatible with LIMS and ERP systems.

Sample Compatibility & Compliance

The DV2TLV accommodates a broad spectrum of low-viscosity liquid samples—including solvents, coatings, inks, pharmaceutical suspensions, food emulsions, and cosmetic bases—provided they remain stable during testing and do not introduce excessive volatility or particulate interference. Sample volume requirements depend on spindle geometry but typically range from 15–50 mL for standard LV spindles. While the base instrument does not include integrated temperature control, it is fully compatible with Brookfield’s TC-550 AP temperature controller or third-party recirculating baths meeting ASTM D2196 and ISO 2555 standards. All software-driven operations comply with FDA 21 CFR Part 11, EU Annex 11, and ISO/IEC 17025 documentation requirements for accredited testing laboratories.

Software & Data Management

RheoCalc T serves as the central analytical engine for the DV2TLV system. It provides comprehensive data management capabilities including automatic metadata tagging (operator ID, timestamp, instrument serial number, calibration certificate reference), version-controlled method storage, and configurable report templates. Raw torque and speed data are logged at user-defined intervals (down to 100 ms resolution), supporting both steady-state and transient rheological assessment. The software enforces strict change control through digital signature workflows, ensuring that any modification to test parameters or analysis settings is recorded and attributable. Exported datasets retain full traceability and may be imported into statistical process control (SPC) platforms or validated scientific computing environments such as MATLAB or Python-based analysis pipelines.

Applications

• Quality assurance of thin-film coatings and solvent-based adhesives in automotive and electronics manufacturing.
• Routine viscosity verification of ophthalmic solutions and injectable drug carriers per USP and Ph. Eur. 2.2.28.
• Formulation optimization of low-viscosity personal care products such as hair serums, facial mists, and cleansing waters.
• Stability monitoring of polymer dispersions and nanofluid suspensions during shelf-life studies.
• Process deviation detection in fine chemical synthesis where solvent recovery or catalyst concentration impacts final product rheology.

FAQ

Is the DV2TLV suitable for online or in-line process monitoring?
No—the DV2TLV is a benchtop laboratory instrument intended for discrete sample testing. For continuous process viscosity measurement, consider Brookfield’s ViscoPro or Viscotester series with flow-through cells.
Does the DV2TLV include built-in temperature control?
No—temperature regulation requires an external accessory such as the TC-550 AP controller or a certified recirculating bath.
Can RheoCalc T generate GMP-compliant reports?
Yes—when configured with appropriate user roles, audit trail logging, and electronic signature enforcement, it meets core documentation requirements for regulated pharmaceutical and biotech applications.
What spindle types are recommended for the 1–200 mPa·s range?
LV series spindles (e.g., LV-1, LV-2, LV-3, LV-4) are factory-calibrated for this range; spindle selection must align with sample density, volatility, and required shear rate profile.
Is calibration verification traceable to NIST standards?
Yes—Brookfield provides NIST-traceable calibration certificates for both instrument torque sensors and spindle geometry upon request, supporting ISO/IEC 17025 accreditation pathways.
