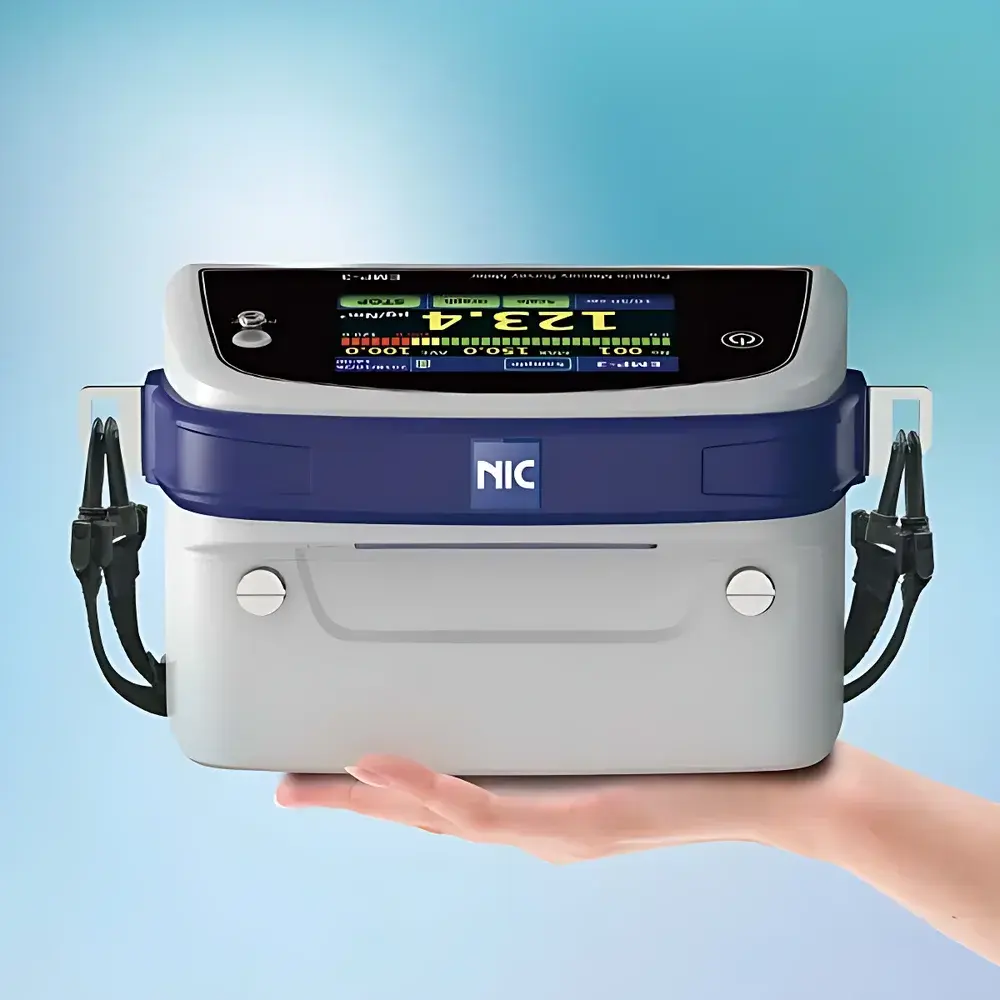

Brookfield EMP-3 Portable Mercury Analyzer
| Brand | Brookfield |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Classification | Domestic (China) |
| Model | EMP-3 |
| Pricing | Upon Request |
| Instrument Type | Portable |
| Measurement Principle | Cold Vapor Atomic Absorption Spectrometry (CVAAS) |
Overview
The Brookfield EMP-3 Portable Mercury Analyzer is a field-deployable, handheld instrument engineered for real-time quantification of elemental mercury (Hg⁰) vapor in ambient air and occupational environments. It operates on the principle of Cold Vapor Atomic Absorption Spectrometry (CVAAS), a well-established, reference-grade analytical technique standardized in methods such as EPA Method 1022 and ISO 6978-2. In this method, sampled air is drawn through a gold-coated trap where mercury vapor is selectively preconcentrated; subsequent thermal desorption releases mercury atoms into an optical cell, where absorption of 253.7 nm UV light is measured against a calibrated reference beam. The EMP-3 integrates this high-selectivity detection scheme into a rugged, battery-powered platform optimized for rapid deployment in industrial hygiene assessments, remediation site surveys, coal-fired power plant perimeter monitoring, and artisanal gold mining zones.
Key Features
- Real-time measurement capability with response time ≤ 10 seconds per reading, enabling immediate hazard assessment and dynamic exposure mapping.
- Extended detection range from 0.1 µg/Nm³ to 2000 µg/Nm³ — compliant with OSHA PEL (0.1 mg/m³ ≈ 100 µg/Nm³) and WHO occupational guidance values across multiple exposure durations.
- Integrated GPS module with automatic geotagging of each measurement record, eliminating manual location logging and supporting GIS-integrated reporting workflows.
- IP54-rated enclosure with seamless, splash-resistant housing and ergonomic shoulder/waist strap system for stable operation during extended field surveys.
- 7-inch high-resolution color LCD touchscreen with 15° forward tilt angle — optimized for readability under direct sunlight and tabletop use without repositioning.
- Built-in rechargeable lithium-ion battery providing ≥ 8 hours of continuous operation at 1 L/min sampling flow rate.
Sample Compatibility & Compliance
The EMP-3 is designed exclusively for gaseous elemental mercury (Hg⁰) in ambient or workplace air matrices. It does not detect inorganic mercury compounds (e.g., HgCl₂), methylmercury, or particulate-bound mercury without prior thermal or chemical conversion — a limitation consistent with CVAAS-based instrumentation per ASTM D6784-22 Annex A1. All measurement data comply with GLP documentation requirements, including timestamp, GPS coordinates, operator ID, calibration status, and flow rate verification logs. Firmware supports audit-trail-enabled data export in CSV and XML formats, aligning with FDA 21 CFR Part 11 readiness for regulated industrial hygiene programs.
Software & Data Management
The embedded operating system features a context-aware GUI with intuitive navigation, multi-language support (English, Spanish, French, Mandarin), and configurable alarm thresholds (audible + visual). Data are stored locally on encrypted internal memory (≥ 10,000 readings) and synchronized via USB-C or Bluetooth 5.0 to the Brookfield Mercury Manager desktop application. This software enables spectral validation review, drift correction using built-in zero/gas standards, calibration curve management (linear and quadratic fitting), and automated report generation conforming to ISO/IEC 17025–aligned templates. Exported datasets include metadata required for regulatory submission to national occupational safety authorities (e.g., NIOSH, HSE, or China’s MEE).
Applications
- Occupational health and safety monitoring in chlor-alkali plants, fluorescent lamp recycling facilities, dental clinics, and thermometers manufacturing units.
- Rapid screening of mercury contamination at brownfield sites, abandoned mining areas, and informal e-waste dismantling zones.
- Verification of mercury abatement system performance (e.g., activated carbon injection units, sorbent traps) in coal combustion flue gas ducts.
- Field validation of fixed-site continuous emission monitoring systems (CEMS) per EN 14181 QAL2 protocols.
- Academic and governmental research campaigns requiring spatially resolved atmospheric Hg⁰ distribution mapping.
FAQ
What is the minimum detectable concentration (MDC) of the EMP-3 under standard conditions?
The instrument achieves a method detection limit (MDL) of 0.1 µg/Nm³ at 1 L/min flow rate and 60-second integration time, validated per EPA 40 CFR Part 136 guidelines.
Does the EMP-3 require external calibration gases or consumables during routine operation?
No compressed calibration gases are needed. The system uses internal gold trap regeneration and dual-point electronic zero/span verification with solid-phase mercury standards traceable to NIST SRM 3132a.
Can the EMP-3 be used in high-humidity or dusty environments?
Yes — the integrated particle filter and moisture trap maintain accuracy up to 90% RH and ISO Class 8 particulate loading; optional heated inlet accessory extends operational range to 95% RH.
Is firmware update supported remotely?
Firmware updates are delivered via secure HTTPS download through the Mercury Manager software; no internet connection is required on the device itself.
How is measurement traceability ensured for regulatory audits?
Each unit ships with a factory calibration certificate referencing NPL (UK) or CNAS-accredited reference materials; annual recalibration is recommended and documented in accordance with ISO/IEC 17025 clause 6.5.
