Brookfield NJ-CH PFA Sub-Boiling Acid Purifier with 1000 mL Collection Capacity

Overview

The Brookfield NJ-CH PFA Sub-Boiling Acid Purifier is an ultra-high-purity acid purification system engineered for trace-metal analysis laboratories requiring ultraclean reagents in ICP-MS, ICP-OES, GF-AAS, and semiconductor wafer cleaning applications. It operates on the principle of sub-boiling distillation—maintaining acid solutions below their atmospheric boiling point to minimize volatile impurity carryover and suppress aerosol formation. Unlike conventional reflux or boiling distillers, this unit sustains a stable thermal gradient across a vertically oriented PFA chamber, enabling selective vaporization of the target acid while retaining non-volatile metallic contaminants (e.g., Fe, Al, Cr, Ni, Pb) in the residue. The entire distillation path—from feed reservoir to condensate collection—is constructed exclusively from ASTM D4897-compliant perfluoroalkoxy (PFA) resin, ensuring zero metal leaching and chemical inertness toward HNO₃, HCl, HF, H₂O, and select organic solvents such as methanol and acetonitrile.

Key Features

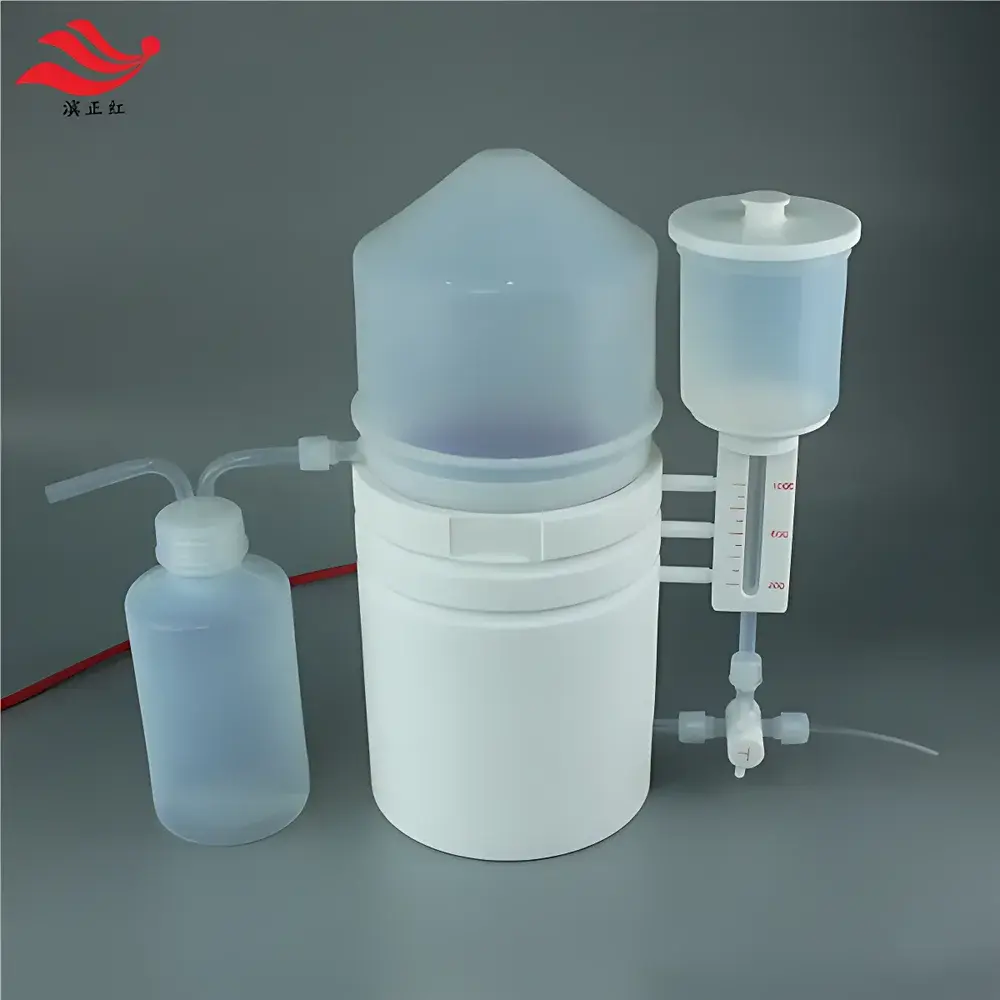

• All-PFA construction: Transparent PFA chamber enables real-time visual monitoring of liquid level, boiling behavior, and condensate formation without compromising purity.

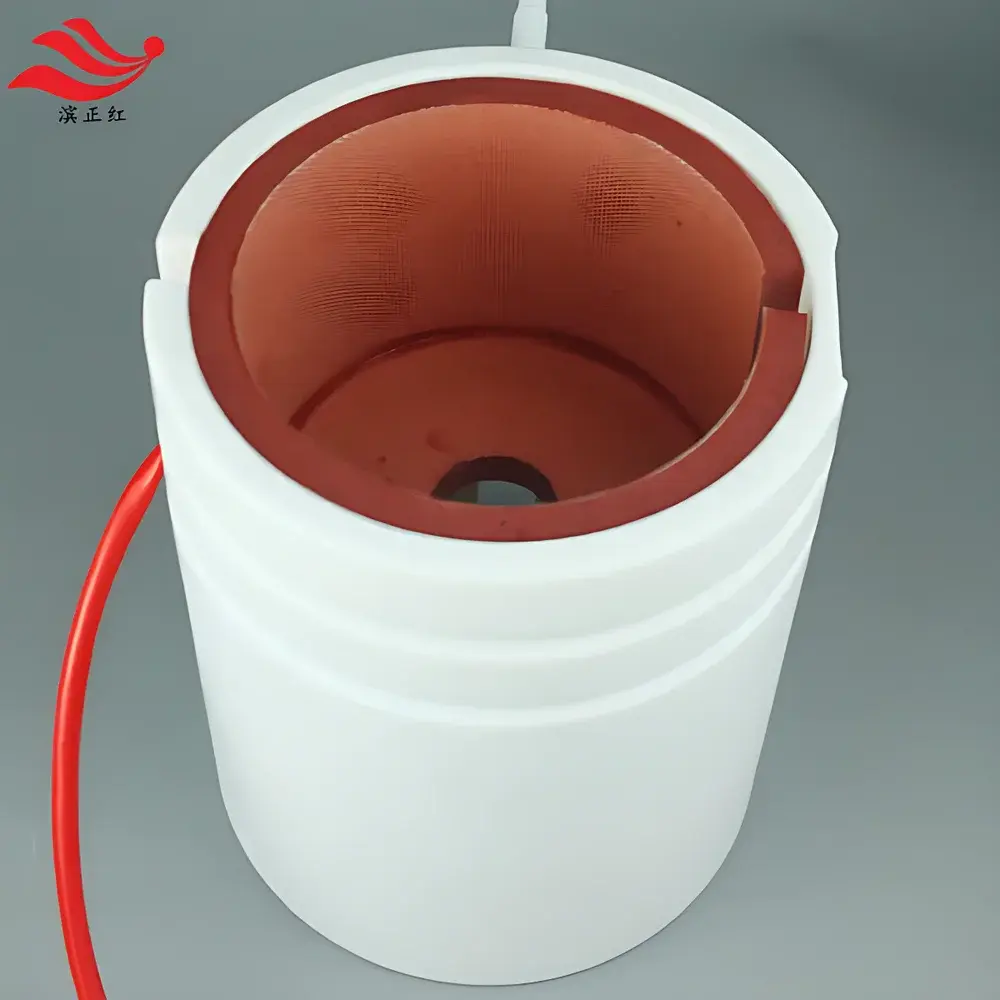

• Sub-boiling operation: Precisely regulated silicone heating pad maintains temperature control within ±1 °C (PID digital display), preventing localized superheating and ensuring consistent vapor-phase composition.
• No external coolant required: Natural air cooling of the integrated condensation zone eliminates dependency on chilled water systems or recirculating chillers—reducing infrastructure complexity and operational costs.
• Zero-metal architecture: No stainless steel, brass, or ceramic components contact the acid stream; gaskets, seals, and structural supports are fully fluoropolymer-based.

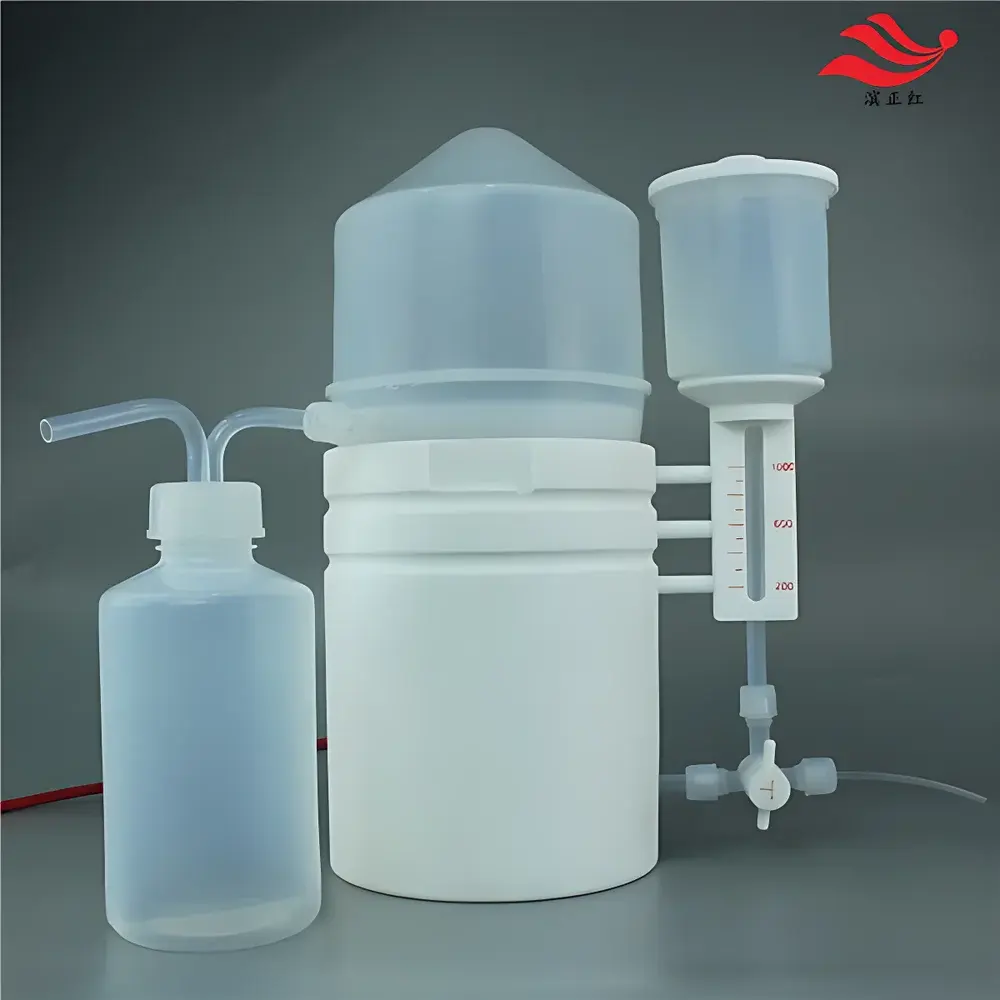

• Modular feed design: Graduated PFA funnel allows accurate volumetric dosing of crude acid (up to 1000 mL capacity); optional level-sensing variants support unattended batch operation.
• Energy-efficient profile: Variable-frequency power regulation (≤350 W max) delivers optimized thermal input, reducing standby losses and supporting ISO 50001-aligned lab energy management protocols.

Sample Compatibility & Compliance

The NJ-CH purifier is validated for high-recovery sub-boiling purification of nitric acid (HNO₃), hydrochloric acid (HCl), hydrofluoric acid (HF), deionized water, and select polar aprotic solvents. Each purified batch achieves trace metal contamination levels ≤0.01 ppb for key elements (Fe, Cu, Zn, Al, Cr, Ni, Pb, Co, Mn), meeting ASTM D5127 (Standard Guide for High-Purity Water Used in Semiconductor Processing) and USP conductivity requirements for Class 1 water. The all-fluoropolymer construction complies with ISO 17025 calibration traceability frameworks when used in conjunction with certified reference materials (CRMs) such as NIST SRM 3100 series. System documentation supports GLP/GMP audit readiness, including full temperature log export and operator authentication logs (via optional RS-232/USB interface).

Software & Data Management

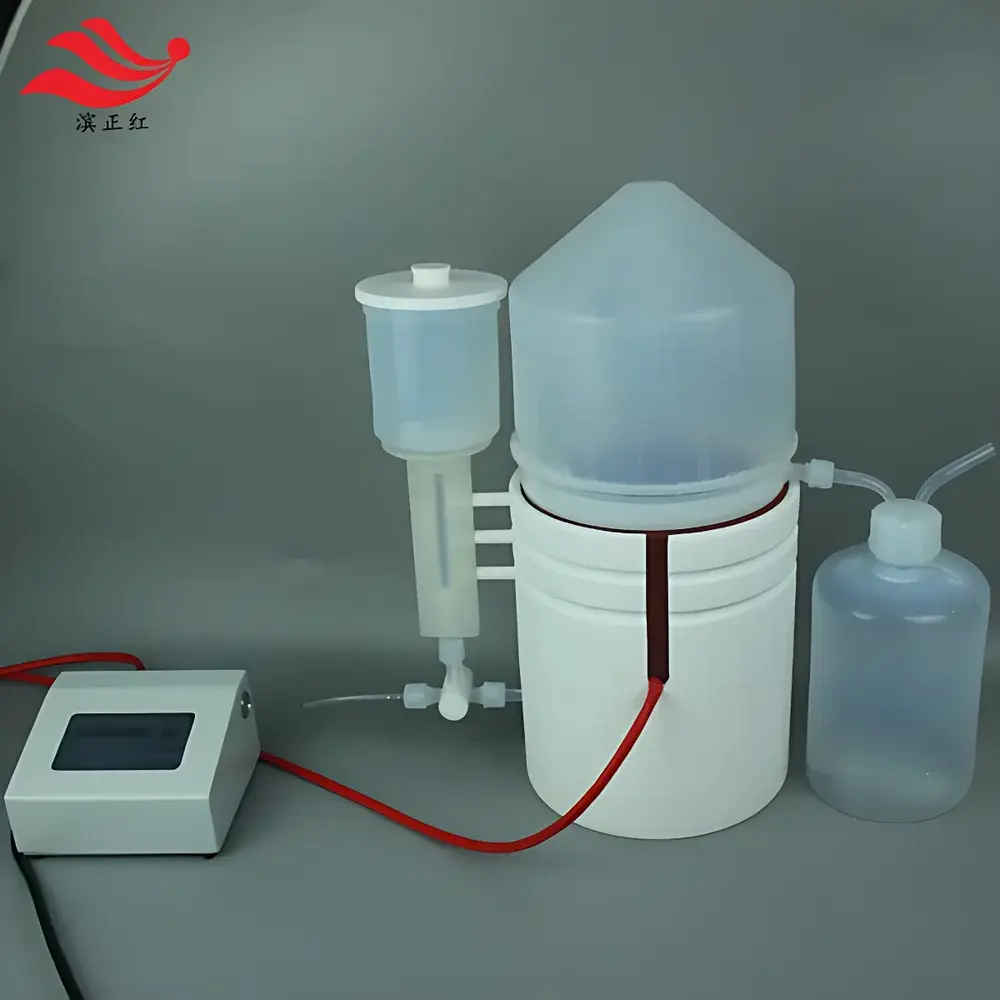

While the base NJ-CH model features standalone PID temperature control with LCD readout, optional firmware upgrades enable data logging via USB or RS-232 serial output. Logged parameters include real-time heater temperature, elapsed run time, and cumulative distillate volume (calculated from runtime × 50 mL/h nominal rate). Exported CSV files are compatible with LIMS platforms and comply with FDA 21 CFR Part 11 requirements when paired with user-defined electronic signatures and audit-trail-enabled software (e.g., LabArchives or Thermo Fisher SampleManager). Calibration certificates for temperature sensors are provided with NIST-traceable documentation.

Applications

• Preparation of matrix-matched calibration standards for ultra-trace elemental analysis (ICP-MS detection limits <0.1 fg/mL).
• Generation of blank-free diluents for EPA Method 200.8 and ISO 17294-2 compliant environmental water testing.
• Acid digestion reagent purification prior to microwave-assisted sample preparation (EPA 3052, ASTM D5683).
• On-demand production of high-purity HF for silicon etching and MEMS fabrication cleanrooms.
• Reagent recycling in academic and industrial geochemistry labs performing Lu–Hf or Sm–Nd isotope ratio analysis.

FAQ

What acids can be purified using the NJ-CH system?

Nitric acid, hydrochloric acid, hydrofluoric acid, deionized water, and selected low-boiling polar solvents (e.g., methanol) are routinely processed. Compatibility with perchloric or sulfuric acid requires prior consultation due to thermal stability constraints.
Is the system suitable for Class 100 cleanroom integration?

Yes—the all-PFA housing generates no particulate shedding, and the absence of moving parts or external coolant lines simplifies ISO 14644-1 compliant installation.
How often does the PFA chamber require cleaning or replacement?

Under normal use with high-grade starting acids, the chamber remains functional for >5 years without degradation; routine inspection for clouding or microcracking is recommended every 6 months.
Can the distillation rate be adjusted below 50 mL/h?

Yes—variable-frequency power control permits fine-tuning between 10–50 mL/h to optimize purity vs. throughput trade-offs for critical applications.
Does the unit meet CE or UL safety certification requirements?

The NJ-CH conforms to IEC 61010-1:2010 for laboratory electrical equipment; CE marking is available upon request with EU Representative designation.
