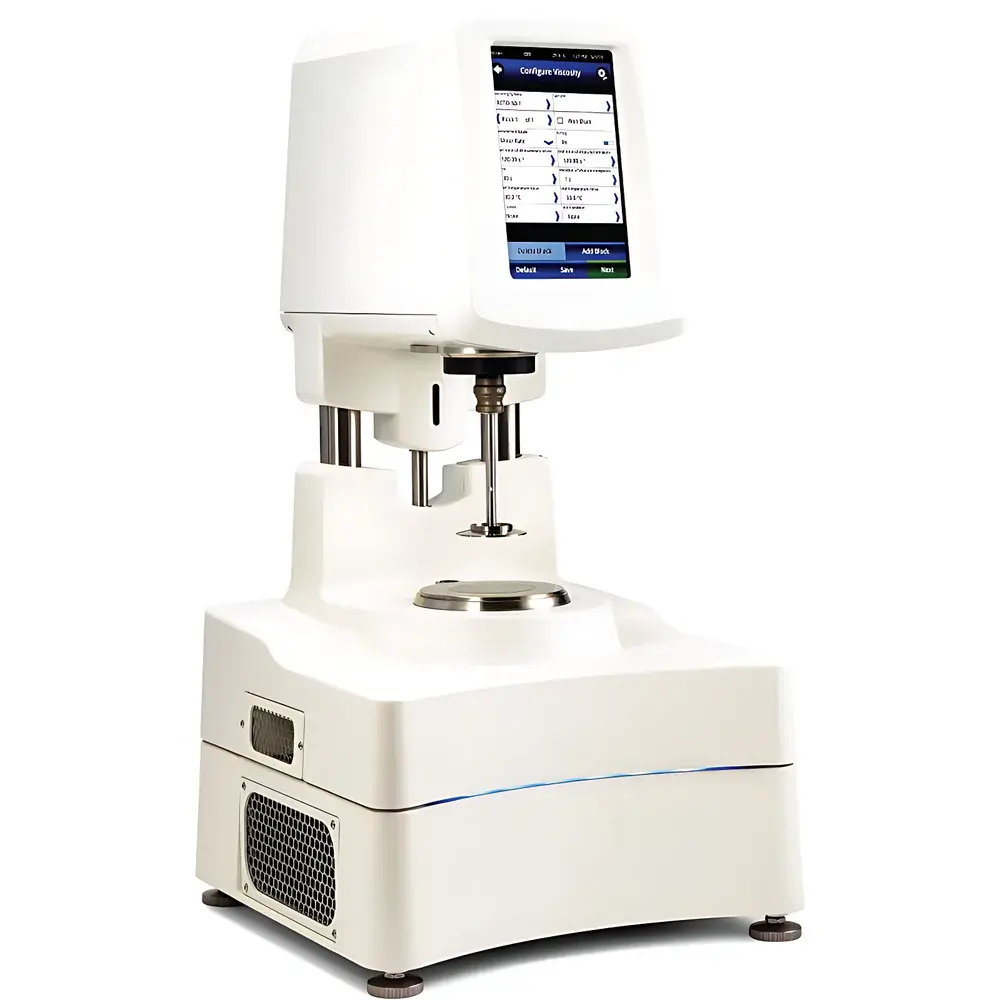

Brookfield RSO Advanced Oscillatory Rheometer
| Brand | Brookfield |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Origin Category | Imported |
| Model | RSO |
| Instrument Type | Torque Rheometer |
| Sample Type | Low-Viscosity |
| Sample State | Liquid |
| Motor Bearing | Air Bearing |
| Minimum Rotational Speed | 0.001 rpm |
| Frequency Range | 0.006 – 126 rad/s |
| Maximum Rotational Speed | 1500 rpm |
| Maximum Torque | 100 mNm |
| Torque Resolution | 0.02 µNm |
Overview
The Brookfield RSO Advanced Oscillatory Rheometer is an engineered solution for precise, high-sensitivity viscoelastic characterization of low-viscosity liquid samples. Built on a robust torque-controlled architecture with air-bearing-supported motor and sensor systems, the RSO implements controlled-strain and controlled-stress oscillatory testing based on the principles of dynamic mechanical spectroscopy (DMS). It delivers quantitative storage modulus (G′), loss modulus (G″), complex viscosity (η*), and phase angle (δ) across a broad frequency spectrum — from quasi-static deformation (0.006 rad/s) to high-frequency response (126 rad/s). Designed specifically for laboratories requiring rapid method deployment without compromise in metrological integrity, the RSO bridges the gap between routine QC screening and advanced R&D rheological profiling.
Key Features
- Air-bearing motor and transducer assembly ensuring minimal mechanical friction, thermal drift, and bearing hysteresis — critical for sub-micron torque resolution and long-term baseline stability.
- Dual measurement geometry compatibility: interchangeable cone-and-plate and concentric cylinder systems mounted on a single temperature-controlled stage, enabling seamless transition between high-shear sensitivity (cone/plate) and bulk-flow fidelity (cylinder).
- Ultra-high torque resolution of 0.02 µNm — sufficient to resolve weak elastic responses in dilute polymer solutions, microemulsions, and biological fluids where G′ may fall below 0.1 Pa.
- Wide dynamic range: torque capacity up to 100 mNm supports both low-viscosity Newtonian reference oils and moderately structured suspensions under large-amplitude oscillatory shear (LAOS).
- True single-unit operation: integrated controller, real-time display, and onboard data logging eliminate dependency on external PCs during routine QC workflows.
- Compliant with ISO 6721-10, ASTM D4440, and ISO 3219 for oscillatory rheometry — validated traceability path to NIST-traceable torque calibration standards.
Sample Compatibility & Compliance
The RSO is optimized for homogeneous, low-viscosity liquid samples — including aqueous surfactant solutions, pharmaceutical dispersions, inkjet inks, lubricant base stocks, and food-grade emulsions. Its design excludes particulate-laden or highly filled suspensions that risk geometry wear or flow instability. All measurement protocols adhere to GLP-compliant audit trails when operated in networked mode (via optional Ethernet interface). Data export formats (CSV, TXT, RheoML) support FDA 21 CFR Part 11 compliance when deployed with validated LIMS integration and electronic signature modules. Calibration certificates include uncertainty budgets per ISO/IEC 17025 requirements.
Software & Data Management
Rheo32 software — supplied standard — provides intuitive workflow navigation for amplitude sweeps, frequency sweeps, time sweeps, and temperature ramps. Real-time parameter visualization includes Lissajous plots, Fourier-transformed stress harmonics (for LAOS analysis), and Cole-Cole representation. Raw torque/time and strain/time datasets are stored with full metadata: geometry ID, temperature setpoint, ambient humidity, operator ID, and instrument firmware revision. Exported files retain embedded timestamps synchronized to UTC via NTP, facilitating multi-site comparative studies. Optional API access enables integration with MATLAB, Python (via PyRhéo), and LabVIEW for custom algorithm development and automated reporting pipelines.
Applications
- Quality control of low-viscosity coatings and adhesives: rapid assessment of shelf-life stability via small-amplitude oscillatory shear (SAOS) at fixed frequency.
- R&D of injectable hydrogels: quantification of sol-gel transitions through temperature- and frequency-dependent G′/G″ crossover mapping.
- Formulation screening of cosmetic emulsions: identification of critical micelle concentration (CMC) shifts using dynamic moduli vs. surfactant concentration trends.
- Characterization of biofluid analogs (e.g., synovial fluid substitutes): linear viscoelastic region (LVER) determination and thixotropic recovery kinetics after preshear.
- Validation of computational rheology models: high-fidelity G′(ω) and G″(ω) datasets serve as boundary conditions for finite element simulations of microfluidic transport.
FAQ
What sample volume is required for cone-and-plate versus concentric cylinder measurements?
Cone-and-plate configurations typically require 0.5–1.0 mL depending on cone angle and truncation; concentric cylinders demand 5–15 mL depending on gap height and radius ratio.
Is temperature control integrated or external?
The RSO features a built-in Peltier-controlled stage (–10 °C to +150 °C) with ±0.1 °C stability; optional liquid-circulated jackets extend range to –40 °C or +200 °C.
Can the RSO perform steady-shear viscosity measurements?
Yes — it supports controlled-rate and controlled-stress rotational modes, delivering shear viscosity η(γ̇) curves from 0.001 s⁻¹ to 1000 s⁻¹, fully compliant with ISO 3219 and ASTM D2196.
How is torque calibration verified in daily operation?
A dual-point verification protocol uses certified magnetic calibration discs traceable to NIST SRM 2490c; automated self-check occurs at power-on and before each test sequence.
Does the system support third-party geometry or custom fixtures?
Only Brookfield-certified geometries are supported to maintain torque linearity and thermal equilibrium specifications; non-OEM fixtures void calibration validity and regulatory compliance.
