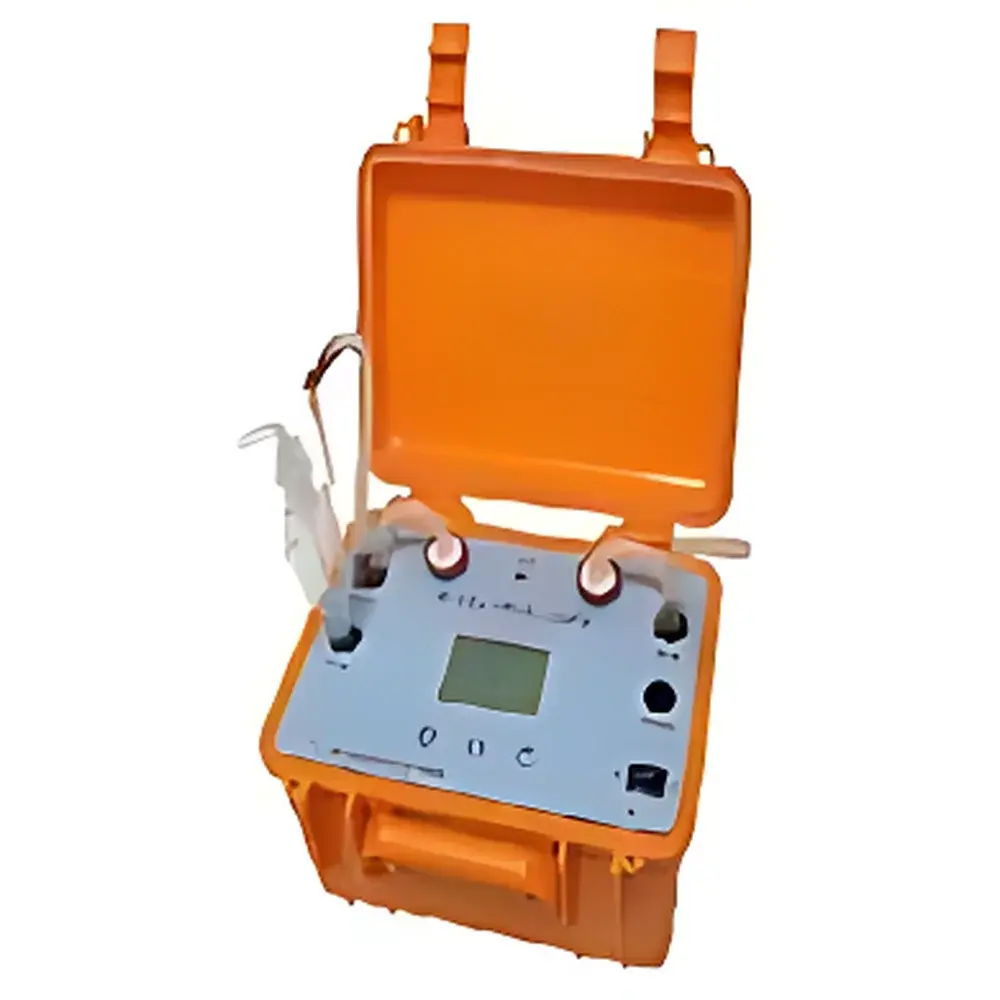

BS-B2/H2 Dual-Channel Atmospheric Air Sampler

Overview

The BS-B2/H2 Dual-Channel Atmospheric Air Sampler is a precision-engineered, microprocessor-controlled sampling instrument designed for quantitative collection of airborne contaminants—including volatile organic compounds (VOCs), formaldehyde, benzene homologues, and other regulated gaseous pollutants—in both indoor and ambient environmental settings. It operates on the principle of constant-flow volumetric sampling using dual independent suction circuits, each equipped with high-stability diaphragm vacuum pumps and solid-state mass flow sensors calibrated to standard temperature and pressure (STP: 0 °C, 101.3 kPa). This STP-referenced flow control eliminates the need for post-sampling correction based on ambient temperature or barometric pressure—a critical requirement for compliance with ISO 16000-6, ASTM D5197, and China’s GB 50325–2020 (formerly GB 50325–2010) for indoor air quality assessment in civil construction projects.

Key Features

• Dual independent sampling channels with fully programmable start/stop timing and non-volatile time memory—enabling simultaneous or staggered sampling for multi-analyte protocols (e.g., Tenax TA tubes for VOCs and activated carbon tubes for aldehydes).
• High-accuracy electronic mass flow sensing (100–500 sccm range) with real-time digital display; replaces legacy rotameters to eliminate parallax error, viscosity-dependent drift, and calibration dependency on gas composition.
• STP-normalized flow output: all displayed and logged flow values are automatically referenced to 0 °C and 101.3 kPa—ensuring traceable, audit-ready volume calculation without manual environmental compensation.
• Robust pump architecture engineered for consistent performance under variable backpressure—validated across diverse sorbent tube configurations (e.g., 60–120 mm Tenax-TA, Carbopack B/C, and coconut-shell activated carbon tubes with resistance up to 25 kPa at 200 sccm).
• ±1% flow stability over full operating temperature range (−5 °C to +45 °C) and ±5% maximum flow error—meeting ISO 16000-2 and GB/T 18204.2–2014 metrological requirements for accredited laboratories.
• Flexible power architecture: AC operation (220 V, 50 Hz) for fixed-site monitoring or DC battery mode with ≥6 hours continuous runtime—suitable for personal exposure monitoring, mobile field surveys, and emergency response deployments.

Sample Compatibility & Compliance

The BS-B2/H2 is validated for use with standardized passive and active sorbent media per ISO 16000-6 Annex A, including 3.2-mm ID glass or stainless-steel Tenax TA tubes (60–120 mm length), charcoal-coated silica gel cartridges, and diffusion samplers requiring precise flow control. Its dual-channel design supports parallel sampling strategies required by GB 50325–2020 Clause 6.0.4 for formaldehyde and total volatile organic compounds (TVOC) co-monitoring. Instrument firmware and calibration records support GLP-compliant documentation workflows. While not intrinsically rated for hazardous locations, optional ATEX-compatible external enclosures may be deployed in conjunction with certified explosion-proof accessories where required.

Software & Data Management

The device features embedded non-volatile memory that logs start time, stop time, cumulative sampling volume (in L_STP), average flow rate, and pump operational status per channel. Data export is supported via USB interface for integration into laboratory information management systems (LIMS) or custom Excel-based reporting templates. All timekeeping functions comply with IEC 60804 accuracy standards (±0.2% timer error), and flow calibration certificates are traceable to national metrology institutes (NIM, China). Audit trails meet minimum requirements for ISO/IEC 17025:2017 Clause 7.7.1 regarding data integrity and instrument configuration control.

Applications

• Indoor air quality (IAQ) assessment in residential, commercial, and educational buildings per GB 50325–2020 and ISO 16000-22.
• Ambient air monitoring for regulatory compliance (e.g., local EPB reporting), occupational hygiene surveys (GBZ 159–2004), and epidemiological field studies.
• Pre- and post-mitigation verification testing following remediation of VOC-emitting materials (e.g., adhesives, paints, composite wood products).
• Method validation and inter-laboratory comparison exercises involving sorbent tube–based thermal desorption–GC/MS analysis.
• Mobile source emission plume characterization and boundary monitoring near industrial zones or traffic corridors.

FAQ

Does the BS-B2/H2 require manual temperature/pressure correction during data processing?
No. All flow and volume readings are internally normalized to STP (0 °C, 101.3 kPa); no external correction factors are needed.
Can both channels operate at different flow rates simultaneously?
Yes—each channel is independently adjustable within the 100–500 sccm range and retains its own setpoint and timing schedule.
Is the instrument compatible with US EPA TO-17 methodology?
It meets the flow accuracy, stability, and STP referencing requirements of TO-17 Section 5.2 for Tenax-based sampling; final method validation remains the user’s responsibility per laboratory SOP.
What maintenance intervals are recommended for the internal pump and flow sensor?
Pump diaphragms should be inspected every 500 operating hours; mass flow sensors require annual recalibration against NIST-traceable standards.
Does the device support remote triggering or networked data logging?
Not natively—data retrieval is via direct USB connection; third-party serial-to-Ethernet gateways may be integrated for centralized fleet monitoring.
