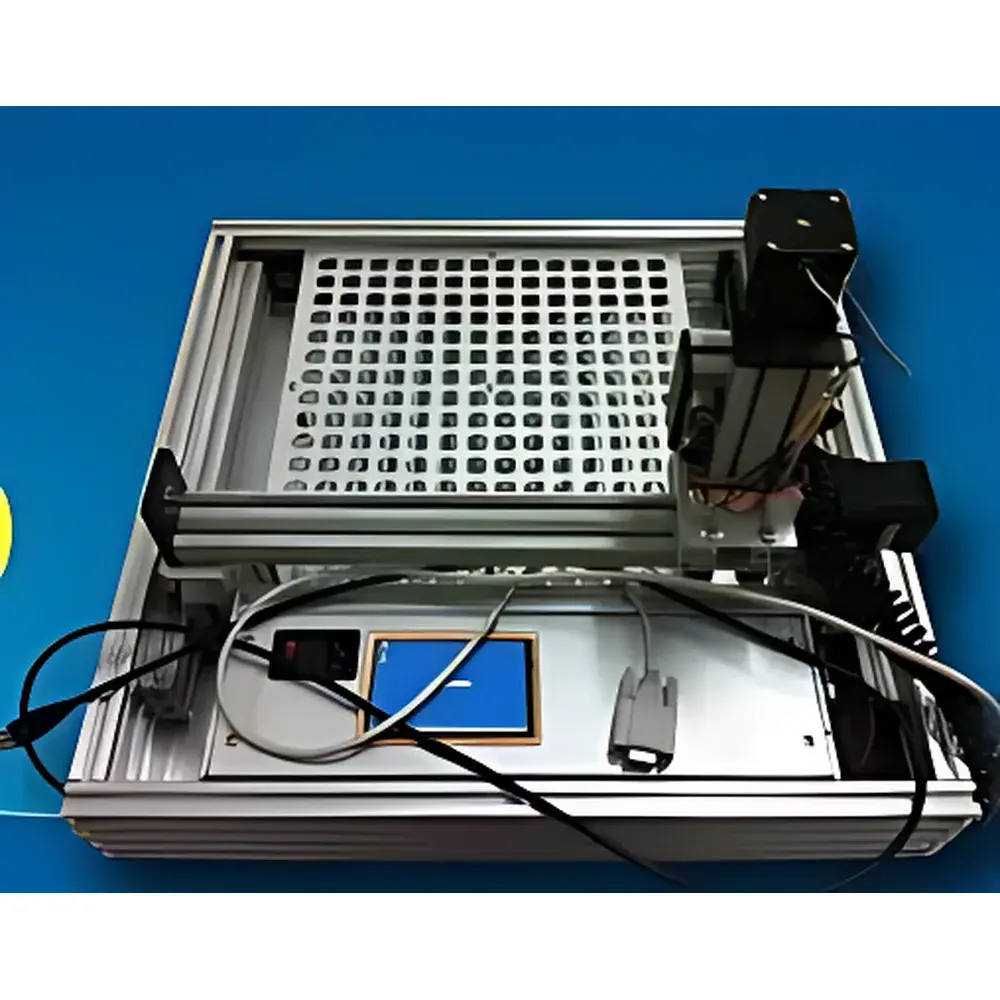

BSQ-20 Automated Gas Sampling Injector for Agilent GC Systems

Overview

The BSQ-20 Automated Gas Sampling Injector is a dedicated robotic sample introduction system engineered for seamless integration with Agilent 6890A and 7890A gas chromatographs. Designed specifically for environmental air quality monitoring laboratories, it automates the sequential injection of pressurized gas samples from standard 12-mL glass or stainless-steel sampling cylinders (e.g., SUMMA®-coated canisters), eliminating manual handling and operator-induced variability. Its core mechanism employs a high-rigidity龙门 (gantry-style) three-axis Cartesian positioning system, where precision linear motion is achieved via preloaded linear guides and microstepping stepper motors controlled by a fully digital embedded controller. This architecture ensures repeatable spatial resolution of ±0.01 mm across the entire 196-position vial array — critical for maintaining retention time stability and quantitative reproducibility in regulated VOC analysis workflows per EPA Method TO-14A, TO-15, and ASTM D5502.

Key Features

• Gantry-based XYZ motion platform with zero-backlash linear stages and hardened aluminum structural frame for long-term dimensional stability under continuous lab operation.
• Digital motion control architecture featuring FPGA-enhanced pulse generation and real-time position feedback, enabling consistent acceleration/deceleration profiles and vibration-free traversals.
• Programmable sample sequence logic supporting dynamic vial selection (1–196 positions), custom injection order, and conditional re-injection protocols based on QC flagging.
• Integrated mechanical homing sensors and dual-limit switch protection on all axes to prevent overtravel and ensure safe return-to-origin initialization prior to each run.
• Blue TFT LCD interface with intuitive menu navigation, real-time status indicators (valve actuation, pressure confirmation, motor temperature), and local parameter storage for up to 10 user-defined methods.
• Tool-less mounting brackets and standardized GC interface flanges (1/8″ Swagelok® compatible) enable rapid installation and alignment without calibration tools or external alignment fixtures.

Sample Compatibility & Compliance

The BSQ-20 accommodates industry-standard 12-mL evacuated sampling cylinders used in ambient air, stack emission, and indoor air monitoring applications. It supports both passive filling (via atmospheric equilibration) and active pressurized transfer (with optional external diaphragm pump or regulator manifold). The system complies with mechanical safety requirements outlined in IEC 61000-6-2 (immunity) and IEC 61000-6-3 (emissions), and its operational repeatability meets ISO 5725-2:2019 criteria for intermediate precision in automated sampling systems. When deployed in GLP or 21 CFR Part 11 environments, the instrument’s deterministic execution and non-volatile method storage support audit-ready traceability when paired with compliant GC data systems.

Software & Data Management

The BSQ-20 operates as a hardware-peripheral device synchronized via TTL-level trigger signals and analog pressure-readback lines to the host GC’s acquisition software (e.g., OpenLab CDS or ChemStation). No proprietary PC software is required; all scheduling and error-handling logic resides onboard. However, it supports optional RS-232 or Ethernet Modbus RTU communication for remote status polling, fault logging, and integration into centralized laboratory information management systems (LIMS). Event logs—including vial ID, timestamp, valve open/close duration, and pressure validation pass/fail—are stored internally with cyclic overwrite protection and exportable via USB flash drive in CSV format.

Applications

• Unattended analysis of volatile organic compounds (VOCs) in ambient air networks (e.g., EPA Photochemical Assessment Monitoring Stations).
• High-throughput screening of industrial stack emissions for regulatory compliance reporting (e.g., 40 CFR Part 63 Subpart F).
• Indoor air quality assessment in commercial buildings and cleanrooms per ISO 16000-6.
• Method validation studies requiring >100 consecutive injections with identical dwell times and purge cycles.
• Multi-site interlaboratory comparison programs where cross-platform injection timing consistency is essential.

FAQ

Is the BSQ-20 compatible with GC models other than Agilent 6890A/7890A?
Yes — it interfaces via generic TTL trigger and analog pressure feedback signals; custom cable harnesses and timing configuration files are available for Thermo ISQ, Shimadzu GC-2010 Plus, and PerkinElmer Clarus series upon request.
Does the system support internal calibration gas injection?
Yes — programmable “calibration mode” allows designated vials to be injected at user-defined intervals (e.g., every 10th sample) using identical flow dynamics and dwell parameters as sample vials.
What maintenance is required for long-term reliability?
Annual inspection of linear guide lubrication, stepper motor coupling integrity, and vial tray leveling; no consumables or firmware updates are required under normal operating conditions.
Can the BSQ-20 be integrated into a 21 CFR Part 11-compliant workflow?
While the BSQ-20 itself does not generate electronic signatures, its deterministic behavior, immutable event logging, and hardware-enforced sequence execution provide foundational elements for Part 11 validation when combined with validated GC software and procedural controls.
