BTC-Borescope Miniature Minirhizotron Root Observation System

Overview

The BTC-Borescope Miniature Minirhizotron Root Observation System is a field-deployable, high-resolution in situ root imaging platform engineered for non-destructive, longitudinal monitoring of fine-root architecture and dynamics in controlled and semi-field environments. Based on the established minirhizotron principle—where a transparent, soil-embedded observation tube serves as an optical access port—the system integrates a compact 90°-angled borescope probe with a Super HAD II CCD imaging sensor, precision white-light illumination, and synchronized digital image acquisition via the I-CAP control platform. Unlike destructive excavation or destructive core sampling, this system enables repeated, time-series visualization of individual roots at sub-millimeter resolution within intact soil profiles. It is specifically optimized for applications requiring minimal soil disturbance and narrow-bore insertion (probe outer diameter: 7.95 mm), making it suitable for use in rhizotrons, lysimeters, greenhouse mesocosms, potted plant studies, and shallow-rooted crop models where conventional macro-rhizotron tubes (≥50 mm) are impractical.

Key Features

• Ultra-compact 90°-angled rigid borescope probe with 7.95 mm outer diameter and selectable lengths (178 mm, 305 mm, 432 mm, 559 mm, 711 mm, and 940 mm) for flexible deployment across varying soil depths and container geometries.
• High-sensitivity Super HAD II CCD sensor with progressive scan capability, delivering low-noise monochrome or color video output (VBS/Y-C interface) and supporting external video input for multi-sensor integration.
• Integrated xenon-based LED illumination module—10× brighter than standard micro-flashlights—with collimated beam optics ensuring uniform, glare-free illumination across the full field of view inside the observation tube.
• Rechargeable lithium-ion battery pack with onboard charging circuitry, providing ≥60 minutes of continuous operation per charge under typical field conditions.
• RS-232C serial interface for direct hardware-level communication with the I-CAP controller, enabling precise remote adjustment of focus, white balance, exposure, and image capture triggers.

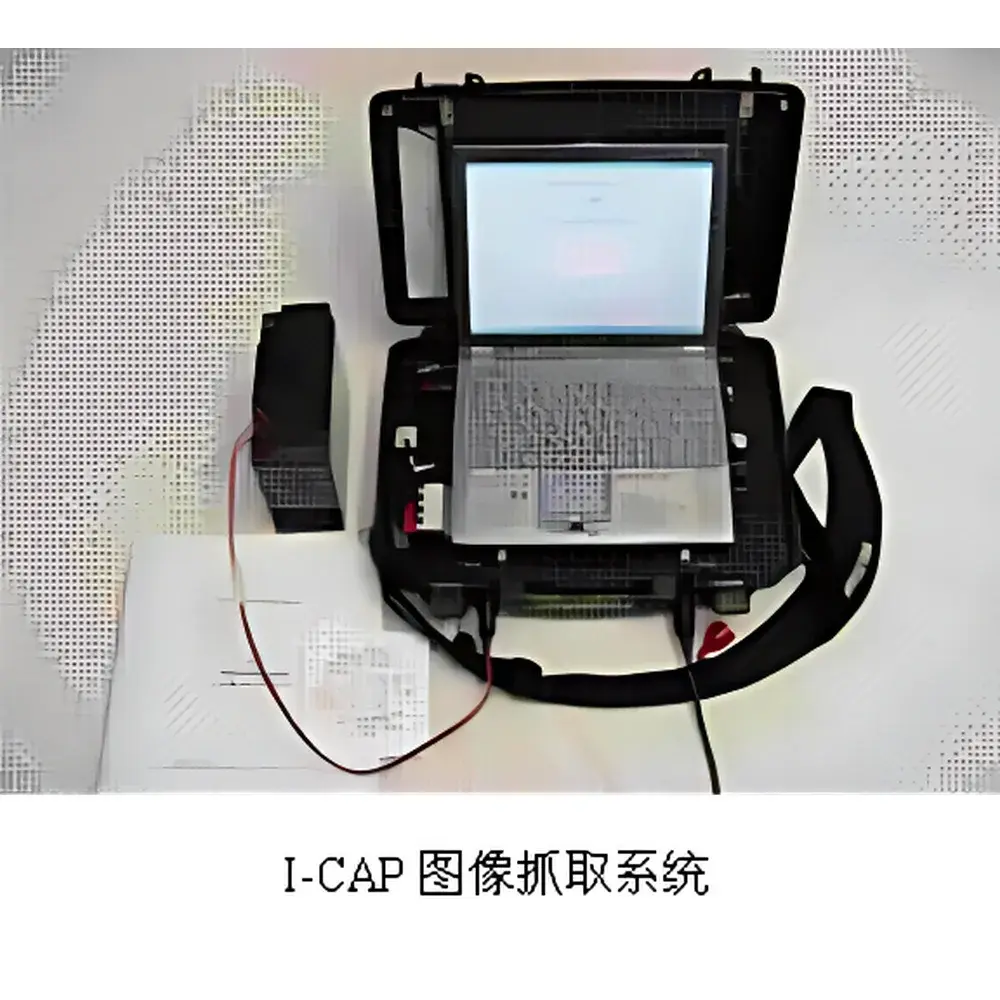

• Modular I-CAP field control unit housed in a ruggedized portable case, featuring a 12-inch sunlight-readable display, integrated image storage (SD card or internal flash), and real-time preview with auto-exposure and 2D/3D noise reduction algorithms.

Sample Compatibility & Compliance

The BTC-Borescope system is validated for use in non-submerged, non-saturated soil matrices—including sandy loam, clay loam, peat-based substrates, and hydroponic root mats—within temperature ranges of 5–40 °C and relative humidity up to 85% non-condensing. It is not rated for underwater or fully saturated soil applications. The observation tubes (sold separately) are typically constructed from UV-stabilized acrylic or borosilicate glass and installed vertically or at fixed angles prior to planting. The system complies with ISO 22081:2020 (Soil quality — Guidance on minirhizotron methodology) and supports GLP-aligned data traceability when used with timestamped, metadata-embedded image acquisition and WinRHIZO TRON’s audit-ready analysis logs. All firmware and software components adhere to IEEE 11073-20601 standards for medical-grade device interoperability, facilitating future integration with IoT-enabled environmental sensor networks.

Software & Data Management

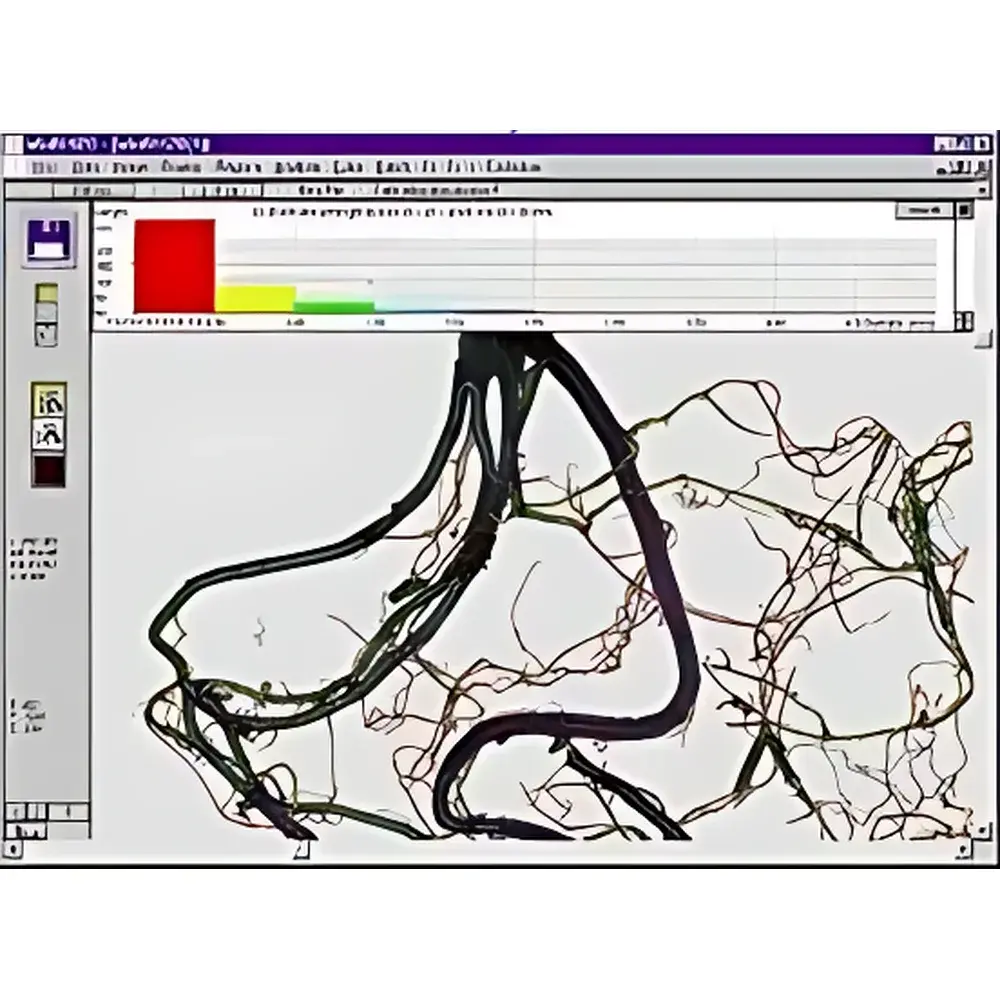

Image acquisition and primary processing are managed through the I-CAP software suite, which provides full remote camera control, batch image naming (including geotagging and depth-stamping), and lossless TIFF/PNG export. Post-acquisition quantitative analysis is performed using WinRHIZO TRON v2023.x—a validated, peer-reviewed root phenotyping platform compliant with FAIR (Findable, Accessible, Interoperable, Reusable) data principles. The software supports interactive root tracing, diameter-classified morphometric quantification (length, surface area, volume, tip count, branching frequency), and temporal continuity mapping across sequential image sets. Critical features include cross-frame root persistence tracking, automatic re-analysis of previously annotated regions-of-interest, and mosaic stitching of adjacent fields-of-view for extended spatial coverage. All measurement outputs are exportable as CSV, Excel, or HDF5 files, with optional integration into R-based statistical pipelines (e.g., rhizoscript, rootScape) and LIMS-compatible metadata schemas.

Applications

• Long-term phenotyping of root architectural plasticity under abiotic stressors (drought, salinity, nutrient limitation) in greenhouse and growth chamber trials.
• Validation of functional-structural plant models (e.g., ArchiSimple, CRootBox) by providing empirical time-series data on lateral root emergence, elongation rates, and senescence dynamics.
• Insect–root interaction studies, including nematode migration tracking, root-feeding insect colonization patterns, and mycorrhizal hyphal network development.
• Root–soil water redistribution analysis when co-deployed with calibrated soil moisture sensors (e.g., capacitance probes, TDR), enabling correlation of root growth fronts with localized hydraulic gradients.
• Root pathology diagnostics, including early detection of lesion formation, cortical collapse, and pathogen-induced necrosis without destructive sampling.
• Propagation and nursery research, assessing root system uniformity, transplant shock recovery, and container root circling behavior.

FAQ

Is the BTC-Borescope system waterproof or submersible?
No. The probe and controller are rated for indoor and sheltered outdoor use only. They are not IP67/IP68 certified and must not be exposed to standing water or saturated soil conditions.
Can the system be used in field soils with high clay content or gravel?
Yes—provided the observation tube is properly installed prior to soil consolidation. Tube insertion requires pre-drilling; direct insertion into undisturbed clay or stony soils is not recommended.
Does WinRHIZO TRON support batch processing of time-series image stacks?
Yes. The software includes automated frame alignment, temporal registration, and persistent root ID propagation across multiple acquisition dates, significantly reducing manual re-tracing effort.
What is the minimum resolvable root diameter under optimal lighting and focus?
Approximately 40 µm, assuming sufficient contrast between root surface and background medium and use of the 12-inch I-CAP display for manual verification.
Are custom probe lengths or angular configurations available?
Yes. BTC offers OEM customization for probe length, viewing angle (e.g., 45°, 135°), and connector types upon request, subject to minimum order quantities and lead-time validation.
