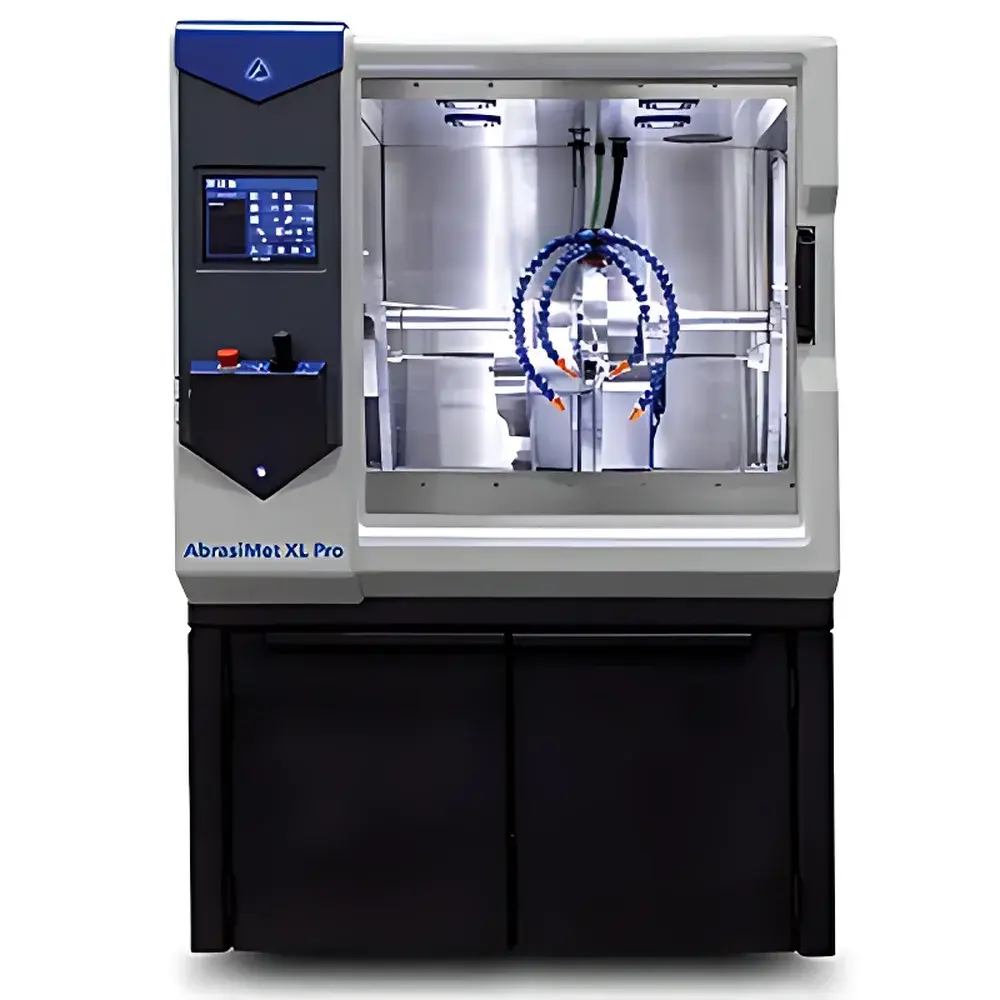

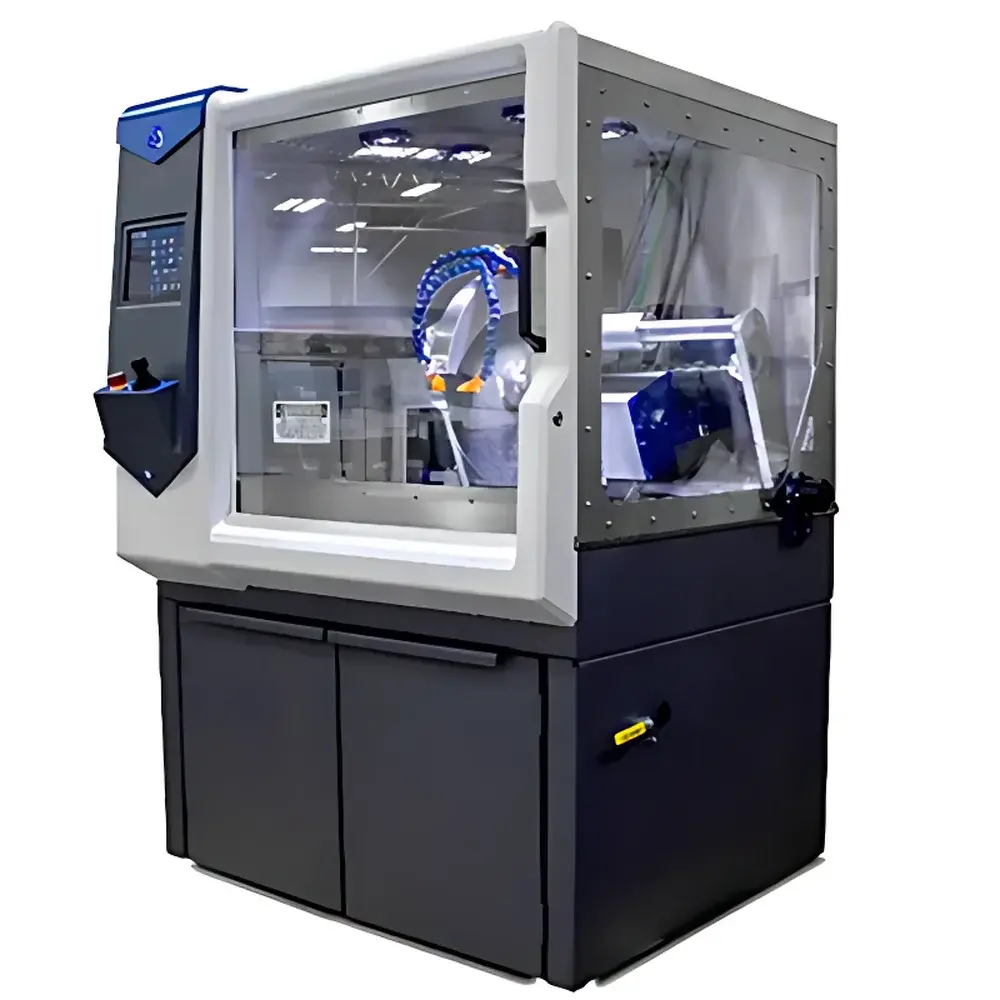

Buehler AbrasiMet XL Pro™ Large-Area Precision Abrasive Cut-Off Machine

Overview

The Buehler AbrasiMet XL Pro™ is a heavy-duty, fully programmable abrasive cut-off machine engineered for high-precision sectioning of large, structurally demanding specimens in industrial quality control and materials research laboratories. Utilizing the fundamental principle of controlled abrasive cutting—where a rotating bonded abrasive wheel removes material via mechanical abrasion under precisely regulated force, speed, and coolant delivery—the AbrasiMet XL Pro delivers repeatable cross-sectional integrity for metallurgical, aerospace, automotive, and energy-sector applications. Its 10 kW (13.4 HP) motor provides sustained torque across the full operational range of 356–457 mm (14–18 inch) blades, enabling consistent cutting performance on alloys, composites, castings, and additively manufactured components up to 178 mm (7 inches) in diameter. Designed for integration into GLP- and GMP-aligned workflows, the system supports traceable, auditable cutting protocols—critical for ISO 17025-accredited labs and those operating under ASTM E3, ISO 643, or USP sample preparation guidelines.

Key Features

• Triple-Blade Compatibility: Supports 356 mm (14″), 406 mm (16″), and 457 mm (18″) abrasive wheels—enabling optimized selection based on specimen geometry, material hardness, and required kerf width.
• Triaxial Precision Motion System: Independent X-, Y-, and Z-axis movement of the cutting arm ensures accurate alignment, multi-pass sequential cuts, and precise positioning relative to T-slot table fixtures (247 × 221 × 196 mm).
• Tool-Free Blade Change Mechanism: Integrated self-locking nut eliminates need for wrenches—reducing changeover time and minimizing operator exposure to pinch points or torque-related injury risks.
• Smart Cut™ Intelligent Cutting Logic: Automatically adjusts feed rate and dwell time based on real-time load feedback, preventing wheel glazing, thermal damage, or premature wheel wear during extended operation.
• Optimized Coolant Management: Closed-loop 170 L (45 gal) filtration system with fixed-mesh auxiliary filter box captures ferrous and non-ferrous swarf—eliminating disposable filter media and reducing coolant disposal frequency by up to 60% versus conventional systems.
• Full-View Observation & Illumination: Reinforced polycarbonate viewport with four high-lumen LEDs and integrated Class 2 green laser (520 nm) enables unambiguous visual verification of blade alignment, specimen positioning, and cut progression without opening the safety enclosure.

Sample Compatibility & Compliance

The AbrasiMet XL Pro accommodates specimens up to 1245 mm (49 inches) in length and 178 mm (7 inches) in diameter—including turbine discs, engine blocks, weld coupons, structural beams, and large-diameter tubing. Its robust frame and vibration-damped base ensure dimensional stability during high-force vertical cutting, Y-axis feed, and oscillating saw-cut modes. The system complies with CE Machinery Directive 2006/42/EC and incorporates dual-hand activation, door-interlocked motor disable, and emergency stop circuitry per EN ISO 13850. All programmable parameters—including blade size, RPM, feed rate, coolant flow duration, and rinse cycle—are stored with timestamped audit trails, supporting compliance with FDA 21 CFR Part 11 requirements when paired with validated Buehler LabManager™ software.

Software & Data Management

Controlled via an intuitive 10.1-inch capacitive touchscreen HMI, the AbrasiMet XL Pro allows creation, naming, and storage of unlimited cutting protocols. Each protocol records blade type, rotational speed, approach velocity, cutting depth, dwell time, and post-cut rinse duration. Protocols are exportable as CSV files for external review or LIMS integration. Optional LabManager™ software extends functionality with remote monitoring, SOP version control, user access tiering (admin/operator/guest), and electronic signature capture—enabling full adherence to ISO/IEC 17025 clause 7.7 (result reporting) and ASTM E2500-13 (verification of automated systems).

Applications

• Metallographic specimen preparation for optical microscopy and SEM analysis in foundries and R&D centers
• Sectioning of high-strength aerospace alloys (e.g., Inconel®, Ti-6Al-4V) prior to hardness testing or fatigue evaluation
• Quality assurance cutting of automotive powertrain components—including cylinder heads, crankshafts, and EV battery housings
• Preparation of cross-sections from wind turbine blades, nuclear fuel cladding, and pipeline weld joints
• High-volume QC labs requiring >50 specimens/day with ≤±5 µm positional repeatability across shifts

FAQ

What safety standards does the AbrasiMet XL Pro meet?
It conforms to CE Machinery Directive 2006/42/EC, EN ISO 13850 (emergency stop), EN ISO 13857 (safeguarding distances), and includes dual-hand control interlocks and door-activated motor cutoff.
Can the system be integrated into a laboratory information management system (LIMS)?
Yes—via LabManager™ software with OPC UA or REST API support, enabling bidirectional data exchange of protocol IDs, timestamps, operator credentials, and cut completion status.
Is coolant temperature monitoring available as a standard feature?
No—temperature sensing is not included in the base configuration, but optional PT100 probes and analog I/O modules can be added for closed-loop thermal regulation.
What is the expected service life of the main drive motor under continuous operation?
Rated for 20,000 hours MTBF at 40°C ambient per IEC 60034-18-41, assuming proper cooling airflow and routine bearing lubrication every 2,000 operating hours.
Does Buehler provide validation documentation for IQ/OQ/PQ protocols?
Yes—factory-issued Installation Qualification (IQ) and Operational Qualification (OQ) packages are available; Performance Qualification (PQ) templates align with ASTM E2500-13 and are customizable per site-specific acceptance criteria.
