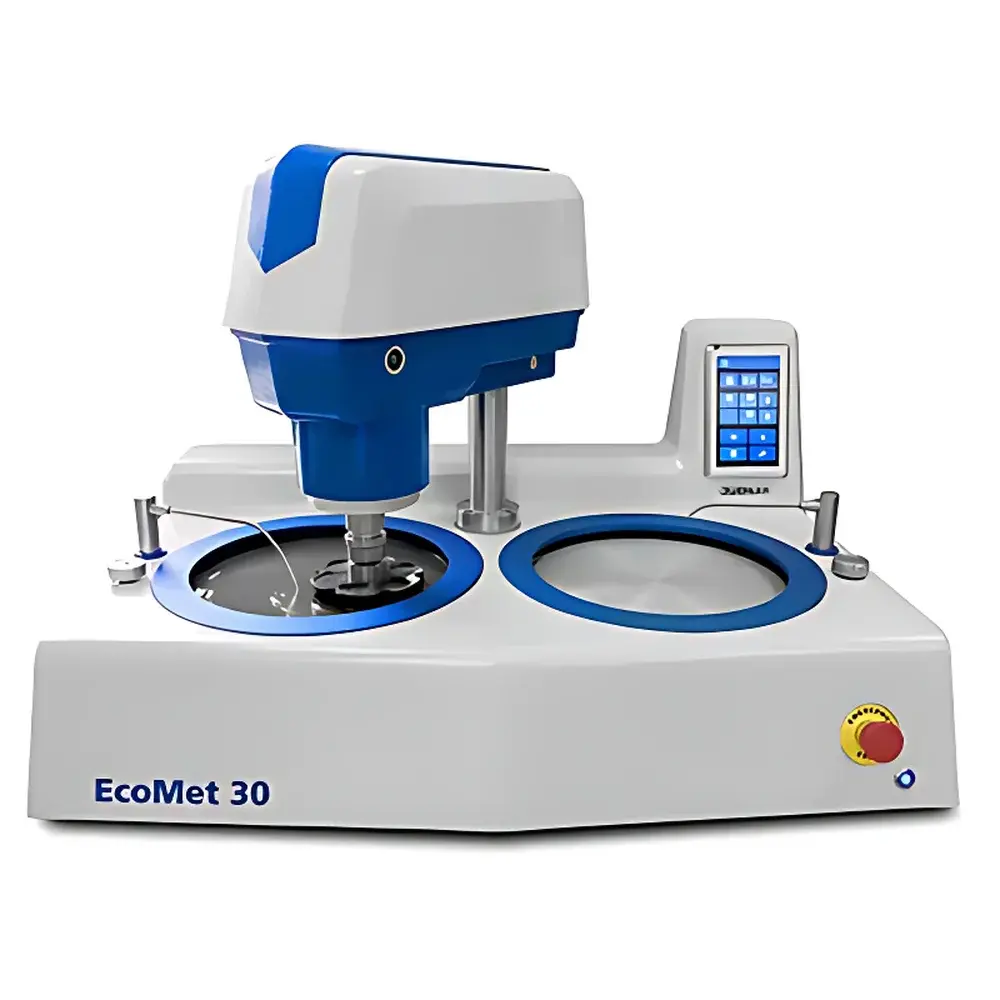

Buehler EcoMet 30 Manual and Automatic Grinder-Polisher
| Brand | Buehler |
|---|---|
| Origin | USA |
| Model | EcoMet 30 Manual/Auto Grinder-Polisher |

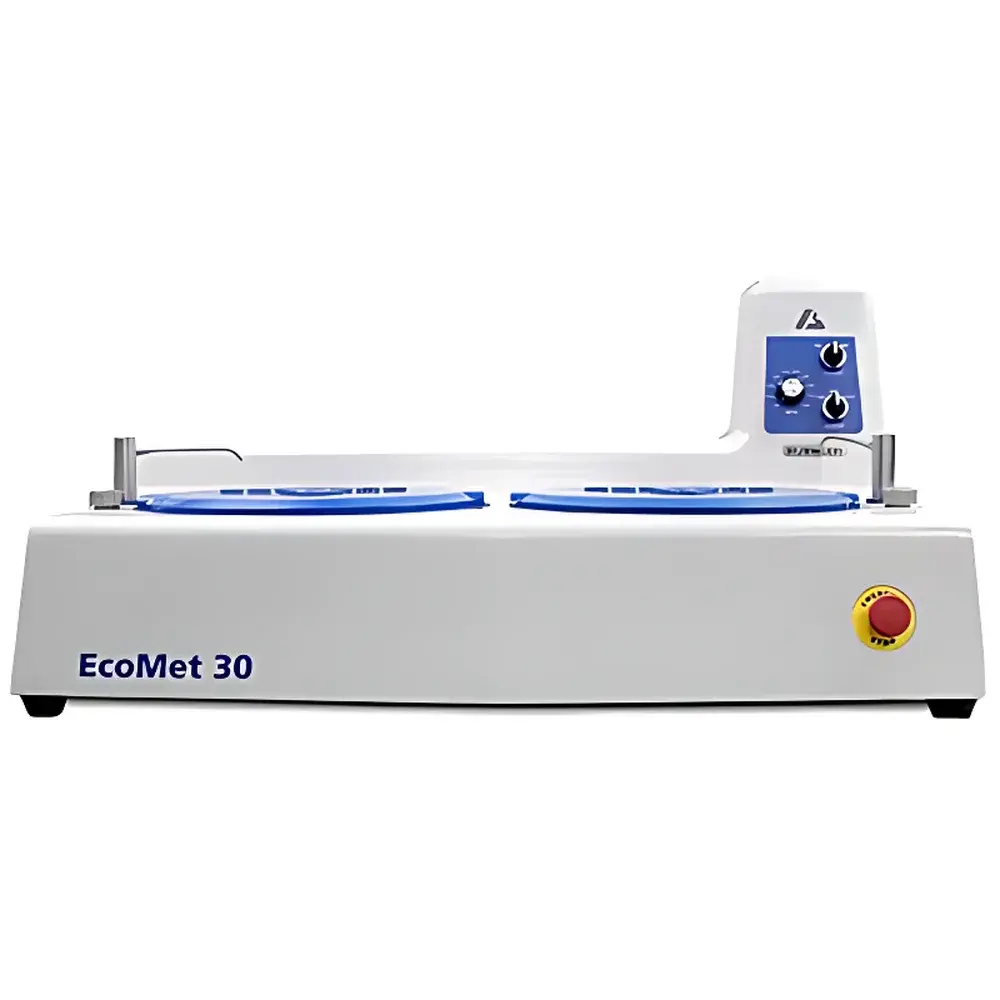

| Grinding/Polishing Discs | 1 or 2 |
| Disc Diameter | 8 in (203 mm), 10 in (254 mm), 12 in (305 mm) |
| Speed Range | 50–500 rpm (infinitely variable for manual |
| Power Supply | 100–240 VAC, 50/60 Hz, single-phase |
| Motor Power | 300 W (manual base), 440 W (auto base), 300 W (auto head) |
| Water Pressure | 40–116 psi (2.7–8 bar) |
| Center Load Force | 5–40 lbf (25–200 N) |
| Single-Point Load Force | 1–10 lbf (5–40 N) |
| Head Speed | 30–200 rpm (10 rpm increments) |
| Touchscreen | 7-inch full-color LCD (auto only) |
| Noise Level | ≤65 dB(A) at 500 rpm |
| Weight | 46 kg (single manual), 70 kg (dual manual), 75 kg (single auto), 105 kg (dual auto) |
| Compliance | CE |
Overview
The Buehler EcoMet 30 is a precision-engineered benchtop grinder-polisher system designed for reproducible, high-integrity sample preparation in metallurgical, geological, ceramic, and advanced materials laboratories. It operates on the fundamental principle of controlled mechanical abrasion—using rotational motion and calibrated normal force to progressively remove material via sequential grinding (silicon carbide or diamond-impregnated papers) and polishing (diamond suspensions or alumina slurries) stages. Unlike general-purpose grinders, the EcoMet 30 integrates metrologically traceable speed control, ergonomic load application, and modular disc compatibility to ensure consistent surface planarity, minimal subsurface deformation, and repeatable edge retention—critical prerequisites for optical microscopy, electron backscatter diffraction (EBSD), and scanning electron microscopy (SEM) analysis. Its dual configuration options—manual and automatic—enable labs to align equipment capability with throughput requirements, operator training level, and quality assurance rigor.
Key Features
- Modular disc platform supporting interchangeable 203 mm (8 in), 254 mm (10 in), and 305 mm (12 in) grinding/polishing discs—validated over 2,500 operational hours for dimensional stability and runout control.

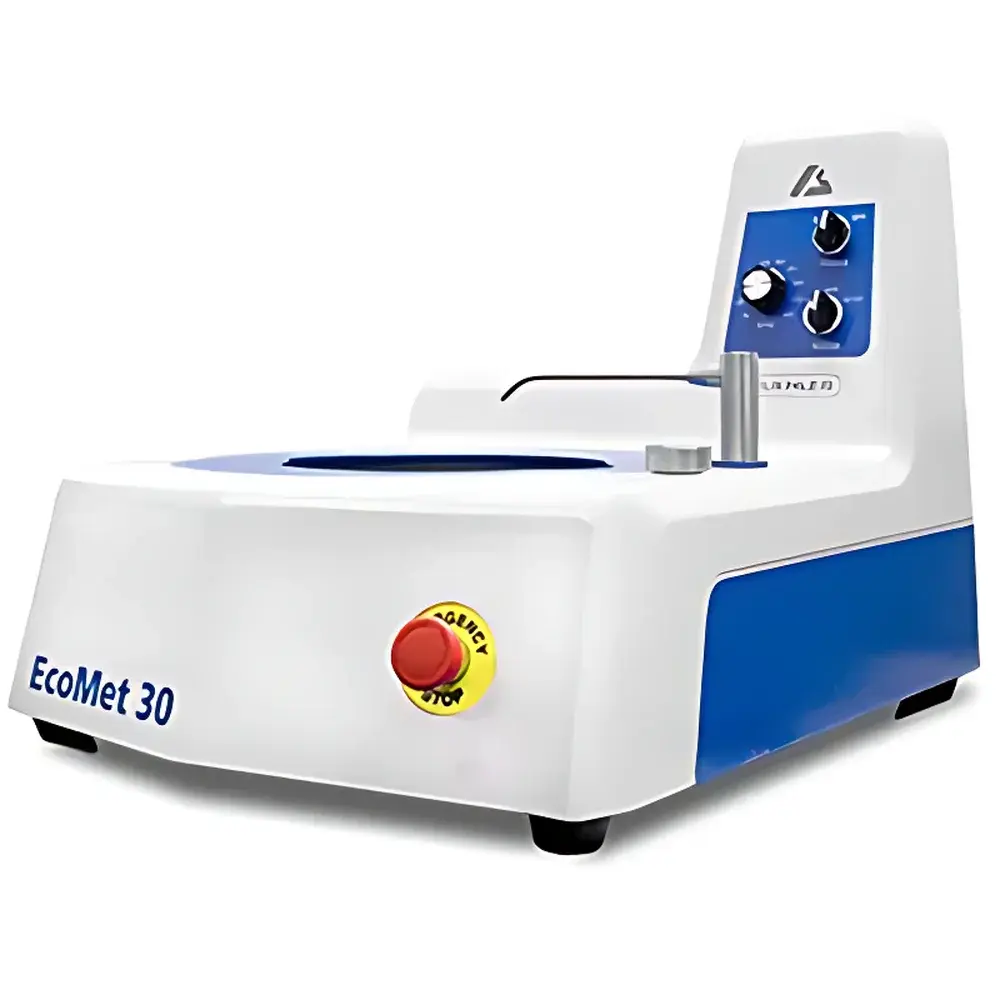

- Ergonomic manual operation: large flat splash guard for secure sample handling, height-adjusted disc plane aligned with natural wrist extension, and low-effort lever-based force application to reduce operator fatigue during extended sessions.

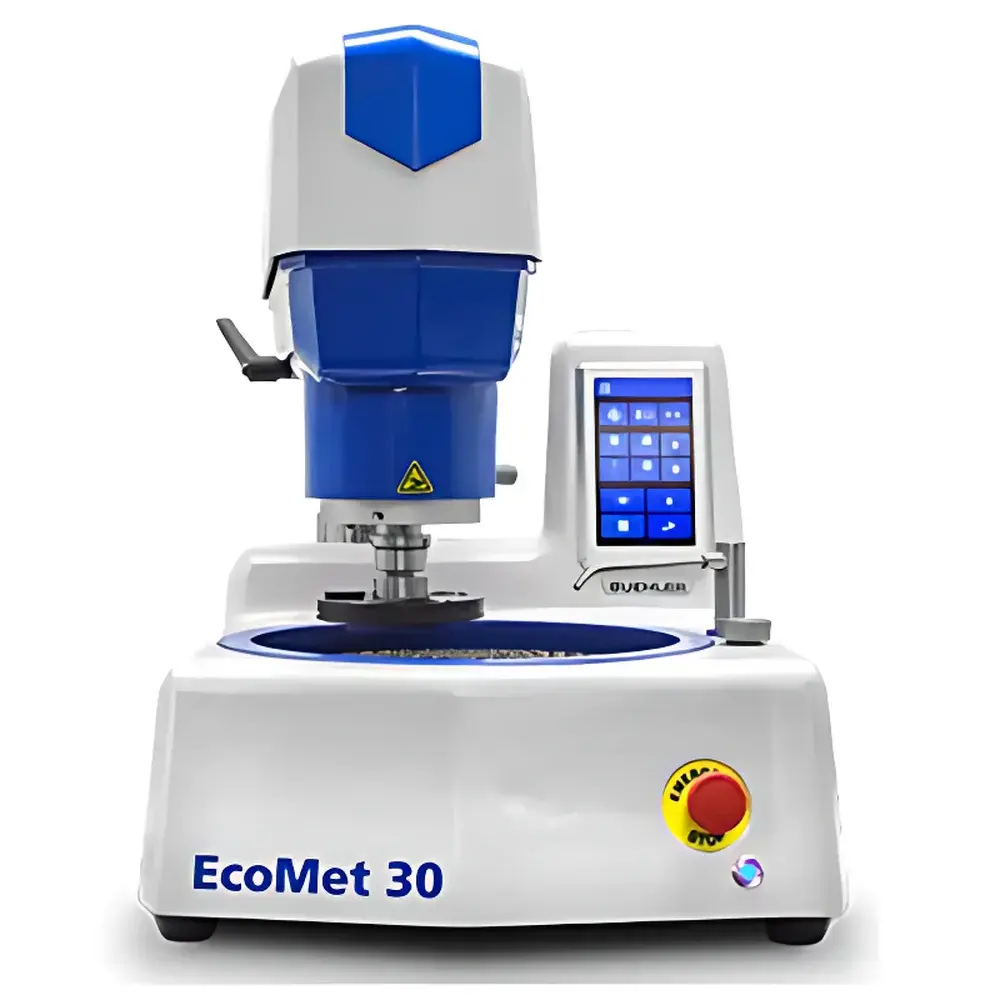

- Automated precision mode: 7-inch full-color touchscreen interface with intuitive menu navigation, real-time status feedback (speed, time, force, stage), and one-touch cleaning cycle—including programmable spin-dry function to minimize residual slurry carryover between steps.
- Direct drainage architecture with oversized outlet channels reduces abrasive debris accumulation by >70% compared to conventional gravity-drain systems, cutting post-run cleaning time by up to 40%.
- CNC-machined cast aluminum base and column deliver torsional rigidity under load, minimizing vibration-induced surface waviness and ensuring <±0.02 mm disc runout across all operating speeds.
- Tool-free disc mounting system enables rapid disc exchange and thorough cleaning—critical for eliminating cross-contamination between dissimilar alloys or sensitive electronic materials.
Sample Compatibility & Compliance
The EcoMet 30 accommodates standard metallographic specimen sizes (25 mm, 30 mm, and 40 mm diameter; 1 in, 1.25 in, and 1.5 in) in both center-force and single-point loading configurations. Its force control range (5–40 lbf center load; 1–10 lbf single-point) supports soft metals (e.g., aluminum, copper), hardened steels (HRC 60+), brittle ceramics (SiC, Al₂O₃), and composite laminates without edge rounding or pull-out artifacts. All electrical subsystems comply with CE marking requirements per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). The automatic model’s firmware implements audit-trail logging in accordance with GLP principles, recording user ID, timestamp, process parameters, and error flags—supporting regulatory readiness for ISO/IEC 17025-accredited labs and FDA-regulated R&D environments.
Software & Data Management
The EcoMet 30 Auto variant features embedded firmware with non-volatile parameter storage for up to 99 customizable grinding/polishing protocols. Each protocol stores disc type, speed, dwell time, coolant flow trigger points, and force profile—enabling strict SOP adherence across shifts and operators. Process logs are exportable via USB to CSV format for integration into LIMS or statistical process control (SPC) platforms. While no cloud connectivity is included, the system supports local network printing and optional RS-232 output for legacy lab automation interfaces. All touchscreen interactions meet IEC 61000-4-2 (ESD) immunity standards, ensuring reliability in electrostatic-sensitive cleanroom settings.
Applications
- Metallurgical lab routine: ASTM E3-22 compliant preparation of ferrous/non-ferrous alloys for grain size analysis (ASTM E112), inclusion rating (ASTM E45), and phase quantification (ISO 643).
- Failure analysis: Artifact-free sectioning of fracture surfaces, solder joints, and thermal barrier coatings for SEM-EDS elemental mapping.
- Geological thin-section production: Controlled thinning of silicate and carbonate rock samples to ≤30 µm thickness while preserving mineral cleavage integrity.
- Quality control in additive manufacturing: Surface conditioning of Ti-6Al-4V and Inconel 718 builds prior to porosity assessment per ASTM F3049.
- Academic research: Reproducible specimen prep for nanoindentation calibration, where surface roughness Ra must remain <10 nm after final polishing.
FAQ
What disc sizes are supported, and can they be interchanged without tools?
Yes—the EcoMet 30 accepts 203 mm, 254 mm, and 305 mm discs. The quick-release clamping mechanism allows tool-free disc changes in under 15 seconds.
Does the manual version support programmable force application?
No—force is applied manually via ergonomic levers. For repeatable load control, the automatic model is required, offering digital setpoints from 5–40 lbf (center) or 1–10 lbf (single-point).
Is the EcoMet 30 compatible with third-party consumables?
Yes—it accepts industry-standard 203–305 mm grinding papers, polishing cloths, and diamond suspensions from all major suppliers (e.g., Struers, Leco, Allied High Tech).
Can the system be integrated into a laboratory information management system (LIMS)?
Protocol data and process logs are exportable via USB; direct LIMS API integration is not supported but may be implemented via custom serial scripting using the RS-232 port.
What maintenance intervals are recommended for optimal performance?
Daily: rinse water lines and inspect disc mounting surfaces. Quarterly: verify motor brush wear (manual), calibrate load sensors (auto), and replace coolant filters. Annual: full bearing inspection and torque verification of structural fasteners.
