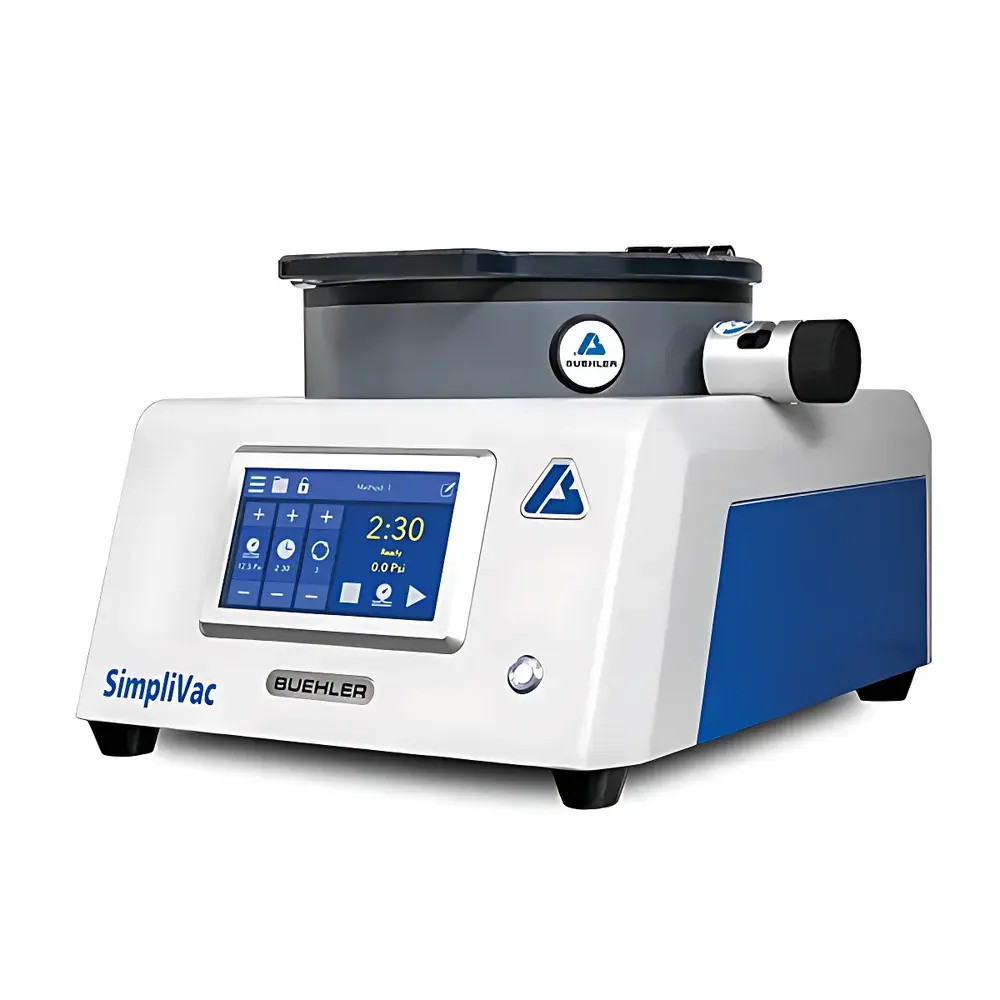

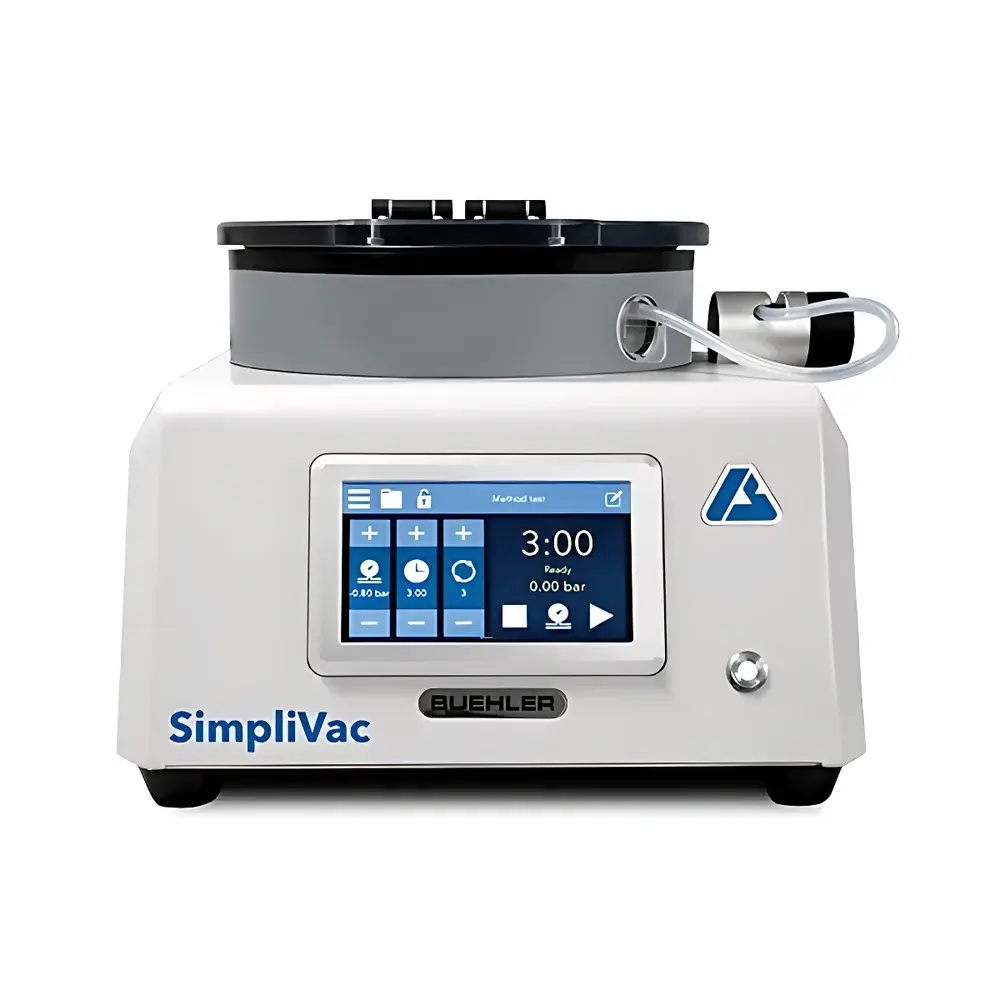

Buehler SimpliVac Vacuum Mounting Press

Overview

The Buehler SimpliVac Vacuum Mounting Press is an engineered cold-mount solution designed for high-fidelity specimen encapsulation under controlled vacuum conditions. It operates on the principle of vacuum-assisted impregnation—removing entrapped air from porous or fragile samples prior to resin infiltration—thereby ensuring complete pore filling, minimal void formation, and superior edge retention. Unlike conventional hot-press mounting systems, the SimpliVac eliminates thermal stress, making it ideal for heat-sensitive materials such as electronic components, thermal spray coatings, composites, sintered metals, ceramics, geological specimens, and additive-manufactured parts. Its architecture supports reproducible, operator-independent preparation workflows aligned with ASTM E3, ISO 14577, and ISO 643 standards for metallographic sample preparation. The system integrates vacuum generation, compressed-air-assisted resin flow control, and programmable multi-cycle evacuation—all within a compact, benchtop footprint.

Key Features

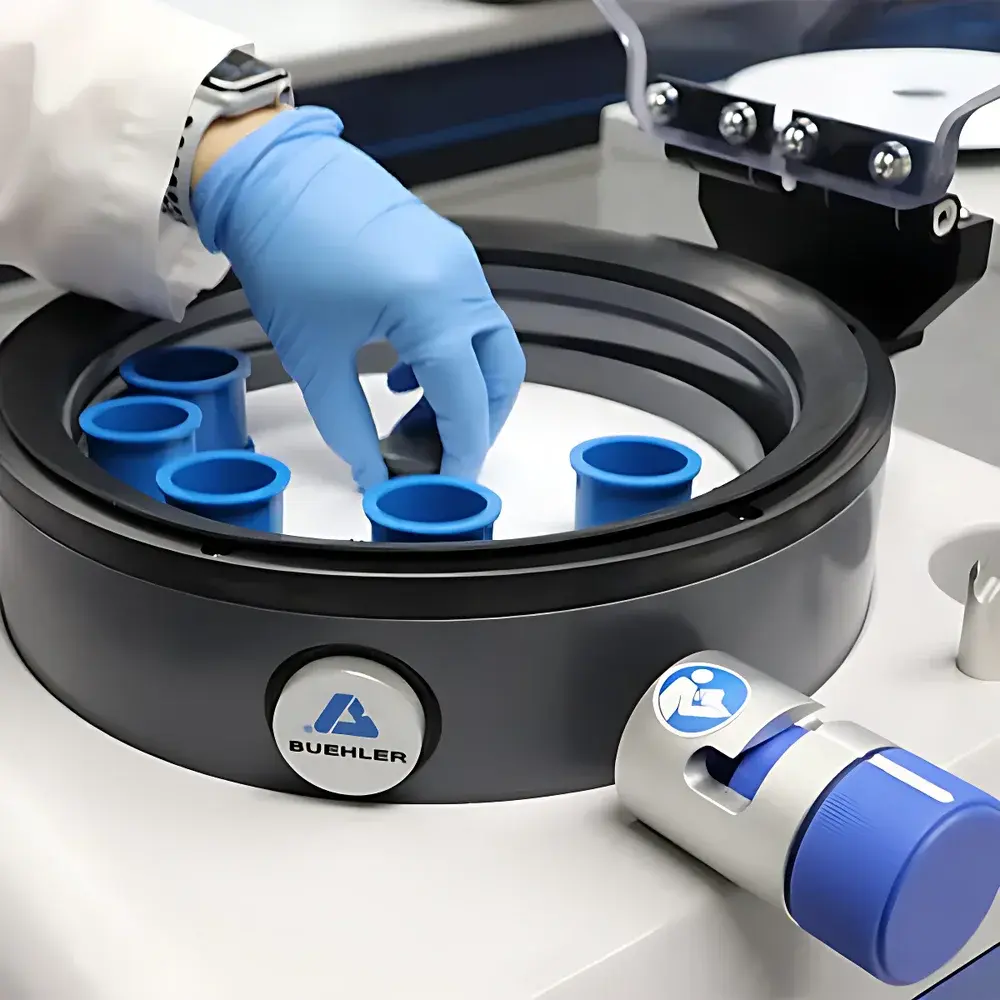

• Vacuum chamber with 240 mm internal diameter and transparent polycarbonate lid for real-time visual monitoring of resin fill dynamics and bubble removal.
• Multi-cycle automated vacuum sequence (up to 9 programmable cycles) with adjustable dwell time per cycle, enabling deep penetration into micro-porosity of castings, powder metallurgy parts, and fiber-reinforced composites.
• Precision-engineered Teflon-coated vacuum chamber interior and replaceable silicone liner for rapid resin cleanup and long-term contamination control.
• Patented non-slip handwheel mechanism that decouples manual rotation speed from mold cup motion—preventing resin spillage during rapid manual adjustment.
• Oil-free, maintenance-free vacuum seal design with lifetime gasket integrity; no grease application required for sealing performance over extended service life.

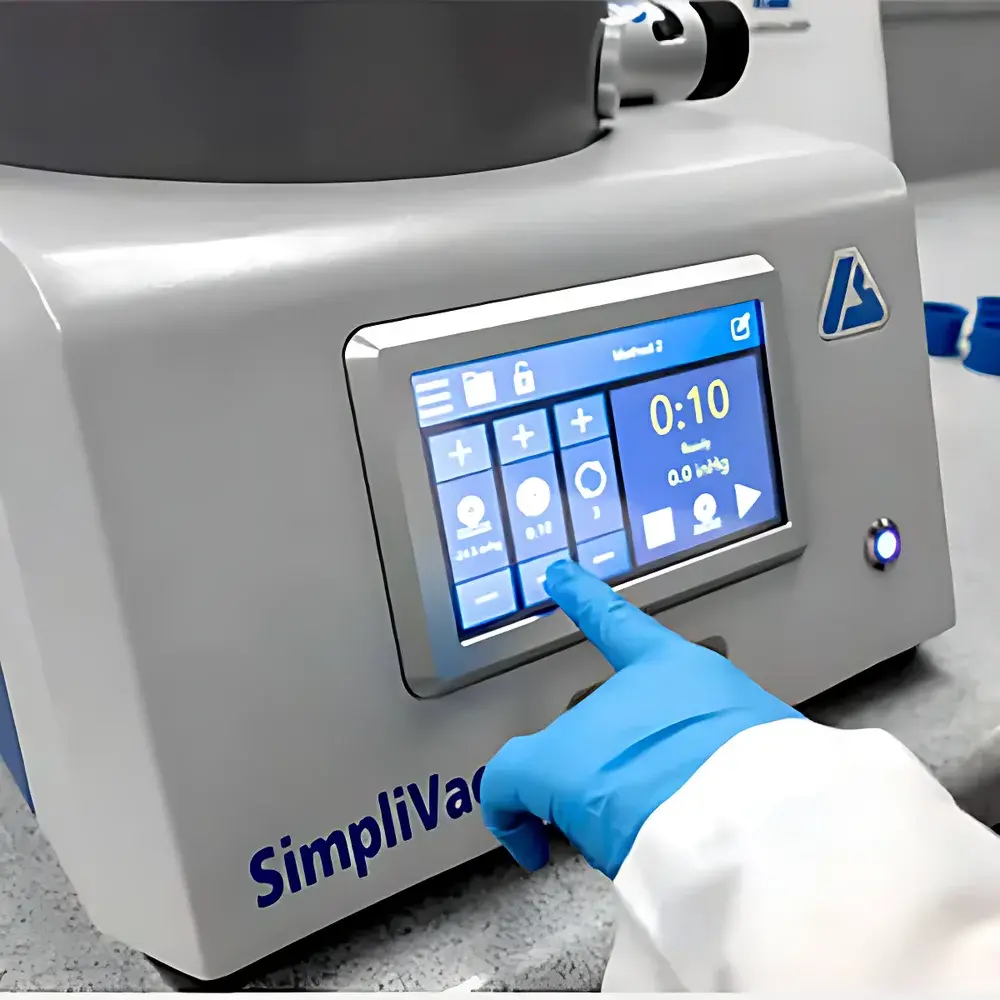

• Intuitive 7-inch capacitive touchscreen interface displaying real-time vacuum pressure (kPa/inHg), elapsed time, remaining cycle count, and setpoint parameters.
• Variable-speed resin dispensing control via ergonomic rotary knob—enabling fine-tuned flow rate modulation for low-viscosity epoxies or high-fill-content resins.

Sample Compatibility & Compliance

The SimpliVac accommodates a broad spectrum of challenging specimen geometries and material classes, including but not limited to: porous aluminum and magnesium die-castings, tungsten carbide inserts, PCB cross-sections, turbine blade thermal barrier coatings, shale and ore thin sections, and biomedical polymer scaffolds. Its cold-mount capability ensures dimensional stability and avoids phase transformation artifacts common in thermosetting processes. All operational parameters—including vacuum hold duration, cycle repetition, and pressure ramp profiles—are fully configurable and logged with timestamped metadata, supporting GLP/GMP traceability requirements. The system complies with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and its electrical safety conforms to UL 61010-1 and CE EN 61010-1. For regulated environments, optional audit trail logging and user access controls align with FDA 21 CFR Part 11 readiness when integrated with Buehler’s MetaLab™ software suite.

Software & Data Management

While the SimpliVac operates as a standalone instrument, its embedded firmware supports USB export of cycle logs (CSV format), including vacuum decay curves, cycle timestamps, and final pressure values. When paired with Buehler’s MetaLab™ Lab Management Software (v5.2+), users gain centralized protocol management, digital SOP enforcement, instrument usage tracking, and integration with LIMS platforms via HL7 or RESTful API. Audit trails capture operator ID, parameter changes, and execution status—fully compliant with ISO/IEC 17025 documentation requirements for accredited testing laboratories. No proprietary drivers or cloud dependencies are required; all data remains on-premise unless explicitly configured for network upload.

Applications

• Quality assurance of aerospace thermal barrier coatings (TBCs) and bond coats—ensuring void-free cross-sectional analysis for porosity quantification per ASTM E2109.
• Routine metallography in foundry labs processing sintered iron or bronze bearings where interconnectivity of pores must be preserved for image analysis.
• Failure analysis of multilayer ceramic capacitors (MLCCs) and semiconductor packages requiring crack-free, resin-filled interfaces for SEM-EDS inspection.
• Geological thin-section preparation for petrographic microscopy, particularly in vesicular basalts or carbonate reservoir rocks where gas entrapment compromises polishing integrity.
• Research-grade embedding of biodegradable polymer scaffolds for histomorphometric evaluation without thermal degradation of collagenous matrix.

FAQ

What types of resins are compatible with the SimpliVac?
Standard epoxy, acrylic, and phenolic cold-mount resins—both fast-cure and slow-cure formulations—are supported. Viscosity range: 200–1500 mPa·s at 25°C. Resin compatibility data sheets are available upon request.
Can the SimpliVac handle large-diameter specimens?
Yes. With a 240 mm vacuum chamber and modular mold support platform, specimens up to 75 mm in diameter can be mounted using custom-sized molds. Standard capacity is 14 × 30 mm molds per cycle.
Is compressed air mandatory for operation?
Yes. Compressed air ≥0.6 MPa is required to drive the pneumatic resin delivery actuator and ensure consistent, controllable flow during vacuum release phases.
Does the SimpliVac require routine calibration?
No. The vacuum sensor is factory-calibrated and sealed; periodic verification against a NIST-traceable reference gauge is recommended annually per ISO/IEC 17025 quality management protocols.
How is maintenance performed on the vacuum pump?
The SimpliVac uses a maintenance-free diaphragm vacuum pump with no oil or filter replacements needed. Pump lifetime exceeds 10,000 operating hours under normal laboratory use.
