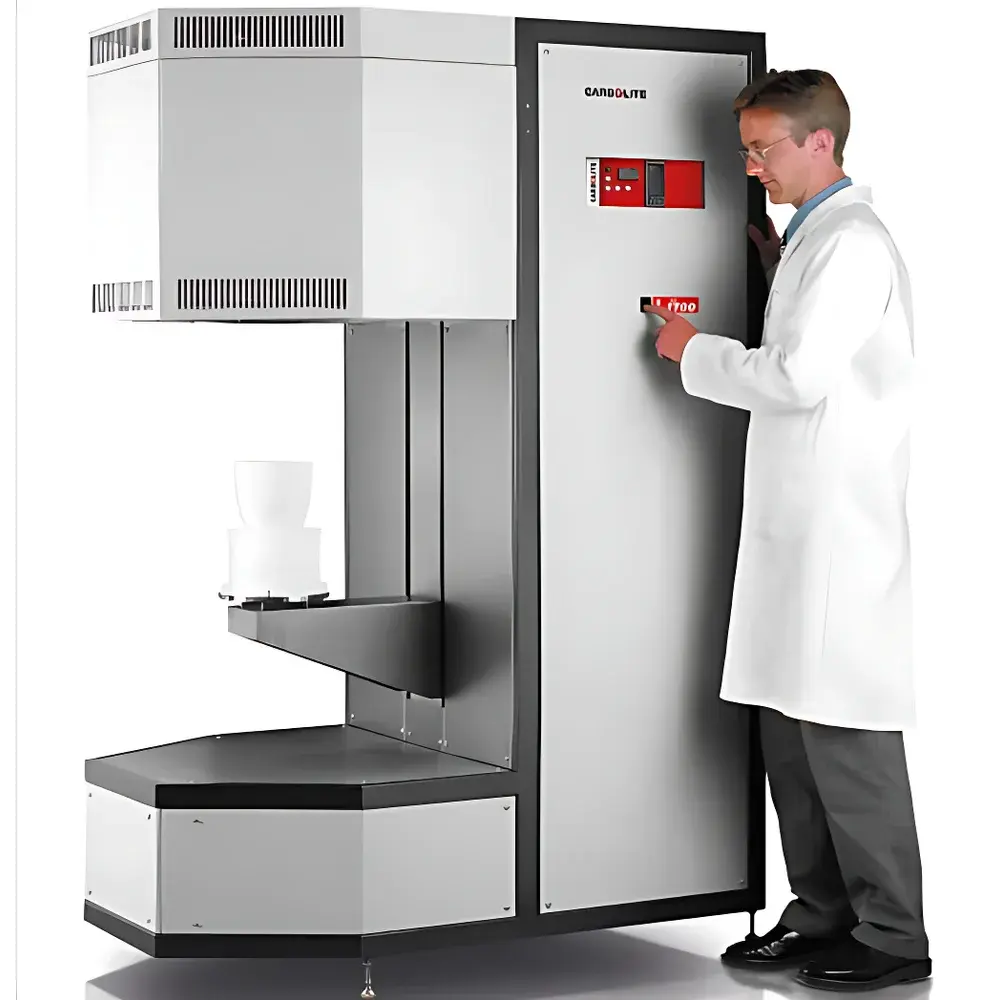

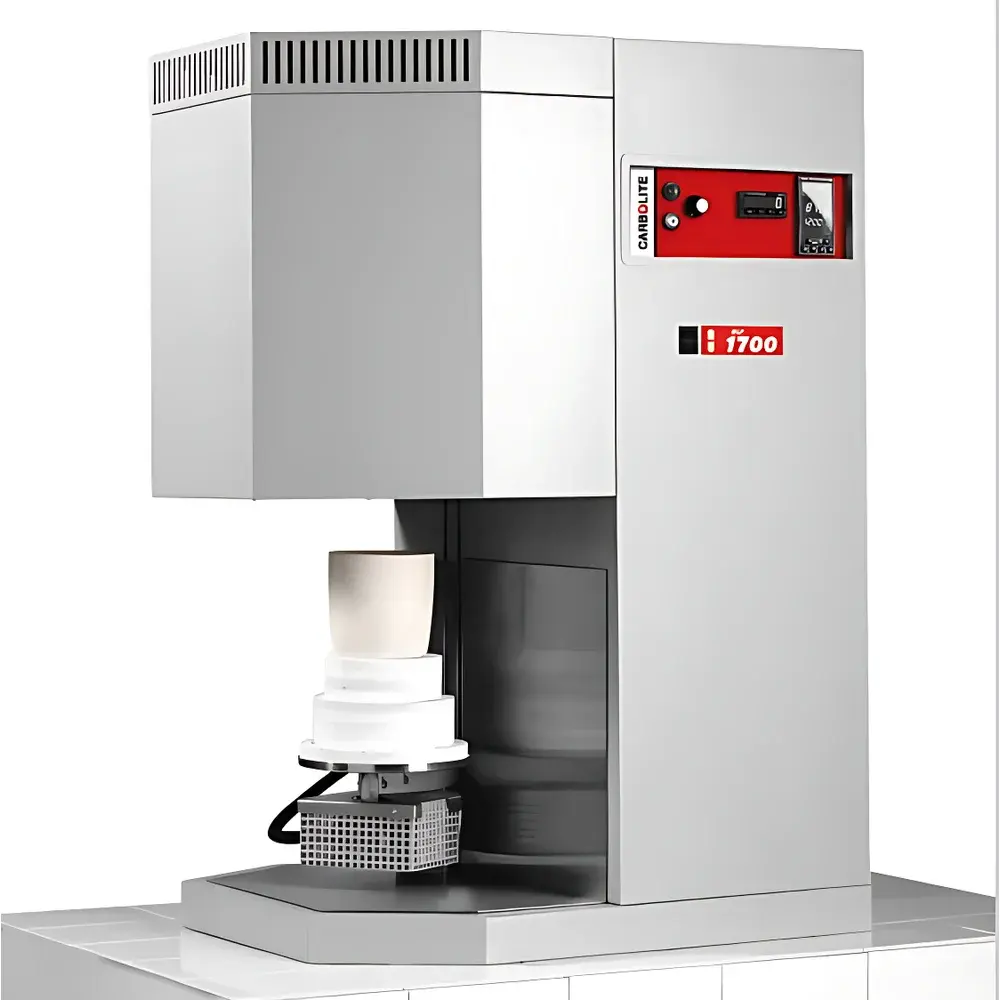

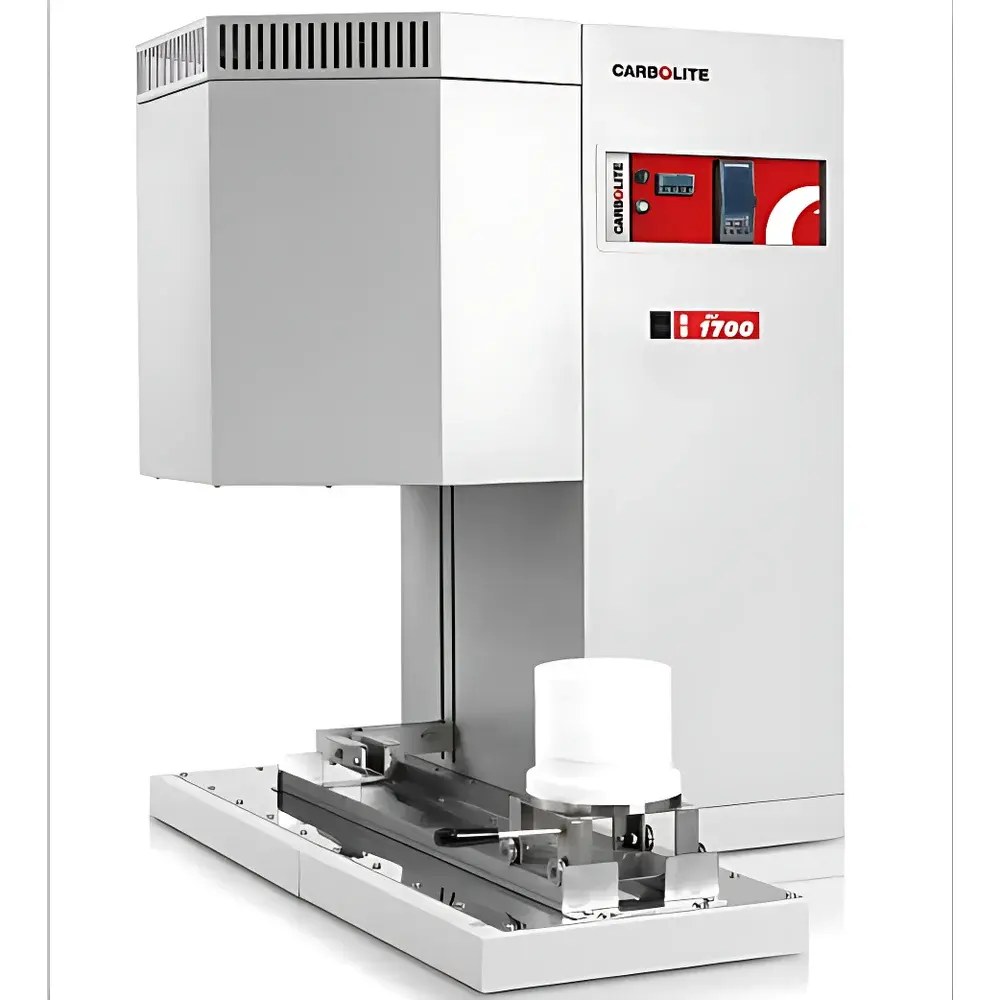

Carbolite Gero BLF 17/3/3508P1 Bottom-Loading Muffle Furnace

Overview

The Carbolite Gero BLF 17/3/3508P1 is a high-temperature bottom-loading muffle furnace engineered for demanding thermal processing applications requiring rapid sample insertion, controlled cooling cycles, and exceptional thermal stability. Designed around a vertically actuated furnace chamber, this unit eliminates manual handling of hot crucibles or substrates—reducing operator exposure, minimizing thermal shock to samples, and enabling reproducible thermal cycling protocols. Its core architecture integrates MoSi₂ heating elements operating up to 1800 °C in air, with a robust ceramic fiber insulation system ensuring low external surface temperature and high energy efficiency. The furnace complies with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and its structural design meets ISO 13857 safety clearance requirements for hot surfaces. It is routinely deployed in advanced materials development labs, national metrology institutes, and ceramic R&D facilities where precise thermal history control is critical for sintering, phase transformation studies, ashing, and high-temperature annealing.

Key Features

• Motorized bottom-lift furnace chamber with programmable descent/ascent speed and positional memory—enabling hands-free, repeatable loading/unloading under inert or oxidizing atmospheres
• High-purity alumina-silica ceramic fiber chamber with optimized thermal mass distribution for uniform axial and radial temperature profiles (±3 °C at 1700 °C per ASTM C1032)
• MoSi₂ heating elements mounted in dual-zone configuration for independent power modulation and enhanced thermal gradient control
• 3216P1 digital controller featuring 8-segment ramp-soak programming, real-time process logging, and configurable alarm thresholds (over-temperature, thermocouple break, power failure)
• Dual-stage over-temperature protection: primary via independent K-type thermocouple + secondary mechanical limit switch (UL/CSA certified)
• Integrated cold-wall design with forced-air cooling jacket for accelerated cooldown between cycles without compromising chamber integrity

Sample Compatibility & Compliance

The BLF 17/3/3508P1 accommodates standard high-purity alumina, zirconia, and graphite crucibles (diameters up to 140 mm). Its open-bottom geometry supports direct placement onto custom fixtures or rotary stages. Optional bottom gas inlet ports allow controlled introduction of N₂, Ar, H₂/N₂ mixtures, or synthetic air—facilitating reducing, inert, or oxidizing sintering environments per ISO 2738 and ASTM C1161. The furnace is compatible with Type S, R, or B thermocouples for high-temperature validation and meets GLP documentation requirements when paired with optional audit-trail-enabled data acquisition modules. All electrical interfaces conform to IEC 61000-4-5 surge immunity standards, and the enclosure satisfies IP20 rating per IEC 60529 for indoor laboratory use.

Software & Data Management

The 3216P1 controller supports RS232 and RS485 serial communication (Modbus RTU protocol) for integration into centralized lab automation systems. Optional Carbolite Gero DataLogger Pro software enables time-stamped CSV export of setpoint, actual temperature, power output, and alarm events—with timestamp resolution of 1 s. When configured with Ethernet gateway modules, the furnace supports OPC UA server functionality for seamless connection to MES platforms such as Siemens SIMATIC IT or Rockwell FactoryTalk. All data logs include electronic signatures compliant with FDA 21 CFR Part 11 when used with validated user access controls and audit trail activation.

Applications

• Ceramic powder sintering and densification studies (e.g., Si₃N₄, Al₂O₃, YSZ) under controlled dwell times and cooling rates
• High-temperature glass homogenization and fiber drawing pre-form annealing
• Thermal gravimetric analysis (TGA) sample conditioning and residue quantification
• Calibration of high-temperature reference materials (e.g., Pt–Rh thermocouples, fixed-point cells)
• Pre-oxidation treatment of refractory metal components prior to HIP or vacuum brazing
• Research-scale synthesis of MAX phases and ultra-high-temperature ceramics (UHTCs)

FAQ

What atmosphere options are supported without modification?
Air operation is standard; inert (N₂, Ar) and reducing (5% H₂/95% N₂) atmospheres are supported using optional bottom gas inlets and sealed door gaskets.
Can the furnace be integrated into a Class 100 cleanroom environment?
Yes—when equipped with HEPA-filtered purge gas supply and stainless-steel exterior cladding (optional), it meets ISO 14644-1 Class 5 particulate limits during static operation.
Is third-party calibration traceable to NIST or UKAS available?
Carbolite Gero provides UKAS-accredited calibration certificates (ISO/IEC 17025) upon request, covering temperature uniformity mapping and controller accuracy verification across the full 100–1800 °C range.
Does the motorized lift mechanism support programmable dwell positions?
Yes—the lift controller stores up to 16 user-defined vertical positions with repeatability of ±0.5 mm, enabling semi-automated multi-step thermal treatments.
What maintenance intervals are recommended for MoSi₂ elements?
Under continuous operation at ≤1700 °C in air, MoSi₂ elements typically exceed 2,000 hours service life; biannual visual inspection and resistance measurement are advised per Carbolite Gero Maintenance Protocol MP-BLF-03.
