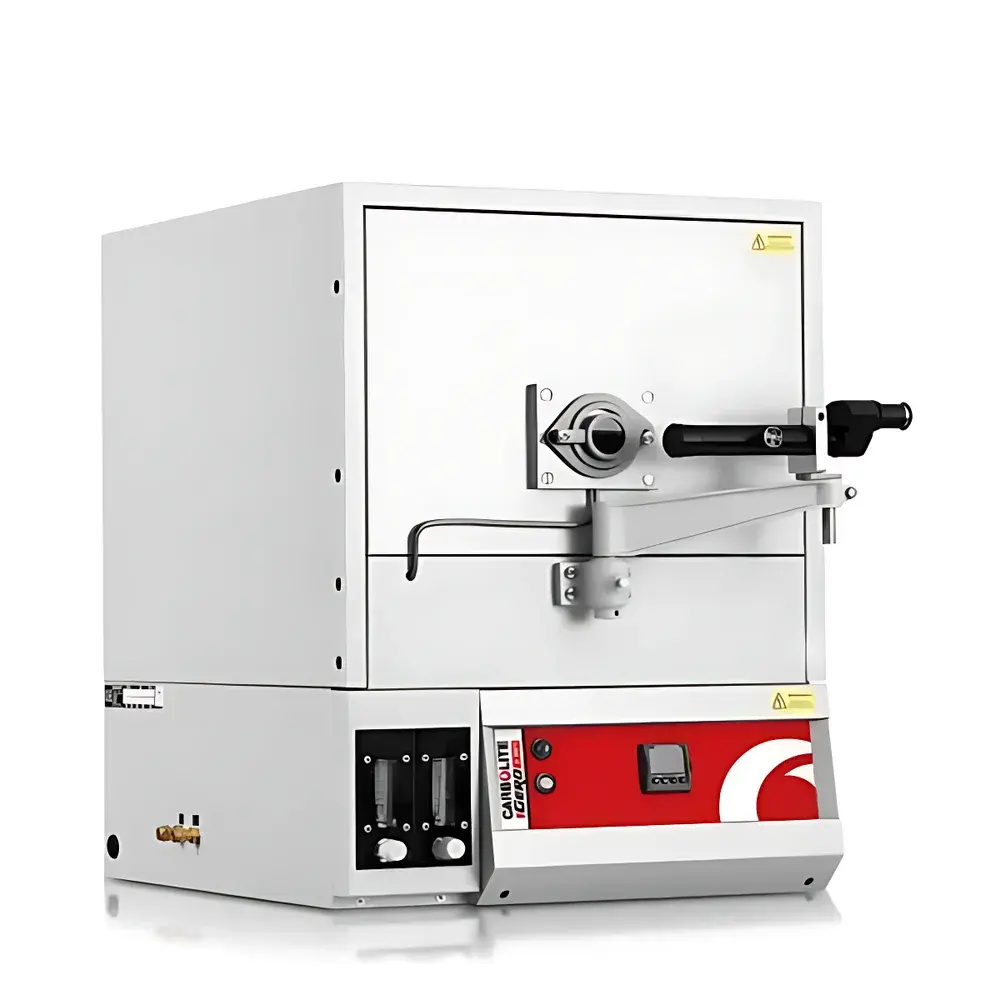

Carbolite Gero CAF 16/38 Coal Ash Fusibility Tester

Overview

The Carbolite Gero CAF 16/38 is a purpose-engineered high-temperature muffle furnace designed exclusively for the standardized determination of coal ash fusibility characteristics. It operates on the principle of controlled thermal ramping under precisely regulated atmospheric conditions—reducing (50% H₂ / 50% CO₂), oxidizing (CO₂), or inert flushing (CO₂)—to replicate the thermochemical environment encountered in coal-fired boilers and gasifiers. The system enables observation and recording of four critical transition temperatures: initial deformation (IDT), softening (ST), hemispherical (HT), and fluid (FT), as defined in ISO 540:2008 and ASTM D1857-04. Its rigid refractory architecture, combined with a sealed quartz or ceramic working tube (38 mm internal diameter), ensures reproducible thermal profiles and atmospheric integrity throughout extended dwell periods at up to 1600 °C.

Key Features

• Single-sample configuration optimized for ISO 540-compliant ash cone testing, minimizing cross-contamination and thermal gradient variability.
• Robust Pt/Pt–13% Rh thermocouple integration for accurate temperature measurement and closed-loop control across the full 20–1600 °C range.
• Sliding-and-rotating door mechanism provides unobstructed access to the hot zone, facilitating safe and ergonomic loading/unloading of ash cones mounted on custom alumina support plates.
• Airtight working tube assembly compatible with reactive and flammable atmospheres, including H₂-rich reducing mixtures—engineered with dedicated gas inlet/outlet ports and pressure-relief provisions for safety-critical operation.
• User-definable heating ramps (up to 8 °C/min maximum recommended rate) with programmable soak segments, enabling precise replication of standard thermal protocols or custom test sequences.
• Integrated digital imaging interface (CAF DIGITAL option) supports time-synchronized image capture via external USB camera; metadata-tagged frames are timestamped and stored for post-test analysis and audit-ready documentation.

Sample Compatibility & Compliance

The CAF 16/38 accommodates standard ISO 540 ash cones (typically 7–8 mm tall, pyramidal geometry, pressed from dried ash mixed with binder) mounted on high-purity alumina sample holders. Its design conforms to the mechanical, thermal, and atmospheric requirements of ISO 540:2008 (identical to BS ISO 540:2008) and ASTM D1857-04. All critical operational parameters—including atmosphere composition, flow rate stability, temperature uniformity across the cone base, and optical observation geometry—are validated against these standards. The furnace’s construction materials and gas-handling components meet EN 61000-6-3 (EMC) and EN 61000-6-4 emission limits, and its electrical safety complies with IEC 61010-1 for laboratory equipment.

Software & Data Management

While the base CAF 16/38 operates via front-panel programming, the optional CAF DIGITAL software package (Windows-based) extends functionality to automated image acquisition, real-time temperature overlay, and synchronized event logging. Each captured frame is embedded with calibrated temperature data, elapsed time, and user-defined test identifiers. Export formats include TIFF (lossless), JPEG (compressed), and CSV (metadata summary), supporting traceability in GLP and GMP environments. Audit trails record operator login, parameter changes, and image annotation history—aligned with FDA 21 CFR Part 11 requirements when deployed with appropriate system validation and electronic signature controls.

Applications

• Determination of ash fusion temperatures (AFTs) for coal rank classification and boiler slagging/fouling risk assessment.
• Quality control of coal blends in power generation and coke production facilities.
• Research into ash behavior under varying redox conditions—e.g., evaluating impact of co-firing biomass or waste-derived fuels on ash melting behavior.
• Calibration and verification of alternative AFT measurement techniques, including hot-stage microscopy systems.
• Thermal stability screening of mineral-based industrial feedstocks where ash-forming impurities influence process performance.

FAQ

What standards does the CAF 16/38 comply with for ash fusibility testing?
It fully supports ISO 540:2008 and ASTM D1857-04, including prescribed atmosphere compositions, cone geometry specifications, observation criteria, and reporting conventions.
Can the CAF 16/38 operate continuously at 1600 °C?
Yes, but continuous operation at maximum temperature is limited by refractory service life; typical duty cycles involve ≤2-hour dwells followed by controlled cooling to extend heating element and tube longevity.
Is the CAF DIGITAL software included by default?
No—it is an optional add-on module requiring separate licensing and a compatible Windows PC with USB 3.0 port and minimum 4 GB RAM.
How is atmosphere purity maintained during reducing gas operation?
Gas lines are fitted with dual-stage stainless-steel regulators, inline particulate filters, and optional oxygen analyzers; leak-tested connections and positive-pressure purging ensure <100 ppm O₂ residual in the working tube.
What maintenance is required for long-term accuracy?
Annual calibration of the Pt/Pt–13% Rh thermocouple against a certified reference standard is recommended; periodic inspection of the working tube integrity and door gasket compression is essential for atmospheric consistency.
