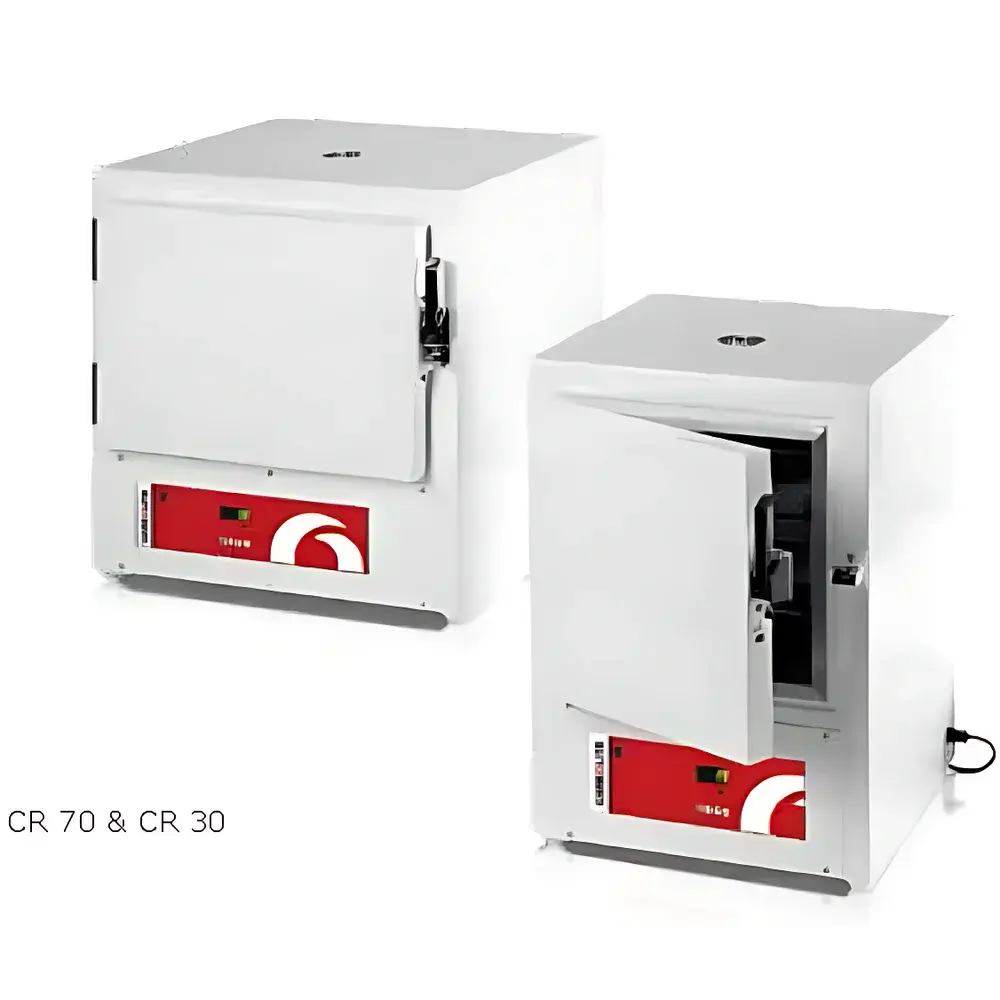

Carbolite Gero CR Cleanroom Drying Oven Series – 250 °C

Overview

The Carbolite Gero CR Cleanroom Drying Oven Series is an ISO 14644-1 Class 5 certified thermal processing system engineered for laboratories and manufacturing environments where particulate control, thermal stability, and material integrity are critical. Designed in accordance with cleanroom-grade engineering principles, the CR series employs a fully sealed chamber architecture to eliminate fiber shedding and airborne contamination during high-temperature drying, conditioning, or stabilization of sensitive samples—including pharmaceutical excipients, medical device components, semiconductor substrates, and analytical reference standards. Its operational principle relies on forced convection heating via a brushless, maintenance-free fan motor coupled with high-density, low-thermal-mass insulation—ensuring rapid temperature ramping, minimal overshoot, and exceptional spatial uniformity (±0.2 °C) across the entire working volume. Unlike conventional ovens, the CR series integrates structural and material-level contamination controls: electropolished stainless steel interior surfaces prevent microbial adhesion and facilitate validated cleaning protocols; the white epoxy-coated exterior minimizes flaking and electrostatic particle generation; and the gasketed door assembly features a compression-sealed silicone profile compliant with ISO 14644-1 Annex B requirements for seal integrity under static pressure differentials.

Key Features

• ISO 14644-1 Class 5 cleanroom-compliant construction—validated for continuous operation in controlled environments
• Stainless steel interior chamber (AISI 304) with seamless welds and radius corners for ease of cleaning and residue removal
• Low thermal mass insulation fully encapsulated to prevent fiber release—even at maximum operating temperature (250 °C)
• PID301 single-stage programmable controller with LED display, intuitive membrane keypad interface, and real-time temperature readout
• Brushless, totally enclosed fan motor eliminating brush dust and enabling long-term reliability without scheduled maintenance
• Particle-resistant silicone rubber door gasket with calibrated compression force to maintain laminar airflow integrity during door cycling
• Perforated stainless steel crucible support trays standard; optional stackable tray configurations available for high-throughput sample handling
• Integrated door interlock switch with thermal isolation design to prevent heat loss and ensure operator safety during access

Sample Compatibility & Compliance

The CR series supports a broad range of thermally stable materials requiring inert, low-particulate drying—including powders, granules, coated wafers, polymer films, ceramic precursors, and sterilized packaging components. It meets essential regulatory expectations for equipment used in GMP-compliant facilities: chamber surface finish complies with ASME BPE 2023 surface roughness specifications (Ra ≤ 0.8 µm); temperature mapping validation protocols align with ASTM E2297 and ISO/IEC 17025–accredited calibration practices; and documentation packages support IQ/OQ/PQ execution per FDA 21 CFR Part 211 and EU Annex 1 (2022 revision). While the base configuration does not include 21 CFR Part 11–compliant audit trail functionality, optional data logging modules with timestamped event records and electronic signature capability are available for full compliance in regulated QC/QA workflows.

Software & Data Management

The standard PID301 controller provides local setpoint programming and real-time monitoring but lacks network connectivity. For traceable process documentation, optional add-ons include multi-segment programmable controllers with RS232/RS485 serial interfaces or Ethernet-enabled data loggers supporting Modbus TCP/IP communication. These modules record temperature, elapsed time, alarm status, and user-initiated events at configurable intervals (1–60 s), exporting CSV-formatted datasets compatible with LIMS integration and statistical process control (SPC) platforms. All optional controllers feature password-protected parameter access, configurable alarm thresholds, and non-volatile memory retention for up to 30 days of continuous logging—even during power interruption.

Applications

• Pre-sterilization drying of surgical instruments and implantable device carriers in ISO Class 5 cleanrooms
• Moisture content determination per USP <921> and ASTM D2298 for pharmaceutical active ingredients
• Thermal conditioning of optical filters, MEMS sensors, and photolithographic masks prior to metrology
• Outgassing treatment of vacuum-compatible components used in semiconductor fabrication tools
• Accelerated aging studies of polymer-based medical packaging under controlled humidity and temperature profiles
• Residual solvent removal from battery electrode coatings in R&D-scale cathode/anode development

FAQ

Is the CR oven suitable for use in ISO Class 5 cleanrooms?
Yes—the CR series is designed and tested to meet ISO 14644-1 Class 5 performance criteria when installed with appropriate HVAC integration and maintained per Carbolite Gero’s recommended service schedule.
What is the maximum allowable load weight inside the chamber?
The standard perforated stainless steel trays support up to 15 kg distributed load per shelf; total chamber load capacity is limited by thermal recovery time and must be validated per application.
Can the oven be integrated into a central building management system (BMS)?
With the optional RS485 or Ethernet data logger module, the CR oven supports Modbus RTU/TCP protocol for bidirectional communication with SCADA or BMS platforms.
Does the CR series comply with IEC 61000-4 electromagnetic compatibility standards?
Yes—all CR models conform to IEC 61000-4-2 (ESD), -4-3 (radiated RF), and -4-4 (electrical fast transients) immunity requirements for laboratory environments.
Are calibration certificates provided with shipment?
A factory-issued temperature uniformity report (at 100 °C and 250 °C) is included; UKAS-accredited calibration certificates are available as a value-added service upon request.
