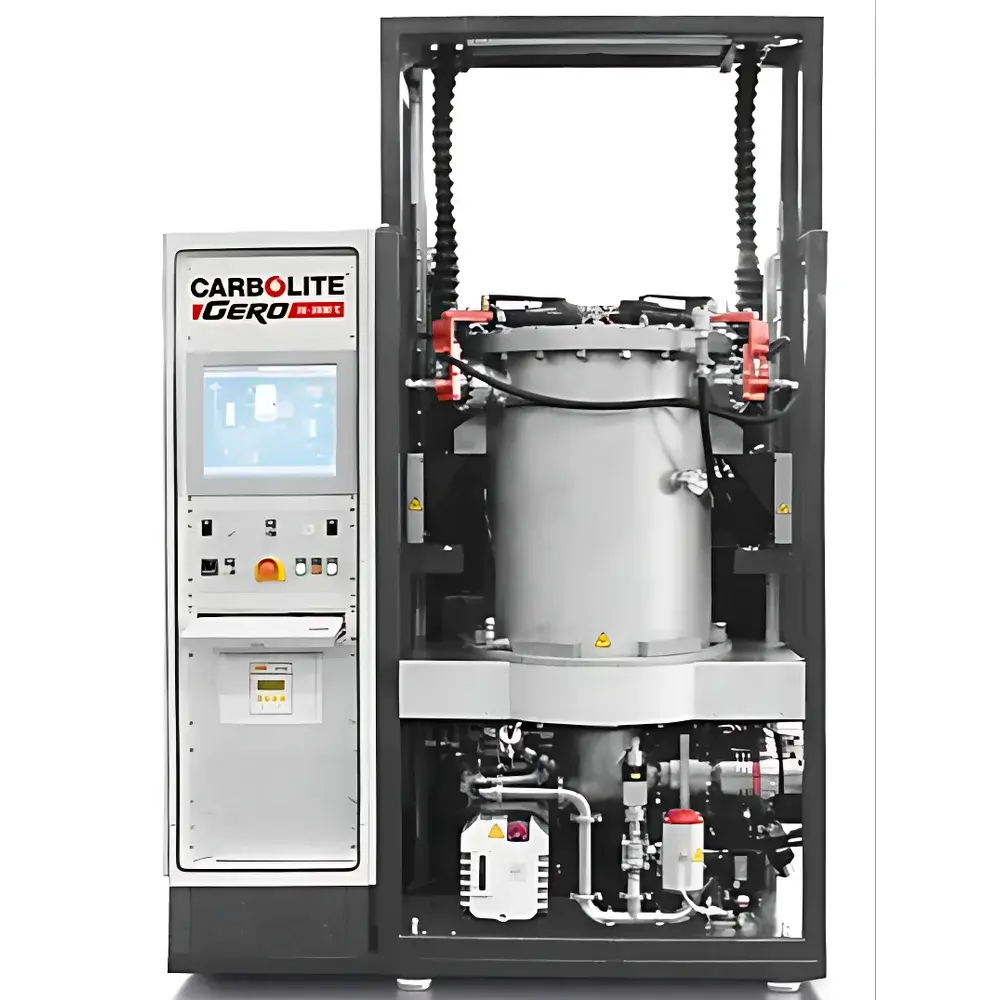

Carbolite Gero HBO High-Temperature Vacuum Furnace
| Brand | Carbolite Gero |
|---|---|
| Origin | Germany |
| Instrument Type | Horizontal Tube Furnace |
| Max Temperature | 2200 °C |
| Temperature Uniformity | ±5 °C |
| Heating Elements | Tungsten (W) and Molybdenum (Mo) |
| Vacuum Range | 10⁻⁶ to 1000 mbar |
| Power Rating | 2100 W |
| Ramp Time to Max Temp | ~60 min |
| Atmosphere Control | N₂, Ar, H₂, or custom gas mixtures (partial pressure control available) |
| Chamber Construction | All-metal hot zone with reflective metal radiation shields |
| Compliance | Designed for GLP/GMP environments |
Overview
The Carbolite Gero HBO is a high-temperature horizontal tube furnace engineered for demanding thermal processing under ultra-high vacuum and ultra-pure inert or reactive atmospheres. Its all-metal hot zone—comprising tungsten (W) and molybdenum (Mo) heating elements, multi-layer metal radiation shields, and water-cooled stainless-steel chamber—is specifically designed to eliminate outgassing, minimize contamination, and ensure long-term stability at temperatures up to 2200 °C. Unlike ceramic-insulated furnaces, the HBO’s metallic architecture avoids volatile species release, making it suitable for applications where sample purity, stoichiometric integrity, and surface cleanliness are critical—such as single-crystal growth, high-purity sintering, and hydrogen-compatible annealing. The furnace operates across a dynamic pressure range from 10⁻⁶ mbar (ultra-high vacuum) to 1000 mbar (overpressure), enabling precise control over both vacuum pumping profiles and partial pressures of reactive gases—including hydrogen—with integrated mass flow controllers and pressure-regulated gas inlets.
Key Features
- All-metal hot zone with W/Mo heating elements and multi-stage Mo foil radiation shielding for exceptional thermal efficiency and minimal contamination
- Water-cooled double-wall stainless-steel chamber with integrated vacuum flanges (CF or KF standard) and leak-tight sealing for UHV compatibility
- Precision temperature control with ±5 °C uniformity across the working zone, validated per ASTM E220 and ISO 9001 calibration protocols
- Programmable vacuum ramping and gas introduction sequences—enabling gentle evacuation for delicate powder samples and controlled repressurization
- Integrated hydrogen safety system including leak detection, purge interlocks, flame arrestors, and automatic emergency venting per EN 13445 and PED 2014/68/EU
- Full automation via Carbolite Gero’s proprietary C-GeroControl software with recipe-based operation, real-time parameter monitoring, and event-triggered actions
- Compliant data logging with timestamped records of temperature, pressure, gas flows, power draw, and alarm states—fully traceable and exportable for regulatory audits
Sample Compatibility & Compliance
The HBO accommodates cylindrical or crucible-loaded samples up to custom-defined dimensions (standard internal diameters range from Ø50 to Ø150 mm; lengths up to 600 mm). It supports refractory metals (e.g., Mo, Nb, Ta), ceramics (Al₂O₃, ZrO₂, SiC), semiconductor precursors, battery cathode materials, and oxygen-sensitive alloys without cross-contamination. The furnace meets ISO 10071 (vacuum practice), ASTM F2627 (hydrogen compatibility), and IEC 61000-6-4 (EMC). Its design enables seamless integration into ISO Class 5–7 cleanroom environments and complies with FDA 21 CFR Part 11 requirements for electronic records and signatures when paired with validated software configuration.
Software & Data Management
C-GeroControl provides intuitive graphical programming of multi-step thermal cycles—including vacuum hold, gas purging, partial pressure regulation, and cooling rate modulation. All operational parameters are logged at user-defined intervals (minimum 1 s resolution) with cryptographic hashing for data integrity. Audit trails include operator ID, session timestamps, parameter changes, and system alerts. Raw data exports to CSV, XML, or PDF formats support LIMS integration and automated report generation. Optional OPC UA connectivity allows interoperability with MES and SCADA platforms for Industry 4.0 process orchestration.
Applications
- High-temperature sintering of advanced ceramics and hardmetals under controlled oxygen partial pressure
- Hydrogen-assisted brazing and diffusion bonding of aerospace-grade superalloys
- Crystal growth (e.g., sapphire, silicon carbide) requiring ultra-low residual gas content
- Debinding and sintering in Metal Injection Molding (MIM) with staged atmosphere transitions
- Thermal treatment of Li-ion battery electrode materials under argon/hydrogen mixtures
- Outgassing and activation of ultra-high vacuum components prior to system installation
- Controlled pyrolysis and carbothermal reduction of precursor powders
FAQ
What vacuum level can the HBO achieve, and how is it measured?
The HBO achieves base pressures down to 10⁻⁶ mbar using turbomolecular pumping systems, verified by calibrated Bayard-Alpert or cold cathode gauges traceable to NIST standards.
Can the HBO be used for hydrogen annealing at elevated temperatures?
Yes—the furnace includes certified hydrogen-handling hardware, redundant safety circuits, and real-time H₂ concentration monitoring compliant with ATEX Directive 2014/34/EU.
Is the temperature uniformity validated across the entire hot zone?
Uniformity is characterized per ASTM E220 using a 5-point thermocouple mapping protocol at 1200 °C, 1600 °C, and 2200 °C; results are supplied with each unit’s factory acceptance test report.
Does the system support remote monitoring and control?
Standard Ethernet interface enables secure remote access via HTTPS, with role-based authentication and TLS 1.2 encryption for off-site supervision and troubleshooting.
How is maintenance and calibration documented for quality audits?
All service events—including heater resistance checks, vacuum gauge recalibration, and door seal inspection—are recorded in the embedded maintenance log with digital signatures and PDF certificate generation.
