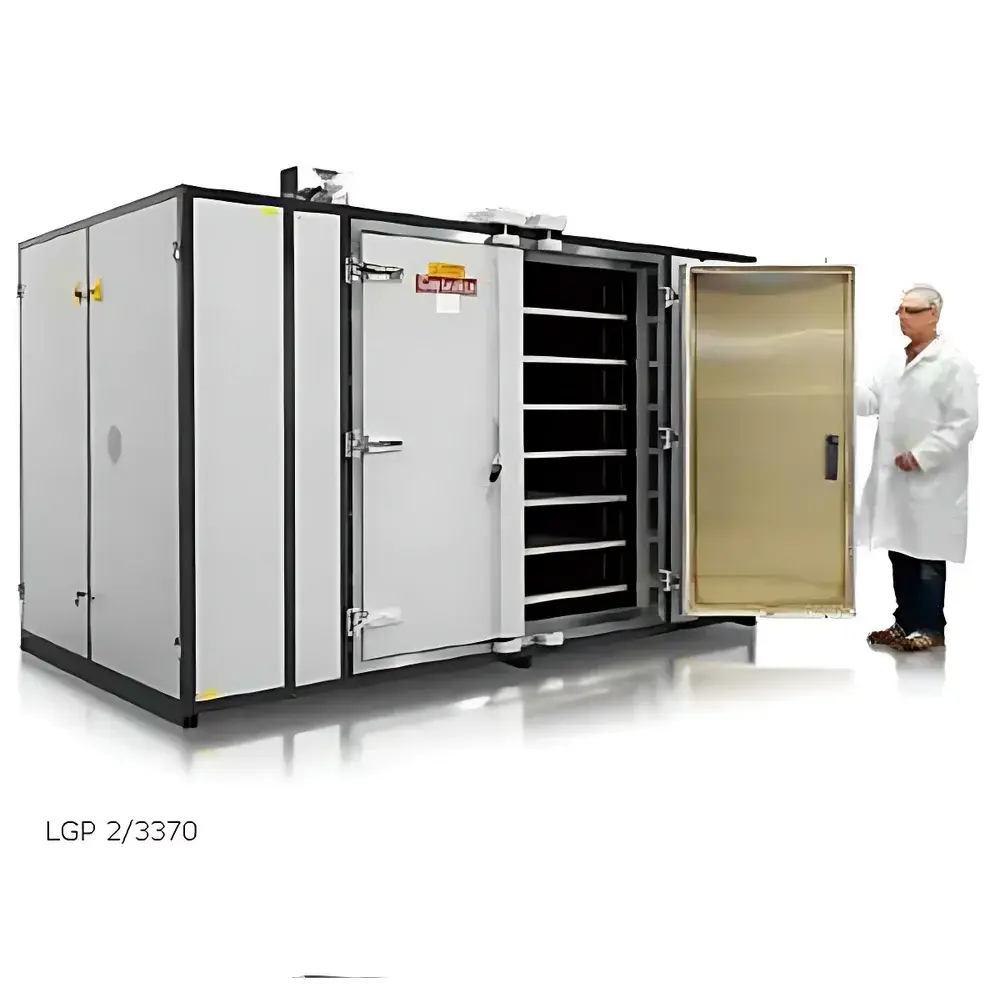

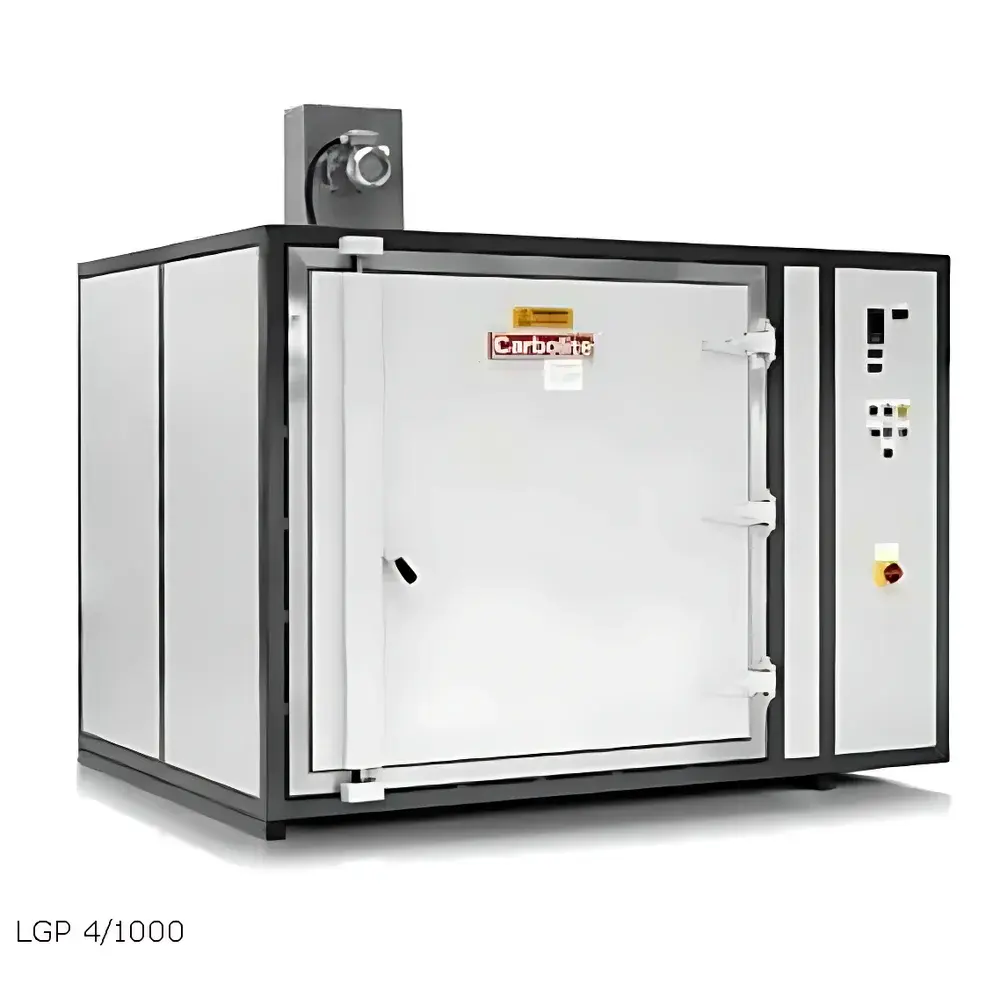

Carbolite Gero LGP Series Large-Volume High-Temperature Drying Oven

Overview

The Carbolite Gero LGP Series Large-Volume High-Temperature Drying Oven is an industrial-grade thermal processing system engineered for precision, repeatability, and long-term operational robustness in demanding laboratory and production environments. Designed around a forced-air convection architecture, the LGP oven ensures uniform heat distribution across its expansive 3370-liter working chamber—critical for applications requiring consistent thermal exposure of large or multiple samples. Its modular thermal design supports four distinct maximum operating temperatures (250°C, 425°C, 625°C, and 700°C), enabling adaptation to diverse thermal protocols including drying, curing, aging, stress-relieving, and pre-conditioning of materials. The oven’s structural integrity derives from a dual-layer enclosure: an inner chamber fabricated from corrosion-resistant ferritic stainless steel (EN 1.4016 / ASTM A240 Type 430), and an outer shell constructed from galvanized stainless steel sheeting—optimized for mechanical durability under high-cycle usage. Thermal insulation employs low-mass, high-efficiency ceramic fiber modules, minimizing energy consumption while maintaining rapid heat-up response and stable setpoint hold.

Key Features

• Forced-air circulation system with heavy-duty axial fan and adjustable airflow dampers for precise control of internal convection dynamics
• High-resolution 2216 digital PID controller with real-time temperature display, programmable ramp/soak profiles, and user-configurable alarm thresholds
• Chamber volume of 3370 L (1500 × 1500 × 1500 mm internal dimensions), accommodating oversized components, multi-tier sample racks, or batched crucible loads
• ±0.5°C temperature uniformity across the entire working zone—validated per ASTM E220, ISO 9001 thermal mapping requirements
• Optional overtemperature protection circuit (independent of main controller) for safeguarding high-value samples during unattended operation
• Configurable door options: single or double hinged; manual or motorized vertical lift mechanisms available for ergonomic loading/unloading
• Modular crucible support system—including standard 4-pair rack configuration for LGP 2/3370, with optional reinforced racks rated up to 1000 L capacity

Sample Compatibility & Compliance

The LGP 2/3370 accommodates a broad spectrum of sample forms—from bulk powders and castings to assembled subassemblies, composite laminates, and metallurgical test coupons. Its inert 430 stainless steel chamber minimizes catalytic surface reactions, making it suitable for oxide-sensitive materials and solvent-based drying processes. For regulated industries, the system supports full compliance with AMS 2750E (Nadcap) pyrometric requirements when specified with enhanced calibration traceability, Class 1 or Class 2 instrumentation, and integrated data logging. Optional RS232/RS485/Ethernet interfaces enable integration into centralized SCADA or MES platforms, supporting 21 CFR Part 11–compliant electronic records and audit trails when paired with validated software packages. All units are CE-marked and conform to IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions) standards.

Software & Data Management

When equipped with the optional multi-segment program controller and data logger, the LGP 2/3370 delivers comprehensive thermal process documentation. Logged parameters include chamber temperature (primary and redundant sensors), setpoint, elapsed time, fan status, and alarm events—all timestamped with millisecond resolution. Data export formats include CSV and XML, compatible with LIMS, ERP, and statistical process control (SPC) systems. Remote monitoring and control are enabled via Ethernet TCP/IP protocol, allowing secure access through authenticated web interfaces or third-party OPC UA clients. Audit trail functionality meets GLP and GMP documentation requirements, with immutable event logs that record operator identity, parameter changes, and system interventions.

Applications

• Thermal aging of aerospace composites and polymer matrix materials per ASTM D573, ISO 188
• Moisture removal from ceramic green bodies and refractory preforms prior to sintering
• Pre-bake cycles for printed circuit board (PCB) laminates and conformal coatings
• Stress relief of welded assemblies and machined aluminum/steel components
• Controlled drying of pharmaceutical excipients and granules under cGMP-aligned environmental conditions
• Calibration and qualification of thermocouples and RTDs in accordance with AMS 2750E Zone Certification procedures

FAQ

What is the standard temperature uniformity specification for the LGP 2/3370 at 425°C?

The oven maintains ±0.5°C uniformity across the full 3370 L chamber volume at all certified operating temperatures, verified using a 9-point thermocouple mapping procedure per ASTM E220 Annex A.
Can the LGP 2/3370 be validated for Nadcap AMS 2750E compliance?

Yes—when ordered with the AMS 2750E option package, it includes calibrated Class 1 instrumentation, independent overtemperature cut-off, NIST-traceable sensor certificates, and factory-installed data logging with permanent storage.
Is vertical airflow configuration available as a factory option?

Yes—vertical airflow mode can be specified, utilizing a dedicated impeller assembly optimized for top-to-bottom convection, particularly beneficial for tall fixtures or stacked crucibles.
What is the maximum load weight the standard crucible rack system supports?

The standard 4-pair rack configuration is rated for static loads up to 250 kg per level; heavy-duty rack variants (optional) support up to 500 kg per level.
Does the oven include provisions for external utility feedthroughs?

Yes—standard models feature two sealed 50 mm diameter service ports (one on each side wall) for thermocouple leads, gas lines, or vacuum connections, configurable with O-ring sealed bulkhead fittings.
