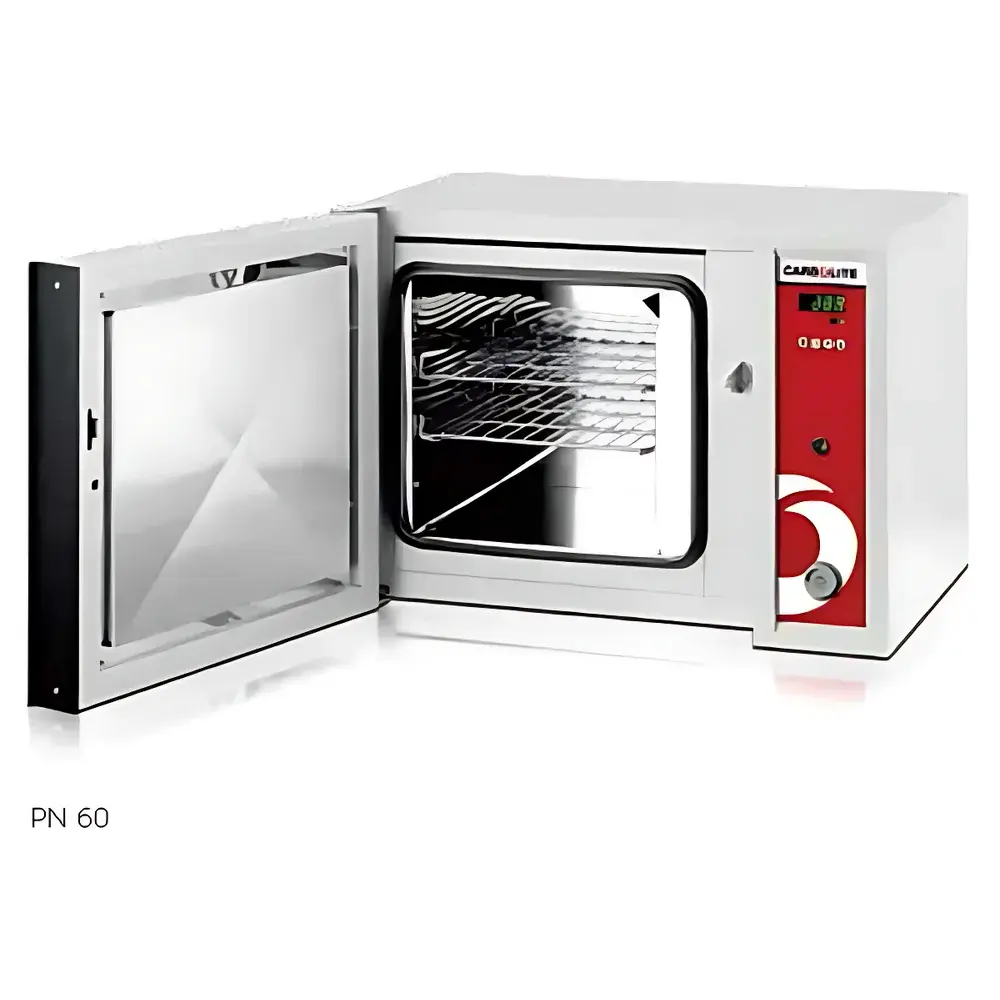

Carbolite Gero PN Series Natural Convection Drying Oven

Overview

The Carbolite Gero PN Series Natural Convection Drying Oven is an entry-level, precision-engineered thermal processing instrument designed for routine laboratory drying, preheating, sterilization, and low-temperature annealing applications. Unlike forced-air convection ovens, the PN series relies on natural buoyancy-driven airflow—eliminating fan-induced turbulence and minimizing particle disturbance or sample displacement. This architecture ensures gentle, uniform heat distribution across the chamber without mechanical vibration or airflow shear, making it especially suitable for delicate samples such as filter papers, biological substrates, ceramic precursors, and moisture-sensitive powders. The oven’s maximum operating temperature of 300 °C supports a broad range of ASTM E145, ISO 293, and USP compliant drying protocols. Its robust construction—including a chemically resistant stainless steel interior and lever-actuated door with silicone gasket sealing—ensures long-term stability under repeated thermal cycling and exposure to mild organic solvents or acidic vapors.

Key Features

• Natural convection heating mechanism for laminar, vibration-free thermal exposure
• R38 digital PID controller with intuitive front-panel interface and real-time setpoint/actual temperature display
• Stainless steel inner chamber (AISI 304 equivalent) offering superior corrosion resistance against common lab reagents
• Two adjustable nickel-chrome crucible supports enabling flexible sample arrangement
• Lever-action door lock with high-compression silicone gasket ensuring consistent thermal integrity and ambient isolation
• Compliance with BS EN 61010-2-010:2003 for laboratory electrical equipment safety—covering insulation, grounding, and overtemperature protection requirements
• Thermal stability of ±0.5 °C at setpoint, verified per IEC 60068-3-5 under steady-state conditions

Sample Compatibility & Compliance

The PN oven accommodates standard laboratory vessels including porcelain crucibles, glass Petri dishes, aluminum weighing pans, and polymer trays up to 320 mm in height. Its unobstructed internal geometry (255 × 330 × 320 mm) permits vertical stacking of multiple layers when used with optional crucible racks. The absence of internal fans prevents cross-contamination between adjacent samples and preserves particulate integrity during gravimetric moisture analysis. For regulated environments, the base configuration meets GLP documentation prerequisites for temperature verification; optional overtemperature cut-off (independent of main controller) and digital timer functions support 21 CFR Part 11–aligned audit trails when integrated with validated data loggers. All electrical components are CE-marked and conform to RoHS directives.

Software & Data Management

While the standard PN model operates via standalone hardware control, optional communication modules enable integration into centralized lab infrastructure. RS232, RS485, and Ethernet interfaces support bidirectional command transmission and real-time temperature streaming to LIMS or SCADA platforms. When paired with Carbolite Gero’s optional multi-segment programmable controller, users can define up to 16 ramp-hold cycles with soak time resolution down to 1 minute. Data recording intervals are configurable from 1 second to 60 minutes, with timestamped CSV export capability. Firmware updates maintain compatibility with current Windows/Linux-based calibration management software, and all logged datasets include embedded metadata (operator ID, batch number, chamber sensor ID) to satisfy ALCOA+ data integrity principles.

Applications

• Moisture content determination per ASTM D2231, ISO 787-2, and pharmacopeial methods (e.g., USP )
• Drying of filter media prior to gravimetric particulate analysis (e.g., EPA Method 201A)
• Curing of polymer films and thin-film coatings under controlled thermal profiles
• Preconditioning of reference standards and calibration weights per ISO 5725
• Low-risk thermal stabilization of geological core samples and soil specimens
• Residual solvent removal from pharmaceutical intermediates under non-oxidizing conditions

FAQ

Is the PN oven suitable for use with flammable solvents?
No. This model lacks explosion-proof certification and is not rated for Class I, Division 1 hazardous locations. Solvent-based drying requires dedicated forced-air ovens with purge systems and intrinsically safe controls.
Can the internal chamber be calibrated independently?
Yes. An optional independent thermocouple input port allows connection of a traceable reference sensor for periodic verification against the built-in PT100 probe.
What maintenance is required to sustain ±0.5 °C uniformity?
Annual verification using a NIST-traceable thermometer array is recommended. Cleaning the door seal and checking gasket compression every six months ensures consistent thermal closure performance.
Does the oven support GLP-compliant electronic records?
Only when equipped with the optional data logger and configured with password-protected user roles, electronic signatures, and immutable audit logs—fully aligned with Annex 11 and FDA guidance on computerized system validation.
