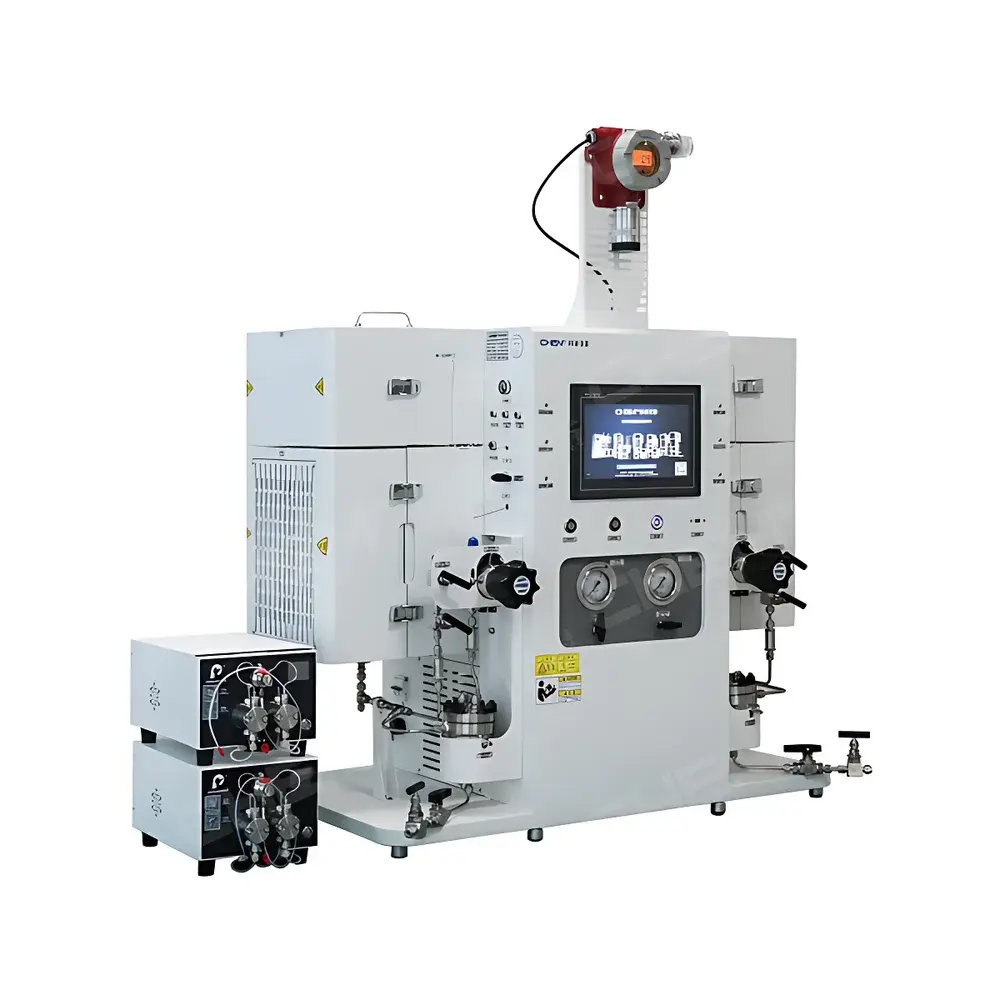

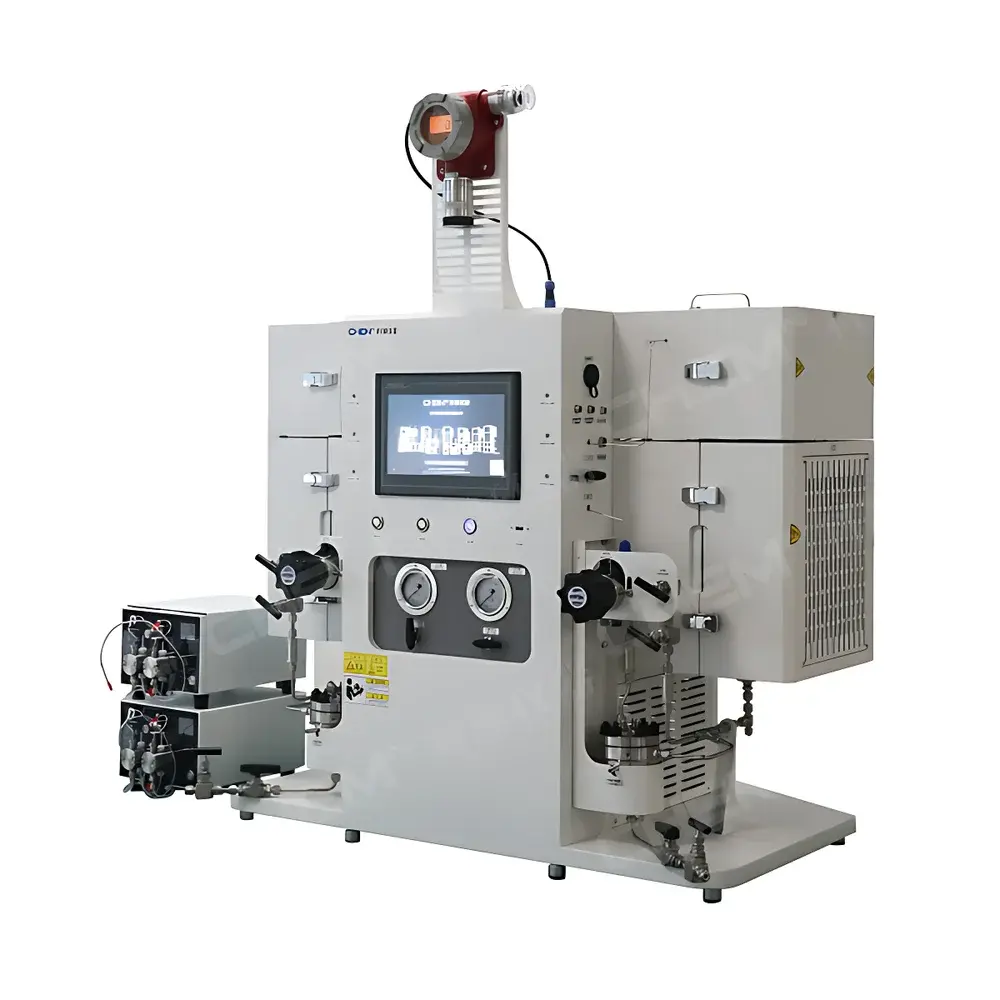

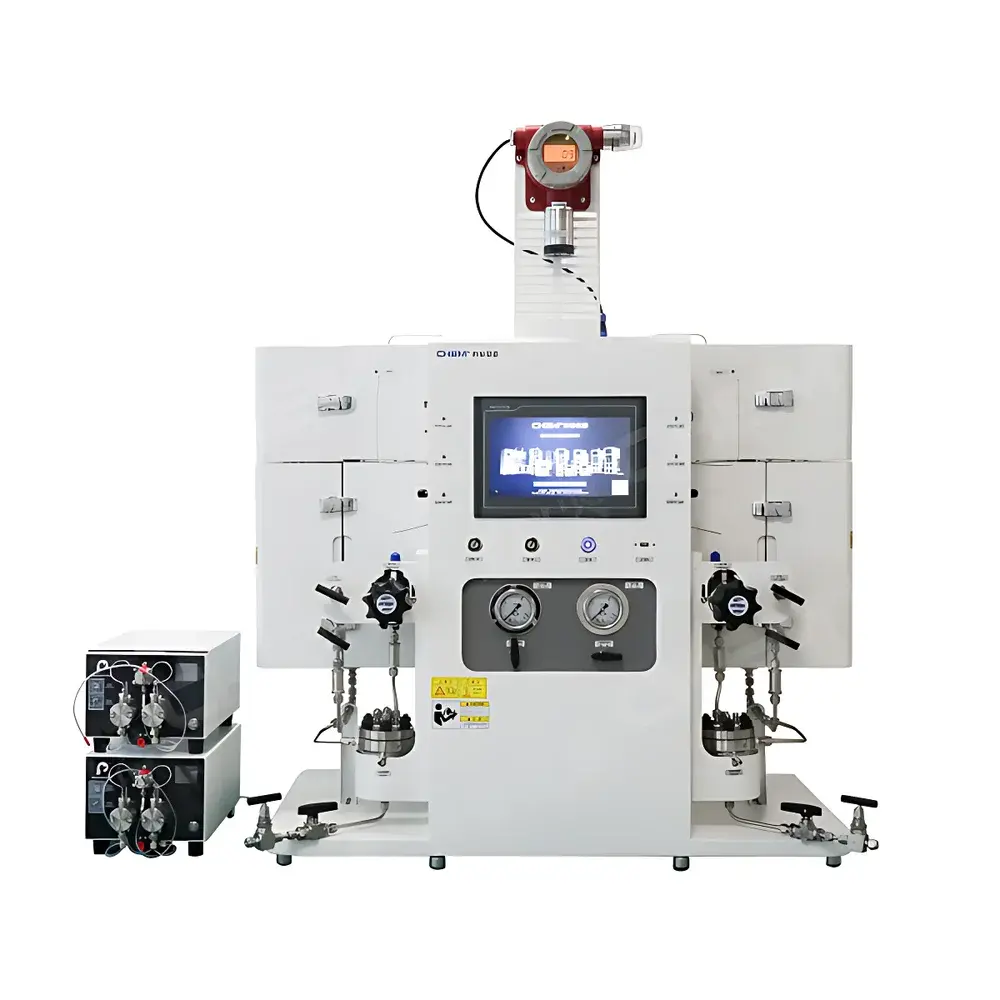

Chemn CFRD-L2G2-500 Dual-Channel Continuous Carbonylation-Esterification Reactor
| Brand | Chemn |
|---|---|
| Origin | Anhui, China |
| Model | CFRD-L2G2-500 |
| Max Operating Pressure | 10 MPa(a) |
| Max Operating Temperature | 500 °C |
| Catalyst Bed Volume per Channel | 1–5 mL |
| Heating Zone Length | 240 mm |
| ±2 °C Isothermal Zone Length | 50 mm |
| Footprint | 0.6 m² |
| Remote Control | Yes (Web-based HMI via Ethernet/WiFi) |
Overview
The Chemn CFRD-L2G2-500 is a benchtop dual-channel continuous-flow fixed-bed reactor engineered for high-temperature, high-pressure catalytic carbonylation and esterification reactions—specifically optimized for the carbonate route to dimethyl carbonate (DMC), methyl carbamate, or related carbonyl-containing esters. It operates on the principle of co-fed gas–liquid–solid phase reaction kinetics under precisely controlled isothermal conditions, enabling rigorous kinetic modeling, catalyst deactivation studies, and long-term stability evaluation. Each channel functions as an independent reaction train with segregated thermal management, mass flow control, and pressure regulation—eliminating cross-talk between parallel experiments. The reactor core features a stainless-steel (316L) tubular fixed bed housed within a precision-controlled electric furnace, with axial temperature profiling validated to maintain a stable ±2 °C isothermal zone over 50 mm—a critical requirement for intrinsic kinetic analysis per ASTM D7169 and ISO 13783 guidelines.
Key Features
- Dual independent reaction channels with fully decoupled heating zones, gas/liquid mass flow controllers (MFCs & LFCs), and pressure transducers—enabling side-by-side catalyst screening or parametric variation studies.
- Benchtop footprint of only 0.6 m²; modular architecture allows integration with online GC, FTIR, or MS systems via standardized 1/4″ Swagelok ports and pre-routed signal lines.
- High-fidelity thermal design: 240 mm active heating zone with PID-controlled three-zone furnace; verified ±2 °C uniformity over 50 mm central region—validated by embedded thermocouple mapping per IEC 60584-2.
- Integrated preheating/evaporation chamber with helical coil heat exchanger ensures complete vaporization of liquid feeds (e.g., methanol, CO) prior to catalyst contact—minimizing condensation-induced hot-spot formation and improving gas-phase homogeneity.
- Real-time safety interlock system with dual-stage pressure/temperature monitoring: Level-1 alarm triggers visual/audible alert; Level-2 initiates automatic shutdown of heaters, solenoid valves, and feed pumps upon breach of user-defined thresholds (e.g., >10.2 MPa or >505 °C).
- Remote operation via web-enabled HMI interface—accessible from laptop, tablet, or smartphone over local network or secure VPN; supports data logging at 1 Hz resolution with timestamped CSV export.
Sample Compatibility & Compliance
The CFRD-L2G2-500 accommodates heterogeneous catalysts in pellet, extrudate, or powder form (mesh range: 20–60) loaded into quartz or Inconel liners. Compatible feedstocks include CO, CH₃OH, NO₂, C₂H₄, O₂, and inert diluents (N₂, Ar). All wetted parts comply with ASME B31.3 process piping standards for high-pressure service. Pressure containment certified to PED 2014/68/EU Category IV. Electrical safety conforms to IEC 61010-1:2010 for laboratory equipment. Data acquisition meets ALCOA+ principles; audit trail, electronic signatures, and user access levels configurable to support GLP/GMP-aligned workflows per FDA 21 CFR Part 11 requirements.
Software & Data Management
The embedded control system runs on a real-time Linux OS with deterministic loop timing (<10 ms). Configuration, setpoint scheduling, and alarm logic are managed through a responsive HTML5-based interface—requiring no client software installation. All process variables (T, P, Fgas, Fliq, valve positions) are logged with millisecond-precision timestamps and stored locally on industrial-grade SSD. Export formats include CSV, MATLAB .mat, and HDF5. Optional OPC UA server enables seamless integration with LabArchives ELN, DeltaV DCS, or custom SCADA platforms. Raw data integrity is preserved via SHA-256 hashing and immutable log rotation.
Applications
- Kinetic investigation of CO-mediated carbonylation pathways (e.g., oxidative carbonylation of methanol to DMC using CuCl–Pd catalysts).
- Stability testing of solid-base catalysts (e.g., MgO, hydrotalcites) in continuous carbonate synthesis under simulated industrial conditions.
- Hydrogenation of nitrobenzene to aniline with supported Pt or Ni catalysts—evaluating selectivity vs. temperature ramping and H₂ partial pressure modulation.
- Deactivation mechanism studies via programmed TPO/TPD coupling—leveraging the dual-channel capability for reference vs. aged catalyst comparison.
- Reaction engineering validation of microkinetic models under transient feed composition changes—enabled by synchronized MFC/LFC step-response triggering.
FAQ
What catalyst forms are compatible with the CFRD-L2G2-500?
Pellets, extrudates, and crushed powders (20–60 mesh) loaded into removable quartz or Inconel liners. Maximum bed height per channel: 80 mm.
Can the system be integrated with an online GC for real-time product analysis?
Yes—standardized 1/4″ Swagelok sampling ports with heated transfer lines (up to 250 °C) and programmable auto-sampling valves are available as factory options.
Is the temperature uniformity verified across the catalyst bed?
Yes—each unit undergoes thermal mapping with 5 calibrated Type-K thermocouples during QA; full report provided with delivery.
Does the controller support custom reaction protocols with time-varying setpoints?
Yes—the scheduler module accepts CSV-defined ramp/soak profiles for temperature, pressure, and flow rates with sub-minute resolution.
What cybersecurity measures are implemented for remote access?
TLS 1.2 encryption, role-based authentication (RBAC), session timeout, and optional two-factor authentication (2FA) via TOTP.
