Chemtrix Labtrix S1 Continuous Flow Chemistry System

Overview

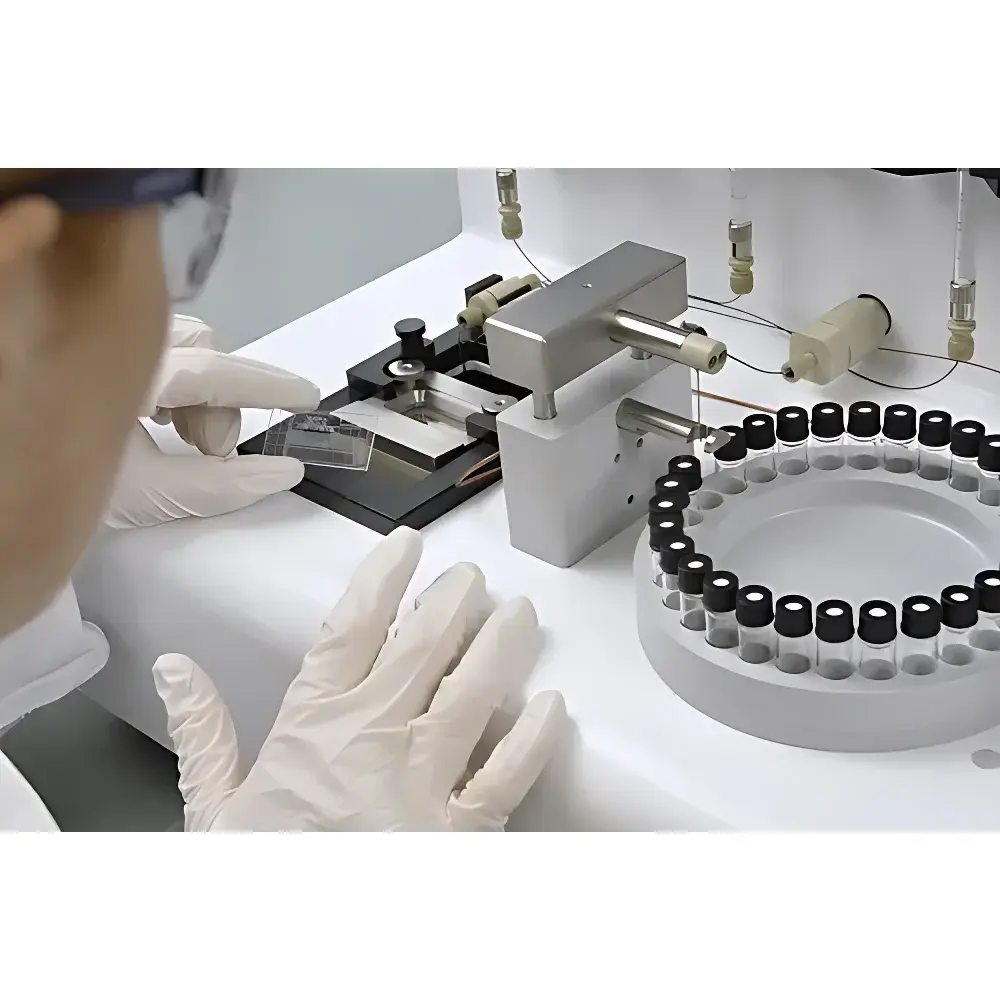

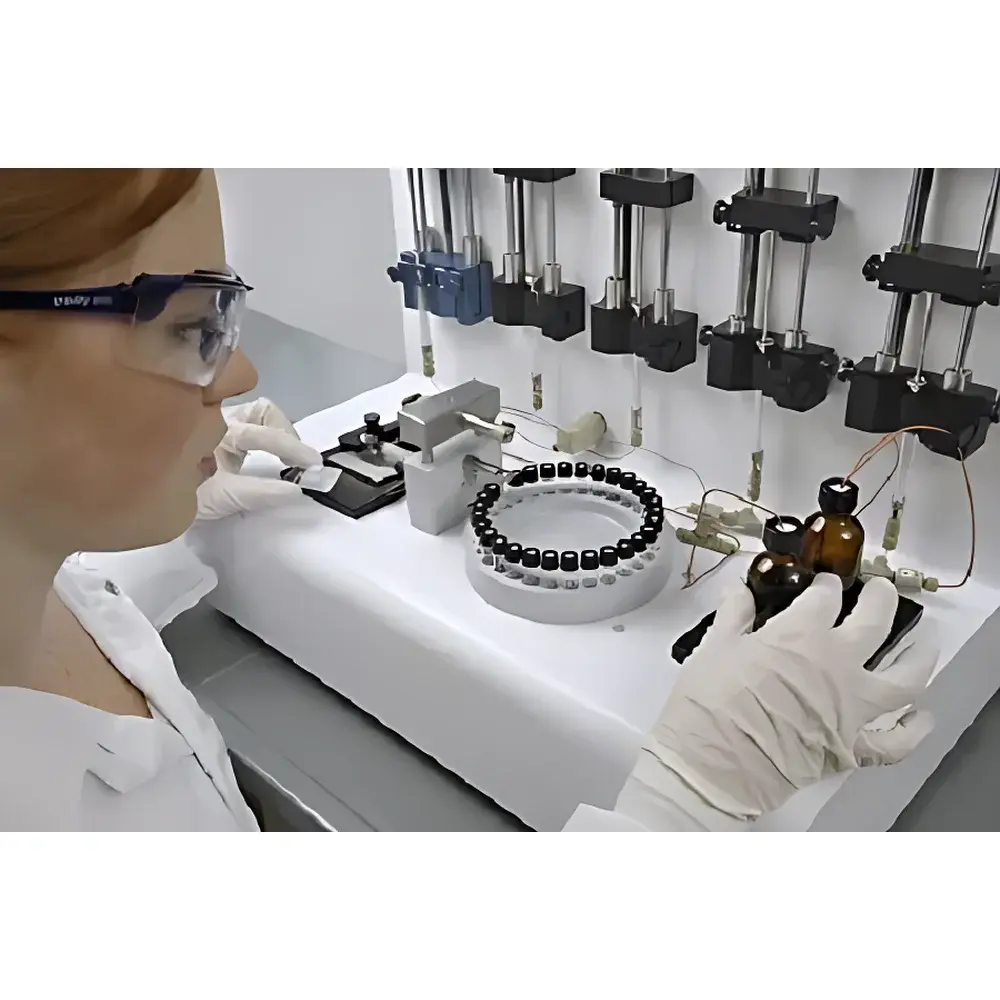

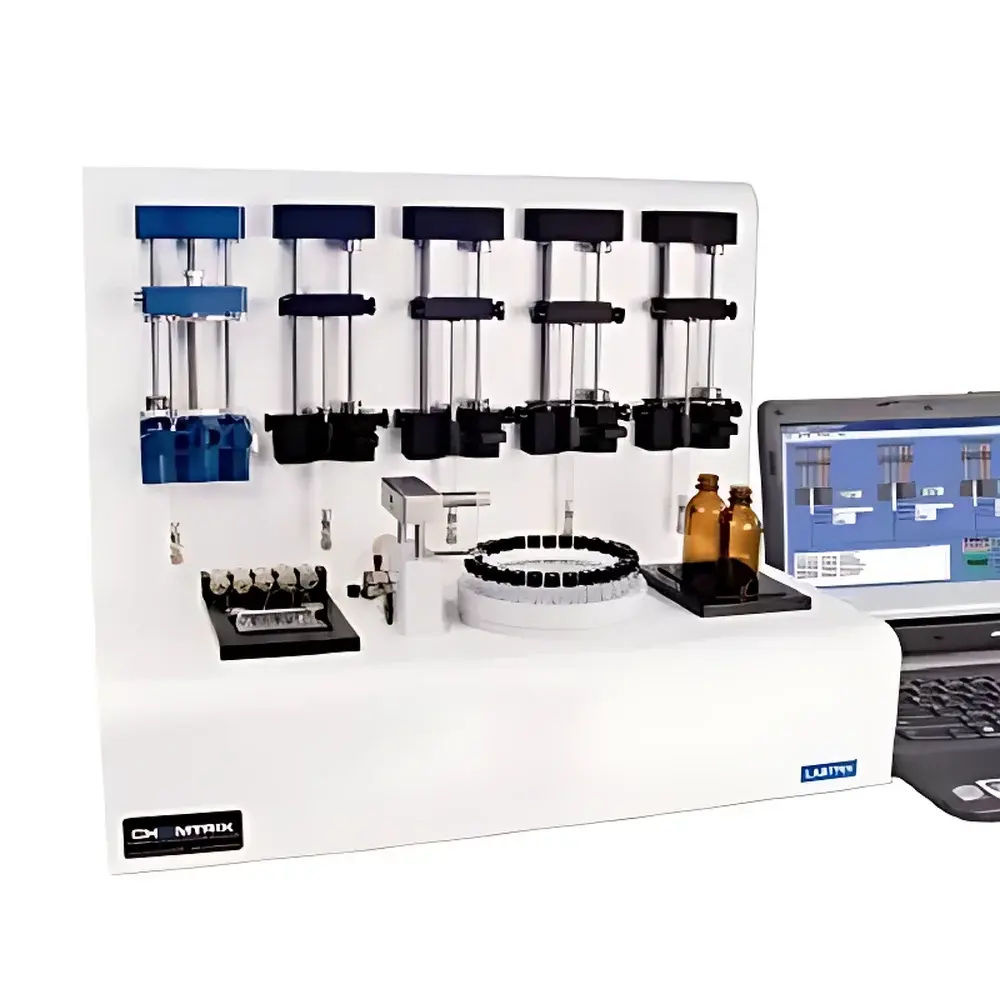

The Chemtrix Labtrix S1 Continuous Flow Chemistry System is a benchtop, fully automated platform engineered for precise kinetic profiling, reaction screening, and process parameter optimization under controlled continuous flow conditions. Based on microstructured reactor technology, the system leverages laminar flow dynamics and rapid thermal equilibration within low-volume glass/fluoropolymer channels to deliver exceptional heat and mass transfer performance—critical for exothermic, fast, or thermally sensitive transformations. Unlike batch reactors, the Labtrix S1 enables real-time residence time control, reproducible mixing via static mixer elements (SOR architecture), and intrinsic safety through minimal in-process inventory (<20 µL per reaction zone). Designed for R&D laboratories in pharmaceutical, fine chemical, and academic research settings, it serves as a scalable bridge between discovery and pilot-scale continuous manufacturing—fully aligned with ICH Q5, Q7, and FDA’s Process Analytical Technology (PAT) framework.

Key Features

• Modular SOR (Structured Orientation Reactor) design ensures consistent, turbulence-free mixing and uniform residence time distribution across all flow rates (0.1–80 µL/min)
• Integrated temperature control with dual-zone Peltier modules enabling independent heating/cooling of up to two reaction segments from −20 °C to +195 °C
• Pressure-stable operation up to 20 bar, supporting reactions involving gaseous reagents (e.g., H₂, CO, O₂) or high-boiling solvents
• Chemically inert fluidic path constructed from PTFE, ETFE, FFKM, and borosilicate glass—compatible with strong acids, bases, anhydrous organometallics, and halogenated solvents
• Automated syringe pump control with real-time flow calibration, pressure monitoring, and emergency shutdown logic compliant with ISO 13857 safety standards
• Plug-and-play hardware architecture with pre-validated reactor cartridges—no tooling or alignment required for cartridge exchange

Sample Compatibility & Compliance

The Labtrix S1 accommodates a broad spectrum of synthetic chemistries including cross-coupling (Suzuki, Heck), nitrations, lithiations, photochemical transformations, and enzymatic catalysis. Its sub-20 µL reaction volume minimizes hazardous intermediate accumulation, satisfying ALARP (As Low As Reasonably Practicable) principles outlined in EU Directive 96/82/EC (Seveso III). All electronic subsystems conform to CE marking requirements (EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU). Data integrity features—including electronic signatures, audit trails, and user-access tiering—support compliance with FDA 21 CFR Part 11 and EU Annex 11 for regulated environments. Full traceability of method parameters, environmental logs, and collected fractions is maintained throughout execution.

Software & Data Management

Control and data acquisition are managed via Chemtrix’s proprietary Labtrix Control Software (v4.x), a Windows-based application supporting method scripting, multi-step gradient programming, and synchronized fraction collection triggered by time, volume, or external sensor input (e.g., inline UV/Vis or FTIR). Raw data—including flow rate, temperature, pressure, and collection timestamps—is stored in vendor-neutral CSV and HDF5 formats. The software enforces role-based access control (RBAC), automatic backup to network drives, and export-ready reporting templates aligned with GLP documentation standards. Optional integration with third-party LIMS (e.g., Thermo Fisher SampleManager, LabVantage) is supported via RESTful API.

Applications

• Kinetic modeling of elementary steps using residence time series experiments at constant temperature and stoichiometry
• Rapid solvent/temperature/catalyst screening for route scouting under statistically designed DoE protocols
• Safety-critical synthesis of diazo compounds, azides, or peroxides with <5 mg in-process mass at any given time

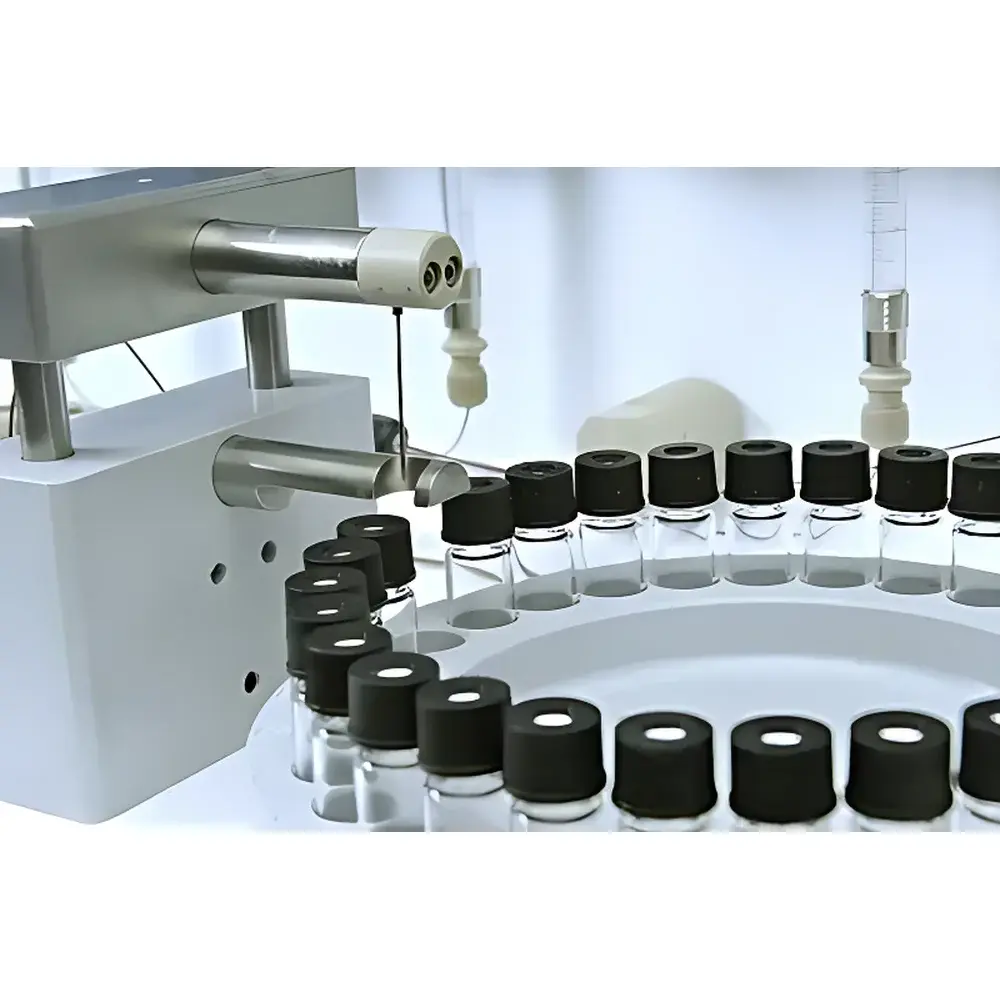

• Preparative-scale generation of reference standards (1–100 mg) with integrated fraction collector and UV-triggered cut logic
• Teaching laboratory implementation for illustrating mass balance, Arrhenius behavior, and scale-up principles in chemical engineering curricula
• Supporting Quality-by-Design (QbD) initiatives through Design Space mapping per ICH Q8(R2)

FAQ

What is the minimum reaction volume achievable with Labtrix S1?

The smallest defined reactor volume is 1 µL, optimized for high-sensitivity kinetic studies with nanomole-scale reagent consumption.
Can the system handle solid-containing slurries or heterogeneous catalysts?

No—Labtrix S1 is designed exclusively for homogeneous liquid-phase reactions. Suspensions or particulates may cause channel blockage; alternative platforms (e.g., Chemtrix MilliFlow) are recommended for slurry processing.
Is reactor cartridge replacement possible without recalibration?

Yes—each cartridge is factory-calibrated and identified via RFID tag; the software auto-loads corresponding flow and thermal profiles upon insertion.
Does the system support integration with in-line analytics?

Yes—standard 1/16″ Swagelok ports enable coupling to commercial flow cells for UV/Vis, Raman, or ATR-FTIR detection; analog/digital I/O supports TTL synchronization.
What validation documentation is provided for GMP use?

IQ/OQ protocols, calibration certificates for pumps and temperature sensors, and a complete DQ package—including risk assessment (FMEA) and traceability matrix—are supplied with each unit.
