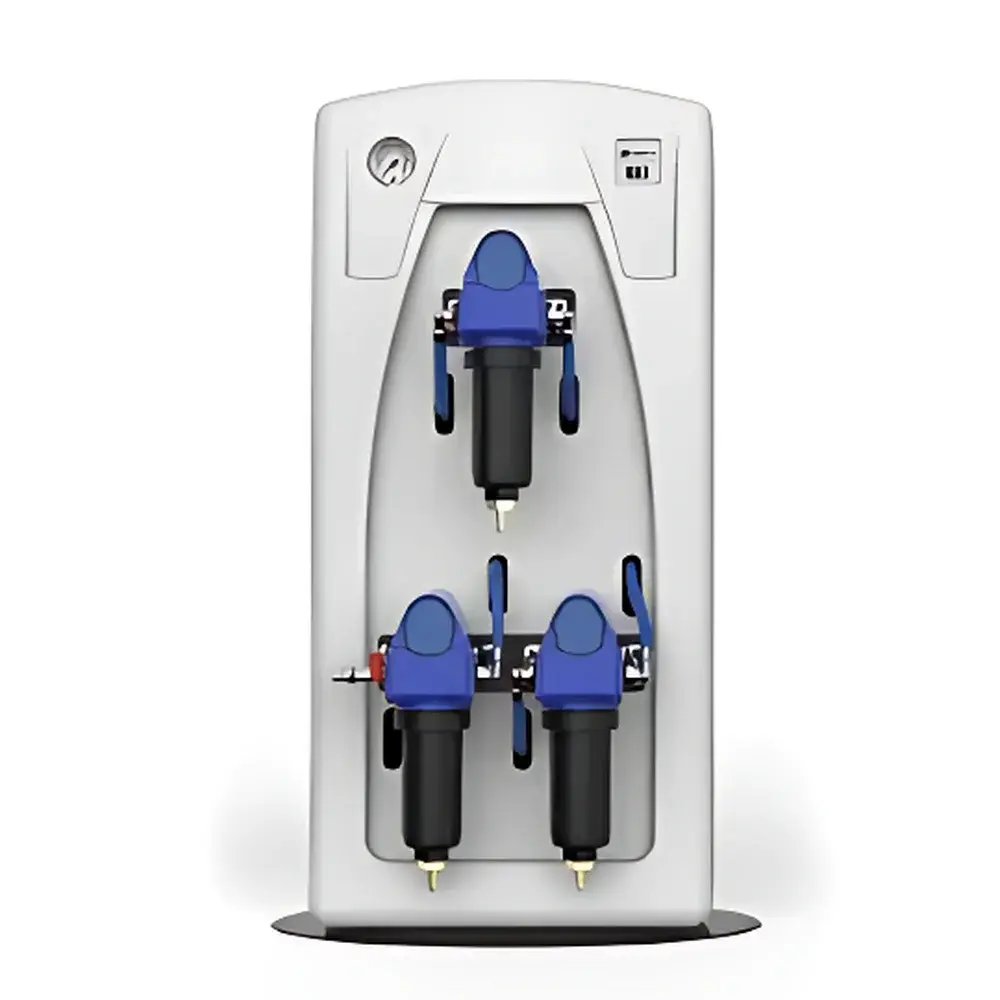

ChemTron MINI WHISPER HYBRID Nitrogen & Clean Air Generator

Overview

The ChemTron MINI WHISPER HYBRID is a compact, passively operated nitrogen and clean compressed air generator engineered for laboratories requiring reliable, low-maintenance gas supply for analytical instrumentation—particularly LC/MS, ELSD, and other low-to-medium flow applications demanding high-purity inert and auxiliary gases. Unlike conventional pressure-swing adsorption (PSA) or cryogenic systems, this unit employs a robust hollow-fiber membrane separation process: compressed feed air passes through an array of polymeric capillaries with a 40 nm selective layer, enabling preferential permeation of oxygen, water vapor, and CO₂ while retaining nitrogen and argon in the non-permeate stream. The HYBRID configuration integrates dual independent output streams—one optimized for high-purity nitrogen (≥99%), the other delivering two regulated clean air flows (26 L/min @ 7 bar and 10 L/min @ 4 bar), eliminating the need for separate air compressors or additional filtration stages. Critically, the system operates without electricity, sensors, solenoids, or moving parts—ensuring zero electromagnetic interference, no background noise, and intrinsic safety in sensitive environments such as mass spectrometry labs where electronic artifacts or vibration-induced signal drift must be avoided.

Key Features

• Power-free operation: No electrical connection required; eliminates EMI, heat generation, and failure points associated with electronic controls.
• Dual-output architecture: Simultaneous delivery of ≥99% nitrogen (up to 12 L/min @ 7 bar) and two independently regulated clean air streams (26 L/min @ 7 bar + 10 L/min @ 4 bar), supporting co-dependent LC/MS workflows.
• Hollow-fiber membrane technology: 0.3 mm inner diameter fibers with 40 nm separation layer ensure stable purity across variable inlet conditions; no consumables, no regeneration cycles, no scheduled maintenance.
• Compact footprint & flexible installation: Dimensions of 348 × 735 × 350 mm allow benchtop placement or wall-mounting; weight of only 8 kg simplifies integration into space-constrained analytical suites.
• Ultra-clean gas specifications: Particulate content complies with ISO 8573-1:2010 Class 1.2.1 (≤0.01 µm particles); dew point maintained at −40 °C (atmospheric), ensuring condensation-free delivery to detectors and ion sources.
• Regulatory-ready design: CE-marked; fully compatible with IQ/OQ validation protocols per ASTM E2500 and EU GMP Annex 15; supports GLP/GMP-compliant documentation packages.

Sample Compatibility & Compliance

The MINI WHISPER HYBRID delivers gases suitable for direct interfacing with commercial LC/MS systems (e.g., Thermo Fisher, Waters, Agilent), evaporative light scattering detectors (ELSD), and nitrogen-purged glove boxes. Its nitrogen stream meets USP <857> and EP 2.5.27 requirements for “Nitrogen for Pharmaceutical Use” when supplied with ISO 8573-1 Class 1.2.1 inlet air. The clean air outputs satisfy ISO 8573-1:2010 Class 2.2.1 (oil-free, particle-controlled) for instrument-grade pneumatic actuation and nebulizer gas. All wetted materials are FDA-compliant polymers and stainless steel (316L for outlet tubing), with no lubricants or elastomers exposed to gas pathways. The absence of electrical components renders it intrinsically safe for use in Class I Division 2 hazardous locations per NEC 500.

Software & Data Management

As a purely mechanical, non-electronic device, the MINI WHISPER HYBRID does not incorporate embedded firmware, data logging, or digital interfaces. This design choice ensures operational continuity during power outages, eliminates cybersecurity exposure, and removes calibration drift risks associated with sensor-based controllers. Validation documentation—including Factory Acceptance Test (FAT) reports, material certifications (EN 10204 3.1), and IQ/OQ templates—is provided in English and aligns with 21 CFR Part 11 audit-trail expectations via external lab information management systems (LIMS). Users retain full control over inlet air quality monitoring via upstream particulate, oil, and dew point sensors—recommended for maintaining consistent output performance.

Applications

• LC/MS nitrogen sheath and curtain gas supply, replacing high-pressure cylinders with continuous, pressure-stable flow.
• ELSD and CAD (Charged Aerosol Detection) nebulizer and drying gas, where low moisture and particle content prevent nozzle clogging and baseline instability.
• Gas chromatography carrier and make-up gas, particularly for TCD and ECD detectors requiring stable thermal conductivity or electron capture characteristics.
• Controlled-atmosphere sample preparation stations, including nitrogen-purged weighing enclosures and solvent evaporation manifolds.
• Calibration gas dilution systems requiring traceable, low-particulate background gas streams.

FAQ

Does the MINI WHISPER HYBRID require an external air source?
Yes. It is a gas purification system—not a compressor—and requires a clean, oil-free, dry compressed air supply delivering 96–192 L/min at 8.5–10 bar. We recommend pairing it with ISO 8573-1 Class 1.2.1-certified air compressors and pre-filtration.
Can nitrogen and air outputs be used simultaneously without cross-contamination?
Yes. The membrane module and air distribution manifold are physically isolated; both streams undergo independent pressure regulation and filtration, with no shared internal valves or switching mechanisms.
Is the nitrogen purity affected by ambient temperature or inlet pressure fluctuations?
No. Membrane-based separation is inherently stable across the specified operating range (15–35 °C, 8.5–10 bar inlet). Purity remains ≥99% under all rated flow and pressure conditions, as verified per ISO 8573-7:2019 testing protocols.
What validation support is available for regulated laboratories?
Full IQ/OQ documentation kits—including test protocols, acceptance criteria, and executed reports—are available upon request. All units ship with CE Declaration of Conformity and material traceability dossiers.
How often does the membrane module require replacement?
Under normal operating conditions with compliant inlet air, the hollow-fiber bundle has a service life exceeding 10 years with no scheduled replacement; lifetime is governed by upstream air quality, not time-based degradation.
