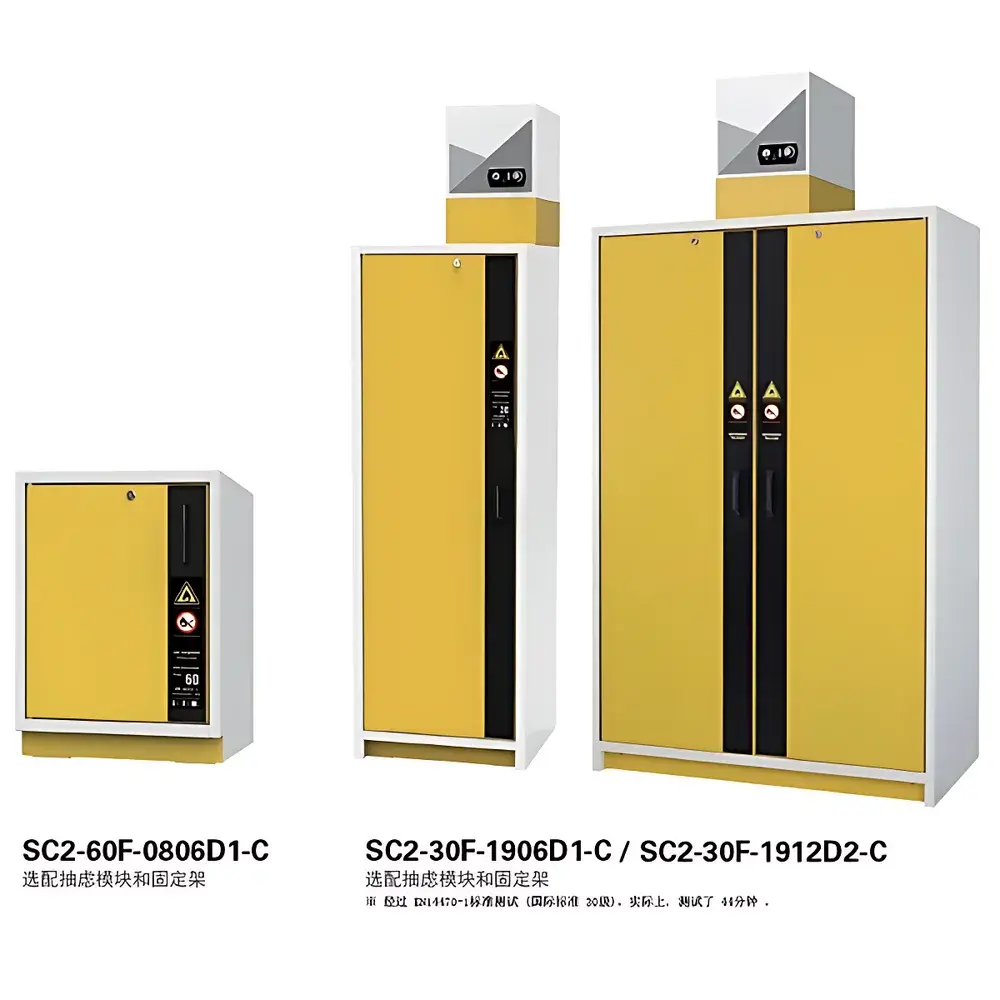

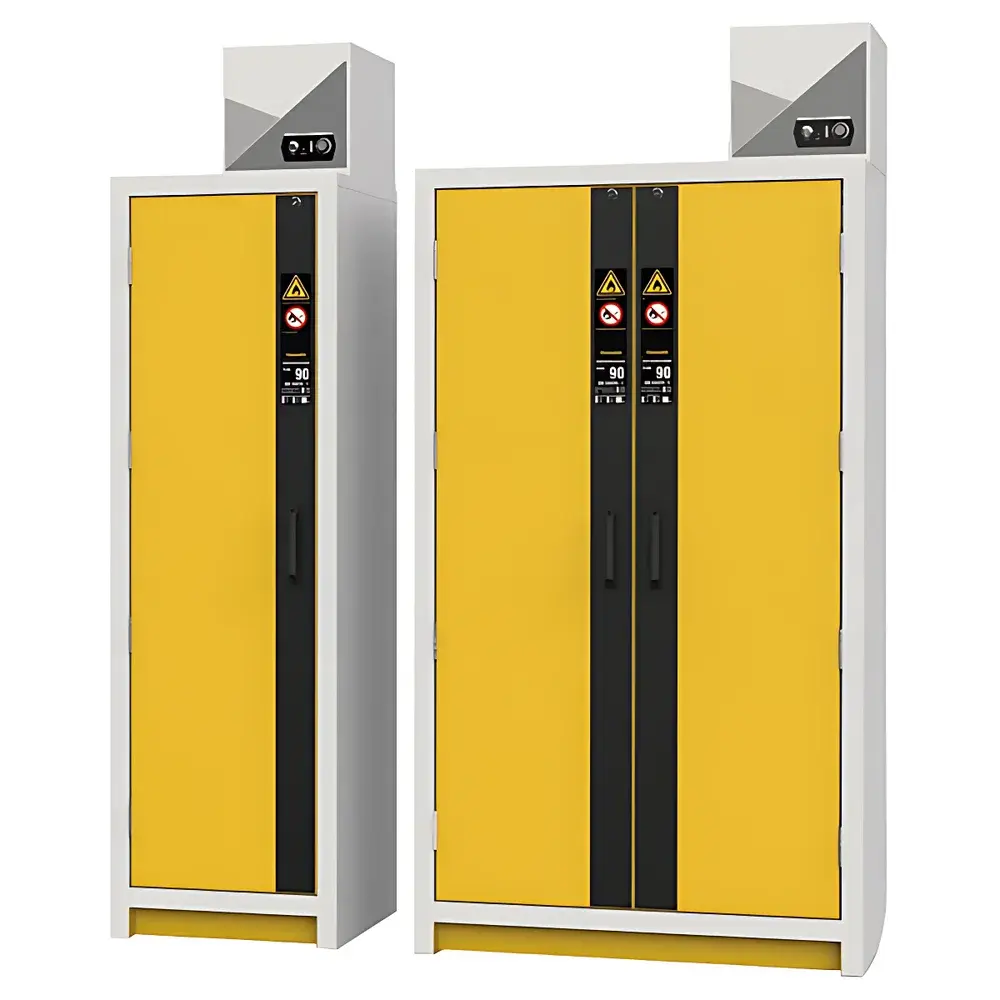

ChemTron SC3-30F-1912D2-C Fire-Resistant Safety Cabinet

Overview

The ChemTron SC3-30F-1912D2-C is a CE-marked, EN 14470-1:2004 certified fire-resistant safety cabinet engineered for secure storage of flammable liquids and hazardous substances in laboratory, industrial, and research environments. Designed and manufactured in Germany, this 30-minute fire-rated cabinet employs passive fire protection principles—leveraging thermally activated intumescent seals, reinforced steel construction, and a dual-stage thermal response system—to maintain internal compartment integrity during exposure to fire. Its structural architecture complies with EN 1363-1 fire resistance testing protocols, ensuring that internal temperatures remain below 180 °C for a minimum of 30 minutes under standardized hydrocarbon fire curve conditions. The cabinet integrates fail-safe mechanical door closure at 50 °C and automatic ventilation port sealing between 70 °C and 100 °C, effectively isolating the interior from external heat flux and oxygen ingress during fire events.

Key Features

• Thermally actuated self-closing door mechanism triggered at 50 °C—no power or electronics required
• Dual-seal system: primary intumescent gasket expands under heat; secondary mechanical latch ensures positive closure
• Robust 30 mm thick safety partitioning between shelves to contain leaks and prevent cross-contamination
• Load-rated shelving system: each shelf supports up to 80 kg uniformly distributed load; five-shelf configuration supported with optional reinforcement
• Modular base compatibility: accepts EM-33 adjustable-height base (480 × 340 × 350 mm) for ergonomic access and floor-level alignment
• Corrosion-resistant interior finish: epoxy-coated steel surfaces resist degradation from common solvents, acids, and bases
• Optional stainless steel or polypropylene shelving for enhanced chemical compatibility in aggressive storage applications
• Integrated spill containment sump with drain port (F35313: 798 × 452 × 100 mm) meets secondary containment requirements per EU CLP and local environmental regulations

Sample Compatibility & Compliance

This cabinet is validated for storage of Class I–III flammable liquids (flash point < 93 °C), including acetone, ethanol, toluene, xylene, and ethyl acetate, as defined under ADR/RID/IMDG classification frameworks. It conforms to European regulatory benchmarks including EN 14470-1:2004 (fire-resistant cabinets for flammable liquids), EN 1363-1 (fire resistance testing methods), and Directive 2014/34/EU (ATEX equipment compatibility when used in conjunction with explosion-proof accessories). All units carry CE marking and are supplied with EU Declaration of Conformity documentation. While not intrinsically explosion-proof, the cabinet may be integrated into ATEX Zone 2-compliant workflows when paired with certified ventilation modules such as the EM-33 filtration unit (348 × 498 × 343 mm).

Software & Data Management

The SC3-30F series is a fully mechanical, non-electronic safety system—no firmware, software, or digital interface is embedded. This design eliminates single-point failure modes associated with powered components and ensures operational reliability during power outages or fire-induced electrical disruption. Documentation—including test reports, material certifications, and installation guidelines—is provided in English and German and aligns with ISO 9001 quality management system requirements. For laboratories operating under GLP or GMP frameworks, full traceability is maintained via unique order numbers (e.g., F330470), batch-specific fire test certificates, and CE technical files available upon request for audit readiness.

Applications

• Secure short- and medium-term storage of flammable reagents in analytical chemistry labs
• Compliance-driven inventory control in pharmaceutical QC/QA facilities handling volatile organic compounds
• On-site hazard mitigation in university teaching laboratories and pilot-scale synthesis suites
• Secondary containment for solvent dispensing stations adjacent to fume hoods or gloveboxes
• Integration into centralized chemical logistics systems where fire zoning and compartmentalization are mandated by local building codes (e.g., German Muster-Versammlungsstättenverordnung or UK Fire Safety Order 2005)

FAQ

Does this cabinet require electrical power to operate its safety functions?
No. All critical safety mechanisms—including door closure, vent sealing, and thermal insulation—are purely mechanical and thermally activated. No wiring, batteries, or external power source is needed.
Can the cabinet be anchored to the wall or floor?
Yes. Pre-drilled mounting points are provided on the rear panel and base frame. Anchoring hardware is included and compliant with DIN 4102-4 and BS 5588-8 structural attachment standards.
Is the internal sump capacity sufficient for full cabinet volume containment?
The standard sump (F35313) holds ≥10% of total internal volume (≥80 L), satisfying EN 14470-1’s secondary containment requirement for spill retention.
Are replacement shelves and liners available as spare parts?
Yes. Epoxy-coated, stainless steel, and PP shelves (e.g., F35014, F35004), along with sump liners and gasket kits, are stocked globally and shipped with OEM certification.
Does ChemTron provide installation support or site certification?
Installation guidance is included in the multilingual manual. Third-party fire safety certification services can be coordinated through authorized ChemTron partners in accordance with local fire authority protocols.
