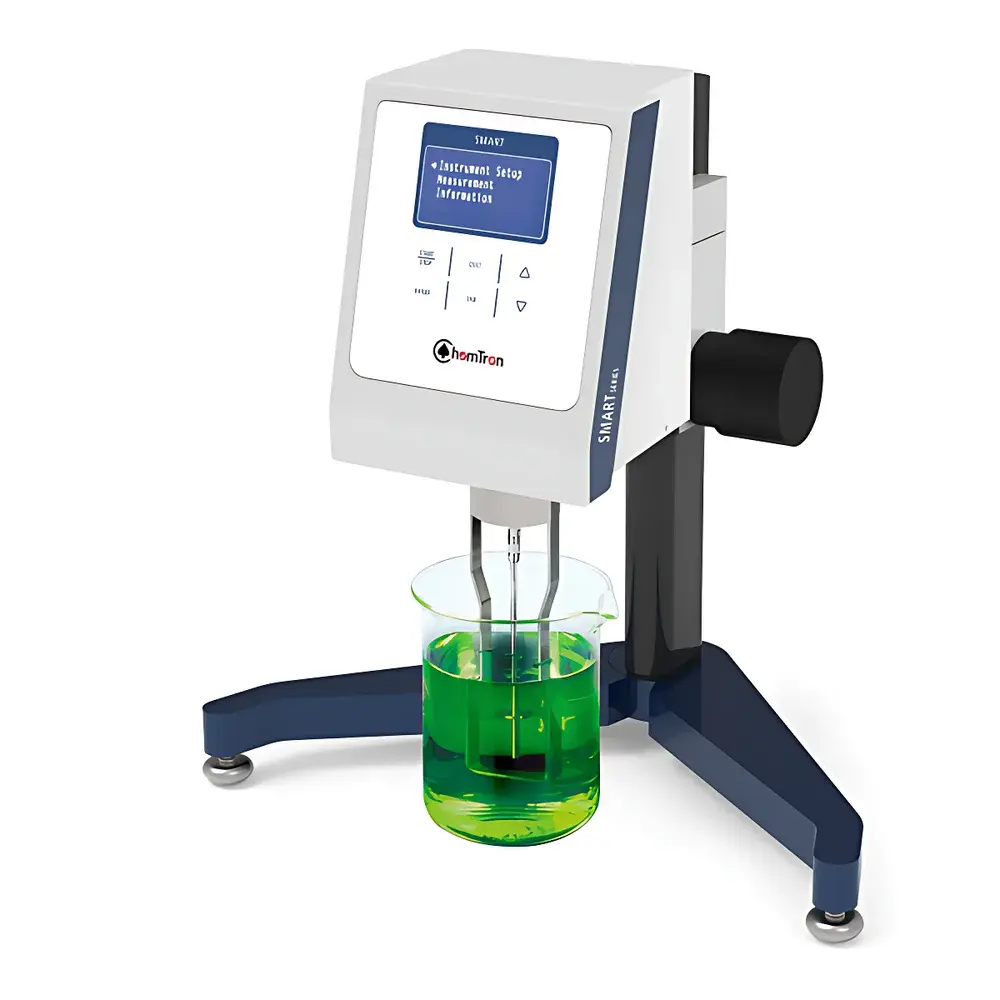

ChemTron Smart Advanced Rotational Viscometer

Overview

The ChemTron Smart Advanced Rotational Viscometer is a precision-engineered benchtop instrument designed for reliable, repeatable measurement of dynamic viscosity in Newtonian and non-Newtonian fluids under controlled temperature conditions. Based on the Couette principle—where torque exerted on a rotating spindle immersed in a sample is directly proportional to fluid resistance—the Smart viscometer delivers high reproducibility across a broad operational range (1–2,000,000 mPa·s). Its modular architecture supports interchangeable spindles (L1–L4, R2–R7) and optional concentric cylinder geometries, enabling shear rate and shear stress quantification for rheological profiling. The system integrates a calibrated PT100 temperature sensor with real-time thermal feedback, ensuring measurements remain traceable to ITS-90 standards. Designed for laboratories requiring regulatory-compliant documentation, the Smart platform meets foundational requirements for GLP and GMP environments—including audit-ready data logging, user-accessible calibration routines, and full parameter traceability.

Key Features

• Intuitive touch-sensitive 6-key interface with dedicated program navigation and rapid parameter entry
• Programmable auto-stop functions: torque-limited or time-limited measurement modes for standardized test protocols
• Onboard storage for up to nine user-defined test methods (TTT, TTS, and custom sequences)
• Real-time LCD display showing viscosity (cP or mPa·s), apparent viscosity, kinematic viscosity (cSt), shear rate (s⁻¹), shear stress (Pa), temperature (°C), spindle ID, rotational speed (rpm), and measurement confidence percentage
• Multi-unit support: seamless switching between SI (mPa·s, mm²/s) and CGS (cP, cSt) units; density input enables kinematic viscosity derivation
• USB-B interface for direct connection to Windows-based PCs; compatible with ChemTron Datalogger software for automated Excel report generation and time-stamped data export
• Self-diagnostic startup sequence including spindle recognition, torque zeroing, and range validation
• User-performed viscosity and temperature calibration using certified reference oils and NIST-traceable PT100 probes
• Seven-language UI (including English, German, French, Spanish, Italian, Chinese, and Japanese) for international lab deployment

Sample Compatibility & Compliance

The Smart viscometer accommodates diverse sample types—from low-viscosity solvents and polymer solutions to highly structured gels, pastes, and molten thermoplastics—via optional accessories including the APM small-volume adapter (≥0.5 mL), LCP ultra-low-viscosity adapter (down to 1 mPa·s), and Heldal high-viscosity adapter (up to 10⁸ mPa·s). When paired with a certified temperature-controlled bath (e.g., ALPHA-ThermoBath series), the system achieves stable thermal regulation within ±0.1 °C over 0–100 °C, satisfying ISO 5725 repeatability criteria. All measurement outputs comply with ASTM D2196 (non-Newtonian fluids), ISO 2555 (resin solutions), ISO 3219 (polymer melts), and USP <911> (pharmaceutical viscosity testing). Full audit trails—including operator ID, timestamp, calibration status, and environmental metadata—are embedded in exported .csv and Excel files per FDA 21 CFR Part 11 requirements when used with validated Datalogger configurations.

Software & Data Management

ChemTron Datalogger software provides secure, version-controlled data acquisition and reporting. It supports scheduled batch acquisition, real-time graphing of viscosity vs. time or shear rate, and statistical summary (mean, SD, CV%) per test series. Exported datasets include raw torque/speed values, calculated viscosity, temperature logs, and method parameters—each tagged with unique session IDs and digital signatures. The software maintains an immutable calibration history log and allows role-based access control (administrator/operator tiers). Data integrity is reinforced through automatic checksum verification during USB transfer and optional encrypted storage on external drives. For integration into LIMS or ELN systems, Datalogger supports .csv, .xlsx, and XML schema exports with configurable field mapping.

Applications

• Quality control of coatings, inks, adhesives, and sealants per ISO 2555 and ASTM D1084
• Rheological screening of pharmaceutical suspensions, ointments, and hydrogels under USP <911>
• Process development of food emulsions (mayonnaise, sauces) and dairy products per ISO 11357
• Characterization of polymer melts and composites during extrusion and injection molding prep
• Stability assessment of drilling muds and cement slurries in oilfield applications (API RP 13B-1)
• Evaluation of battery electrolytes and electrode slurries for lithium-ion cell manufacturing
• Academic research in soft matter physics, colloidal science, and microfluidic formulation

FAQ

What spindle configurations are included with the Smart viscometer?
The Smart L model ships with spindles L1–L4; Smart R and Smart H include R2–R7. All models support optional concentric cylinder (CC) geometry for precise shear rate control.
Can the instrument measure kinematic viscosity directly?
No—it calculates kinematic viscosity (cSt) mathematically from measured dynamic viscosity (mPa·s) and user-input density (g/cm³), per ISO 291 and ASTM D445 principles.
Is temperature control built-in or external?
The Smart includes a PT100 probe for accurate sample temperature monitoring, but active thermal regulation requires an external circulation bath (e.g., ALPHA-ThermoBath), sold separately.
How is calibration verified and documented?
Users perform two-point viscosity calibration using certified standard oils (e.g., Cannon N47, N275); temperature calibration uses a NIST-traceable dry-block calibrator. Both procedures generate printable calibration reports with uncertainty budgets.
Does the system support 21 CFR Part 11 compliance?
Yes—when operated with validated Datalogger software, password-protected user roles, electronic signatures, and tamper-evident audit logs meet core Part 11 requirements for regulated pharmaceutical and biotech labs.
