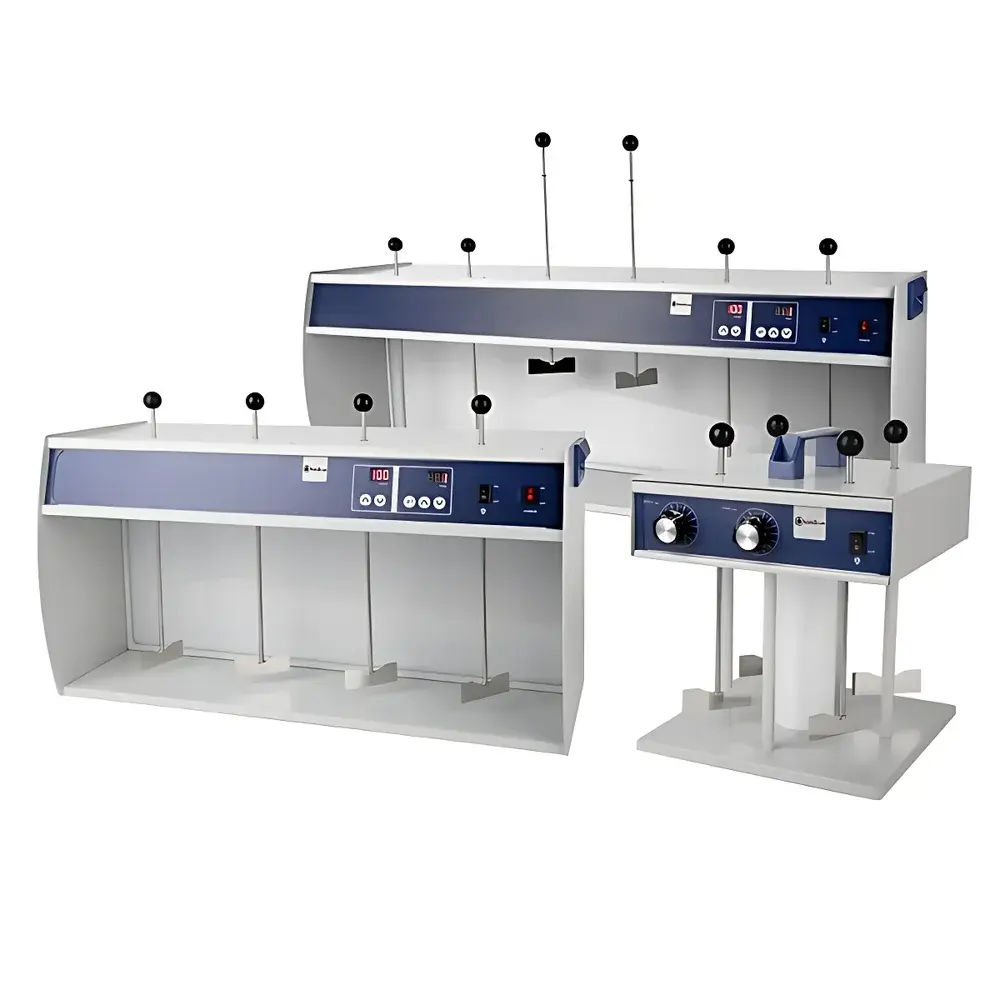

ChemTron WFA Series Flocculation and Sedimentation Analyzer

Overview

The ChemTron WFA Series Flocculation and Sedimentation Analyzer is a precision-engineered laboratory instrument designed for quantitative evaluation of coagulant and flocculant performance in aqueous suspensions. Based on standardized sedimentation kinetics and controlled shear-induced aggregation, the WFA system enables reproducible assessment of floc formation rate, settling velocity, floc size evolution, and compactness under defined hydrodynamic conditions. Unlike optical particle sizing methods, this analyzer operates on gravitational sedimentation principles—measuring real-time changes in suspension turbidity or interface descent while applying programmable, variable-speed mechanical agitation. It is widely applied in water treatment R&D, mineral processing optimization, pharmaceutical suspension formulation, and environmental engineering laboratories where regulatory compliance with ASTM D3556, ISO 10707, and EPA Method 100.1 requires documented, auditable flocculation protocols.

Key Features

• Modular multi-position stirring platforms: WFA-840D supports four simultaneous 100–1000 mL beakers; WFA-860D accommodates six positions with independent motor control and synchronized speed regulation; WFA-840E offers economical single-beaker operation with analog speed adjustment and mechanical timer.
• Precision DC motor drive with digital feedback control ensures stable rotational output across full speed range—critical for simulating low-shear (e.g., basin mixing) to high-shear (e.g., rapid flocculation) regimes.
• Vertically adjustable stainless-steel impellers allow precise immersion depth calibration relative to liquid level—enabling consistent shear field geometry and minimizing wall effects during long-duration experiments.
• Integrated LED display with backlight provides real-time rpm readout and elapsed time tracking; all models support programmable auto-stop functionality with dual-range timers (hours/minutes or minutes/continuous).
• Robust 304 stainless-steel construction, IP20-rated enclosure, and sealed bearing design ensure operational reliability in humid or chemically aggressive lab environments without scheduled maintenance.

Sample Compatibility & Compliance

The WFA series is compatible with standard borosilicate glass beakers (100–1000 mL), polypropylene reaction vessels, and custom-designed sedimentation columns. It accepts slurries containing inorganic colloids (e.g., kaolin, silica), organic polymers (PAM, PEI), metal hydroxides (Al(OH)₃, Fe(OH)₃), and biological flocs. All models comply with IEC 61010-1 for electrical safety in laboratory equipment and meet CE marking requirements. Data acquisition workflows—when paired with optional external sensors (e.g., turbidimeters, conductivity probes)—can be structured to satisfy GLP documentation standards, including audit trails, user access logs, and electronic signature readiness per FDA 21 CFR Part 11 when integrated into validated LIMS environments.

Software & Data Management

While the base WFA units operate as standalone hardware with manual data recording, ChemTron provides optional PC-based software (WFA-Control v3.x) for automated experiment sequencing, real-time graphing of turbidity vs. time, and export of CSV/Excel-compatible datasets. The software supports method templates aligned with standard test procedures (e.g., jar test protocols per APHA Standard Methods 2000), automatic calculation of settling velocity (cm/min), floc growth half-time (t₁/₂), and residual turbidity at endpoint. All data files include embedded metadata: operator ID, timestamp, model number, speed profile, and timer settings—facilitating traceability during internal QA reviews or external accreditation audits (e.g., ISO/IEC 17025).

Applications

• Optimization of coagulant dosage and polymer selection in potable water and wastewater treatment plants.
• Comparative evaluation of synthetic vs. natural flocculants in mining tailings management.
• Stability screening of pharmaceutical suspensions and nanocarrier dispersions during formulation development.
• Validation of shear-sensitive floc breakage and re-growth behavior under controlled ramped agitation profiles.
• Educational use in chemical engineering and environmental science curricula for hands-on demonstration of colloid destabilization mechanisms.

FAQ

What distinguishes the WFA-860D from the WFA-840D?
The WFA-860D features six independently controllable stirring positions with digital speed regulation and extended timer functionality, whereas the WFA-840D offers four positions with identical speed specs but simplified control logic.
Can the WFA series be used for ISO 10707-compliant flocculation testing?
Yes—the instrument’s adjustable shear rate, calibrated impeller geometry, and documented timing accuracy enable adherence to ISO 10707 Annex A procedures for evaluating flocculant efficiency in clay suspensions.
Is calibration required before each test?
No routine calibration is needed; however, users should verify impeller height consistency and confirm rpm accuracy annually using a certified tachometer per manufacturer-recommended maintenance schedule.
Does the WFA-840E support programmable speed ramps?
No—the WFA-840E uses analog knob-based speed control and lacks digital programming; it is intended for fixed-speed, short-duration tests such as preliminary screening or teaching demonstrations.
Are replacement impellers and beaker holders available as spare parts?
Yes—ChemTron supplies stainless-steel impellers (standard PTFE-coated shaft), silicone gaskets, and universal beaker clamps compatible across all WFA models under part numbers WFA-IMP-SS, WFA-GSKT-SIL, and WFA-CLAMP-UNV.
