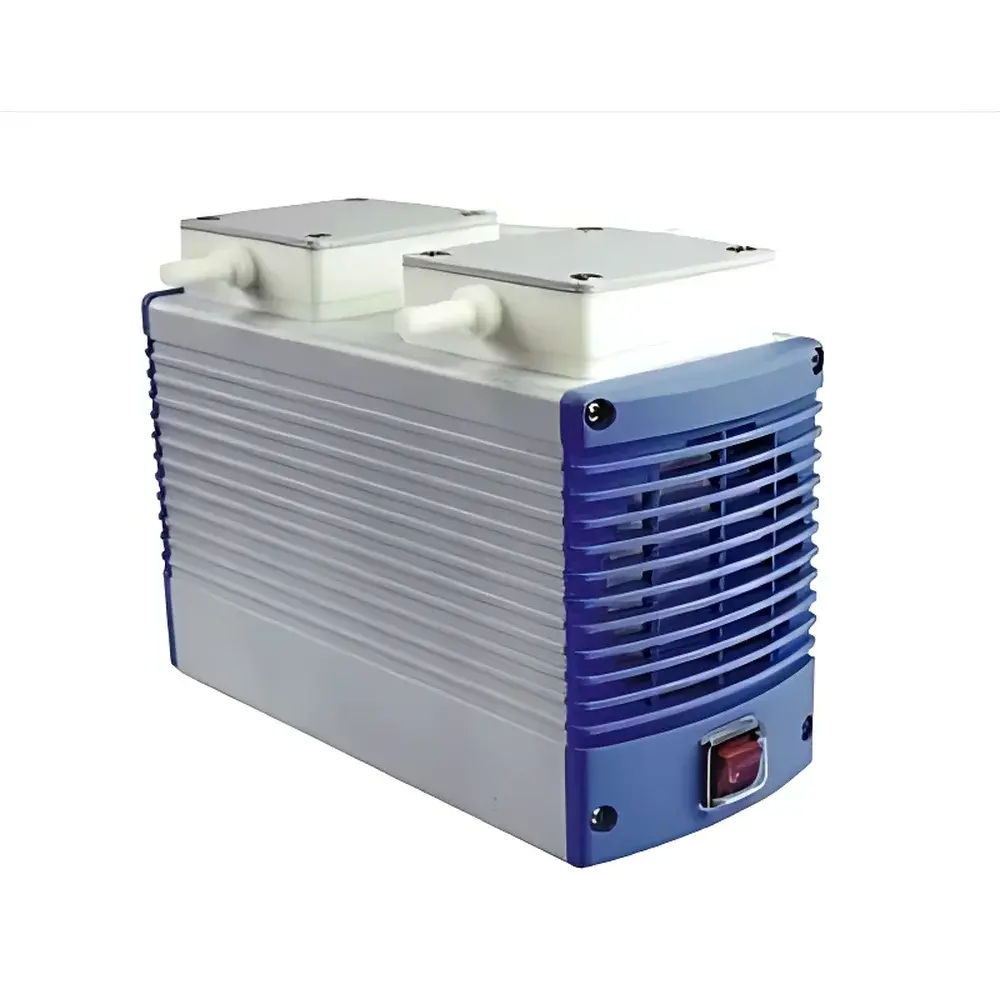

ChemVak C300/C400/C600/C410/C510 Corrosion-Resistant Diaphragm Vacuum Pump

Overview

The ChemVak C300, C400, C600, C410, and C510 series represent a family of chemically resistant, oil-free diaphragm vacuum pumps engineered for demanding laboratory and pilot-scale applications involving aggressive vapors and corrosive gases. These pumps operate on positive displacement principles via elastomeric diaphragms actuated by eccentric cam mechanisms—eliminating lubricants from the gas path and ensuring contamination-free vacuum generation. Designed and manufactured in Germany under strict quality control (ISO 9001), each model features full PTFE coating of all gas-contact surfaces—including diaphragms, valves, and internal housings—providing broad chemical resistance to organic solvents, mineral acids, halogenated compounds, and alkaline vapors. The modular architecture supports integration into filtration, rotary evaporation, vacuum distillation, solid-phase extraction (SPE), and lyophilization workflows, with particular suitability for GLP-compliant environments where material compatibility and long-term reliability are critical.

Key Features

• PTFE-coated wetted components across all models ensure consistent performance in aggressive chemical environments—validated against ASTM D543 and ISO 17468 for polymer chemical resistance.
• Multi-stage configurations: C300 (single-stage), C400/C410 (dual-stage), and C600/C510/C610 (triple-stage) enable scalable vacuum performance—from rough vacuum (210 mbar) to high vacuum (2 mbar).
• Integrated thermal protection system automatically interrupts power at preset temperature thresholds (typically ≥70 °C) and resumes operation once ambient conditions normalize—no manual reset required.
• Low-noise operation (≤60 dB[A] at 1 m distance) achieved through precision-balanced drive mechanisms and vibration-damping housing design—compliant with ISO 3744 acoustic emission standards.
• Oil-free, maintenance-free operation eliminates oil degradation risks, reduces downtime, and avoids downstream contamination in sensitive analytical or pharmaceutical processes.
• Optional corrosion-resistant vacuum regulator/filter assembly includes sintered PTFE membrane (pore size: 0.2 µm) and adjustable pressure control (range: 10–1000 mbar), protecting pump integrity and enabling precise process vacuum setpoints.

Sample Compatibility & Compliance

These pumps are validated for continuous duty with vapors generated during acid digestion (HCl, HNO₃, HF), solvent evaporation (acetone, THF, chloroform), and reactive gas handling (Cl₂, SO₂, H₂S). All wetted materials meet USP Class VI biocompatibility requirements and are certified free of extractables per EP 2.2.48. The CE marking confirms conformity with EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU. For regulated industries, the pumps support audit-ready documentation packages aligned with FDA 21 CFR Part 11 (when paired with compliant data loggers) and GMP Annex 15 validation protocols.

Software & Data Management

While the base units operate as standalone analog devices, optional digital interfaces (RS-485 Modbus RTU or 0–10 V analog output) enable integration into centralized lab management systems (LIMS) or SCADA platforms. Real-time monitoring of motor current draw, runtime hours, and thermal event logs facilitates predictive maintenance scheduling. All firmware updates adhere to IEC 62443-3-3 security guidelines, and configuration parameters are protected via password-locked EEPROM storage.

Applications

• Vacuum-assisted filtration of acidic or solvent-based suspensions in chemical synthesis and QC labs.
• Rotary evaporation under controlled vacuum for heat-sensitive APIs and natural product isolates.
• Reduced-pressure distillation of corrosive reagents in fine chemical manufacturing.
• Sample preparation for ICP-MS and GC-MS where hydrocarbon-free vacuum is mandatory.
• Automated SPE manifold evacuation in environmental testing labs processing wastewater extracts.
• Freeze-drying cycle support in biopharmaceutical development, especially for formulations containing volatile excipients.

FAQ

What vacuum level can the C510 achieve, and how does it compare to the C600?
The C510 achieves an ultimate vacuum of 8 mbar, while the C600 reaches 2 mbar due to its triple-stage compression architecture—making the C600 preferable for applications requiring deeper vacuum, such as high-boiling-point solvent removal.
Is PTFE coating applied to both static and dynamic components?
Yes—diaphragms, valve plates, inlet/outlet manifolds, and chamber liners are fully PTFE-encapsulated; carbon-fiber-reinforced diaphragms are available on C410/C510/C610 for extended service life under cyclic load.
Can these pumps be used continuously for 24/7 operation?
They are rated for continuous duty per IEC 60034-1, provided ambient temperature remains below 35 °C and adequate ventilation is maintained—thermal shutdown prevents damage during overload or cooling failure.
Do you offer validation documentation for GMP environments?
Yes—Factory Acceptance Test (FAT) reports, Material Certificates (EN 10204 3.1), and IQ/OQ templates are available upon order confirmation for all models.
What is the expected service life of the diaphragm under typical lab usage?
Under standard operating conditions (≤8 h/day, non-aggressive media), PTFE-coated diaphragms demonstrate >10,000 hours MTBF; replacement kits include calibrated valve assemblies to maintain original flow/vacuum specifications.
