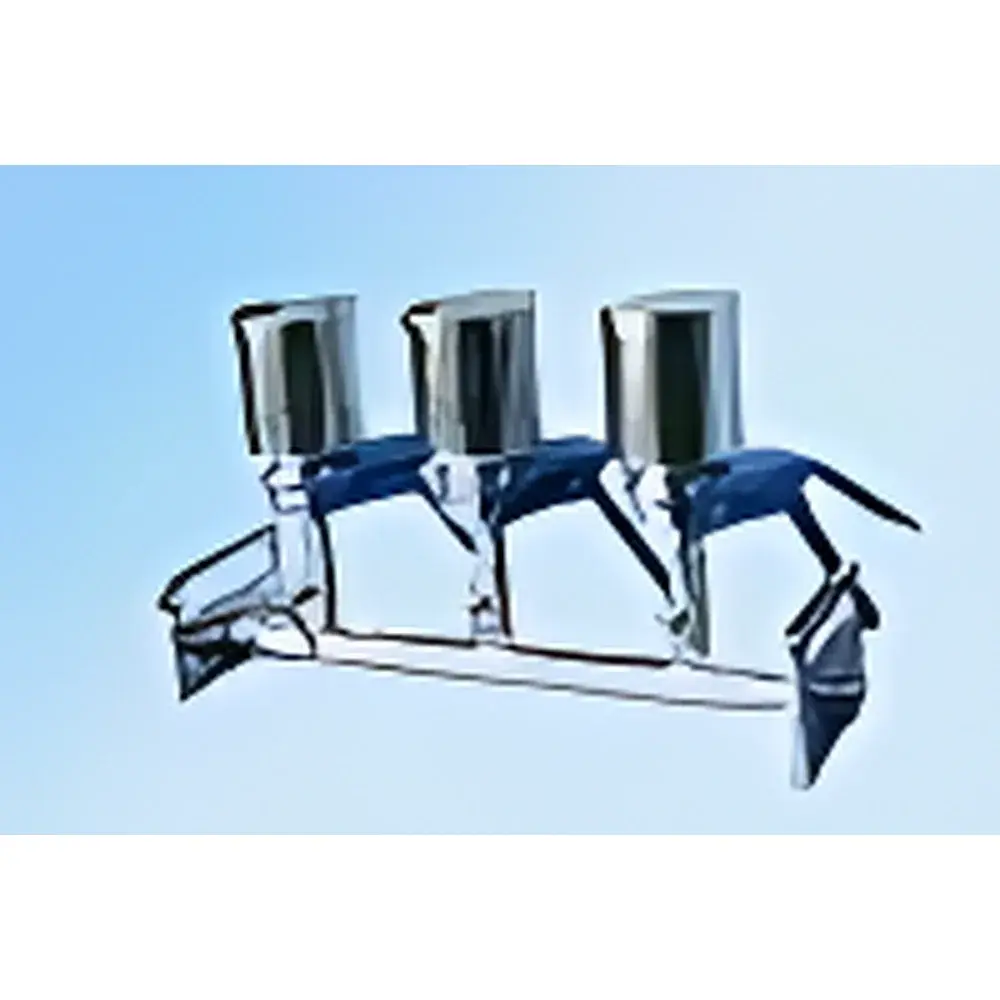

Chu Ding HSF-S3 Triple-Station Stainless Steel Solution Filtration System (Microbial Filtration Assembly)

Overview

The Chu Ding HSF-S3 Triple-Station Stainless Steel Solution Filtration System is a precision-engineered microbial and particulate filtration platform designed for high-throughput, reproducible membrane filtration in regulated laboratory environments. Based on vacuum-assisted dead-end filtration principles, the system enables simultaneous processing of up to three independent liquid samples under controlled negative pressure — eliminating batch-to-batch variability inherent in sequential glass-frit filtration. Constructed entirely from ASTM A240 316L stainless steel, the HSF-S3 meets hygienic design standards for pharmaceutical, environmental, and food microbiology applications where material compatibility, thermal stability, and chemical resistance are critical. Unlike borosilicate glass filtration units — which exhibit fragility, limited autoclave cycles, and surface adsorption artifacts — this system supports repeated sterilization at 121 °C for 30 min (validated per ISO 17665-1), ensuring consistent recovery of microorganisms (e.g., E. coli, P. aeruginosa, S. aureus) and particulates without leachables or extractables.

Key Features

• Triple-station modular architecture with independent ball valves for true parallel operation — each station features isolated vacuum control to prevent cross-contamination and enable differential flow rates.
• 316L stainless steel construction throughout: filter cups, filter heads, support brackets, ball valves, and fluid-contacting surfaces — certified to EN 10204 3.1 material test reports; passivated per ASTM A967 Method A (nitric acid).
• Sanitary clamp-type sealing with anodized aluminum locking clamps (Type II, MIL-A-8625) providing >20 N·m torque repeatability and leak-tight integrity at −85 kPa vacuum.
• Integrated vacuum manifold with calibrated pressure port (0–100 kPa range, ±1.5% FS) compatible with standard lab vacuum pumps (e.g., KNF N860.3FT.18) or centralized vacuum systems.
• Modular baseplate design allows field expansion to six stations (HSF-S6 configuration) using identical components — no recalibration or software update required.

Sample Compatibility & Compliance

The HSF-S3 accommodates standard 47 mm diameter membranes (cellulose ester, PVDF, PTFE, nylon, polycarbonate track-etched) across pH 1–14 and temperatures up to 80 °C during filtration. It complies with core regulatory requirements for microbiological testing: USP and , ISO 8583:2021 (microbiological examination of non-sterile products), EPA Method 1603 (E. coli in water), and APHA Standard Methods 9222 B. The stainless steel wetted path eliminates silicate interference common in glass systems — critical for low-level endotoxin or trace metal analysis. All components are fully autoclavable and support GLP-compliant cleaning validation protocols (residue limits ≤1 µg/cm² protein, ≤0.5 µg/cm² endotoxin).

Software & Data Management

While the HSF-S3 operates as a standalone mechanical system, its design integrates seamlessly into digital lab workflows. Each station includes engraved serial-numbered identification tags (laser-etched, permanent) for instrument tracking in LIMS or ELN platforms. Vacuum manifold ports support optional analog pressure transducer integration (0–5 V output) for real-time logging via LabVIEW, MATLAB, or third-party SCADA systems. Audit trails for maintenance, calibration, and sterilization cycles can be documented per FDA 21 CFR Part 11 requirements when paired with compliant electronic notebooks.

Applications

• Membrane filtration of water, beverages, pharmaceutical buffers, and bioprocess intermediates for total viable count (TVC), coliform, and Pseudomonas enumeration.
• Pre-concentration of environmental samples prior to ICP-MS, HPLC, or GC-MS analysis — minimizing matrix effects from suspended solids.
• Removal of bacteria and particulates from cell culture media, vaccine diluents, and ophthalmic solutions in QC release testing.
• Pre-filtration of HPLC mobile phases and sample extracts to protect analytical columns and reduce backpressure spikes.
• Standardized preparation of filter-retained biomass for downstream DNA extraction, ATP bioluminescence, or SEM imaging.

FAQ

Can the HSF-S3 be used with hydrophobic membranes such as PTFE for organic solvent filtration?
Yes — the 316L stainless steel and fluoropolymer-sealed ball valves are chemically resistant to acetone, methanol, hexane, and ethyl acetate. Verify membrane compatibility per manufacturer datasheets.
Is the system validated for sterility assurance level (SAL) of 10⁻⁶?
Autoclaving at 121 °C/15 psi for 30 min achieves SAL 10⁻⁶ when combined with pre-sterilized membranes and aseptic handling per ISO 11138-3.
Does the unit include a vacuum pump?
No — the HSF-S3 requires an external vacuum source (recommended: ultimate vacuum ≤−90 kPa, flow rate ≥25 L/min). Pump specifications are provided in the Installation Qualification (IQ) protocol.
What is the maximum operating temperature during filtration?
The system is rated for continuous operation at ≤80 °C; short-term exposure to 100 °C is permissible during steam-in-place (SIP) cycles.
Are replacement parts traceable to material certifications?
Yes — all stainless steel components ship with EN 10204 3.1 mill certificates; aluminum clamps include RoHS/REACH declarations and anodizing thickness verification reports.
