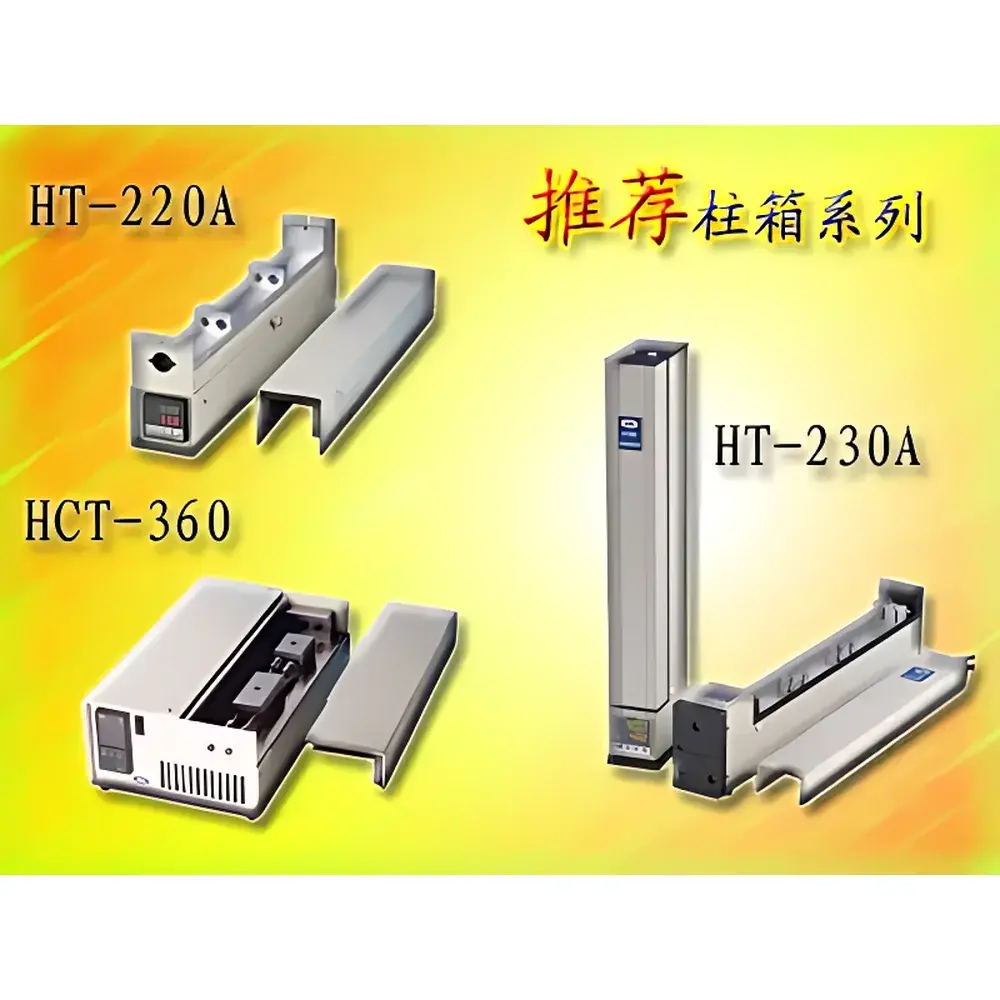

Chu Ding Technology HT-220A Integrated Horizontal HPLC Column Oven

Overview

The Chu Ding Technology HT-220A Integrated Horizontal HPLC Column Oven is an engineered thermal management solution designed specifically for high-performance liquid chromatography (HPLC) systems. It maintains precise, stable column temperatures—critical for retention time reproducibility, peak resolution, and method robustness in analytical and quality control laboratories. Operating on the principle of conductive heat transfer via a thermally optimized aluminum heating block, the HT-220A delivers uniform thermal distribution across mounted columns while minimizing thermal gradients along the column axis. Its integrated horizontal architecture allows direct placement beneath or between HPLC modules—including pumps, autosamplers, and detectors—without requiring external mounting brackets or space-intensive vertical footprints. Unlike ambient-air ovens, this unit employs closed-loop PID temperature regulation with high-stability platinum resistance sensors (PT100-class equivalent), ensuring setpoint accuracy within ±0.3 °C over a typical operating range of ambient +5 °C to 80 °C.

Key Features

• Integrated horizontal design with compact footprint (450 × 75 × 150 mm), enabling seamless integration into standard HPLC flow paths
• Thermally efficient TPC (Thick-Film Printed Circuit) and thin-film heating elements—engineered for extended service life and low thermal inertia
• Dual-position front-panel fluid port configuration (inlet and outlet on both front and rear faces) for unobstructed tubing routing during method setup
• Side-hinged, insulated access lid with mechanical locking screws—facilitates rapid column loading/unloading without disassembling system plumbing
• Dedicated mounting holes for HPLC injection valves, supporting co-location of valve and column within a single thermal envelope
• Embedded safety architecture: independent over-temperature cutoff, open-circuit heater monitoring, and audible/visual alarm activation
• Front-panel digital display with intuitive button interface—supports real-time temperature readout, setpoint adjustment, and status indication

Sample Compatibility & Compliance

The HT-220A accommodates two standard stainless-steel or fused-silica HPLC columns up to 250 mm in length and 4.6–10 mm outer diameter—compatible with common reversed-phase, HILIC, ion-exchange, and size-exclusion configurations. Its internal geometry permits full-length column contact with the heated block while preserving accessibility to column end fittings. The device meets general electrical safety requirements per GB 4793.1 (equivalent to IEC 61010-1) for laboratory equipment. While not intrinsically refrigerated, its thermal stability supports USP , ASTM D7097, and ISO 17025-compliant chromatographic workflows where column temperature is a critical method parameter. For regulated environments, users may document temperature calibration using traceable NIST-traceable probes; audit trails are maintained manually per GLP/GMP documentation practices.

Software & Data Management

The HT-220A operates as a standalone hardware module with no embedded firmware connectivity (e.g., RS-232, USB, or Ethernet). Temperature setpoints and operational status are managed exclusively via the local front-panel interface. This architecture ensures electromagnetic compatibility with sensitive detector electronics and eliminates potential communication latency or driver dependency in multi-vendor HPLC systems. Laboratories requiring centralized thermal logging may integrate external data acquisition systems—such as LabVIEW-compatible thermocouple scanners or PLC-based SCADA platforms—using the unit’s analog voltage output (0–5 V DC proportional to actual temperature), available upon request from Chu Ding Technology technical support. No software license, cloud service, or proprietary driver installation is required for basic operation.

Applications

• Stabilizing retention times in gradient and isocratic HPLC methods—particularly for temperature-sensitive analytes such as chiral compounds, organic acids, and labile pharmaceuticals
• Improving peak symmetry and resolution in reversed-phase separations conducted at elevated temperatures (e.g., 40–60 °C)
• Reducing backpressure fluctuations caused by ambient thermal drift in uncontrolled lab environments
• Supporting method transfer between instruments by standardizing column thermal conditions across platforms
• Enabling routine QC testing under validated thermal conditions compliant with pharmacopeial monographs (e.g., USP, EP, JP)
• Facilitating column conditioning protocols requiring precise thermal ramping and hold steps

FAQ

Does the HT-220A support cooling functionality?
No—the HT-220A is a heating-only column oven. For combined heating/cooling capability, consider the HCT-360 or HCT-460 series.
Can it accommodate columns longer than 250 mm?
Physical chamber depth limits column length to 250 mm. Longer columns require alternative mounting or use of extended-chamber models (e.g., HT-560 or HT-660).
Is the temperature sensor calibrated and traceable?
The built-in sensor is factory-calibrated; users should perform periodic verification using an external, NIST-traceable thermometer per internal SOP or ISO/IEC 17025 requirements.
What maintenance is required for long-term reliability?
No scheduled maintenance is specified. Users should periodically inspect heating block contact surfaces for dust accumulation and verify mechanical integrity of the side-access lid hinge and fasteners.
Is the unit compatible with UHPLC systems operating above 1000 bar?
Yes—mechanical design imposes no pressure limitations; compatibility depends solely on column hardware and system-rated fittings used downstream.
