CK MoistureMap MM200 Skin Hydration Distribution Imaging System

Overview

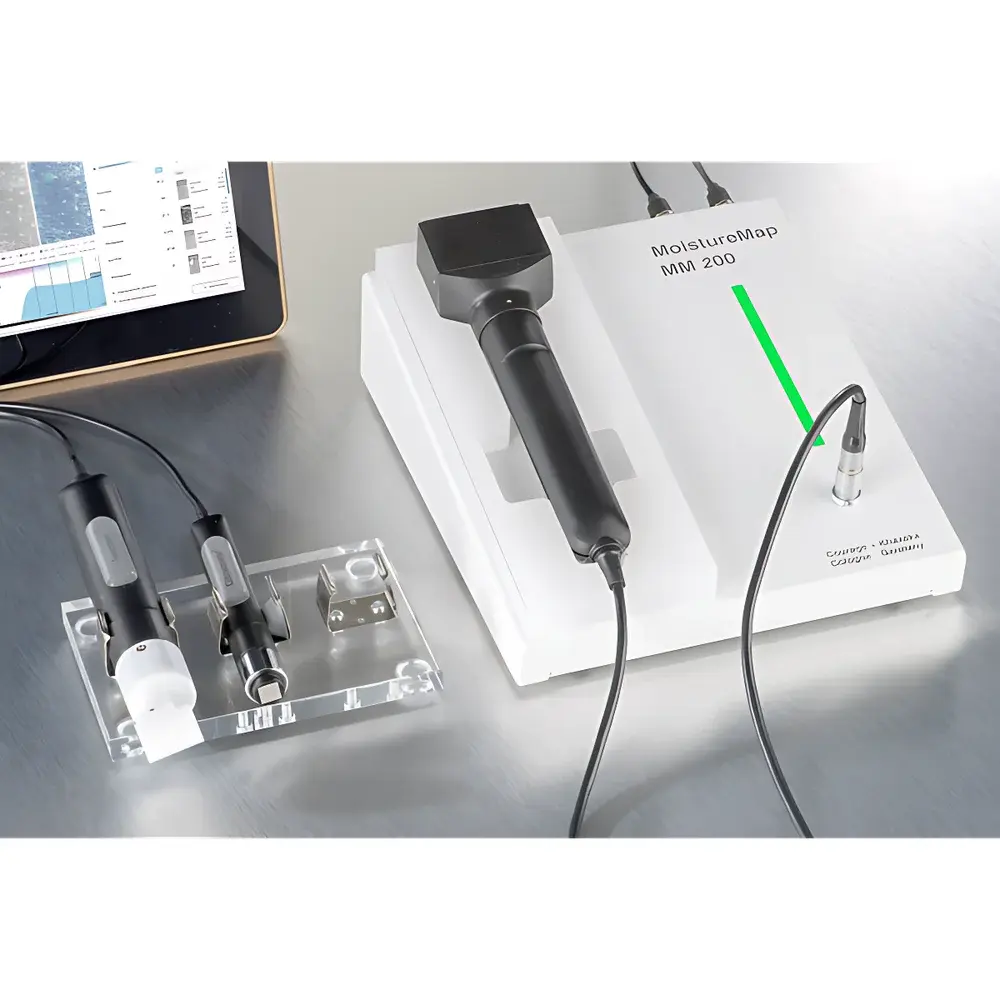

The CK MoistureMap MM200 is a non-invasive, high-resolution skin hydration distribution imaging system engineered for quantitative spatial mapping of surface and near-surface water content in human skin. Unlike conventional capacitance- or impedance-based corneometers that report single-point average moisture values, the MM200 employs low-frequency electromagnetic field penetration (typically 1–10 MHz) combined with multi-electrode array sensing to generate two-dimensional topographic maps of relative dielectric permittivity—directly correlated with local ionic conductivity and thus hydration heterogeneity. The system operates on the principle that increased water content enhances epidermal conductivity, resulting in attenuated signal intensity (darker pixels) across the electrode grid; conversely, dry or lipid-rich regions exhibit higher impedance and brighter pixel response. This enables objective visualization of hydration gradients—e.g., transepidermal water loss (TEWL) boundaries, occlusion effects, or microstructural barrier disruptions—without contact pressure or skin perturbation.

Key Features

• Multi-point capacitive imaging array with 128×128 electrode resolution for sub-millimeter spatial discrimination
• Real-time, non-contact acquisition (<500 ms per frame) enabling dynamic monitoring of hydration kinetics post-application
• Calibrated relative permittivity scale (0–100 arbitrary units) traceable to ISO 13720:2019 for skin bioimpedance instrumentation
• Ergonomic handheld probe with integrated LED-guided positioning and automatic skin contact detection
• Temperature- and humidity-compensated measurement engine compliant with ASTM E2824–22 guidelines for environmental influence mitigation
• Rugged aluminum housing rated IP54 for clinical and industrial laboratory environments

Sample Compatibility & Compliance

The MM200 is validated for use on intact human volar forearm, cheek, and dorsal hand skin under controlled ambient conditions (20–22°C, 40–50% RH). It accommodates diverse subject cohorts—including pediatric, geriatric, and phototype IV–VI skin—without modification. All measurement protocols align with Good Clinical Practice (GCP) and ISO 22716:2007 (Cosmetic Good Manufacturing Practice). Data output supports audit trails required under FDA 21 CFR Part 11 for regulated dermatological efficacy studies, including electronic signature capability and user-access logging. Device calibration certificates are issued per DKD/DAkkS standards and include uncertainty budgets referenced to NIST-traceable impedance standards.

Software & Data Management

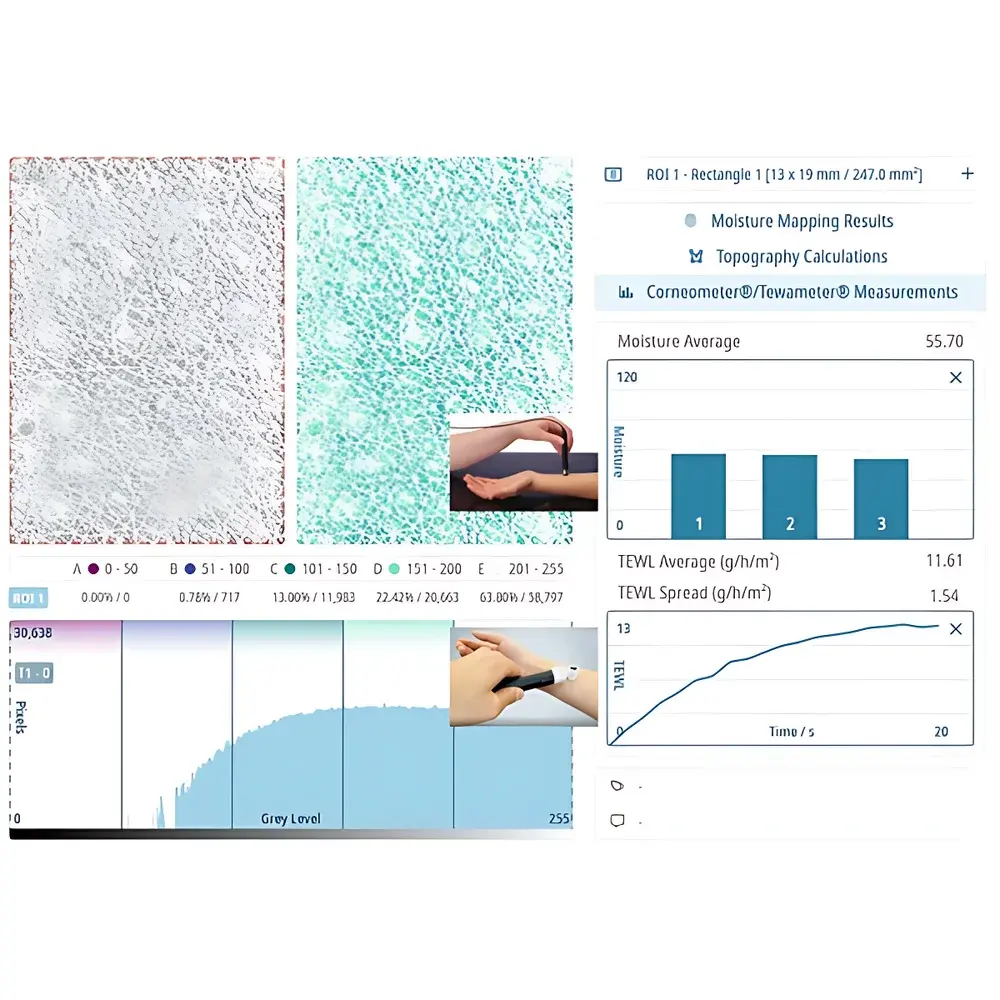

Acquisition and analysis are performed via CK’s proprietary MoistureVision Suite v4.2, a Windows-based platform supporting DICOM-compliant image export, region-of-interest (ROI) statistical overlay (mean, SD, CV%), and time-series hydration flux modeling. Raw data files (.mmi) retain full metadata: timestamp, ambient sensor logs, operator ID, and probe calibration epoch. The software enforces role-based access control (RBAC), automated backup to network drives, and encrypted database archiving. Export formats include CSV (for SPSS/SAS integration), TIFF (8-bit grayscale), and PDF reports compliant with ISO/IEC 17025 documentation requirements. Audit trail functionality records all parameter changes, image annotations, and report generations with immutable timestamps.

Applications

• Evaluation of topical formulation efficacy: quantifying spatial uniformity of moisturizer penetration, occlusive film formation, and barrier repair kinetics
• Dermatotoxicology: mapping hydration disruption zones following surfactant challenge or irritant exposure
• Clinical dermatology: longitudinal assessment of xerosis, atopic dermatitis lesion heterogeneity, and post-procedure (e.g., laser, chemical peel) barrier recovery
• Cosmeceutical R&D: correlating ingredient delivery (e.g., hyaluronic acid variants, ceramide complexes) with localized hydration profiles
• Regulatory dossier support: generating GLP-compliant images and statistics for EU Cosmetics Regulation (EC) No 1223/2009 Annex I safety assessments

FAQ

Does the MM200 measure absolute water content in g/cm²?

No. It measures relative dielectric contrast correlated with local conductivity—not gravimetric or spectroscopic water concentration. Absolute quantification requires complementary techniques such as NIR spectroscopy or gravimetric TEWL.
Can it be used on mucosal or wounded skin?

Not validated for mucosal surfaces or open wounds. Use is restricted to intact, non-inflamed epidermis per CE marking scope and ISO 10993-1 biocompatibility classification.
Is probe recalibration required between subjects?

No. The system performs automatic baseline drift compensation before each acquisition. Annual factory recalibration is recommended per ISO/IEC 17025 maintenance schedule.
How does ambient humidity affect results?

The integrated environmental sensor triggers automatic correction algorithms when RH deviates >±5% from baseline; measurements outside 30–60% RH require manual protocol override and annotation.
Is the MM200 compatible with existing LIMS or ELN platforms?

Yes—via RESTful API and HL7-compatible metadata exchange. CK provides documented integration modules for LabVantage, Benchling, and Veeva Vault QMS.
