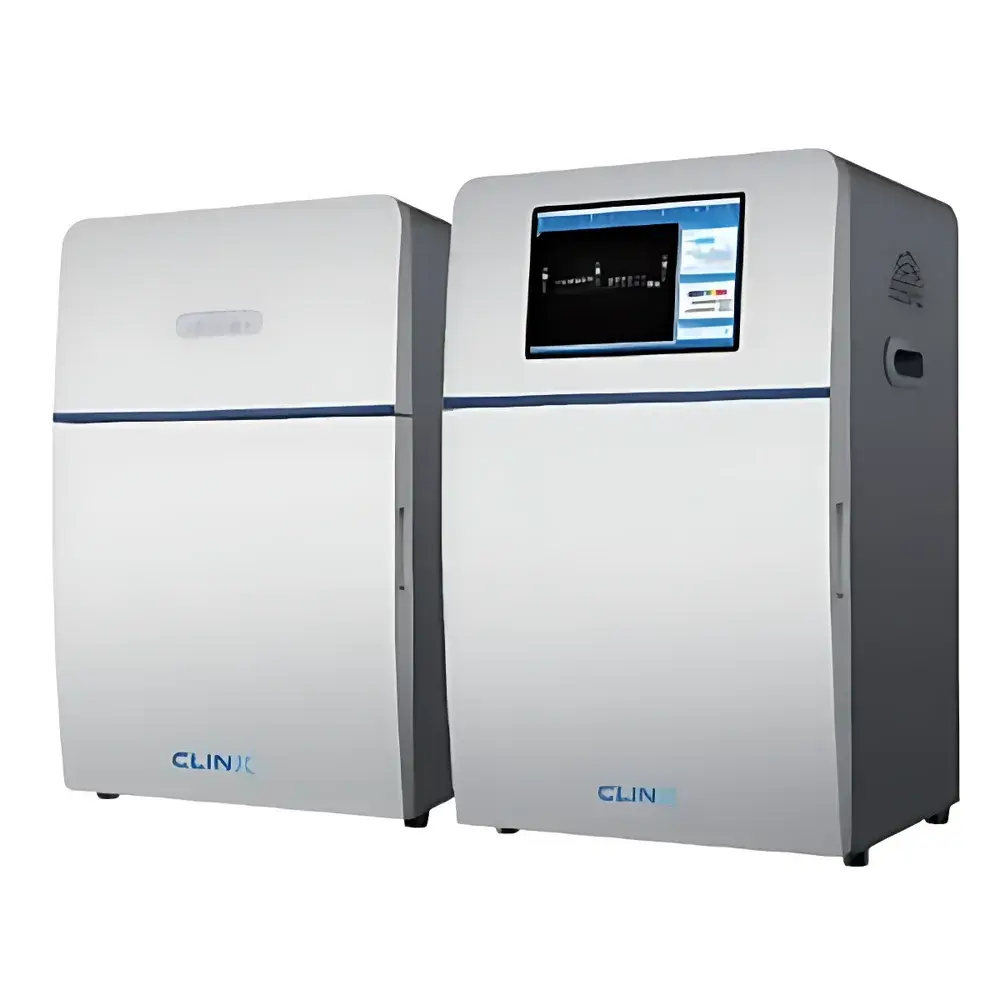

CLINX GenoSens 2250 Touch Gel Imaging System

Overview

The CLINX GenoSens 2250 Touch Gel Imaging System is a benchtop digital imaging platform engineered for quantitative and qualitative analysis of nucleic acid and protein electrophoresis gels. It employs a high-sensitivity, cooled monochrome CCD sensor coupled with precision optical filtration and uniform multi-wavelength transillumination to capture high-fidelity images across UV (254/302 nm), blue light (470 nm), and white light excitation bands. Designed for routine molecular biology laboratories, the system supports ethidium bromide, SYBR® Safe, GelRed®, GelGreen®, and other commercially available fluorescent and chromogenic stains. Its architecture integrates hardware-level signal-to-noise optimization—enabled by 16-bit analog-to-digital conversion and >4.0 optical density (OD) dynamic range—to resolve faint bands in low-abundance samples without saturation or background clipping. The system operates under ambient lab lighting conditions and requires no darkroom infrastructure.

Key Features

• 6.3-megapixel scientific-grade CCD sensor with thermoelectric cooling for reduced dark current and enhanced low-light sensitivity.
• 16-bit digitization (65,536 gray levels) enabling precise densitometric quantification of band intensity across broad concentration ranges.
• Motorized, auto-focusing lens assembly with macro capability for consistent image geometry and reproducible magnification across repeated acquisitions.
• Triple-mode transilluminator: long-life LED-based UV (254/302 nm), blue light (470 nm), and white light sources—each delivering >90% illumination uniformity and rated for >30,000 hours MTBF.
• Intelligent source selection algorithm that detects gel type (e.g., agarose vs. polyacrylamide) and stain chemistry to recommend optimal excitation/emission filter combinations.
• Integrated 10.1-inch multi-touch LCD panel with gesture-enabled UI; supports both standalone operation and seamless switching to external PC control via HDMI/USB 3.0 interfaces.
• Real-time live preview with auto-white balance and dynamic exposure adjustment; supports auto-capture on motion detection or manual trigger with user-defined exposure time (0.001–60 s).

Sample Compatibility & Compliance

The GenoSens 2250 Touch accommodates standard vertical and horizontal electrophoresis gels up to 25 × 25 cm, including mini-gels, midi-gels, and large-format SDS-PAGE or native PAGE systems. It is compatible with common nucleic acid dyes (e.g., EtBr, SYBR Gold, GelRed), protein stains (Coomassie Brilliant Blue R-250, Silver Stain, Deep Purple), and chemiluminescent substrates when used with optional reflective mode accessories. The system’s optical path includes certified UV-blocking safety interlocks and meets IEC 61010-1:2010 for laboratory electrical equipment safety. While not pre-certified for regulated environments, its audit-trail-capable software architecture supports configuration for GLP/GMP workflows—including user access controls, electronic signatures, and metadata-embedded raw image archiving compliant with FDA 21 CFR Part 11 requirements when deployed with validated IT infrastructure.

Software & Data Management

The bundled GenoStudio™ v5.x acquisition and analysis suite provides a modular, scriptable environment for image capture, annotation, molecular weight estimation, relative quantification, and publication-ready reporting. All raw images are saved in vendor-neutral TIFF format with embedded EXIF metadata (exposure time, gain, lens aperture, illumination mode, timestamp). Batch processing supports ROI-based normalization, background subtraction using rolling-ball algorithms, and lane/band detection with adjustable sensitivity thresholds. Export options include CSV (for downstream statistical analysis in R or Python), PDF reports with embedded calibration curves, and PNG/JPEG with lossless compression. Software updates are delivered via secure HTTPS channel with SHA-256 signature verification; version history and change logs are maintained per ISO/IEC 17025 documentation standards.

Applications

• Quantitative DNA/RNA gel analysis: sizing, purity assessment, and concentration estimation from agarose or polyacrylamide gels.
• Protein expression profiling: comparative analysis of Coomassie- or silver-stained SDS-PAGE gels across treatment groups or time points.
• PCR product verification and cloning validation—including multiplex PCR and restriction digest mapping.
• Western blot documentation: semi-quantitative evaluation of chemiluminescent or fluorescent signals when paired with appropriate membranes and detection reagents.
• Teaching laboratory use: intuitive interface and preset protocols reduce training overhead for undergraduate and graduate students.
• Quality control in diagnostic assay development: traceable image acquisition for SOP-driven gel documentation in IVD-related R&D.

FAQ

What types of gels and stains is the GenoSens 2250 Touch optimized for?
It supports agarose and polyacrylamide gels stained with ethidium bromide, SYBR-series dyes, GelRed/GelGreen, Coomassie, silver nitrate, and fluorescent protein tags (e.g., GFP, mCherry) under appropriate excitation filters.
Does the system support chemiluminescence imaging?
No—the GenoSens 2250 Touch is configured for transillumination-based fluorescence and absorbance detection only. Chemiluminescent applications require optional reflective-mode add-ons or dedicated systems such as the GenoSens Chemi series.
Can image acquisition be automated within a laboratory information management system (LIMS)?
Yes—GenoStudio™ exposes RESTful API endpoints and COM/DCOM interfaces for integration with third-party LIMS or ELN platforms, enabling scheduled acquisitions and metadata synchronization.
Is calibration traceable to NIST standards?
While the system does not include factory-installed NIST-traceable photometric calibration, it supports user-loaded calibration standards (e.g., OD step tablets, fluorescence intensity references) with documented procedures aligned with ASTM E2594-18 for digital imaging system validation.
What is the warranty coverage and service response time?
CLINX provides a 24-month limited hardware warranty with optional extended service plans; technical support is available globally via web portal, email, and phone—with 4-hour remote diagnostics SLA for premium contract holders.
