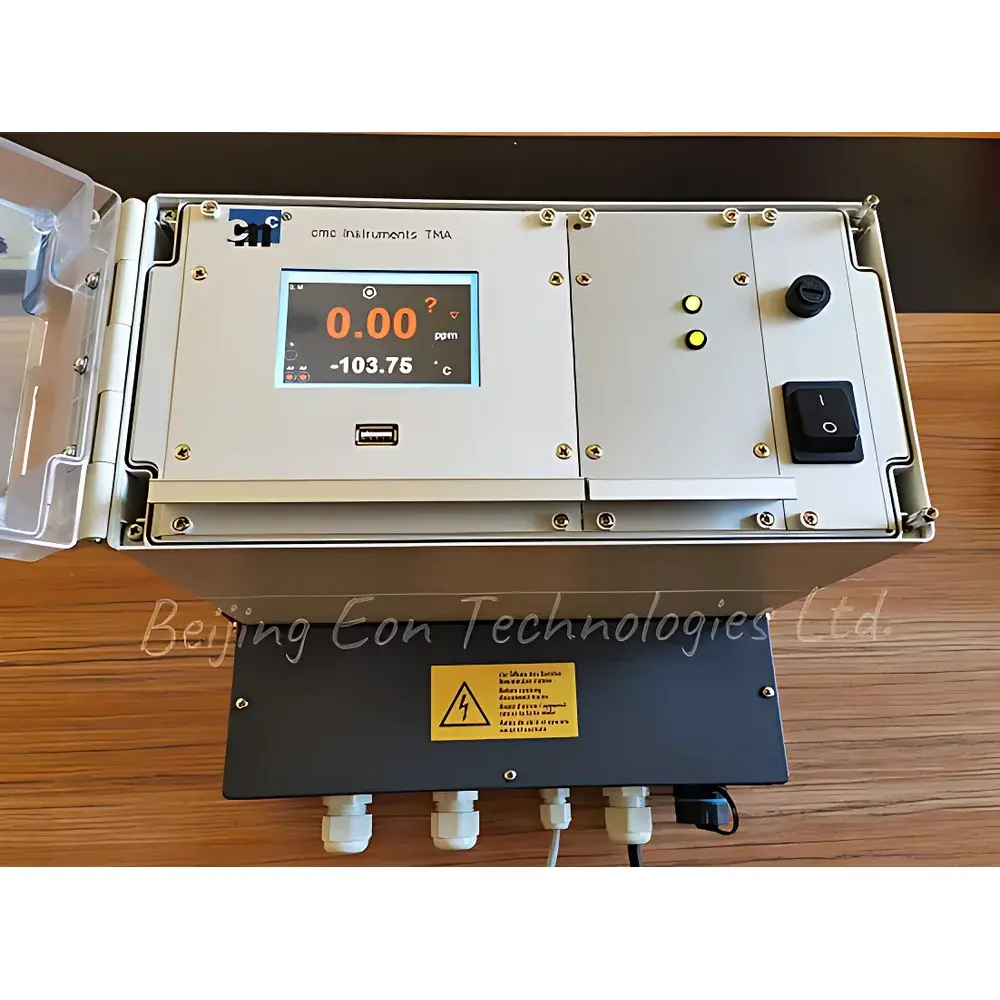

CMC TMA-202-W-Ex P₂O₅ Electrolytic Moisture Analyzer

Overview

The CMC TMA-202-W-Ex is a certified intrinsically safe, in-line moisture analyzer engineered for continuous, absolute measurement of trace water vapor in aggressive and flammable process gases. It employs the well-established phosphorus pentoxide (P₂O₅) electrolytic principle—recognized under ISO 8573-8 and ASTM D6673 for high-accuracy moisture determination in compressed gases. Unlike optical or capacitive methods, this technique provides true absolute quantification without reliance on calibration curves or reference standards. Water molecules in the sample gas are electrolyzed at a P₂O₅-coated sensor cell, generating a stoichiometric current proportional to H₂O concentration. The resulting P₂O₅ layer continuously rehydrates and dehydrates, sustaining equilibrium between ambient moisture and electrochemical reaction rate. This enables stable, drift-free operation over extended periods—even in ultra-dry environments down to single-digit ppmv levels.

Key Features

• Intrinsically safe design certified to ATEX II 1G Ex ia IIC T4 Ga and IECEx Ex ia IIC T4 Ga—suitable for Zone 0/20 hazardous areas without external barriers.
• True absolute measurement: No zero/span recalibration required; sensor regeneration occurs automatically during normal operation via controlled electrode polarization.
• Ultra-fast response: T₉₀ < 1 second and T₅₀ < 8 seconds—critical for real-time process control in gas purification, semiconductor fab supply lines, and cryogenic separation units.
• Corrosion-resistant sensor architecture: Platinum or rhodium electrodes with thermally stabilized H₃PO₄ electrolyte film; compatible with Cl₂, HCl, SO₂, H₂S, SF₆, F₂, and other highly reactive gases (excluding NH₃ and amines).
• Full microprocessor control with auto-ranging capability across four selectable spans (0–10, 0–100, 0–1000, 0–2500 ppmv), eliminating manual range changes during transient conditions.
• Integrated self-diagnostic routine at power-on: Verifies sensor integrity, amplifier linearity, relay functionality, and safety barrier compliance before enabling measurement mode.
• NAMUR-compliant output signaling (NE 43) and configurable 4–20 mA analog output with HART® option for integration into DCS/SCADA systems.

Sample Compatibility & Compliance

The TMA-202-W-Ex is validated for use with inert, oxidizing, reducing, and acidic gases—including He, Ar, Kr, Xe, N₂, O₂, H₂, CO₂, CH₄, natural gas, freons, and specialty etchants. Its P₂O₅ sensor exhibits minimal cross-sensitivity to common interferents such as CO, NOₓ, and hydrocarbons. However, gases containing nucleophilic species (e.g., NH₃, PH₃, amines) or strong reducing agents (e.g., silanes) may degrade the phosphoric acid film and require application-specific validation. All instruments comply with IEC 61508 SIL 2 functional safety requirements for critical moisture monitoring loops and meet EMC directive 2014/30/EU and LVD directive 2014/35/EU. Documentation supports FDA 21 CFR Part 11 readiness when paired with compliant data acquisition software.

Software & Data Management

Local configuration and diagnostics are performed via the built-in capacitive touchscreen interface, supporting multilingual menus (including English, German, French, and Chinese). The embedded firmware logs all operational events—including alarm triggers, range switches, and sensor regeneration cycles—with timestamping and user-accessible history (≥30 days). Optional Ethernet or RS-485 Modbus RTU interfaces enable remote parameterization and real-time data streaming. Audit trails record all configuration changes with operator ID and time stamp, fulfilling GLP/GMP documentation requirements. Data export is supported in CSV format via USB port for offline trending and statistical process control (SPC) analysis.

Applications

• High-purity bulk gas production (e.g., electronic-grade N₂, Ar, He) where moisture must be maintained below 1 ppmv per SEMI F57 specifications.
• Chlor-alkali and sulfuric acid plants monitoring Cl₂ and SO₂ feed streams prior to liquefaction or compression.
• SF₆ reclamation systems in high-voltage switchgear maintenance, ensuring compliance with IEC 60480 limits.
• Hydrogen fueling stations verifying ISO 8573-8 Class 1 (<0.1 ppmv) purity prior to dispensing.
• Cryogenic air separation unit (ASU) off-gas monitoring to prevent ice formation in cold boxes.
• Pharmaceutical nitrogen blanketing systems requiring continuous verification of ≤5 ppmv moisture to prevent API degradation.

FAQ

Is the P₂O₅ sensor affected by flow rate variations?
No—the TMA-202-W-Ex maintains measurement stability across its specified 20 NL/h flow range; deviations beyond ±10% require recalibration using a certified moisture standard.

Can the instrument measure dew point directly?
It reports moisture concentration in ppmv; dew point is calculated post-acquisition using known pressure and temperature inputs—integrated algorithms support automatic conversion when external PT sensors are connected.

What maintenance is required for long-term accuracy?
Annual verification against NIST-traceable moisture standards is recommended; sensor regeneration is fully automated and does not require user intervention or consumables.

Is the device suitable for outdoor installation?
Yes—its IP65-rated enclosure and extended environmental operating range (5–65 °C) allow direct mounting in sheltered outdoor locations, provided ambient condensation is prevented.

Does it support Modbus TCP communication?
The base model includes Modbus RTU over RS-485; Modbus TCP requires an optional Ethernet gateway module (order code: TMA-ETH-GW).
