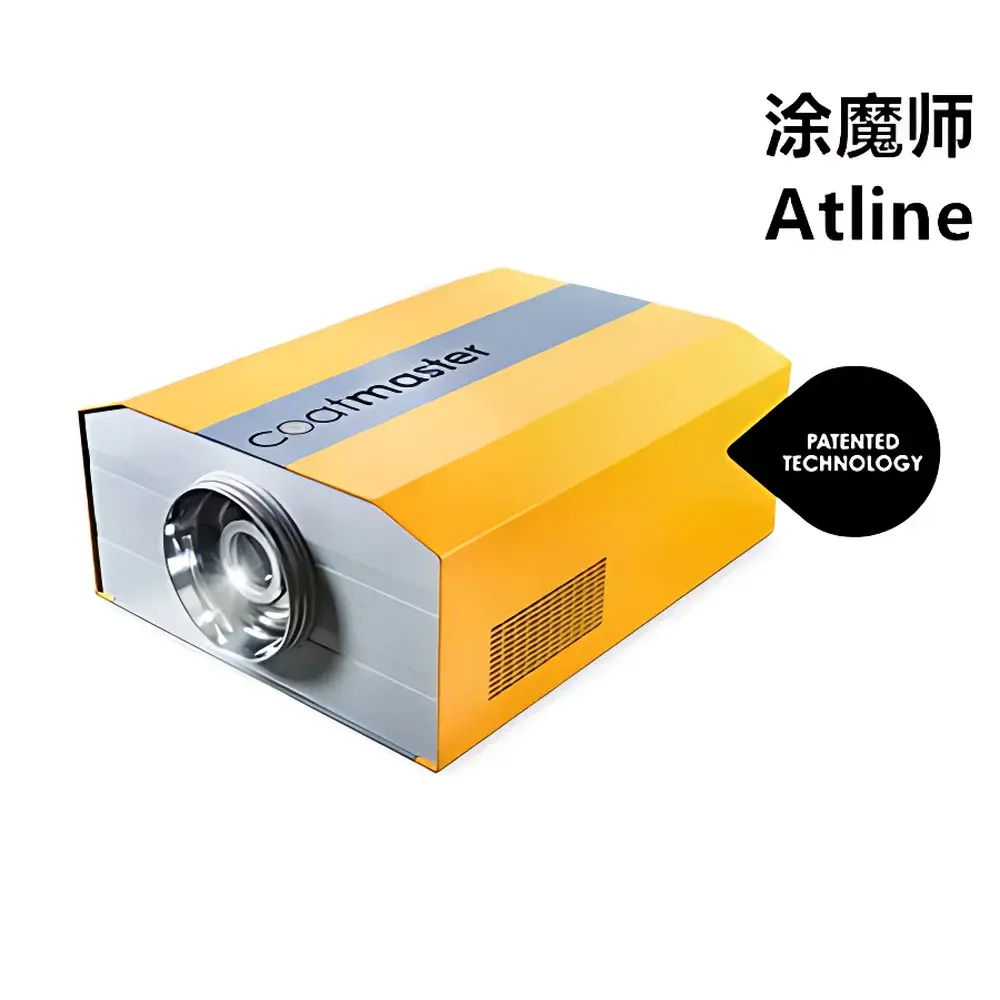

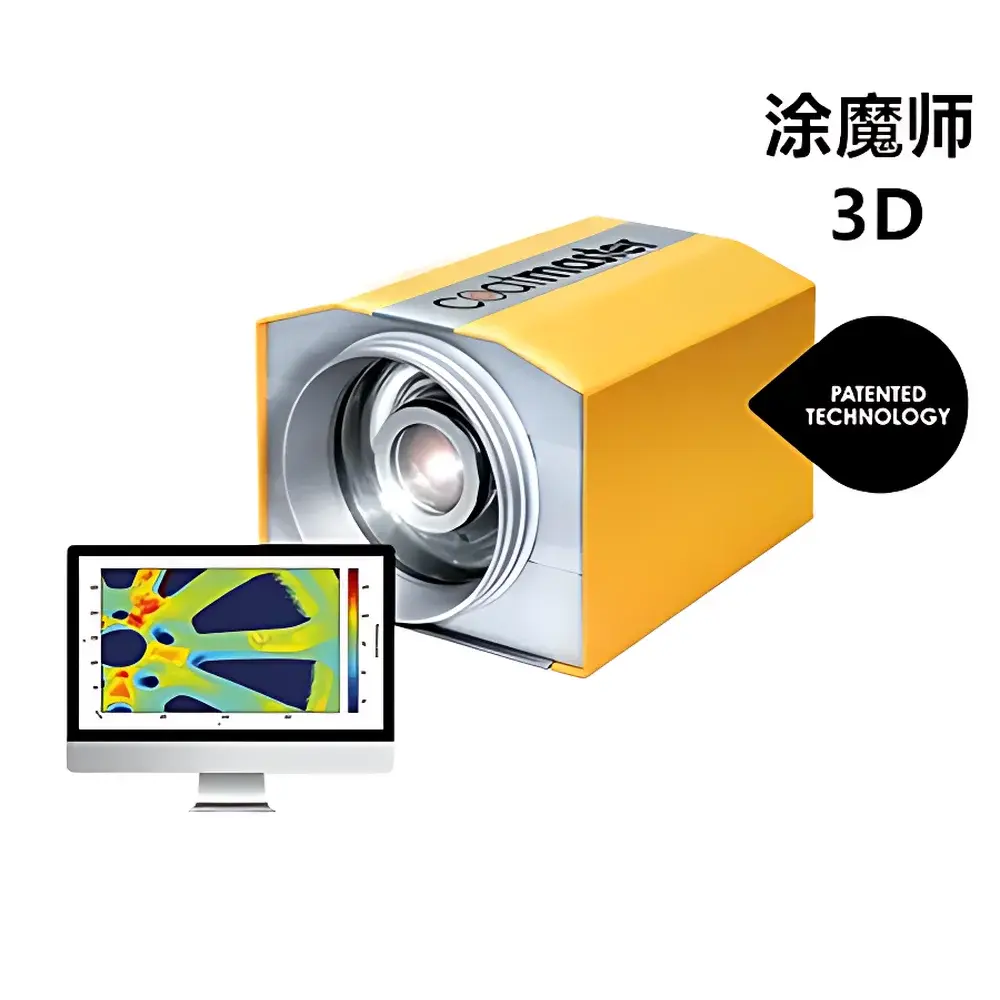

Coatmaster EX Intrinsically Safe Online Coating Thickness Measurement System

Overview

The Coatmaster EX Intrinsically Safe Online Coating Thickness Measurement System is an industrial-grade, real-time, non-contact thickness gauge engineered for continuous in-line monitoring of wet and dry organic coatings on conductive and non-conductive substrates—specifically designed for operation in classified hazardous environments (ATEX Zone 1 / IECEx Zone 21). Unlike conventional contact-based methods (e.g., magnetic induction or eddy current), the Coatmaster EX employs Advanced Thermal Optics (ATO), a patented photothermal measurement principle: a calibrated short-pulse laser irradiates the coating surface, inducing transient thermal excitation; a high-frame-rate infrared detector captures the spatially resolved surface temperature decay profile; and proprietary physics-based algorithms reconstruct coating thickness from the thermal diffusion dynamics across the coating–substrate interface. Because heat propagation is inherently perpendicular to the surface, measurement accuracy remains unaffected by minor variations in sensor-to-target distance (working distance tolerance ±15 mm) or incident angle (±30°), enabling robust performance on curved, angled, or textured surfaces—including piston skirts, torsional damper housings, and stamped sheet metal components—without mechanical alignment or surface preparation.

Key Features

• Intrinsically safe design certified to ATEX II 2G Ex ib IIB T4 Gb and IECEx Ex ib IIB T4 Gb for continuous operation in flammable vapor or dust environments.
• Real-time wet-film thickness measurement—capable of quantifying uncured coatings immediately post-application, eliminating reliance on post-cure sampling and enabling closed-loop process correction within seconds.
• Simultaneous dual-mode capability: measures both wet-film (pre-cure) and dry-film (post-cure) thickness with traceable correlation under identical optical path conditions.
• No physical contact required—eliminates probe wear, substrate marking, or interference with electrostatic spray fields; compatible with high-speed conveyor lines (up to 60 m/min).
• Integrated industrial Ethernet (PROFINET, EtherNet/IP) and OPC UA interfaces for seamless integration into MES, SCADA, and ERP platforms (e.g., Siemens SIMATIC, Rockwell FactoryTalk, SAP ME).
• Automated 100% inline inspection with full audit trail: all measurements timestamped, georeferenced (via encoder-synced position tagging), encrypted, and stored locally or uploaded to secure cloud infrastructure compliant with ISO 27001 and GDPR.

Sample Compatibility & Compliance

The Coatmaster EX supports a broad range of automotive and industrial coating systems, including lubricants (e.g., molybdenum disulfide, PTFE dispersions), adhesives (acrylic, epoxy, rubber-based), primers, topcoats, and functional polymer films applied via spray, dip, roll-coat, or screen-print processes. It operates reliably on ferrous and non-ferrous metals (steel, aluminum, magnesium alloys), as well as composites and coated plastics—provided the coating exhibits measurable thermal diffusivity contrast versus the substrate. The system complies with ISO 2808 (paints and varnishes — determination of film thickness), ASTM D7091 (standard practice for nondestructive measurement of dry film thickness of nonmagnetic coatings applied to ferrous metals and nonconductive coatings on non-ferrous metals), and supports GLP/GMP-aligned data integrity per FDA 21 CFR Part 11 through optional electronic signature and audit trail modules.

Software & Data Management

Coatmaster Control Center (CCC) v5.x is the embedded firmware and PC-based application suite delivering full system configuration, real-time visualization, statistical process control (SPC), and automated reporting. It features SPC charts (X-bar/R, Cpk/Ppk), configurable alarm thresholds (with email/SMS notifications), batch-level trend analysis, and root-cause correlation tools linking thickness deviation to upstream variables (e.g., spray pressure, viscosity, ambient RH/T). All raw thermal decay curves and derived thickness values are retained with SHA-256 hashing for data immutability. Export formats include CSV, PDF reports, and native XML for direct ingestion into Q-DAS, Minitab, or custom Python-based analytics pipelines. Optional validation packages (IQ/OQ/PQ documentation) are available for regulated manufacturing environments.

Applications

• Automotive powertrain: real-time monitoring of anti-friction coatings on pistons, cylinder liners, and valve train components.
• Chassis and suspension: adhesive layer thickness verification on torque rod bushings, stabilizer links, and bearing housings.
• Electric vehicle battery enclosures: precise control of thermal interface material (TIM) and corrosion-inhibiting primer layers.
• Aerospace structural assemblies: quality assurance of sealant and primer films on aluminum and titanium airframe parts.
• Industrial fasteners and stampings: 100% inline inspection of functional polymer coatings on bolts, brackets, and sensor housings.

FAQ

Can the Coatmaster EX measure thickness on rough or curved surfaces?
Yes—the photothermal principle eliminates angular dependency and tolerates surface roughness up to Ra 12.5 µm without calibration drift or signal loss.
Does it require sample preparation or surface cleaning before measurement?
No—measurements are performed in ambient production conditions; oil mist, light dust, or residual solvent vapor do not interfere with optical coupling or thermal detection.
How is traceability ensured for regulatory audits?
Each measurement includes embedded metadata: sensor ID, UTC timestamp, encoder position, environmental sensor readings (optional), operator login, and digital signature—all stored with cryptographic hashing and version-controlled backup.
What is the typical measurement repeatability under factory conditions?
For standard automotive coatings (e.g., 5–50 µm wet film), repeatability is ≤±0.3 µm at 95% confidence (k=2), verified per ISO 5725-2 using certified reference standards.
Is calibration required between shifts or daily?
No—system self-calibrates thermally before each measurement cycle using internal blackbody references; annual traceable verification against NIST-traceable thickness standards is recommended.
