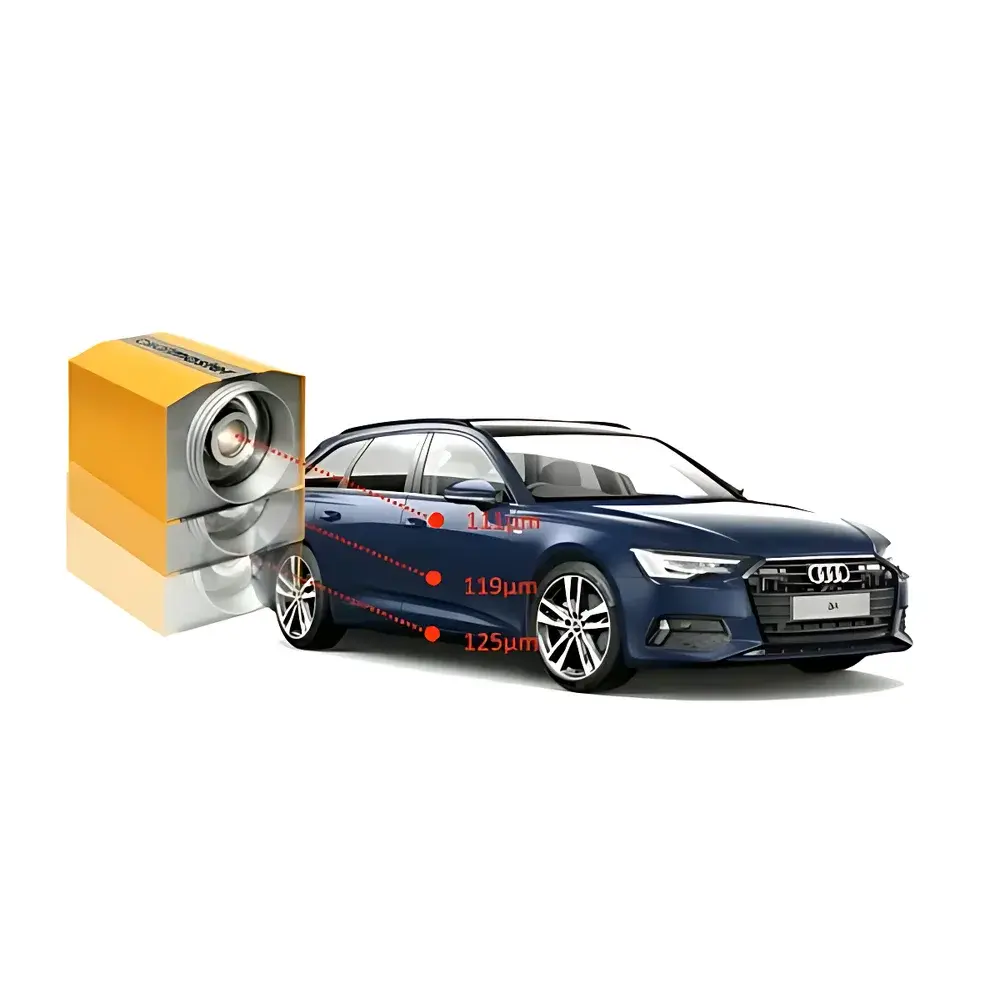

Coatmaster Inline Online Non-Contact Coating Thickness Measurement System for Steel Substrates

Overview

The Coatmaster Inline Online Non-Contact Coating Thickness Measurement System is an industrial-grade, real-time metrology solution engineered for precision monitoring of liquid and powder coatings on conductive metallic substrates—primarily cold-rolled steel, galvanized steel, and aluminum alloys used in automotive body-in-white (BIW) manufacturing. Unlike conventional eddy current or magnetic induction gauges, the system employs Advanced Thermal Optics (ATO), a patented non-destructive, non-contact measurement principle rooted in transient thermography. A precisely controlled, low-energy optical pulse heats the coating surface locally; an integrated high-speed infrared detector captures the dynamic surface temperature decay profile at microsecond resolution. Since thermal diffusivity—and thus cooling rate—is intrinsically linked to coating thickness and substrate thermal conductivity, proprietary inverse modeling algorithms reconstruct thickness from the temporal evolution of surface temperature. This physics-based approach eliminates reliance on empirical calibration per color or gloss level, enabling robust operation across all pigment formulations—including highly reflective white, metallic, and pearlescent finishes—without recalibration.

Key Features

• True online capability: Mounted directly above conveyor lines or robotic spray booths, delivering continuous thickness data at up to 3 m/s line speed.
• Wet-to-dry correlation engine: Simultaneously measures wet film thickness (WFT) and predicts final dry film thickness (DFT) using real-time process parameters (e.g., solvent evaporation rate, ambient temperature).
• Zero-contact, zero-interference: No mechanical contact, no radiation hazard, no influence on curing chemistry or airflow dynamics in spray booths.
• Multi-layer adaptability: Optimized for standard automotive 4-layer systems—electrophoretic primer (e-coat), surfacer/primer, basecoat, and clearcoat—with layer-specific algorithm modes available upon request.
• Industrial hardening: IP65-rated enclosure, vibration-damped optical housing, and active thermal stabilization ensure long-term stability in paint shop environments (15–40 °C, 30–80% RH).
• Integrated alarm logic: Configurable upper/lower limits trigger visual/audible alerts and PLC-compatible digital outputs for immediate process intervention.

Sample Compatibility & Compliance

The Coatmaster Inline is validated for use on flat, curved, and moderately contoured steel panels (minimum radius ≥ 50 mm) and aluminum substrates. It supports all OEM-specified coating chemistries—including waterborne, solventborne, and high-solids systems—as well as UV-curable and powder coatings post-application but pre-cure. The system complies with ISO 2808 (paints and varnishes — determination of film thickness), ASTM D7091 (standard practice for nondestructive measurement of dry film thickness of nonmagnetic coatings applied to ferrous metals), and ISO 2360 (non-conductive coatings on non-ferrous metals, adapted via thermal modeling). For regulated production environments, optional 21 CFR Part 11 compliance packages provide full audit trail logging, electronic signature workflows, and role-based access control aligned with GMP/GLP quality systems.

Software & Data Management

Coatmaster Control Suite v5.x serves as the central operational interface, running on an embedded industrial PC or external Windows workstation. It provides real-time dashboard visualization of thickness maps, statistical process control (SPC) charts (X̄-R, Cpk), and historical trend analysis. All measurements are timestamped, georeferenced to part ID (via barcode/RFID integration), and archived in encrypted SQLite databases. Raw thermal decay curves, processed thickness values, and system diagnostics are exportable in CSV, XML, or OPC UA formats for MES/SCADA integration. Data integrity safeguards include write-once storage, cyclic redundancy checks (CRC), and configurable retention policies meeting ISO 9001 clause 7.5.3 requirements for documented information control.

Applications

Primary deployment targets include automotive OEM paint shops performing inline quality assurance of BIW components (doors, hoods, fenders, roof panels); Tier-1 suppliers producing coated structural parts; and coil coating lines processing pre-painted steel sheets. Secondary applications span aerospace component finishing (aluminum fuselage skins), heavy equipment cab painting, and appliance manufacturing (refrigerator panels). The system enables closed-loop feedback to robotic spray controllers, supports AI-driven predictive maintenance of atomizers and fluid delivery systems, and feeds into digital twin models for process optimization and virtual qualification.

FAQ

Does the Coatmaster Inline require calibration for each paint color or gloss level?
No. ATO technology is inherently independent of optical reflectance and absorption characteristics, eliminating the need for color-specific calibration.
Can it measure on hot substrates exiting ovens?
Yes—the system compensates for substrate temperature drift in real time using dual-wavelength IR sensing and embedded thermal modeling.
Is it compatible with existing PLCs and MES platforms?
Yes. Native support for Siemens S7, Rockwell Logix, and Beckhoff TwinCAT via Ethernet/IP, Profinet, and Modbus TCP; OPC UA server included.
What is the minimum measurable thickness and resolution?
Typical range: 5–150 µm for automotive topcoats; resolution: 0.1 µm (statistical), with repeatability ≤ ±0.5 µm under controlled conditions.
How is system validation performed for GMP-compliant production?
Validation kits include NIST-traceable reference standards, IQ/OQ/PQ protocol templates, and third-party verification reports compliant with ISO/IEC 17025.
