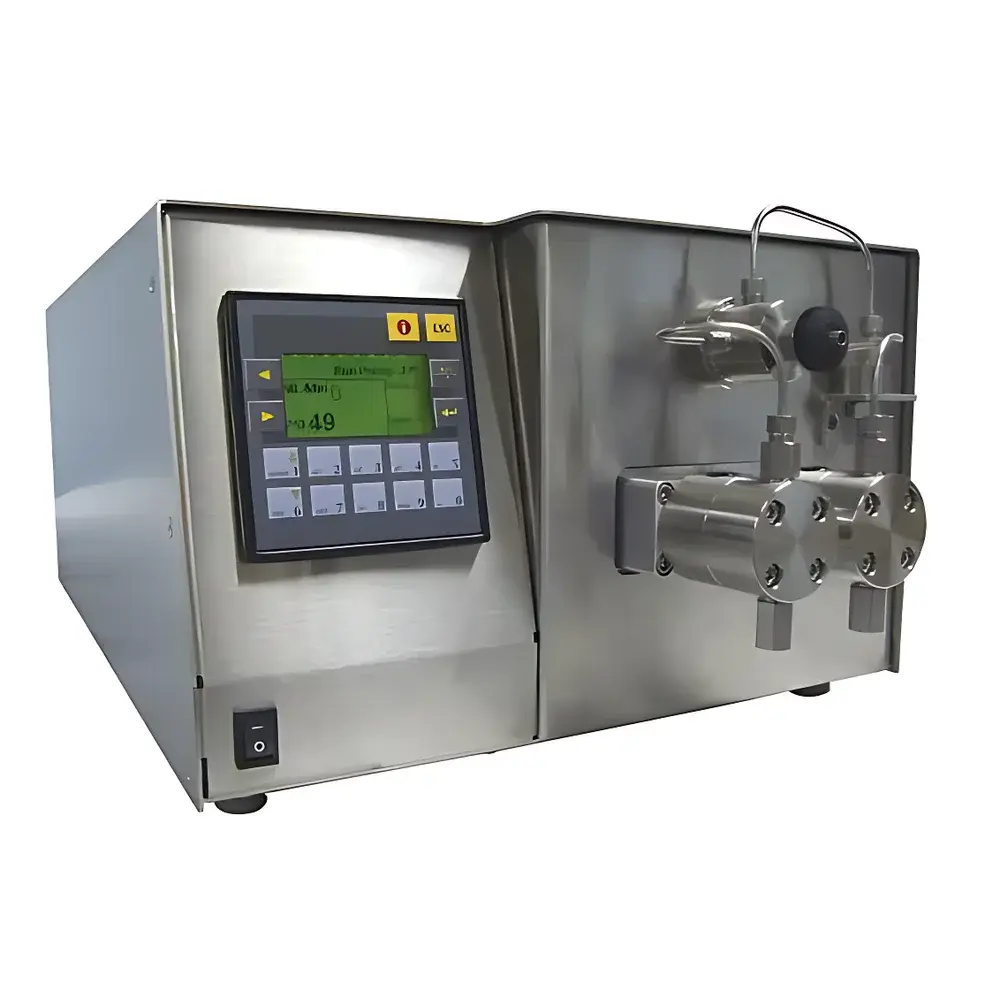

Cole-Parmer 74930-01 Dual-Piston High-Pressure Constant-Flow Pump

Overview

The Cole-Parmer 74930-01 Dual-Piston High-Pressure Constant-Flow Pump is an engineered solution for demanding liquid delivery applications requiring precise, pulse-free flow across an exceptionally wide dynamic range—from microliter-per-minute analytical gradients to high-volume process-level metering. Built upon positive displacement dual-piston architecture with 316 stainless steel wetted components, this pump delivers robust performance under sustained pressures up to 612 bar (9000 psi), making it suitable for ultra-high-performance liquid chromatography (UHPLC), preparative LC, high-pressure reaction monitoring, and continuous-flow synthesis systems. Its solvent recompression algorithm actively compensates for compressibility effects in organic-aqueous mobile phases, while real-time pressure feedback enables automatic flow correction—ensuring stable delivery even during rapid pressure transients or viscosity shifts. Unlike single-piston or peristaltic alternatives, the dual-head design inherently minimizes pulsation (<0.2% residual ripple), critical for preserving column integrity with sub-10 µm particle-packed beds and avoiding baseline noise in sensitive detection modalities.

Key Features

• Dual-piston positive displacement mechanism with synchronized stroke timing for ultra-low pulsation and high volumetric fidelity
• Full-range flow control from 0.001 to 250.0 mL/min, adjustable in 1 µL increments via front-panel keypad or remote command
• Integrated pressure sensing and active flow compensation across the entire operating envelope (0–612 bar)
• Backlit LCD interface with intuitive menu navigation, real-time display of setpoint, actual flow, system pressure, and error status
• RS-232 serial interface compliant with standard SCPI command syntax for integration into automated workflows and LIMS environments
• Thermally stabilized pump head housing rated for continuous operation up to 100 °C ambient
• CE- and UL-certified electrical architecture with reinforced isolation and EMI shielding for laboratory-grade reliability

Sample Compatibility & Compliance

The 74930-01 accommodates a broad spectrum of solvents—including acetonitrile, methanol, THF, DMSO, and aqueous buffers—with compatibility validated per ASTM D471 and ISO 1817 for elastomer seals and 316SS structural integrity. It meets key regulatory expectations for instrument qualification in GxP environments: pressure and flow calibration traceable to NIST standards, audit-trail-capable firmware logging (via optional software extension), and support for 21 CFR Part 11-compliant electronic signatures when paired with validated host software. The pump’s mechanical design conforms to ISO 13849-1 PL e safety requirements for emergency stop integration, and its sealed electronics enclosure satisfies IP20 classification for typical laboratory use. While not self-priming, it is compatible with external degassing modules and inline filters (e.g., 0.2 µm PTFE) to maintain particulate-free delivery essential for UHPLC column protection.

Software & Data Management

The pump operates autonomously via its embedded microcontroller but supports bidirectional communication through ASCII-based RS-232 protocol. Standard command sets enable remote initiation, flow/pressure setpoint adjustment, status interrogation, and fault reporting—facilitating seamless incorporation into LabVIEW, Python-controlled sequencing, or third-party chromatography data systems (CDS). Optional Cole-Parmer Pump Control Software provides graphical configuration, method storage, real-time trend plotting, and CSV export for QA documentation. All operational parameters—including cumulative runtime, total delivered volume, and maximum historical pressure events—are retained in non-volatile memory and accessible via query commands. Firmware updates are performed via serial download and include version-locked checksum validation to ensure integrity during GMP-relevant maintenance cycles.

Applications

• UHPLC and preparative HPLC systems requiring stable, low-pulsation flow at >600 bar for sub-2 µm particle columns
• High-pressure catalytic reactor feed control, including supercritical fluid processing and hydrothermal synthesis
• Calibration and verification of flow meters, pressure transducers, and mass flow controllers in metrology labs
• Continuous dosing in pharmaceutical pilot-scale formulation studies where reproducibility <0.5% RSD is mandated
• Integration into custom-built electrochemical flow cells or microfluidic platforms demanding programmable multi-step flow profiles

FAQ

Is the 74930-01 suitable for gradient elution in UHPLC?

Yes—its dual-piston architecture, solvent recompression logic, and sub-millisecond pressure response time enable accurate binary or quaternary gradient formation without dwell volume artifacts.
Does it support automatic leak detection or blockage mitigation?

It includes programmable pressure limit enforcement with immediate flow halt and audible/visual alarm on overpressure or sustained zero-flow conditions—functioning as a hardware-level safeguard against column blockage or line occlusion.
Can it be operated in constant-pressure mode?

The 74930-01 is configured as a constant-flow pump; model 74930-02 offers dedicated constant-pressure control. Both share identical mechanical specifications and firmware architecture.
What maintenance intervals are recommended for long-term accuracy?

Seal replacement is advised every 6,000 hours of operation or annually—whichever occurs first—using Cole-Parmer OEM kits (P/N 74930-SEAL). Piston polishing and recalibration are recommended every 18 months in regulated environments.
Is it compatible with aggressive solvents like concentrated sulfuric acid or HF?

No—316SS is not resistant to halide-rich or strongly oxidizing acids. For such media, consult Cole-Parmer’s Hastelloy-C276 or ceramic-piston pump variants (e.g., 74935 series).
