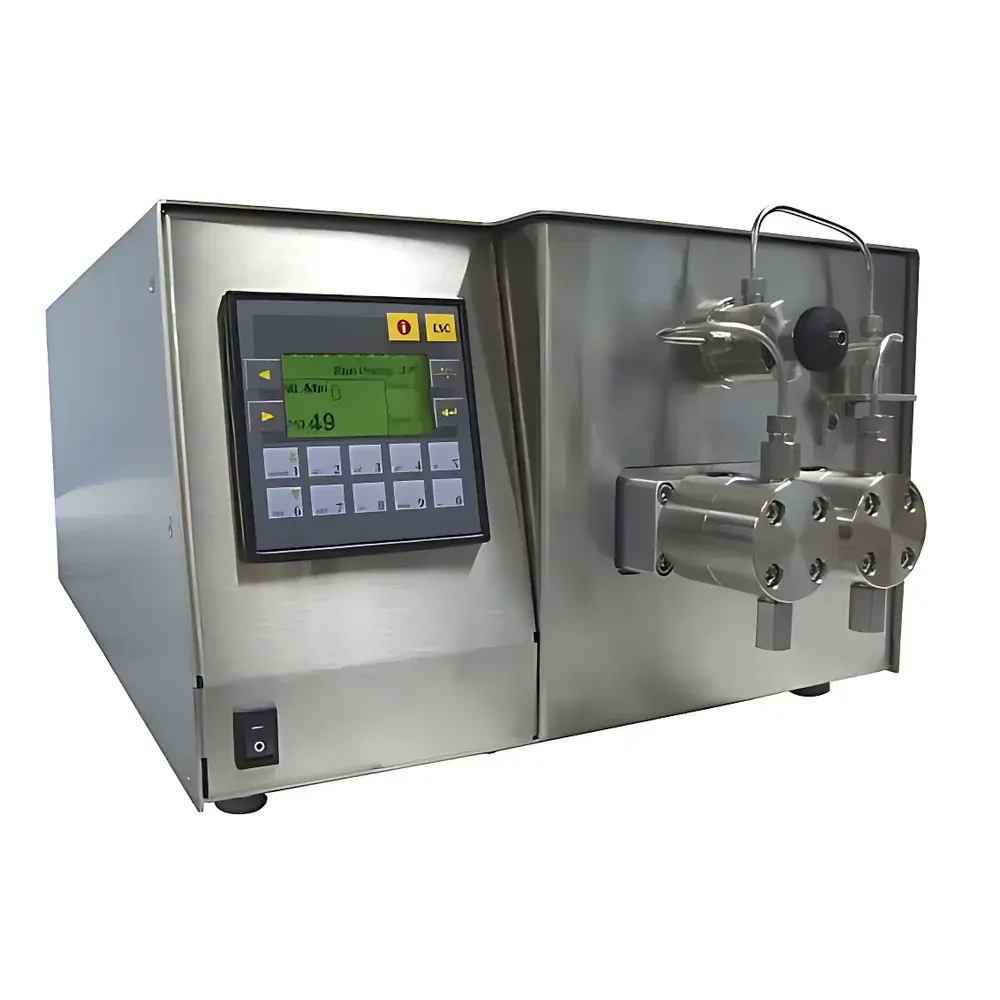

Cole-Parmer 74930-02 Dual-Piston High-Pressure Constant-Flow/Constant-Pressure Pump

Overview

The Cole-Parmer 74930-02 is a dual-piston, high-pressure positive displacement pump engineered for demanding analytical and process applications requiring precise, stable fluid delivery across an exceptionally wide flow range. Designed specifically for high-resolution liquid chromatography (LC), ultra-high-pressure metering, and continuous-flow reactor pressurization, this pump operates on the principle of synchronized reciprocating piston displacement with active solvent re-compression and real-time pressure-compensated flow control. Its robust 316 stainless steel wetted path ensures chemical compatibility with aggressive solvents and buffers commonly used in HPLC, UHPLC, and preparative LC systems. Unlike peristaltic or diaphragm pumps, the dual-piston architecture eliminates reliance on elastic tubing or flexible membranes—thereby delivering superior long-term stability, minimal pulsation (<0.5% RSD), and resistance to wear under sustained high-pressure operation.

Key Features

• Dual-piston positive displacement mechanism with synchronized stroke timing and adaptive solvent re-compression algorithm to suppress flow pulsation and maintain baseline stability during gradient elution.
• Programmable dual-mode operation: constant-flow mode (volumetric precision) and constant-pressure mode (force-controlled delivery), selectable via front-panel LCD interface.
• Wide dynamic flow range: 0.001–250.0 mL/min with 1 µL resolution—enabling seamless transition from analytical-scale LC injection to preparative or process-scale pumping without hardware changeover.
• High-pressure capability: up to 9000 psi (612 bar) at low-to-mid flow rates (0–210 mL/min); maintains 6500 psi (448 bar) at maximum flow (211–250 mL/min), supporting columns packed with sub-10 µm particles and high-backpressure reactors.
• Integrated pressure transducer with automatic feedback loop for real-time flow correction, ensuring accuracy <2% FS across full pressure range and ±1% at reference conditions (1000 psi, 1 mL/min).
• RS-232 serial interface compliant with standard SCPI command syntax, enabling integration into automated LC systems, LIMS environments, or custom LabVIEW/Python-based control architectures.

Sample Compatibility & Compliance

The 74930-02 accommodates a broad spectrum of mobile phases—including aqueous buffers, acetonitrile, methanol, THF, DMSO, and chlorinated solvents—without degradation of wetted components. All fluid-contact surfaces are constructed from electropolished 316 stainless steel, minimizing metal leaching and adsorption artifacts critical for trace-level analysis. The pump meets mechanical safety requirements per UL 61010-1 and IEC 61010-1 for laboratory equipment. While not intrinsically certified for hazardous locations, its design supports installation in ISO Class 5–7 cleanrooms and GMP-compliant laboratories when integrated into validated workflows. It supports audit-trail-ready operation when paired with compliant software platforms adhering to FDA 21 CFR Part 11 requirements for electronic records and signatures.

Software & Data Management

Control and monitoring are executed via the built-in monochrome LCD panel with intuitive menu navigation and real-time display of pressure, flow rate, setpoint deviation, and operational status. For system-level integration, the RS-232 port enables bidirectional communication using ASCII-based SCPI commands. Users may log timestamped pressure and flow data at user-defined intervals (100 ms to 5 s resolution) directly to external PCs or PLCs. When deployed within validated chromatography data systems (CDS), the pump’s digital output supports full traceability—including operator ID, method name, run time, and calibration history—as required under GLP and GMP frameworks. Firmware updates are performed via serial connection and include version-locked checksum verification.

Applications

• High-resolution reversed-phase and hydrophilic interaction liquid chromatography (HILIC) with sub-2 µm particle columns.
• Preparative purification of peptides, oligonucleotides, and small-molecule APIs under controlled backpressure.
• Continuous-flow synthesis reactors requiring stable inlet pressure up to 600 bar for catalytic hydrogenation or photochemical transformations.
• Calibration of flow meters and pressure sensors in metrology labs accredited to ISO/IEC 17025.
• Method development for supercritical fluid chromatography (SFC) co-solvent delivery where pulse-free flow is essential for retention time reproducibility.

FAQ

Does the 74930-02 support gradient mixing?

No—this is a single-channel high-pressure pump; gradient formation requires external low-pressure mixing modules or a second synchronized pump in isocratic or binary configuration.
Is the pump compatible with aqueous NaOH solutions above pH 12?

Extended exposure to >12 M NaOH or hot caustic solutions is not recommended; consult Cole-Parmer’s chemical compatibility guide for 316 SS limitations at elevated temperature and concentration.
Can it be operated in a vacuum environment?

No—the pump requires ambient atmospheric pressure for heat dissipation and electrical insulation integrity; operation below 80 kPa absolute is not supported.
What maintenance intervals are recommended for piston seals?

Under typical LC usage (≤4000 psi, 1–10 mL/min), seal replacement is advised every 6–12 months or after 5000 operating hours—whichever occurs first—based on observed pressure decay or flow drift exceeding specification limits.
Is firmware upgrade documentation publicly available?

Yes—Cole-Parmer provides release notes, HEX firmware images, and step-by-step update procedures through its secure customer portal for registered instrument owners.
