COMECAUSE IN-HF100 Portable Soil Nutrient & Fertilizer Analyzer

Overview

The COMECAUSE IN-HF100 Portable Soil Nutrient & Fertilizer Analyzer is an integrated field-deployable photometric instrument engineered for rapid, on-site quantification of macro- and micro-nutrients in solid fertilizers, organic amendments, composts, and aqueous extracts. It operates on the principle of standardized photometric colorimetry—where target analytes (e.g., ammonium, nitrate, orthophosphate, potassium via sodium cobaltinitrite complexation, and organic carbon via dichromate oxidation) react with reagent-specific chromogens to produce stoichiometric color development. The intensity of absorbance at pre-calibrated wavelengths (680 nm, 420 nm, 510 nm, 590 nm) is measured using a thermally stabilized LED-optical path system, then converted into quantitative concentration values via embedded NIST-traceable calibration curves. Designed for operational resilience in variable ambient conditions—including full-spectrum daylight exposure and high-humidity environments—the IN-HF100 eliminates laboratory dependency for preliminary screening, enabling real-time decision support in fertilizer procurement, quality assurance, and precision agronomy workflows.

Key Features

• Four-channel fixed-position solid-state cuvette module with mechanically locked optical alignment—eliminating channel-to-channel drift and mechanical wear over time.
• Dedicated quad-wavelength LED source array (680±2 nm red, 420±2 nm blue, 510±2 nm green, 590±4 nm orange) with >100,000-hour lifetime and spectral stability certified per IEC 61000-4-3.
• Integrated pH sensor (range 1–14, ±0.1 accuracy) co-located with optical detection chamber for concurrent acidity-correction during nutrient extraction.

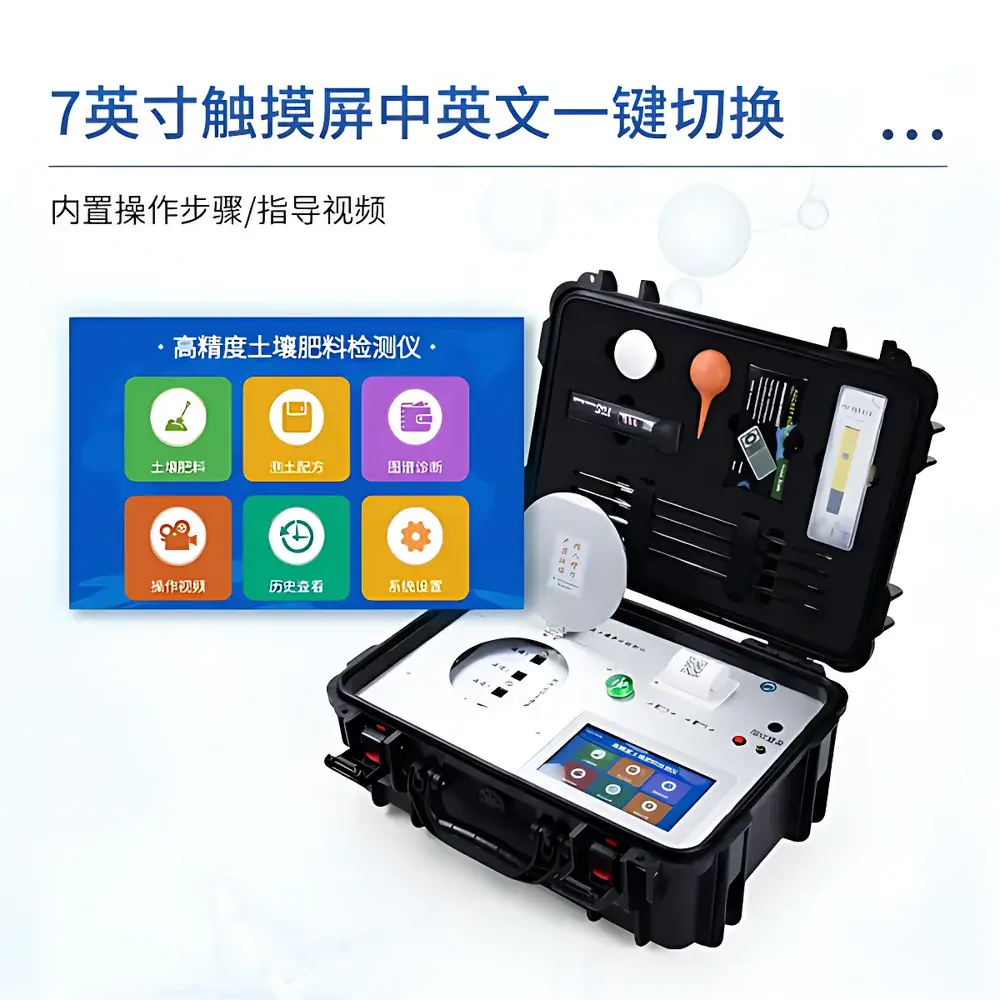

• Android 5.1-based embedded OS with quad-core ≥1.8 GHz processor, 16 GB flash memory, and responsive 7.0″ 1024×600 LCD—optimized for glove-compatible touch interaction under field lighting.
• Multi-layer data security architecture: biometric (fingerprint) + PIN authentication, role-based user accounts, timestamped audit logs, and automatic encryption of all stored records.
• On-device thermal printer with QR-coded output—printing analyte name, unit, operator ID, GPS coordinates, timestamp, absorbance value, concentration result, and batch ID without consumable ribbons.

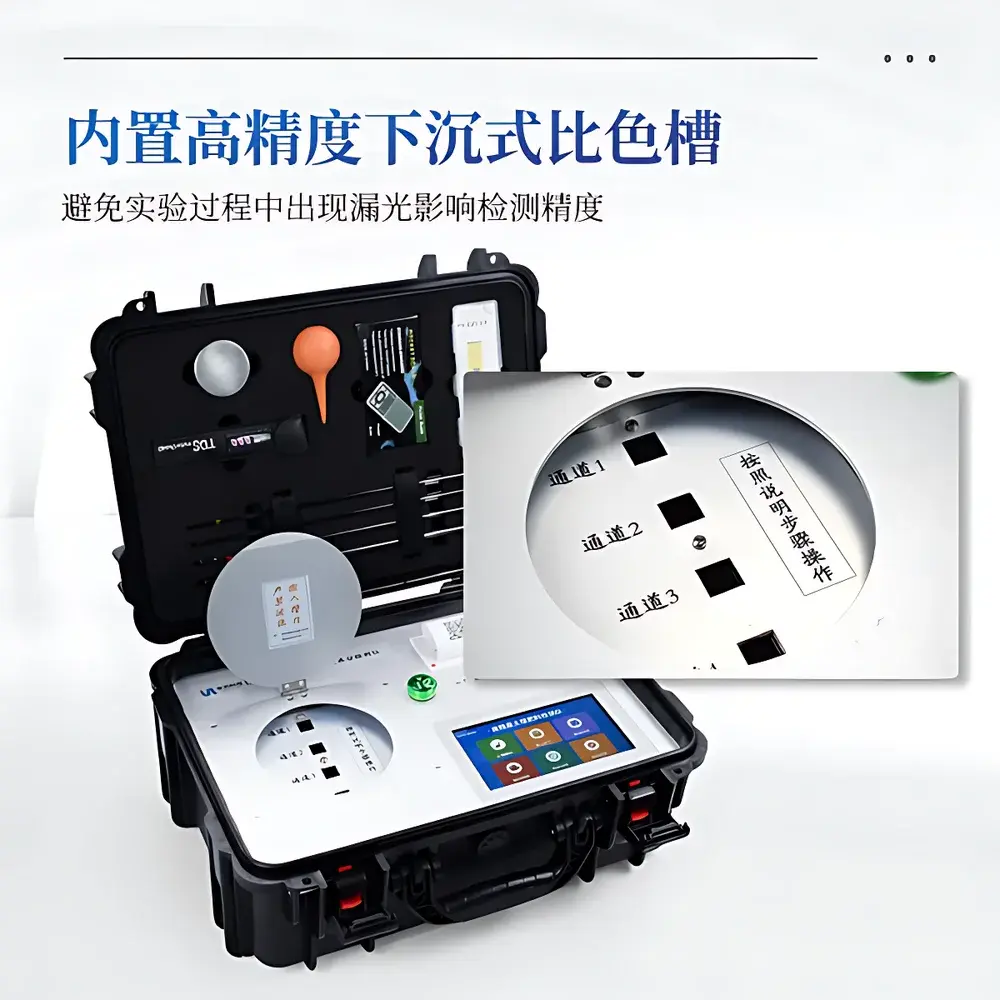

• IP65-rated enclosure with shock-absorbing PVC engineering-grade housing and recessed, light-tight cuvette chamber (15.7 cm diameter occlusion plate) ensuring metrological integrity during outdoor operation.
• Field-validated power architecture: dual-mode (AC/DC) input with intelligent battery management; 4800 mAh Li-ion pack delivers >10 hours of continuous measurement cycles with active GPS/Wi-Fi.

Sample Compatibility & Compliance

The IN-HF100 supports direct analysis of granular, powdered, and liquid fertilizers—including urea, DAP, MAP, MOP, NPK blends, compost teas, vermicompost leachates, and humic acid concentrates. Sample preparation follows AOAC Official Method 971.23 (for total N), ISO 11260 (for available phosphorus), and EPA Method 365.2 (for potassium), with integrated step-by-step video-guided protocols accessible from the home screen. All reagents are supplied as pre-formulated, lyophilized kits compliant with REACH Annex XIV restrictions. The instrument’s firmware and data handling architecture support GLP-compliant documentation: every measurement includes immutable metadata (operator ID, GPS coordinates, ambient temperature, calibration status, and reagent lot traceability). When connected to the COMECAUSE Cloud Agriculture Data Platform, full audit trails meet 21 CFR Part 11 requirements for electronic records and signatures—including operator authentication, change history, and electronic signature capture for QA/QC sign-off.

Software & Data Management

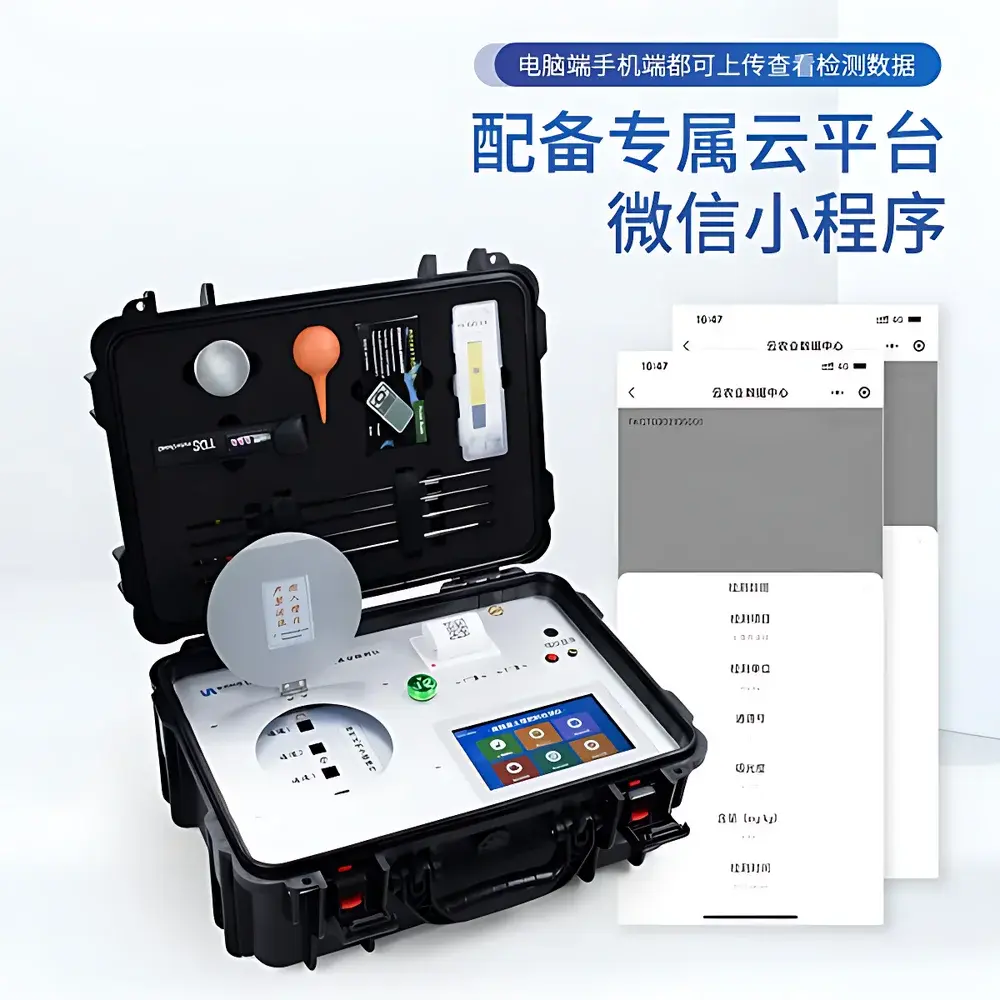

Data acquisition, processing, and reporting are managed through the proprietary COMECAUSE FieldLink OS. Each measurement generates a structured JSON record containing raw absorbance values, wavelength-specific gain settings, environmental metadata (GPS, local time, battery voltage), and calculated concentrations. Historical datasets are searchable by date range, location polygon, operator, or sample ID. Wi-Fi synchronization uploads encrypted payloads directly to a tenant-isolated instance of the COMECAUSE Cloud Agriculture Data Platform—assigning unique organizational credentials, customizable dashboard views, and automated CSV/Excel export. Local data export is supported via dual USB-A ports; files conform to ISO/IEC 27001–aligned encryption standards. A companion WeChat Mini-Program provides remote access to uploaded results, trend visualization, and cross-location comparison—enabling extension officers and cooperative managers to monitor regional nutrient profiles without desktop infrastructure.

Applications

• Fertilizer Quality Control: Batch verification for manufacturers and distributors—detecting adulteration, under-labeling, or inconsistent homogeneity prior to distribution.
• Input Verification at Point-of-Purchase: On-farm validation of commercial fertilizer specifications before application—reducing risk of yield loss due to mislabeled products.
• Compost & Organic Amendment Monitoring: Tracking nitrogen mineralization, phosphorus solubilization, and potassium release kinetics across composting stages to determine optimal field application timing.
• Agricultural Extension Services: Mobile soil fertility diagnostics during farmer field schools—demonstrating nutrient imbalances and linking results to site-specific fertilizer recommendations.
• Regulatory Screening: Pre-screening for environmental compliance programs targeting nutrient runoff mitigation—supporting reporting under EU Nitrates Directive or US Clean Water Act Section 319 nonpoint source monitoring.
• Research & Education: Low-cost, repeatable nutrient assay platform for university agronomy labs and vocational training centers—enabling hands-on method validation and inter-laboratory proficiency testing.

FAQ

What regulatory standards does the IN-HF100 comply with for field nutrient testing?
The instrument’s analytical protocols align with ISO 11260 (available phosphorus), AOAC 971.23 (total nitrogen), and EPA Method 365.2 (potassium). Its data management framework supports GLP and 21 CFR Part 11 compliance when used with the cloud platform.
Can the IN-HF100 quantify nutrients in turbid water samples such as pond effluent or irrigation return flow?
Yes—it includes dedicated turbidity-corrected algorithms for N, P, and K quantification in suspended-solids-rich matrices up to 100 NTU, validated per ISO 7027.
Is external calibration required before each use?
No—built-in auto-calibration routines execute during startup and between measurements; no manual zeroing or standard insertion is needed for routine operation.
How is data integrity maintained during offline field use?
All measurements are timestamped, geotagged, and cryptographically signed locally. Upon reconnection, the device performs delta-sync to avoid duplication or omission.
Does the system support third-party LIMS integration?
Yes—via RESTful API endpoints and configurable CSV schema export, enabling bidirectional synchronization with enterprise laboratory information management systems.
