COMECAUSE IN-HT50 Portable Soil Nutrient Analyzer

Overview

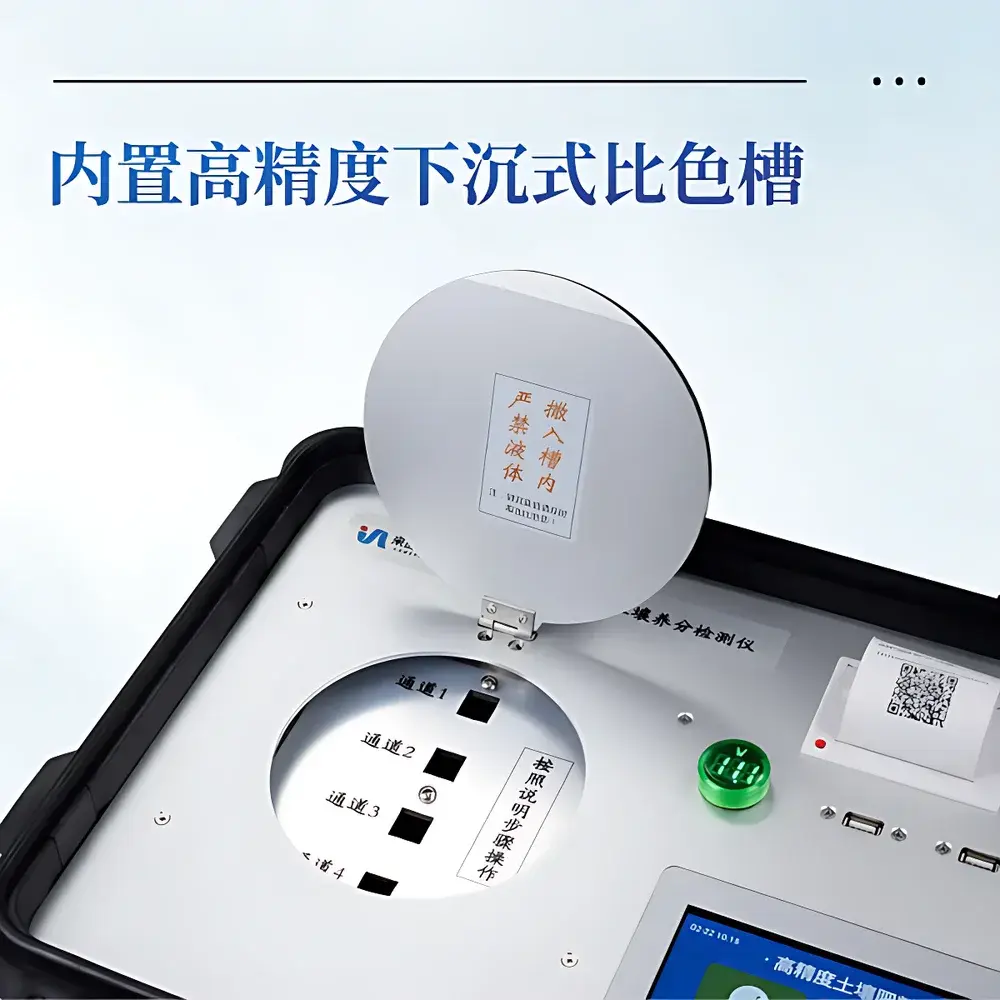

The COMECAUSE IN-HT50 Portable Soil Nutrient Analyzer is a field-deployable, multi-parameter optical instrument engineered for rapid, on-site quantification of key soil fertility indicators. It operates on the principle of **dual-beam photometric colorimetry**, where soil extracts—prepared using standardized reagent kits—undergo analyte-specific chromogenic reactions. The resulting solution absorbance is measured across four fixed-wavelength optical channels (680 nm red, 420 nm blue, 510 nm green, and 590 nm orange), each optimized for high-selectivity detection of target nutrients including ammonium nitrogen (NH₄⁺-N), available phosphorus (Olsen-P), exchangeable potassium (K⁺), organic matter (via dichromate oxidation), pH, electrical conductivity (EC), and gravimetric moisture content. Unlike benchtop spectrophotometers requiring lab infrastructure, the IN-HT50 integrates sample preparation guidance, optical sensing, signal processing, and result interpretation into a single ruggedized unit—enabling non-specialist users to generate traceable, GLP-aligned data directly in agricultural fields, nurseries, or extension service vehicles.

Key Features

• Four-channel fixed-wavelength photometer with thermally stabilized LED sources (≥100,000 hr lifetime); wavelengths certified to ±2 nm tolerance per channel
• Android 5.1 operating system powered by quad-core CPU (≥1.8 GHz) and 16 GB internal storage; supports real-time OS responsiveness under ambient temperatures from −10 °C to 50 °C

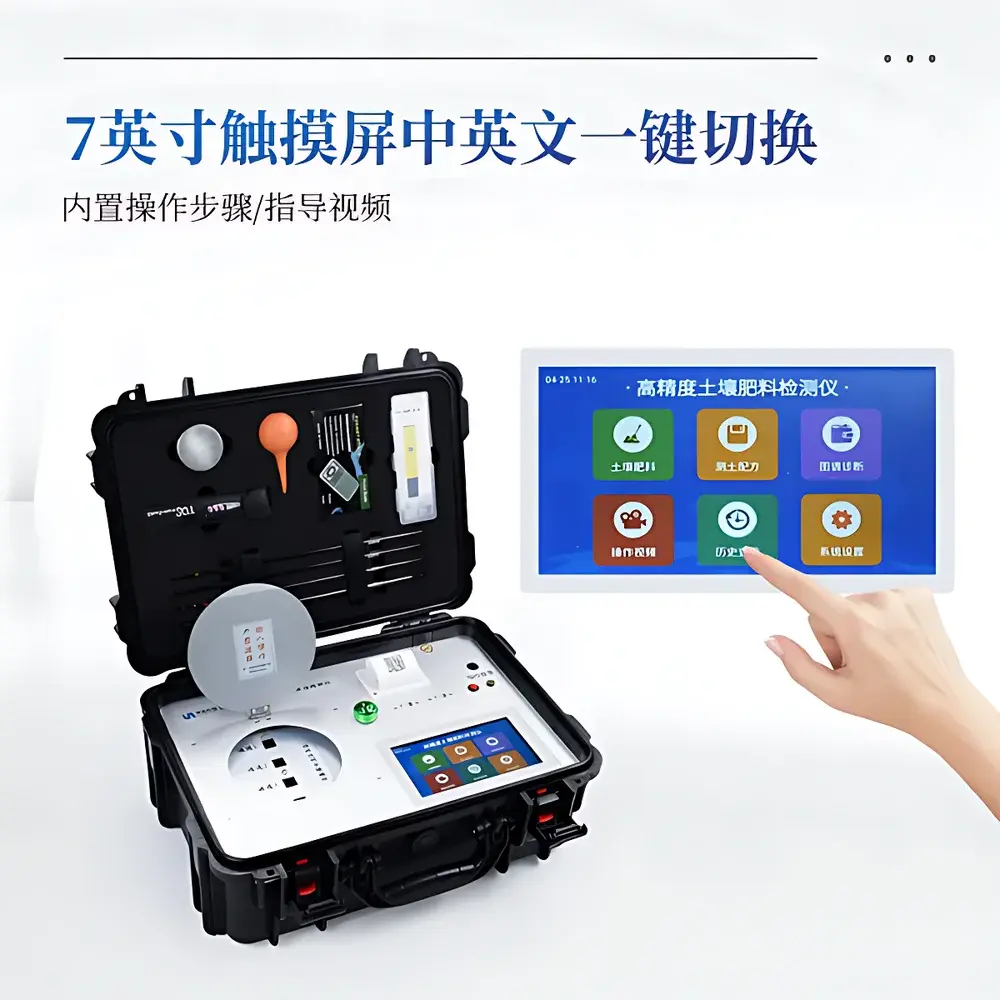

• 7.0-inch capacitive touchscreen (1024 × 600 resolution) with adjustable backlight for daylight-readable operation
• Dual authentication: password + fingerprint login; role-based user accounts with audit-trail-enabled access control
• Integrated GPS module providing WGS84 coordinates (latitude/longitude) stamped to every measurement record
• Onboard thermal printer (no ribbon required) outputting test ID, channel number, absorbance values, calculated nutrient concentrations (mg/kg), operator ID, timestamp, and QR-coded metadata
• WIFI 802.11 b/g/n connectivity enabling encrypted upload to COMECAUSE Cloud Agriculture Data Platform—hosted on ISO 27001-certified infrastructure with TLS 1.2+ encryption

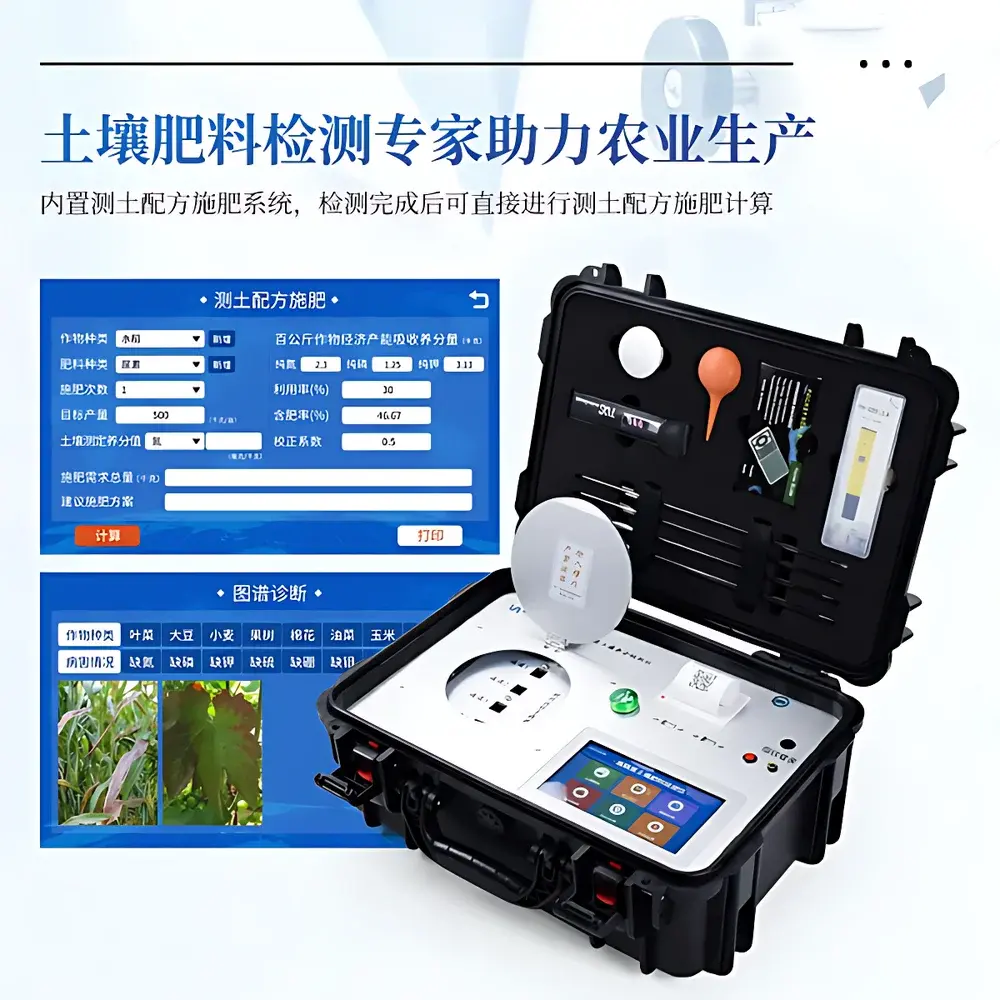

• Built-in soil testing workflow engine: step-by-step guided extraction, digestion, and reaction protocols—including video tutorials accessible from main UI
• Self-calibrating optical path: automatic dark-current compensation and reference blank normalization performed prior to each assay cycle; no manual zeroing or warm-up period required
• IP65-rated enclosure with shock-absorbing PVC composite housing; operational under rain, dust, and vibration conditions typical of rural transport and field use

Sample Compatibility & Compliance

The IN-HT50 is validated for use with air-dried, sieved (<2 mm) mineral and organic soils per ISO 11260:2022 and ASTM D5158-18 guidelines. It accommodates standard extraction methods including Mehlich-3 (for P/K), KCl extraction (for NH₄⁺-N), and Walkley-Black or loss-on-ignition (LOI)-correlated protocols for organic carbon estimation. All onboard calibration curves are traceable to NIST SRM 1643e (trace elements in water) and certified reference materials from the China National Institute of Metrology (CNIM). The device complies with electromagnetic compatibility (EMC) requirements per IEC 61326-1:2020 and meets safety standards IEC 61010-1:2010 for portable laboratory equipment. While not FDA 21 CFR Part 11–certified out-of-box, its audit-log architecture—including immutable timestamps, user IDs, GPS geotags, and firmware-signed data packets—supports validation for GLP/GMP-aligned soil health monitoring programs.

Software & Data Management

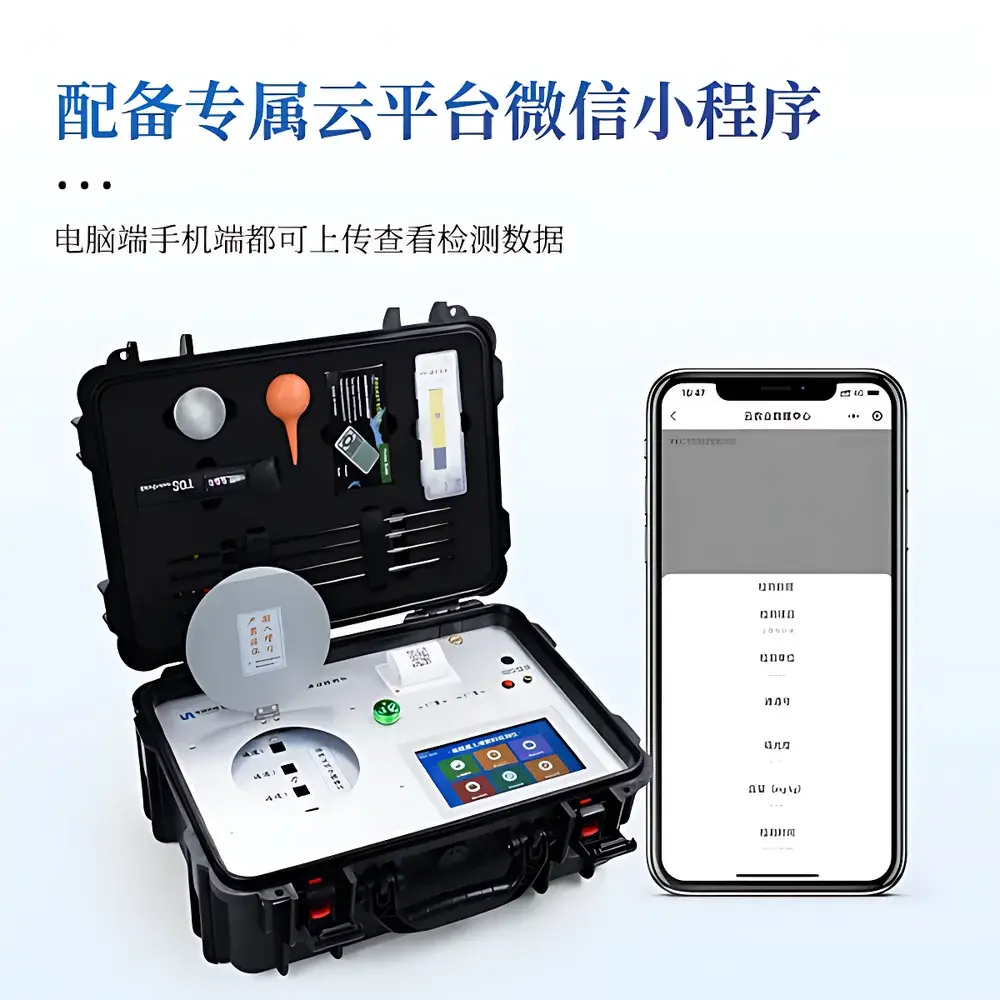

Data acquisition, calculation, and reporting are managed through COMECAUSE’s proprietary AgriScan OS v3.2. Each measurement generates a structured JSON packet containing raw absorbance (A), transmittance (%T), derived concentration (mg/kg), environmental metadata (GPS, temperature, battery voltage), and digital signature. Local storage retains ≥10,000 records with auto-rollover. USB export yields CSV files compatible with Microsoft Excel, R, or QGIS for spatial interpolation. The cloud platform provides role-based dashboards: agronomists view aggregated field-level trends; extension officers manage multi-user permissions; researchers access API endpoints for integration with farm management information systems (FMIS). All cloud-stored data undergoes daily encrypted backup and adheres to GDPR-compliant retention policies (default 7-year archival, configurable per client agreement).

Applications

The IN-HT50 serves as a foundational tool in precision agriculture workflows, supporting site-specific nutrient management (SSNM) planning in accordance with FAO’s “4R Nutrient Stewardship” framework (Right Source, Right Rate, Right Time, Right Place). It enables rapid pre-planting soil screening across smallholder farms (<5 ha) and large-scale operations (>1,000 ha) alike. Validated use cases include: (1) variable-rate fertilizer prescription mapping via GIS-integrated sampling grids; (2) verification of compost maturity and manure nutrient loading prior to land application; (3) longitudinal monitoring of soil health indicators (e.g., organic matter decline, salinization onset) under conservation tillage or cover cropping regimes; (4) regulatory compliance checks for nutrient management plans required under EU Nitrates Directive or U.S. EPA CAFO reporting. Its portability and battery autonomy (10 hrs continuous operation) make it suitable for mobile soil testing labs deployed by government extension services, agribusiness input suppliers, and third-party certification bodies.

FAQ

What extraction protocols are supported for nitrogen analysis?
The IN-HT50 supports both Kjeldahl digestion (total N) and direct colorimetric determination of ammonium-N and nitrate-N using cadmium reduction and indophenol blue methods per ISO 14256-1:2005.
Can the instrument be calibrated against external standards?
Yes—users may load custom calibration curves via USB using absorbance-concentration pairs in CSV format; all calibrations are digitally signed and version-controlled within the audit log.
Is offline operation fully functional?
All core analytical functions—including colorimetric measurement, calculation, printing, and local data storage—operate without network connectivity; cloud sync resumes automatically upon WIFI reconnection.
How is data integrity ensured during power interruption?
The system implements atomic write operations and journaling file system (JFFS2); unsaved measurements are retained in volatile RAM and committed to flash memory only upon successful calculation completion.
Does the device meet international metrological traceability requirements?
Instrument-level performance is verified annually using COMECAUSE-certified optical reference standards; end-user calibration verification is supported via supplied CRMs traceable to national metrology institutes (NMI).
