COMECAUSE IN-KZ04 High-Throughput Maize Seed Phenotyping & Grading System

Overview

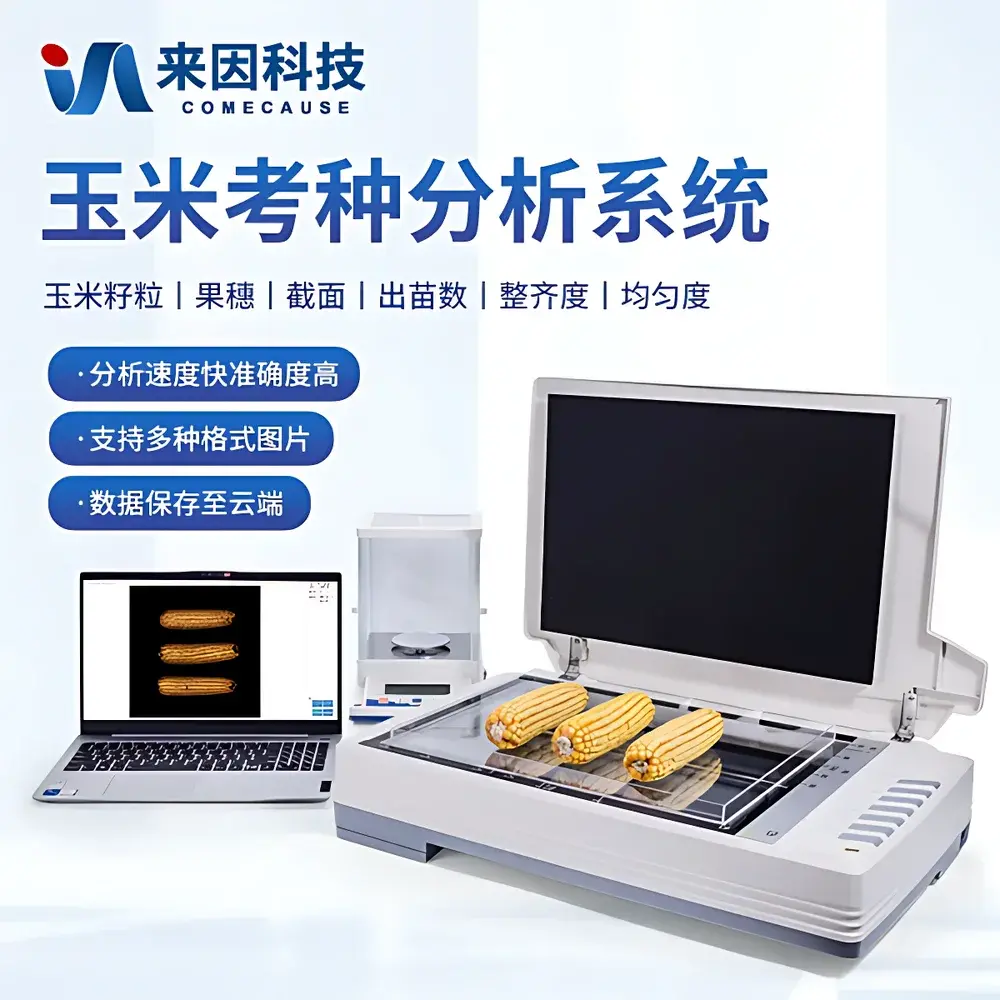

The COMECAUSE IN-KZ04 High-Throughput Maize Seed Phenotyping & Grading System is an industrial-grade, image-based phenotyping platform engineered for precision seed science in maize breeding programs and certified seed quality control laboratories. It operates on the principle of multi-modal digital imaging—integrating high-resolution optical scanning, geometric morphometrics, colorimetric analysis (via calibrated RGB space), and non-destructive mass correlation—to transform traditional manual seed evaluation into a standardized, auditable, and scalable data acquisition workflow. Unlike legacy methods relying on calipers, balances, and subjective visual grading, the IN-KZ04 employs contactless acquisition across three operational modes: whole-ear analysis, cross-sectional ear imaging, and individual kernel-level phenotyping. Its architecture conforms to foundational principles of quantitative plant phenomics: repeatability (CV < 0.5% for count and dimension metrics), traceability (full image + metadata logging), and interoperability (structured CSV/Excel export with timestamped audit trails). Designed for GLP-aligned environments, the system supports regulatory readiness through deterministic algorithms, version-controlled firmware, and hardware-calibrated sensors—ensuring compliance with ISO 22000–related seed testing workflows and internal QA protocols.

Key Features

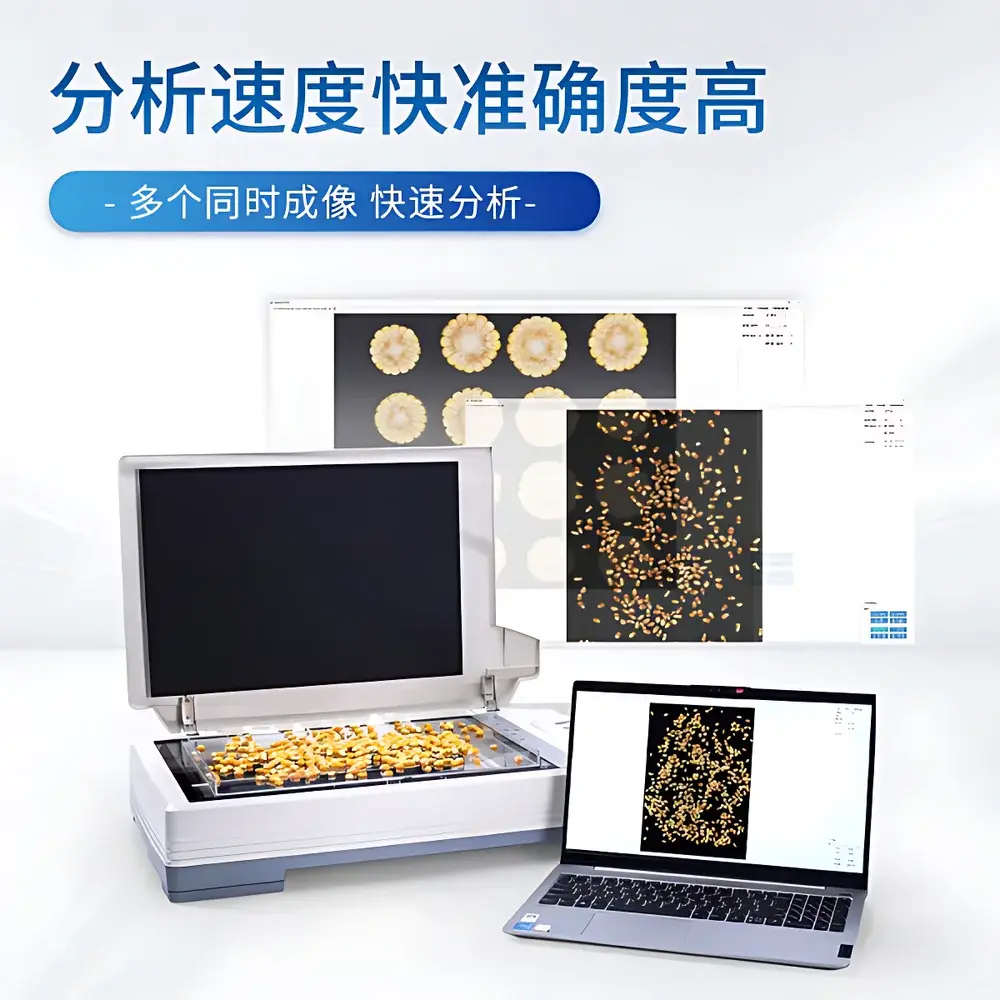

• Triple-mode imaging capability: simultaneous whole-ear morphometry, 35+ cross-section analysis per batch, and high-speed single-kernel segmentation (up to 4,000 kernels/min)
• Calibrated A3-format optical scanner (1600 × 1600 dpi) with uniform LED illumination and UV-enhanced contrast for husk-free ear imaging
• Integrated RS-232 digital balance with auto-weight synchronization—enabling real-time calculation of 100-seed weight (HW) and 1000-seed weight (KW) without manual entry
• RGB-based color quantification using sRGB reference standards; outputs hue, saturation, and luminance values alongside percentage composition of yellow/white/mottled kernels
• AI-powered kernel separation algorithm for adhered or clustered grains, validated against ASTM D7928-20 for seed purity assessment
• Automated embryonic tip detection for maize-specific germination potential estimation
• Batch-level statistical aggregation: mean, standard deviation, coefficient of variation for length, width, aspect ratio, perimeter, and projected area

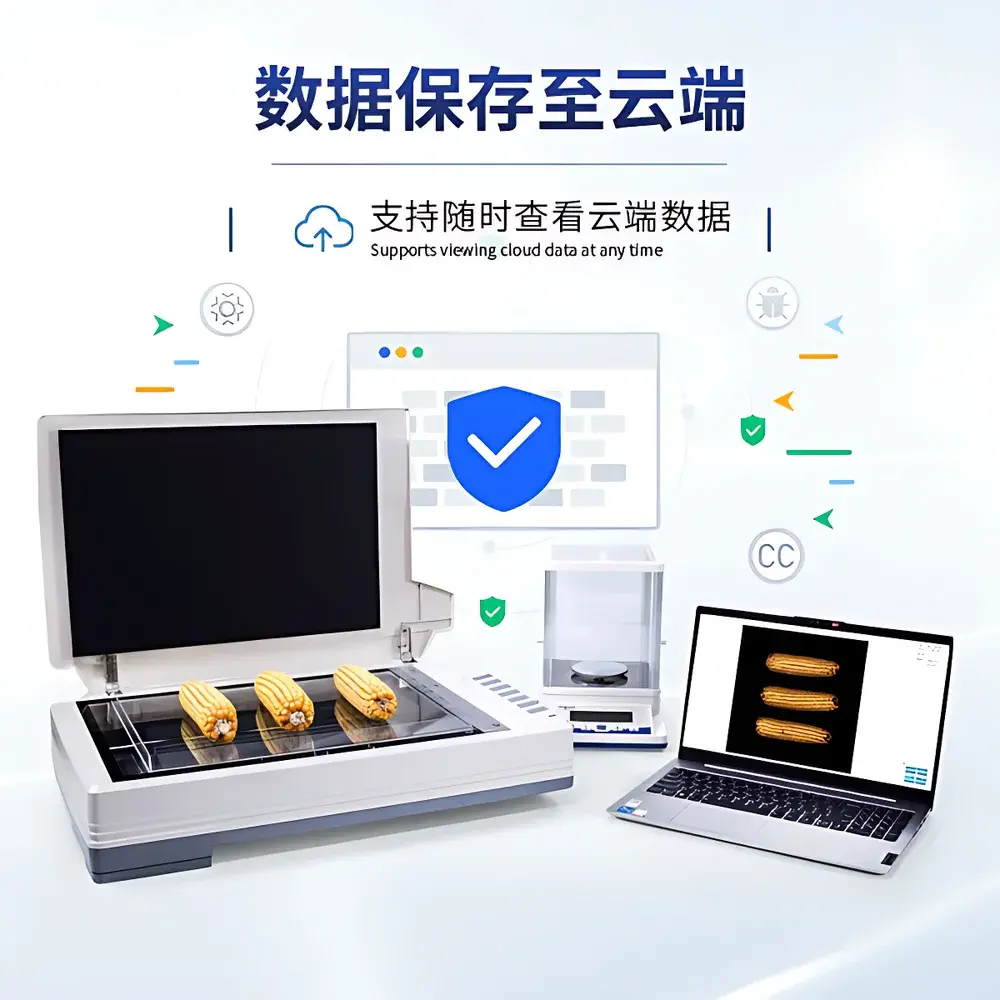

• Cloud-sync functionality via device-locked authentication; encrypted data upload with role-based access control (RBAC) for multi-user labs

Sample Compatibility & Compliance

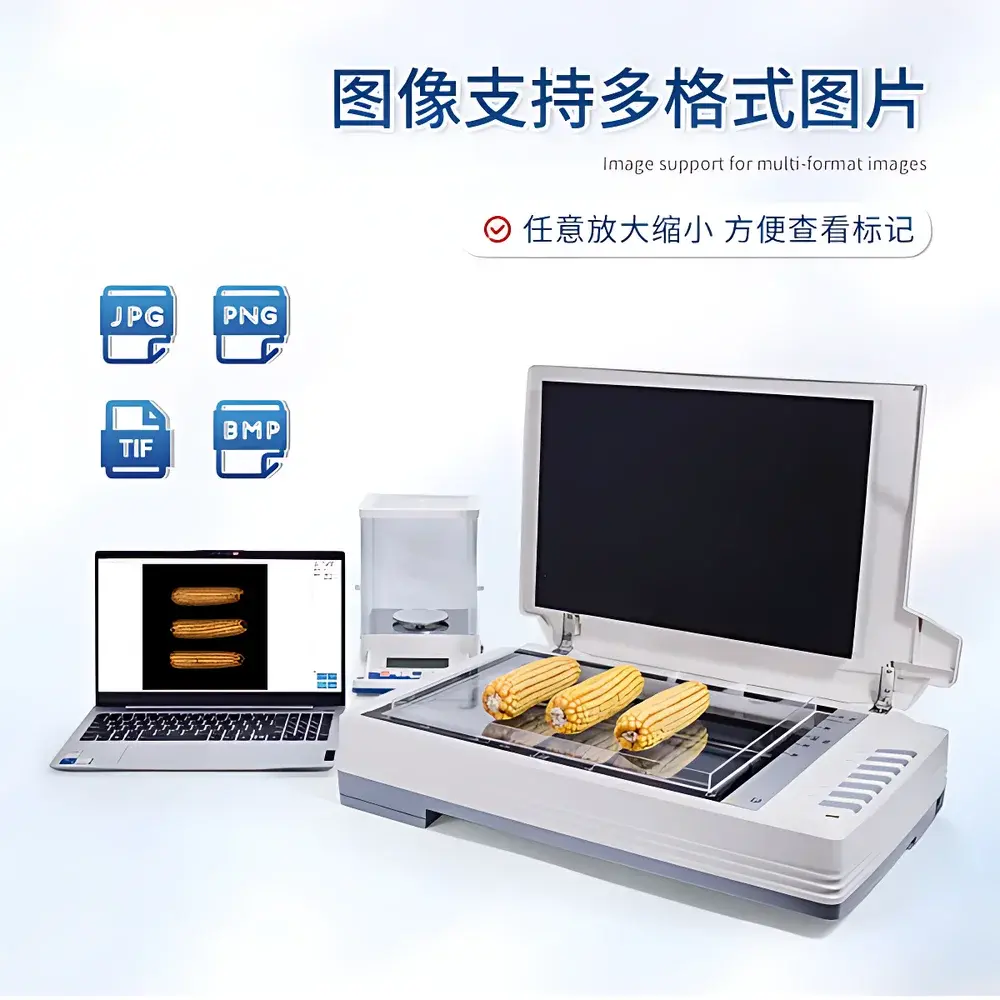

The IN-KZ04 is validated for maize (Zea mays L.), rice (Oryza sativa), wheat (Triticum aestivum), soybean (Glycine max), rapeseed (Brassica napus), peanut (Arachis hypogaea), sesame (Sesamum indicum), and other dicot/monocot species with grain dimensions between 1.5 mm and 35 mm. It meets functional requirements outlined in ISTA Rules (International Seed Testing Association) for seed size, shape, and purity analysis, and supports documentation practices aligned with ISO/IEC 17025:2017 for testing laboratories. While not FDA 21 CFR Part 11-certified out-of-the-box, its software architecture permits configuration for 21 CFR Part 11 compliance—including electronic signatures, audit trail retention (>10 years), and user permission hierarchies—when deployed in GMP-regulated seed certification facilities. All image data is stored losslessly in TIFF format; raw scans retain EXIF metadata including exposure time, white balance, and scanner calibration ID.

Software & Data Management

The proprietary Windows 10–native application (v4.2+) features bilingual UI (English/Chinese) with one-click language switching and context-aware tooltips for agronomic terminology. Image processing pipelines are deterministic—not probabilistic—ensuring identical outputs across repeated analyses of the same scan. Each session generates three synchronized artifacts: (1) annotated TIFF image with overlay masks and measurement vectors, (2) structured Excel (.xlsx) report containing all calculated metrics per sample plus batch statistics, and (3) JSON-formatted metadata file including instrument ID, operator ID, timestamp (ISO 8601), environmental log (ambient temperature/humidity if sensor-equipped), and software build hash. Export paths are configurable with automatic folder creation by date; “append-to-existing” mode enables longitudinal dataset assembly. Cloud uploads include SHA-256 checksum verification and optional AES-256 encryption prior to transmission.

Applications

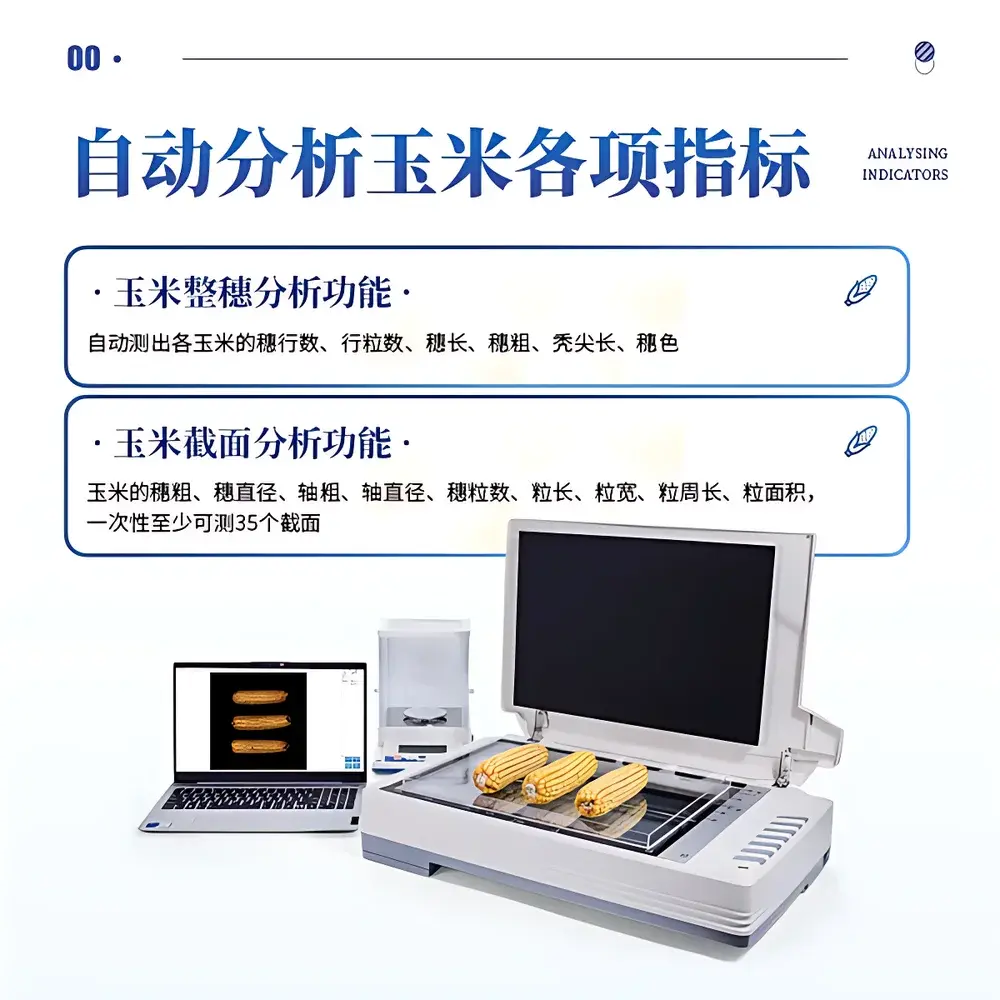

• Maize breeding programs: high-throughput screening of F₂–F₆ populations for ear architecture traits (cob diameter, barren tip length, kernel row number) correlated with yield stability
• Seed certification labs: objective assessment of varietal purity, mechanical damage, shriveling, and foreign material per ISTA Chapter 5
• NIR-enabled quality prediction: when coupled with third-party spectrometers, enables calibration transfer for moisture, protein, and starch content estimation
• Regional variety trials: standardized reporting of kernel uniformity (CV of length/width) as proxy for milling consistency and end-use suitability
• Grain receival centers: rapid lot-level grading of commercial maize based on dimensional thresholds (e.g., minimum kernel thickness ≥ 5.2 mm for food-grade specification)
• Academic phenomics: integration with R/Bioconductor packages (e.g., ‘plantbreeding’, ‘phenofit’) for GWAS and genomic prediction modeling

FAQ

What operating systems does the IN-KZ04 software support?
Windows 10 (64-bit) and Windows 11 (64-bit) only. Legacy OS support (e.g., Windows 7/8) is discontinued per Microsoft’s extended support policy.
Can the system analyze kernels from shelled ears without manual pre-sorting?
Yes—the scanner’s dynamic thresholding and multi-scale edge detection automatically isolate individual kernels even when overlapping or partially occluded, provided spacing exceeds 0.3 mm between centroids.
Is calibration required before each use?
No routine recalibration is needed. The system performs self-diagnostic checks at startup; full hardware calibration (scanner flatbed, balance zero-point, color profile) is recommended every 90 days or after physical relocation.
How is measurement accuracy verified?
Each shipment includes NIST-traceable calibration targets (ceramic scale bar, color checker chart, and certified reference seeds). Users may run validation scripts that compare system output against known standards and generate ISO/IEC 17025-compliant uncertainty reports.
Does the software support custom trait definitions?
Yes—advanced users may define derived metrics (e.g., “kernel plumpness index = volume / surface area”) via embedded Python scripting interface, with outputs integrated into standard Excel exports.
