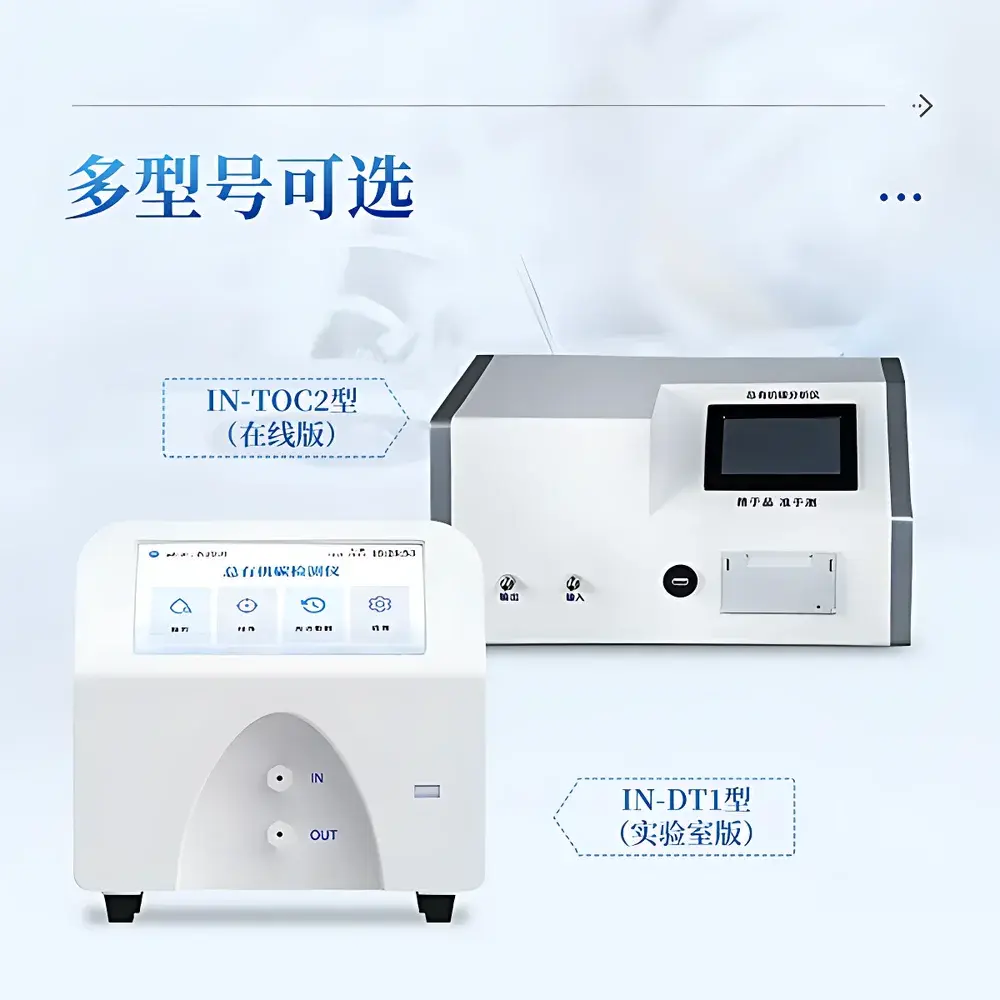

COMECAUSE TOC2 Online Total Organic Carbon Analyzer

Overview

The COMECAUSE TOC2 Online Total Organic Carbon Analyzer is an engineered solution for continuous, real-time quantification of total organic carbon in ultrapure water systems. It operates on the direct conductivity detection principle: organic compounds in the water sample are catalytically oxidized under UV irradiation (185/254 nm), converting non-conductive organics into CO₂, which dissolves to form carbonic acid and increases the sample’s electrical conductivity. This change—measured by a high-stability dual-electrode conductivity cell—is linearly correlated to TOC concentration. Designed specifically for regulated environments, the TOC2 delivers stable, interference-minimized measurements in low-conductivity matrices (≤5.1 µS/cm), making it suitable for pharmaceutical water loops (Purified Water, Water for Injection, and Ultrapure Water per USP <643> and EP 2.2.44), semiconductor process water, and power plant demineralized water distribution networks.

Key Features

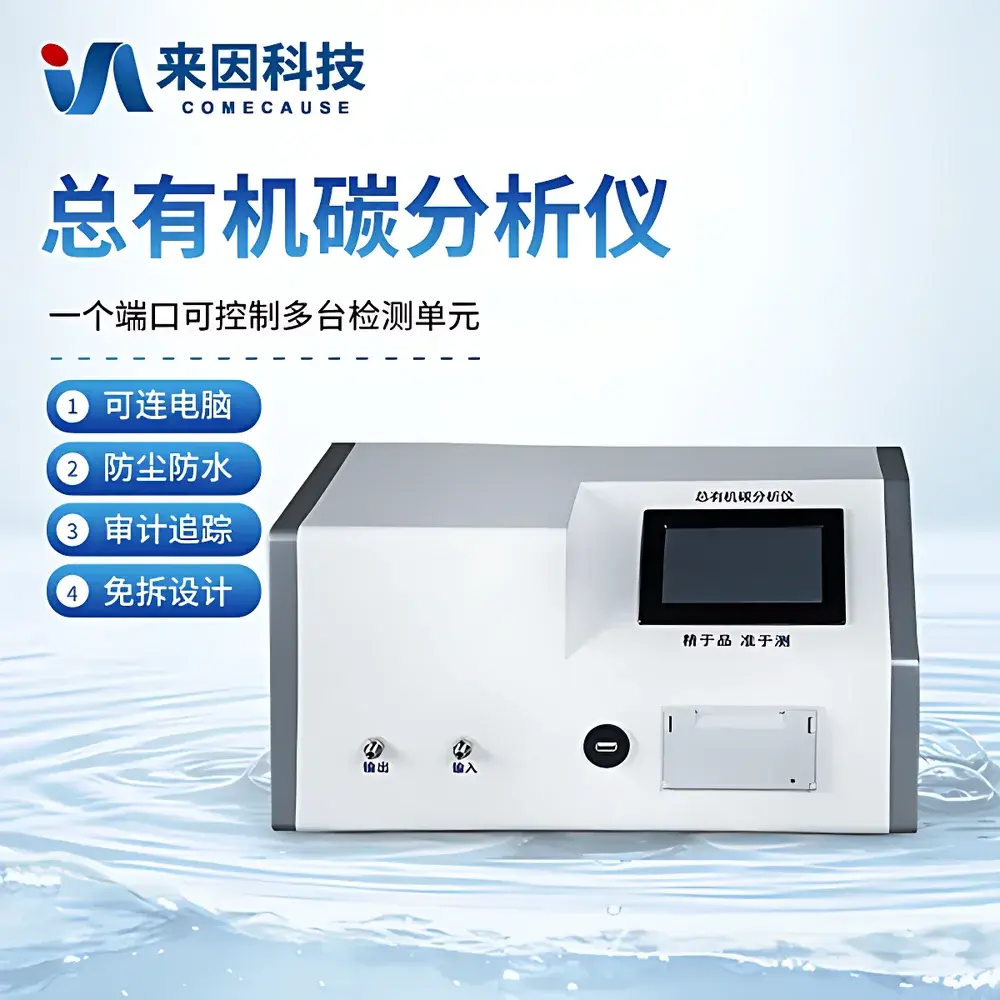

• IP65-rated enclosure for reliable operation in humid, dusty, or splash-prone utility corridors and cleanroom support areas
• Modular UV oxidation chamber with transparent quartz window—enabling visual confirmation of lamp status and simplifying preventive maintenance without disassembly
• Non-invasive, flow-through conductivity sensor design eliminating membrane fouling and reducing calibration drift
• Configurable data logging interval (1 min to 24 h) with onboard memory supporting ≥30 days of 5-minute interval records
• Multi-unit control architecture: a single host PC can supervise up to 8 TOC2 analyzers via RS485 Modbus RTU, enabling centralized monitoring of distributed water loops
• FDA 21 CFR Part 11-compliant software options available—including electronic signatures, role-based access control, and immutable audit trails with timestamped operator actions and parameter changes

Sample Compatibility & Compliance

The TOC2 is validated for use with deionized and ultrapure water streams meeting ISO 3696 Grade 1, ASTM D1193 Type I, and pharmacopeial specifications (USP <643>, EP 2.2.44, JP 2.39). Its measurement range (0–1500.0 µg/L) covers critical thresholds for PW (typically <500 µg/L), WFI (≤100 µg/L), and UPW in semiconductor fabs (often <10 µg/L). The analyzer tolerates inlet water temperatures from 1 °C to 90 °C and ambient conditions from 10 °C to 60 °C—supporting integration upstream or downstream of heat exchangers, storage tanks, and point-of-use filters. All firmware and configuration files are digitally signed; system logs retain full traceability for GLP/GMP audits and regulatory inspections.

Software & Data Management

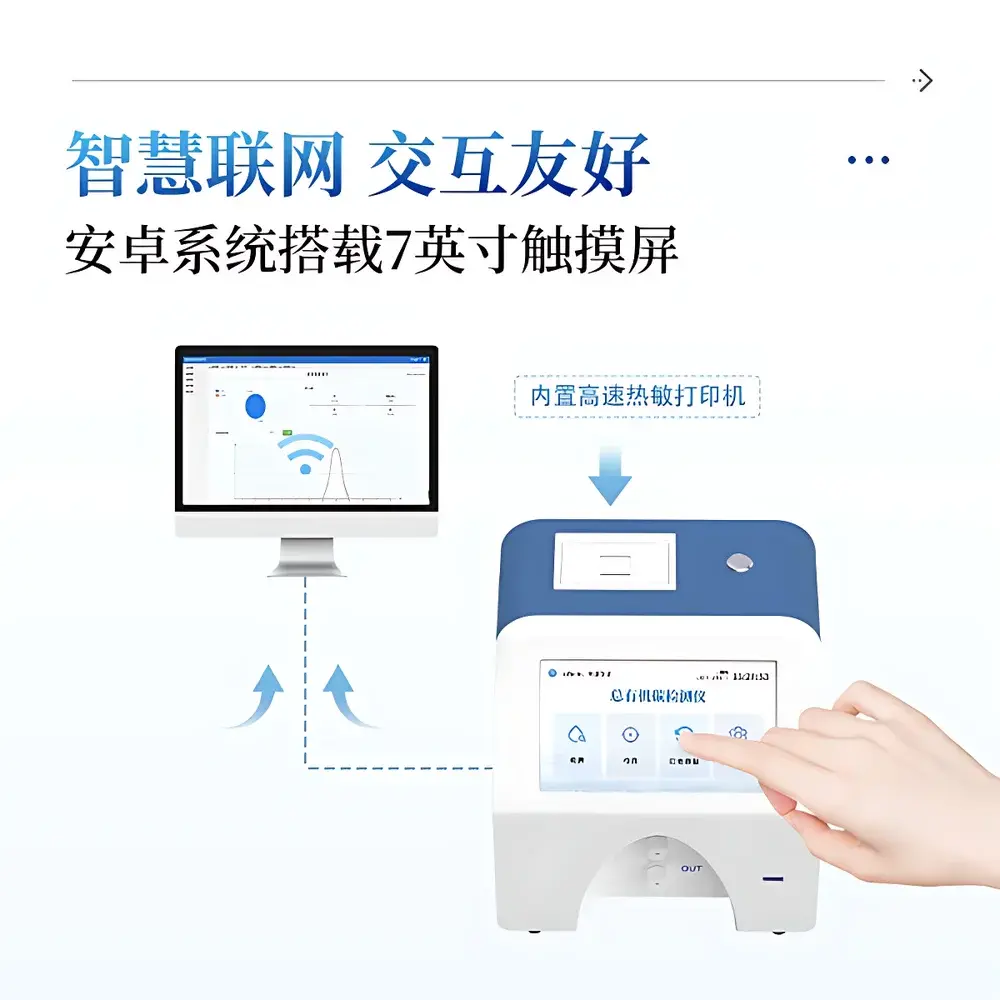

Standard communication protocols include RS232 (for local diagnostics), RS485 (multi-drop network deployment), and analog 4–20 mA output for PLC/DCS integration. Optional COMECAUSE TOCView™ software provides secure remote access, trend visualization, alarm management (high/low limits, deviation alerts), and automated report generation (PDF/CSV). Data export supports IQ/OQ documentation packages. Audit trail entries record user login/logout, method parameter edits, calibration events, and result overrides—with SHA-256 hashing ensuring data integrity. Software validation documentation (including URS, FRS, and test scripts) is provided upon request for GxP-regulated installations.

Applications

• Continuous TOC monitoring of Purified Water (PW) and Water for Injection (WFI) loops in pharmaceutical manufacturing facilities compliant with EU GMP Annex 1 and FDA Guidance for Industry
• In-line verification of TOC removal efficiency across mixed-bed ion exchange and electrodeionization (EDI) units in UPW plants serving semiconductor wafer fabrication
• Real-time surveillance of condensate return lines and boiler feedwater in thermal power generation to detect organic ingress from cooling tower drift or lubricant degradation
• Validation support for cleaning-in-place (CIP) cycles where post-rinse TOC confirms absence of residual solvents or bioburden metabolites
• Research-grade TOC profiling in university and national lab water purification pilot systems requiring long-term stability and low detection limit consistency

FAQ

What oxidation method does the TOC2 employ?

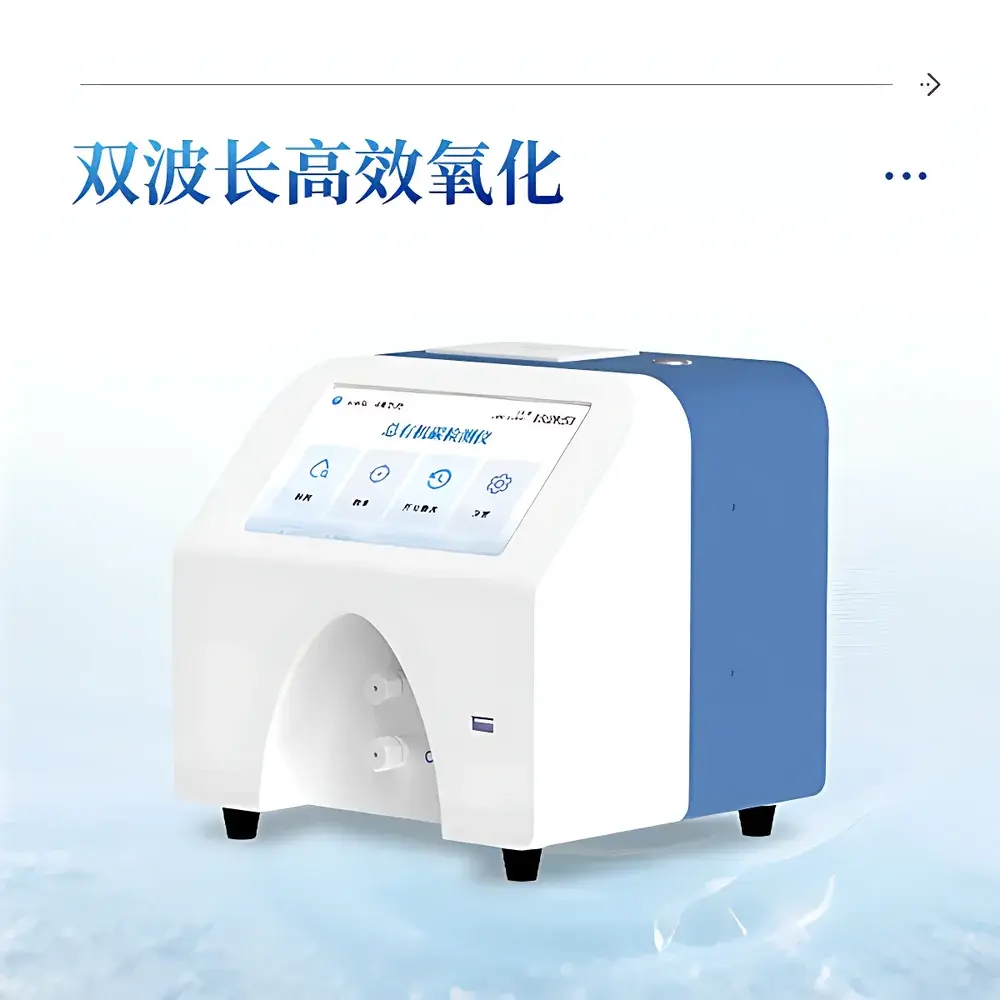

It uses low-pressure UV photolysis (185 nm + 254 nm dual-wavelength lamps) without chemical oxidants—ensuring compliance with pharmacopeial requirements for reagent-free TOC determination.
Is the TOC2 compliant with USP <643> and EP 2.2.44?
Yes—the instrument’s detection principle, calibration protocol, system suitability testing (SST), and performance verification align with current editions of both monographs when operated within specified sample conductivity and temperature ranges.
Can the TOC2 be integrated into a DeltaV or Siemens PCS7 DCS?
Yes—via standard 4–20 mA analog output or Modbus RTU over RS485, with optional OPC UA gateway support for modern control systems.
How often does the UV lamp require replacement?
Lamp lifetime is rated at ≥12,000 hours under continuous operation; status monitoring and predictive alerts are embedded in the firmware.
Does the analyzer support automatic zero and span calibration?
Zero calibration is performed automatically using high-purity nitrogen-purged DI water; span calibration requires manual introduction of certified TOC standard solutions (e.g., potassium hydrogen phthalate) per defined intervals (typically weekly or per SST requirement).
