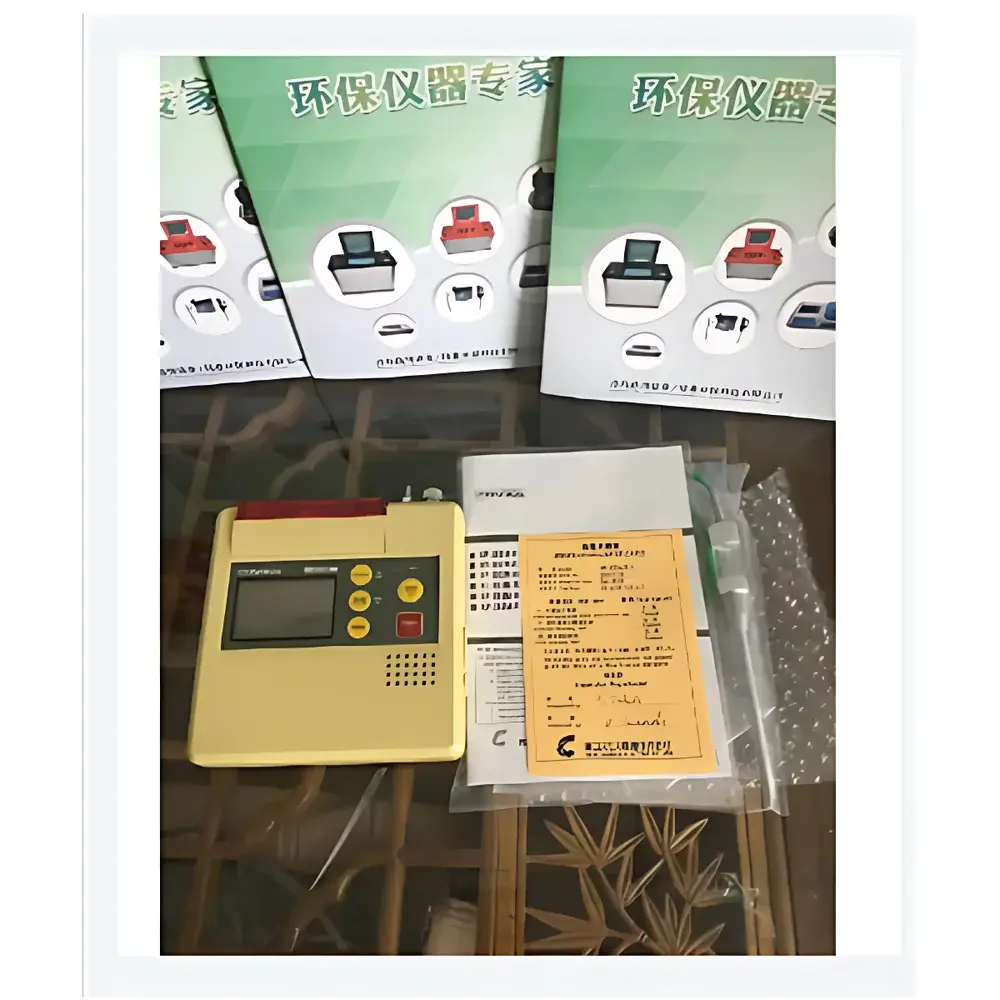

New Cosmos XP-302M Portable Multi-Gas Detector

Overview

The New Cosmos XP-302M Portable Multi-Gas Detector is an intrinsically safe, field-deployable instrument engineered for simultaneous real-time monitoring of four critical atmospheric hazards: combustible gas (measured as %LEL, typically methane), oxygen (O₂), hydrogen sulfide (H₂S), and carbon monoxide (CO). Designed in accordance with Japanese industrial safety standards and certified to international explosion-protection requirements, the XP-302M employs a combination of proven electrochemical sensing technologies—catalytic combustion for flammables, galvanic cell for O₂, and dual-range amperometric electrochemical cells for H₂S and CO—to deliver stable, repeatable measurements across diverse industrial environments. Its architecture reflects a systems-level approach to confined space entry, leak survey, and routine area monitoring: integrated suction sampling ensures representative air intake even in low-flow or stagnant zones; pressure-sensing flow-under detection provides immediate feedback on sampling integrity; and dual-range sensor operation extends usability across both ambient safety thresholds and elevated exposure scenarios without manual range switching.

Key Features

• Intrinsically safe design certified to Ex ibd II BT3, with flameproof (Ex d) construction for the catalytic LEL sensor—approved for use in Zone 1 hazardous areas per IEC 60079-0 and JIS C 0901.
• Simultaneous 4-gas LCD display with high-contrast, backlit characters—optimized for rapid visual assessment under low-light or high-glare conditions typical in petrochemical plants, utility tunnels, and wastewater facilities.
• Modular sensor assembly enabling tool-free replacement—reducing downtime and simplifying routine maintenance and calibration verification per OSHA 1910.120 and ISO 4074 compliance protocols.
• Integrated pressure sensor for automatic flow-under detection—alerts users when sampling tube blockage or insufficient draw compromises measurement validity.
• Configurable dual-stage TWA/STEL-style alarms with independent setpoints for each gas, supporting tiered response protocols aligned with ACGIH TLVs® and NIOSH RELs.
• Extended operational runtime (>8 hours on standard AA alkaline cells) with intelligent power management—including auto-backlight timeout, adjustable buzzer volume, and non-volatile memory for peak hold and data retention during battery change.

Sample Compatibility & Compliance

The XP-302M is validated for use in ambient air sampling across a broad range of industrial settings, including but not limited to oil & gas refineries, chemical manufacturing units, municipal water treatment plants, and underground infrastructure. Its sensor cross-sensitivity profiles meet EN 50104 (O₂), EN 50105 (toxic gases), and EN 50106 (combustibles) requirements. The device supports periodic calibration using certified span gases traceable to NIST or JCSS standards, and its zero-point adjustment function accommodates field recalibration in clean ambient air. All firmware and hardware configurations comply with JIS T 8201 (portable gas detectors) and are compatible with facility-wide gas detection management systems via optional analog output or serial interface modules.

Software & Data Management

Data logging functionality is supported through the optional Windows-compatible Data Logging Kit (compatible with Windows 2000 and XP), enabling time-stamped storage of all four gas channels, alarm events, battery status, and ambient temperature at user-defined intervals (1–60 sec). Exported CSV files are structured for direct import into LIMS platforms or regulatory reporting tools used in GLP/GMP environments. While the XP-302M itself does not incorporate FDA 21 CFR Part 11-compliant electronic signatures or audit trails, its logged datasets—when captured and archived under controlled procedures—serve as auditable records for OSHA 1910.146 permit-required confined space programs and internal HSE incident investigations.

Applications

• Confined space entry pre-check and continuous atmospheric monitoring during work execution.
• Leak detection surveys around flanges, valves, and pipeline joints in hydrocarbon processing facilities.
• Emergency response triage in fire, spill, or structural collapse scenarios where multi-gas hazard assessment is time-critical.
• Routine perimeter monitoring in biogas handling areas, sewage lift stations, and landfill gas extraction sites.
• Verification of ventilation effectiveness following hot work or tank cleaning operations.
• Mobile calibration verification for fixed gas detection systems during preventive maintenance cycles.

FAQ

What certifications does the XP-302M hold for hazardous area use?
The unit carries intrinsic safety certification Ex ibd II BT3 per IEC 60079-0 and JIS C 0901, with the combustible gas sensor additionally rated flameproof (Ex d). It is approved for use in Zone 1 classified locations.
Can the XP-302M be calibrated in the field without dedicated equipment?
Yes—zero calibration can be performed in fresh ambient air; span calibration requires certified test gas and a regulated flow source (e.g., 0.5 L/min regulator), both supported by standard calibration kits.
Is the 8-hour battery life achievable under full alarm and backlight activation?
No—the rated >8-hour runtime assumes alarms, backlight, and data hold functions are disabled; active use of these features reduces operational duration proportionally.
Does the device support HART or Modbus communication protocols?
No—the XP-302M operates as a standalone detector; digital connectivity is limited to the proprietary Windows logging interface via RS-232.
How is sensor drift compensated over time?
The instrument includes automatic baseline correction algorithms during zero calibration cycles, and its electrochemical sensors feature built-in temperature compensation to minimize thermal drift across the −10 °C to +40 °C operating range.
