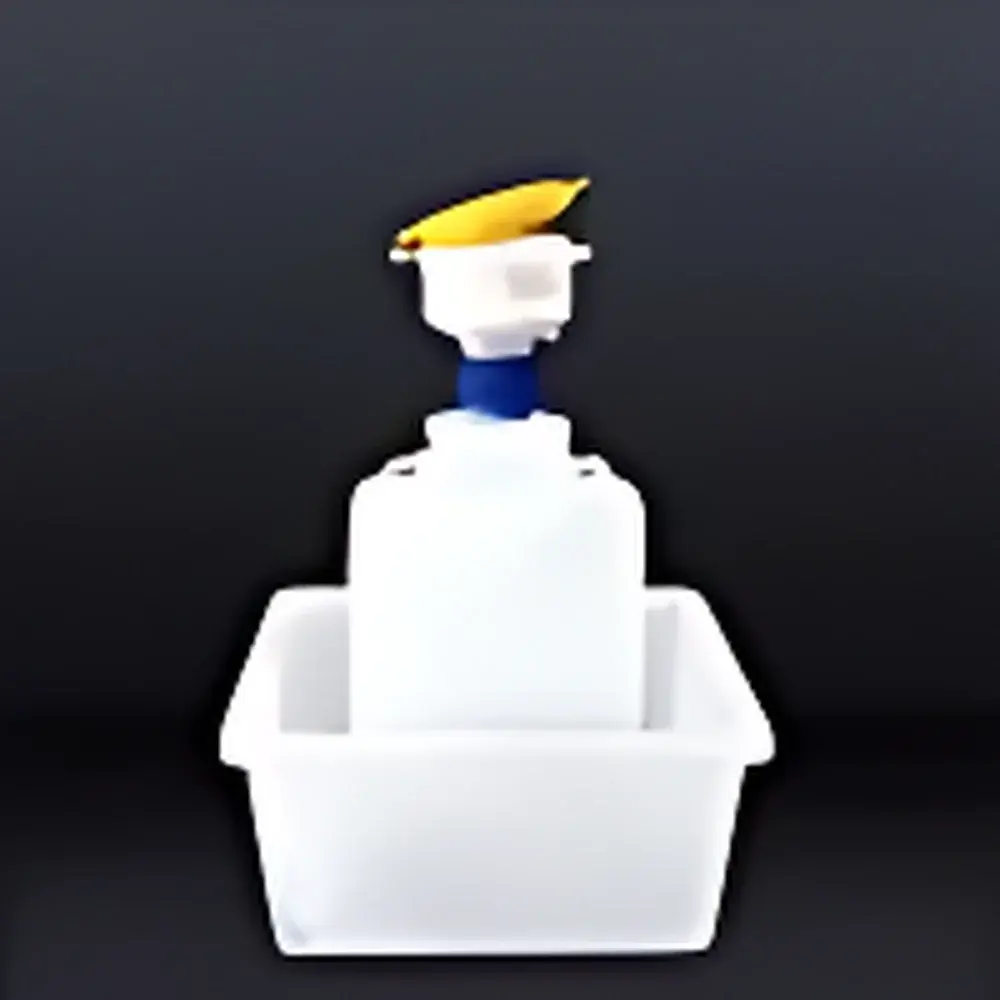

CP Lab Safety EF-4-38GL-SYS 4″ ECO Waste Collection Funnel System

Overview

The CP Lab Safety EF-4-38GL-SYS 4″ ECO Waste Collection Funnel System is an engineered solution for safe, compliant, and vapor-reduced disposal of hazardous organic solvents and process effluents generated during analytical and preparative laboratory operations. Designed around the principle of *closed-system containment*, this funnel eliminates uncontrolled headspace exposure by integrating a threaded neck (38-430) that seals directly onto standard HDPE or PP solvent bottles—effectively converting open waste containers into pressurized, low-volatility collection assemblies. Its geometry minimizes surface-area-to-volume ratio while the 11-inch extended neck suppresses convective vapor transport, reducing volatile organic compound (VOC) emissions by up to 99% compared to conventional open beakers or carboys. The system supports routine use with high-performance liquid chromatography (HPLC), gas chromatography (GC), peptide synthesizers, DNA/RNA synthesizers, protein sequencers, and low-to-medium pressure preparative chromatography systems—where solvent recovery, operator safety, and regulatory compliance are non-negotiable.

Key Features

• Chemically resistant high-density polyethylene (HDPE) construction rated for compatibility with acetonitrile, methanol, chloroform, ethyl acetate, THF, and other common organic solvents per ASTM D543 and ISO 175
• Integrated polypropylene filter disc (pore size ~100 µm) prevents particulate carryover into collection vessels—critical for protecting downstream pump seals and detector flow cells
• Modular 38-430 threaded neck ensures leak-tight coupling with certified LDPE/PP bottles (e.g., EC-2002A, EC-2004, NG-2203-0010), eliminating splash hazards and vapor leakage at the interface
• Compact footprint (5″ × 7″) enables stable placement inside fume hoods, under benchtop instruments, or adjacent to sink traps without obstructing workflow
• Scalable configuration support: accommodates up to six standardized HPLC waste line fittings (¼”-28 UNF or 1/8″ NPT) for multi-channel instrument integration
• Color-coded cap options (yellow, red, black) enable visual segregation of waste streams per OSHA Hazard Communication Standard (29 CFR 1910.1200) and internal lab SOPs

Sample Compatibility & Compliance

The EF-4-38GL-SYS is validated for continuous use with aqueous-organic mobile phases, acidic/basic eluents (pH 1–12), and halogenated solvents typical in pharmaceutical QC, biotech purification, and academic research settings. It conforms to key regulatory frameworks including EPA Method 8260C (VOC analysis), CLIA-compliant waste handling protocols, and ISO 14001 environmental management requirements. When used with certified LDPE bottles, the full assembly meets NFPA 30 Flammable and Combustible Liquids Code provisions for indoor storage of Class I liquids. No flame propagation occurs under ASTM E681 testing conditions. The HDPE body carries UL 94 HB flammability rating and complies with REACH Annex XIV SVHC screening criteria. Documentation supports GLP audit readiness, including traceable material certifications and lot-specific chemical resistance data sheets.

Software & Data Management

While the EF-4-38GL-SYS is a passive hardware component, its design integrates seamlessly into digital lab infrastructure. Each funnel is labeled with a permanent laser-etched serial number for asset tracking within LIMS platforms (e.g., LabWare, STARLIMS). Optional barcode labels (GS1-128) facilitate automated inventory reconciliation and waste log generation aligned with 21 CFR Part 11 electronic record requirements. When paired with smart bottle sensors (e.g., capacitive fill-level monitors), real-time volume telemetry can feed into centralized EHS dashboards for predictive waste pickup scheduling and VOC emission reporting per EPA TRI thresholds. CP Lab Safety provides editable SOP templates—including risk assessments (JSA), calibration checklists, and decontamination procedures—for integration into institutional quality management systems.

Applications

• HPLC/GC fraction collection where solvent volatility compromises method reproducibility and column lifetime
• Automated oligonucleotide synthesis workflows requiring strict control of acetonitrile and dichloroacetic acid vapors
• Protein purification via FPLC or AKTA systems using isopropanol-, ethanol-, or imidazole-containing buffers
• Preparative chromatography labs managing kilogram-scale solvent recovery programs under ISO 50001 energy management guidelines
• Government environmental testing labs adhering to EPA SW-846 methods requiring documented VOC containment during sample preparation
• Academic core facilities implementing green chemistry principles (ACS GCI Pharmaceutical Roundtable metrics)

FAQ

Can the EF-4-38GL-SYS be autoclaved?

No. HDPE softens above 120°C; steam sterilization is not recommended. For microbiological applications, wipe disinfection with 70% ethanol or isopropanol is validated.

Is the filter disc replaceable?

Yes. Filter discs (PP, 100 µm) are sold separately under part number EF-FIL-100 and snap into the funnel’s recessed seat without tools.

Does this funnel meet FDA requirements for pharmaceutical manufacturing?

It satisfies USP environmental controls for hazardous drug handling when deployed as part of a closed waste management system—and supports FDA 21 CFR Part 211.68(b) requirements for equipment suitability verification.

What bottle types are certified for use with the 38-430 thread?

Certified compatibility includes EC-2002A (2 L LDPE), EC-2004 (4 L LDPE), NG-2203-0010 (4 L PP narrow-mouth), and NG-2126-4000 (4 L HDPE wide-mouth) per manufacturer torque specifications (12–15 in-lb).

How often should the funnel be inspected for stress cracking?

Visual inspection for crazing or microcracks is required before each shift per OSHA 1910.1200(h)(3); replacement interval is 12 months under continuous daily use with aggressive solvents.
