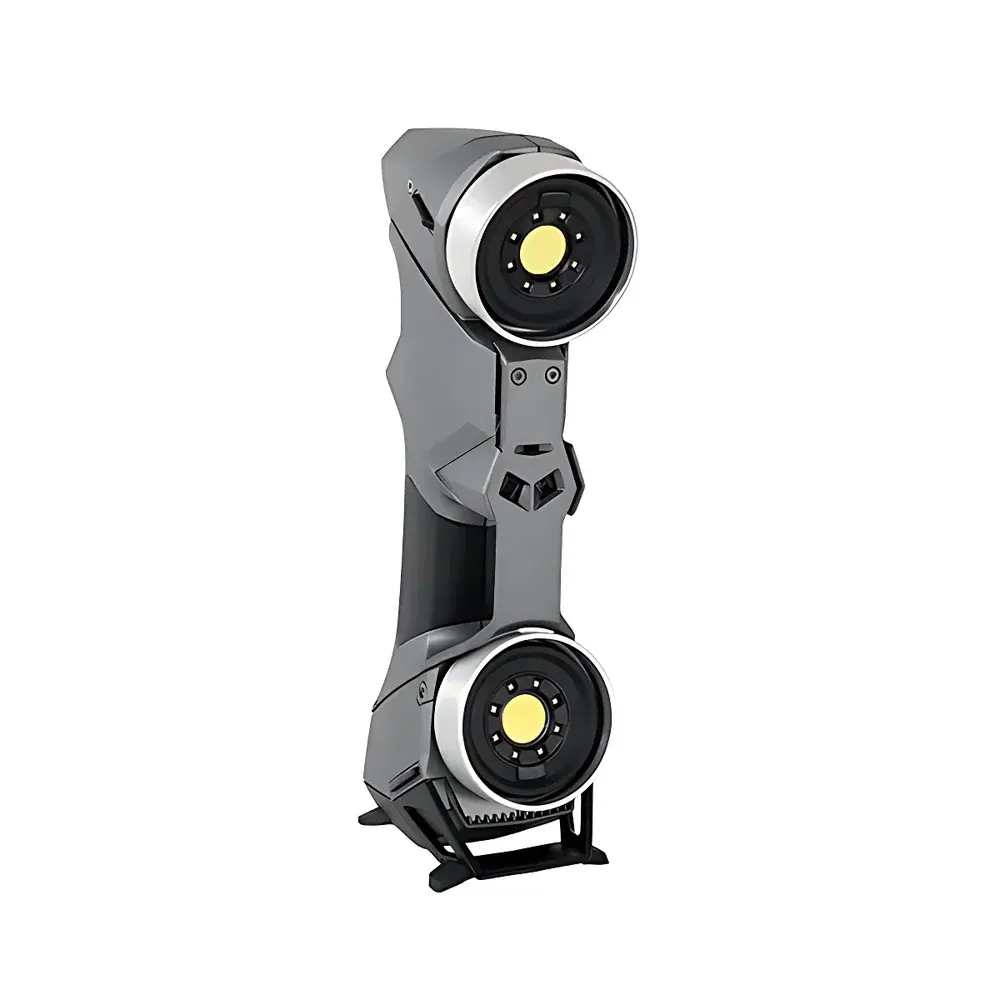

Creaform HandySCAN 3D|SILVER Series Portable Laser 3D Scanner

Overview

The Creaform HandySCAN 3D|SILVER Series is a portable, metrology-grade laser 3D scanner engineered for high-precision non-contact surface digitization in industrial metrology, quality control, reverse engineering, and product development environments. It operates on the principle of triangulation-based structured light projection, where a calibrated laser line is projected onto the target surface and captured by two high-resolution CMOS sensors. Real-time geometric reconstruction is achieved through dynamic reference tracking—using a network of optical targets affixed to the part or environment—to continuously compute the scanner’s 6-degree-of-freedom (6DoF) pose relative to the measurement volume. This eliminates dependency on external tracking systems such as photogrammetry stations or articulated arms, enabling true freedom of motion during data acquisition without compromising traceable accuracy.

Key Features

• Metrology-Grade Accuracy: Delivers point cloud accuracy of 0.030 mm (0.0012 in) and volumetric accuracy of 0.020 ± 0.060 mm/m—certified per ISO 10360-8 and traceable to NIST-traceable standards.
• Dynamic Reference Architecture: Self-referencing system using passive optical targets allows unrestricted handheld movement during scanning; no fixed mounting, tripods, or external trackers required.
• High-Speed Data Acquisition: Captures up to 800,000 3D points per second at full resolution, supporting rapid capture of complex freeform surfaces including castings, composites, and sheet metal parts.
• Robust Portability: Weighing only 0.94 kg and designed for field deployment, the device operates reliably across ambient temperatures from 5 °C to 40 °C and humidity levels up to 90% RH non-condensing.
• Universal Compatibility: Native integration with industry-standard metrology and CAD platforms—including Geomagic Control X, PolyWorks Inspector, Metrolog X4, Spatial Analyzer, Verisurf, CATIA V5, SOLIDWORKS, Creo, Siemens NX, Solid Edge, Autodesk Inventor, and PowerINSPECT—ensures seamless workflow alignment with existing QA/QC and PLM infrastructure.

Sample Compatibility & Compliance

The HandySCAN 3D|SILVER series accommodates a broad range of industrial sample types without surface preparation in most cases: machined metallic components, injection-molded plastics, carbon fiber composites, painted or anodized surfaces, and textured organic shapes. Matte finishes yield optimal signal-to-noise ratio; highly reflective or transparent materials may require matte spray application per ASTM E2923-21 guidelines. All delivered systems include a manufacturer-issued Certificate of Conformance and optional ISO/IEC 17025-accredited calibration reports. The hardware and firmware architecture comply with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-3 (EMC emissions), and support audit-ready documentation for GLP, GMP, and FDA 21 CFR Part 11 compliance when paired with validated software configurations.

Software & Data Management

Data acquisition and post-processing are managed via Creaform’s VXelements platform—a modular, role-based software suite supporting real-time visualization, automatic mesh generation, GD&T evaluation (per ASME Y14.5 and ISO 1101), deviation analysis, and report generation in PDF, HTML, or XML formats. VXelements includes built-in tools for alignment (best-fit, RPS, datum-based), comparison against CAD nominal geometry, and statistical process control (SPC) charting. Raw point clouds and processed meshes are stored in vendor-neutral formats (STL, OBJ, PLY, ASCII XYZ) and can be exported with full metadata—including timestamp, operator ID, environmental conditions, and calibration status—for long-term archival and regulatory review.

Applications

• First-article inspection and production part approval (PPAP) in automotive and aerospace Tier-1 supply chains
• Tooling validation and die wear monitoring for stamping and forging operations
• Reverse engineering of legacy components lacking CAD documentation
• As-built vs. as-designed analysis for large-scale assemblies (e.g., turbine housings, structural frames)
• Dimensional stability assessment under thermal or mechanical load (in conjunction with environmental chambers or test rigs)
• Educational and research applications in mechanical engineering labs requiring portable, repeatable 3D metrology

FAQ

Does the HandySCAN 3D|SILVER require external tracking hardware or photogrammetry setup?

No—it uses an integrated dynamic reference system based on optical target tracking, eliminating the need for external trackers, tripods, or calibration bars.
Is the scanner certified for use in regulated industries such as medical device manufacturing?

Yes—when deployed with validated software modules and documented calibration procedures, it supports compliance with ISO 13485, FDA 21 CFR Part 11, and MDR Annex II requirements.
Can it scan black, shiny, or transparent surfaces without spray?

Matte black surfaces are generally scannable; high-gloss or transparent surfaces typically require a removable matte developer spray conforming to ASTM D2621-17 to ensure consistent laser reflectivity.
What is the typical recalibration interval recommended by Creaform?

Annual recalibration is recommended under normal operating conditions; more frequent verification is advised after impact events or exposure to extreme environmental shifts.
Is training and technical support available globally?

Yes—Creaform provides factory-certified instructor-led training (on-site or virtual), multilingual documentation, and 24/7 remote support via its global network of metrology engineers.
