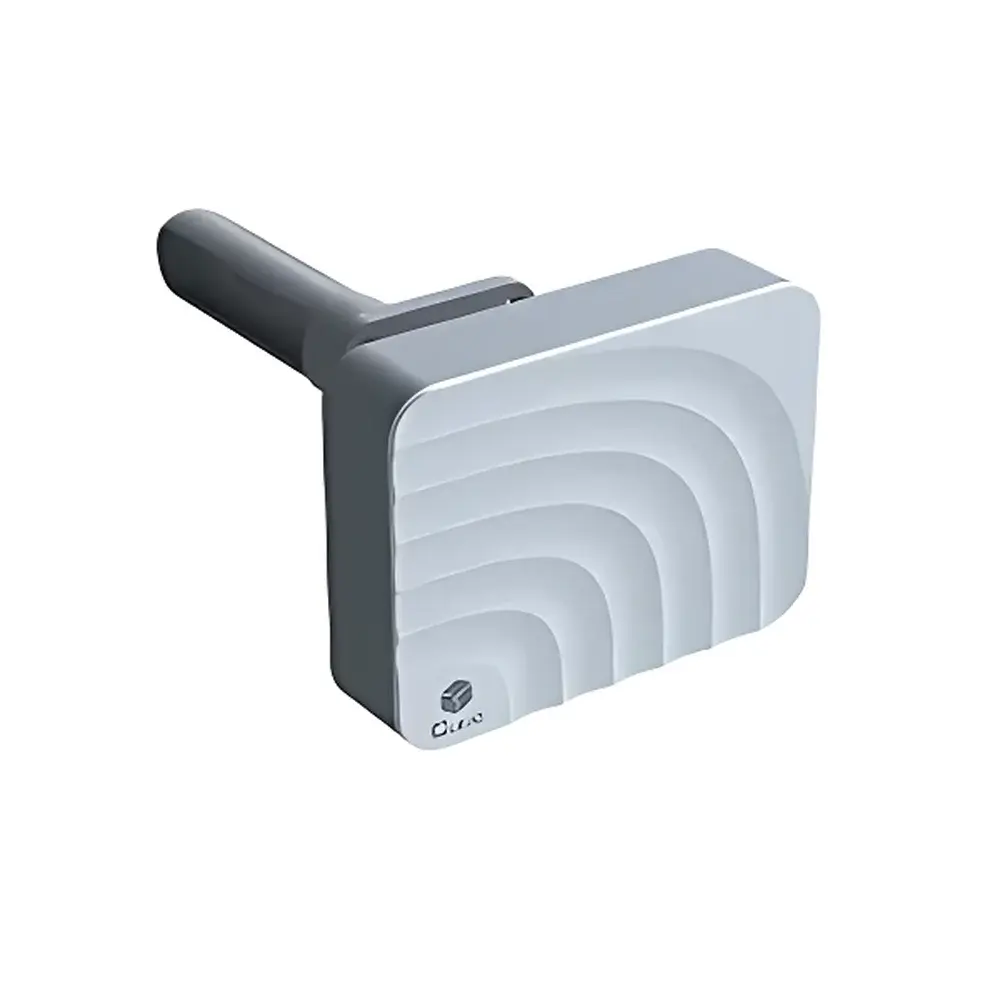

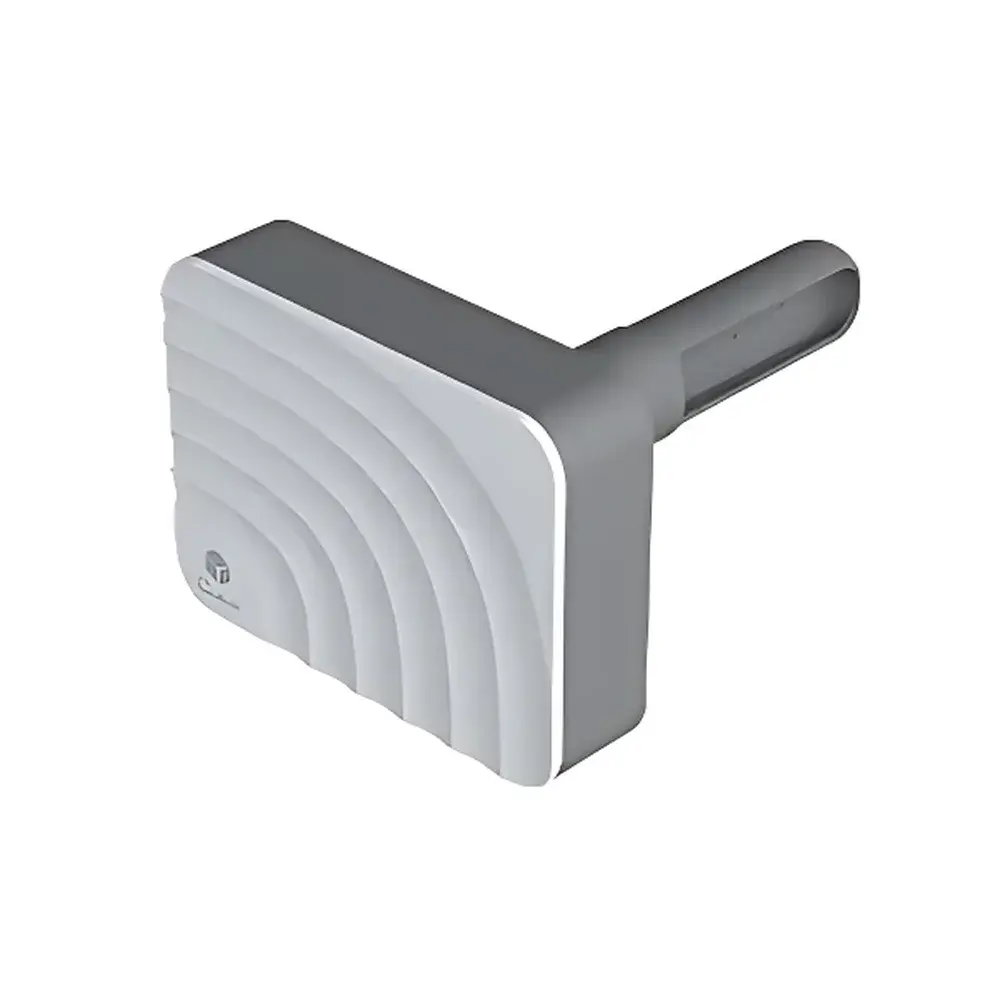

Cubic AM6208D Duct-Mounted CO₂ Transmitter

Overview

The Cubic AM6208D Duct-Mounted CO₂ Transmitter is an industrial-grade NDIR (Non-Dispersive Infrared) gas sensing device engineered for continuous, real-time monitoring of carbon dioxide concentration within HVAC air ducts. Designed specifically for integration into demand-controlled ventilation (DCV) systems, it operates on the fundamental spectroscopic principle that CO₂ molecules absorb infrared radiation at a characteristic wavelength (~4.26 µm). The sensor employs a dual-wavelength detection architecture—comprising an active measurement channel and a reference channel—to compensate for optical drift, dust accumulation, and aging effects, ensuring long-term signal stability without requiring frequent manual recalibration. Its compact, robust mechanical design enables direct insertion into rectangular or round ducts with minimal airflow disturbance, delivering high reproducibility across diverse environmental conditions encountered in commercial buildings, data centers, cleanrooms, and light industrial facilities.

Key Features

• Proprietary NDIR sensing platform with integrated temperature and humidity compensation algorithms
• Factory-calibrated traceability to NIST-traceable CO₂ standards; supports ABC (Automatic Background Calibration) logic compliant with ISO 16000-12 for unattended baseline correction over extended intervals
• Dual-output capability: configurable 4–20 mA current loop or 0–10 V voltage output, both meeting IEC 61000-6-2/6-4 immunity and emission requirements
• Extended service life of ≥15 years under typical operating conditions, validated per IEC 60721-3-3 Class 3K5 environmental stress profiles
• Low-power operation optimized for 24 VAC/DC supply systems common in building automation infrastructure
• Mechanically stabilized optical path with anti-fouling lens coating, rated IP54 for protection against airborne particulates in duct environments

Sample Compatibility & Compliance

The AM6208D is validated for use in non-corrosive, non-explosive airstreams with particulate loading ≤1 mg/m³ and no condensable hydrocarbons. It complies with key international directives applicable to building control instrumentation: CE marking under the Electromagnetic Compatibility (2014/30/EU) and Low Voltage (2014/35/EU) Directives; RoHS 2011/65/EU conformity for hazardous substance restriction; and manufacturing quality assurance per ISO 9001:2015. While not intrinsically safe, its electrical interface meets SELV (Safety Extra-Low Voltage) criteria per IEC 61000-4-5 surge immunity up to 2 kV (line-to-earth). The device supports commissioning and validation protocols aligned with ASHRAE Guideline 1 and ISO 16000-12 for indoor air quality monitoring systems.

Software & Data Management

The AM6208D operates as a standalone analog transmitter with no embedded digital communication protocol (e.g., Modbus or BACnet). However, its linear 4–20 mA or 0–10 V output is fully compatible with industry-standard building management systems (BMS), programmable logic controllers (PLCs), and data loggers equipped with analog input modules. When integrated into a calibrated DCV control loop, the transmitter’s output enables proportional actuation of dampers, fan speeds, or heat recovery units based on real-time CO₂-derived occupancy estimation. For auditability and regulatory compliance—particularly under LEED v4.1 IEQ Credit 1 or WELL Building Standard W02—the analog signal chain must be documented per ANSI/ASHRAE Standard 135 (BACnet) or ISO 16484-5 for traceable calibration records and maintenance logs.

Applications

• Commercial HVAC systems requiring demand-controlled ventilation in office buildings, schools, hospitals, and retail spaces
• Industrial process air handling units where CO₂ serves as a proxy for human occupancy or fermentation off-gas monitoring
• Smart building retrofits integrating legacy duct infrastructure with modern energy management platforms
• Air quality monitoring networks deployed under national indoor air quality guidelines (e.g., China’s GB/T 18883-2022, EU’s EPBD recast Directive 2018/844)
• Research-grade environmental chambers and controlled-environment laboratories validating ventilation efficacy

FAQ

Does the AM6208D require periodic manual calibration?
No—its ABC (Automatic Background Calibration) algorithm performs automatic zero-point adjustment during periods of low CO₂ exposure (typically overnight or unoccupied hours), maintaining accuracy within specification for up to 15 years without intervention.
Can this transmitter be installed in round ducts?
Yes—provided the duct wall thickness and access cutout accommodate the 86 × 120 mm front plate and 185 mm depth; optional mounting brackets are available for secure fixation in circular cross-sections.
Is the output signal linear across the full 0–2000 ppm range?
Yes—the 4–20 mA output maps linearly from 0 ppm (4 mA) to 2000 ppm (20 mA); the 0–10 V variant follows identical linearity per IEC 60770-1.
What is the recommended maintenance interval?
Visual inspection and cleaning of the optical window every 12 months is advised in high-dust environments; no internal servicing is required under normal operation.
Does the device support fail-safe output modes?
No—it does not feature configurable fault signaling (e.g., 3.6 mA or 22 mA alarms); system-level fault detection must be implemented externally via the BMS or PLC logic.
