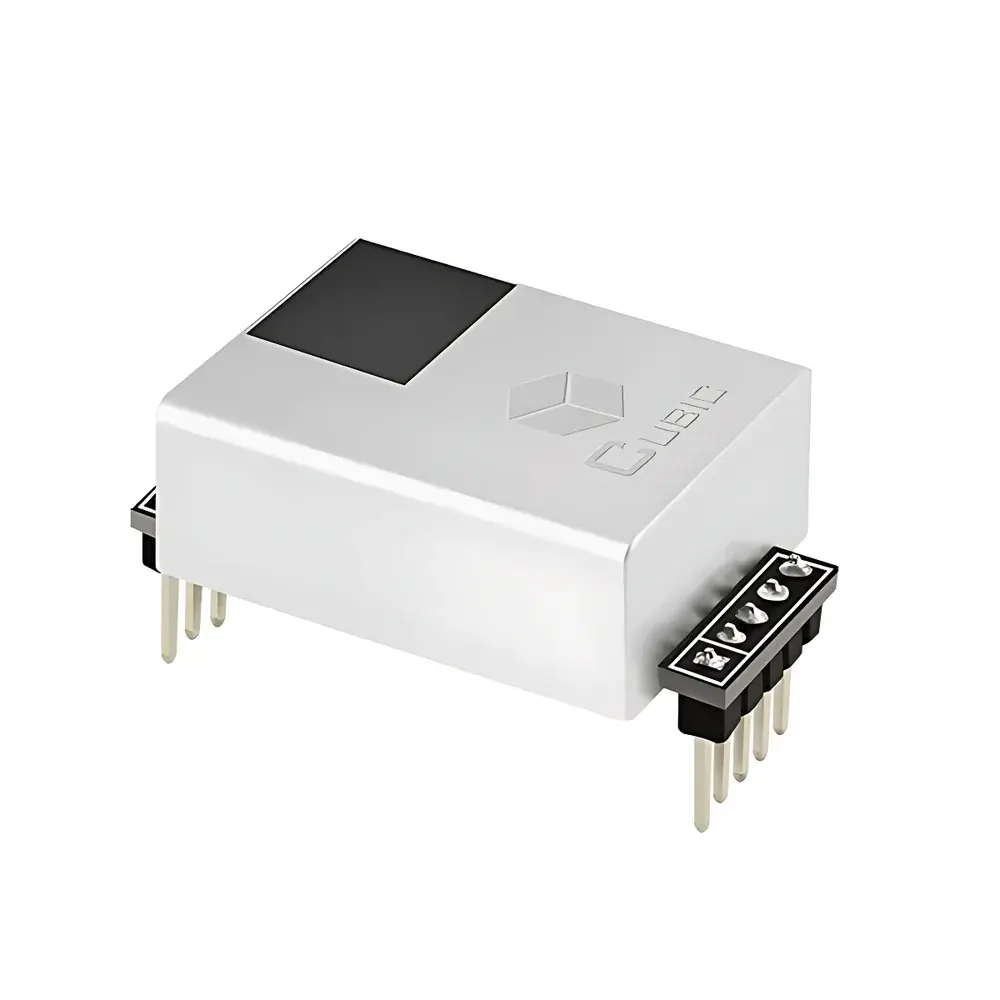

Cubic CM1109 Dual-Source NDIR Carbon Dioxide Sensor

Overview

The Cubic CM1109 is a high-reliability, dual-source non-dispersive infrared (NDIR) carbon dioxide sensor engineered for continuous, low-drift CO₂ monitoring in indoor environmental quality (IEQ) and building automation systems. Unlike single-source NDIR architectures vulnerable to source degradation or optical path contamination, the CM1109 integrates two independent infrared emitters with matched reference and measurement channels—enabling real-time compensation for thermal drift, aging effects, and dust accumulation on optical surfaces. This dual-engine architecture delivers enhanced long-term stability (typical zero drift 15 years MTBF under nominal conditions), making it suitable for unattended deployment in HVAC demand-controlled ventilation (DCV), smart thermostats, air purifiers, and IoT-enabled occupancy-aware building management systems.

Key Features

• Dual-source NDIR design with synchronized emitter pairs for active drift compensation and improved signal-to-noise ratio
• Compact form factor (33 × 20.3 × 11.4 mm) optimized for PCB-level integration in space-constrained embedded platforms
• Factory-calibrated across full temperature and humidity ranges using multi-point matrix compensation—no field recalibration required during service life
• Three standardized digital output interfaces: UART TTL (configurable 3.3 V/5 V logic levels), I²C (addressable, 7-bit slave address), and duty-cycle modulated PWM (for microcontroller-native analog input emulation)
• Low-power operation: average current draw <45 mA at 5 V DC enables battery-backed or energy-harvesting deployments with appropriate power management
• Compliant with RoHS 3 and REACH directives; halogen-free PCB construction supports industrial-grade environmental certification pathways

Sample Compatibility & Compliance

The CM1109 is designed exclusively for gaseous CO₂ detection in ambient air matrices. It exhibits minimal cross-sensitivity to common indoor interferents including CO, CH₄, NO₂, and VOCs (cross-sensitivity to water vapor is actively compensated via onboard RH sensing and algorithmic correction). The sensor meets functional safety requirements outlined in ISO 16000-6 for indoor air quality monitoring and aligns with ASHRAE Standard 62.1 ventilation rate procedures. While not certified to SIL or IEC 61508 for safety-critical shutdown applications, its metrological performance satisfies ANSI/ASHRAE 111-2020 validation criteria for CO₂-based occupancy estimation and demand-controlled ventilation commissioning. Device firmware implements write-protected calibration constants and supports secure firmware updates via UART bootloader protocol.

Software & Data Management

Cubic provides an open communication protocol documentation package (v2.1), including register maps, command sets, and error code definitions for all three interfaces. The UART interface supports ASCII and binary frame formats with CRC-8 checksum verification. I²C implementation complies with SMBus 2.0 timing constraints and includes configurable alert pin functionality for threshold-triggered interrupts. All output modes deliver time-stamped CO₂ concentration values (ppm), internal temperature (°C), relative humidity (%RH), and diagnostic flags (e.g., heater fault, optical saturation, memory checksum failure). Data logging compatibility extends to industry-standard protocols including Modbus RTU (via UART bridge) and MQTT over ESP32/WiFi gateways. Calibration traceability is maintained through NIST-traceable reference gas audits performed during final production test.

Applications

• Residential and commercial HVAC demand-controlled ventilation (DCV) systems requiring ASHRAE-compliant CO₂ setpoint modulation
• Smart indoor air quality (IAQ) monitors and wall-mounted environmental dashboards
• Portable IAQ meters used in LEED-certified building commissioning and post-occupancy evaluations
• Occupancy analytics modules integrated into lighting control and energy management platforms
• Educational laboratory instrumentation for gas sensing principles and environmental science curricula
• OEM integration into medical-grade air handling units where CO₂ monitoring supports infection control strategies (e.g., airborne pathogen dilution verification)

FAQ

Does the CM1109 require periodic recalibration in the field?
No. The sensor is factory-calibrated using multi-point matrix compensation across temperature and humidity gradients and does not require user-initiated recalibration under normal operating conditions.
Can the CM1109 be used outdoors or in high-humidity environments?
It is rated for 0–95% RH (non-condensing) and −10°C to +50°C operation. Prolonged exposure to condensation, salt fog, or particulate-laden outdoor air is not recommended without external filtration and environmental enclosure.
Is the sensor compliant with FDA 21 CFR Part 11 or EU Annex 11 for regulated environments?
The CM1109 is not intended for GxP-regulated process monitoring. It lacks audit trail, electronic signature, and role-based access control features required for Part 11 compliance.
What is the expected lifetime under continuous operation?
Based on accelerated life testing per IEC 60721-3-3 Class 3K5, typical operational lifetime exceeds 15 years with <2% deviation from initial calibration at end-of-life.
How is humidity interference mitigated in CO₂ measurement?
Onboard capacitive RH sensing feeds real-time humidity data into a proprietary compensation algorithm that dynamically adjusts the NDIR absorption model—reducing humidity-induced error to <±15 ppm across 0–90% RH.
