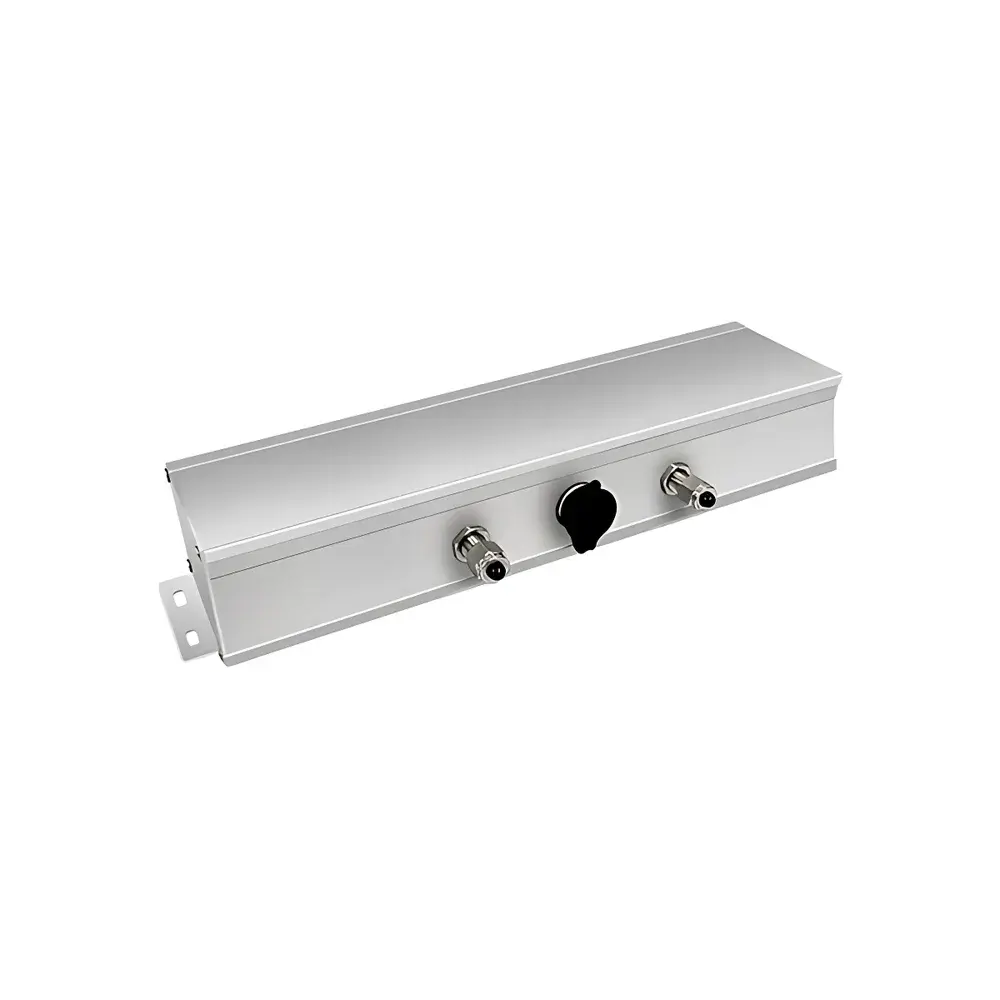

Cubic Gasboard-2006 Dual-Channel NDIR Gas Sensor Module for CO and CO₂ Measurement

Overview

The Cubic Gasboard-2006 is a dual-channel, OEM-grade non-dispersive infrared (NDIR) gas sensing module engineered for simultaneous, interference-free measurement of carbon monoxide (CO) and carbon dioxide (CO₂) in industrial and environmental monitoring applications. Unlike single-gas NDIR sensors, the Gasboard-2006 employs spectrally optimized optical filters, matched detector pairs, and proprietary cross-interference compensation algorithms to decouple CO and CO₂ absorption signals—enabling accurate quantification even in complex background matrices containing water vapor, methane, or hydrocarbons. Its core sensing architecture features a temperature-stabilized, laser-welded aluminum gas cell with anti-fouling surface treatment and precision-machined optical path geometry, ensuring long-term repeatability and minimal zero drift. The module integrates a closed-loop Peltier-based thermostat maintaining the optical cavity at a constant 50 °C ±0.5 °C—effectively eliminating thermal-induced baseline shifts common in unregulated NDIR platforms. Designed for integration into fixed-mount air quality stations, combustion efficiency analyzers, biogas upgrading systems, and HVAC demand-controlled ventilation (DCV) controllers, the Gasboard-2006 complies with fundamental performance expectations outlined in ISO 12039 (CO analysis in flue gas), ISO 4037-3 (reference gas mixtures), and ASTM D6216 (CO₂ measurement in ambient air).

Key Features

• Dual independent NDIR channels with spectrally isolated detection for CO (4.6 µm band) and CO₂ (4.26 µm band), minimizing spectral overlap and enabling true multi-component analysis without hardware switching
• Active thermal stabilization: integrated thermoelectric cooler (TEC) maintains optical chamber at 50 °C ±0.5 °C, reducing temperature coefficient error to < 0.02% FS/°C
• Optimized gas cell design: hermetically sealed, corrosion-resistant aluminum body with polished internal surfaces and laminar flow geometry to ensure uniform residence time and minimize wall adsorption effects
• Advanced digital signal processing: real-time baseline correction, humidity-compensated calibration coefficients, and adaptive gain control to maintain accuracy across variable sample dew points
• Modular OEM form factor: compact 102 × 70 × 35 mm footprint with standardized mounting holes and 12-pin connector for power, analog outputs (optional), and serial interface
• Configurable communication protocol: factory-default Modbus RTU over RS-485 (addressable up to 32 nodes), with optional RS-232 support for local diagnostics and firmware updates

Sample Compatibility & Compliance

The Gasboard-2006 is validated for continuous operation with dry or humidified sample streams containing particulate loadings < 1 mg/m³ and oil mist concentrations < 0.1 mg/m³. It is compatible with sampling systems incorporating Nafion™ dryers, stainless-steel heated lines (up to 60 °C), and particulate filtration per ISO 8573-1 Class 4. While not intrinsically safe certified, the module meets IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) requirements for industrial environments. Its linearity, repeatability, and stability specifications align with EN 14625 (portable CO detectors) and EN 15267-3 (performance certification of automated measuring systems). For regulatory reporting applications, raw sensor output supports traceable calibration against NIST-traceable standard gases (e.g., CO in N₂, CO₂ in synthetic air), and data logging intervals can be synchronized to external timestamps for GLP-compliant audit trails.

Software & Data Management

The Gasboard-2006 operates as a smart peripheral with embedded firmware supporting register-level configuration via Modbus function codes (0x03 Read Holding Registers, 0x06 Write Single Register). Standard registers include real-time concentration values (CO in ppm, CO₂ in %vol), internal temperature/humidity readings, diagnostic flags (e.g., low signal-to-noise, heater fault), and calibration status. Cubic provides a Windows-based PC utility (Gasboard Configuration Tool v3.2) for field calibration, zero/span adjustment, slope offset tuning, and firmware version verification. All calibration events are timestamped and stored in non-volatile memory with read-only access—supporting basic 21 CFR Part 11 compliance when deployed within validated host SCADA or BMS platforms. Raw serial data streams may be ingested directly into Python, LabVIEW, or Node-RED via USB-to-RS485 adapters for custom visualization or machine learning preprocessing pipelines.

Applications

• Continuous emissions monitoring (CEM) of CO/CO₂ in boiler exhaust, incinerator stacks, and cement kiln off-gas where stoichiometric ratio tracking informs combustion optimization
• Biogas quality control in anaerobic digesters and landfill gas upgrading facilities, where CO serves as an indicator of incomplete anaerobic digestion or thermal cracking
• Ambient air quality networks requiring sub-ppm CO detection alongside percent-level CO₂ for urban traffic corridor studies and indoor-outdoor air exchange modeling
• Controlled atmosphere storage (CAS) for fruits and vegetables, where precise CO₂ setpoint maintenance prevents spoilage while avoiding CO accumulation from ethylene scrubbers
• Fire detection pre-alarm systems in data centers and battery energy storage rooms, leveraging CO rise rate analysis prior to smoke generation
• Research-grade gas flux chambers in soil respiration and ecosystem carbon cycling studies, interfaced with programmable peristaltic samplers and climate-controlled enclosures

FAQ

What is the recommended sample conditioning for high-humidity environments?
For relative humidity > 70% RH, use a Nafion™ dryer or chilled mirror condenser upstream; avoid desiccants that may adsorb CO. Maintain sample line temperature above dew point to prevent condensation in the sensor cell.
Can the Gasboard-2006 be calibrated with span gas containing both CO and CO₂ simultaneously?
Yes—dual-gas calibration is supported using certified mixtures (e.g., 500 ppm CO + 5% CO₂ in N₂); the internal compensation algorithm automatically resolves cross-sensitivity during multi-point calibration routines.
Is firmware update capability available in the field?
Yes—firmware upgrades are performed via ASCII command sequence over RS-232 or RS-485 using XMODEM protocol; requires no hardware modification or factory return.
Does the module support analog voltage/current outputs?
Not natively—the Gasboard-2006 is a digital-only module. Analog output functionality must be implemented externally via host MCU or PLC with DAC conversion.
What is the expected service life under continuous operation?
Rated for ≥ 5 years MTBF (mean time between failures) when operated within specified environmental limits and protected from corrosive vapors (e.g., Cl₂, SO₂, NH₃) and silicones.
