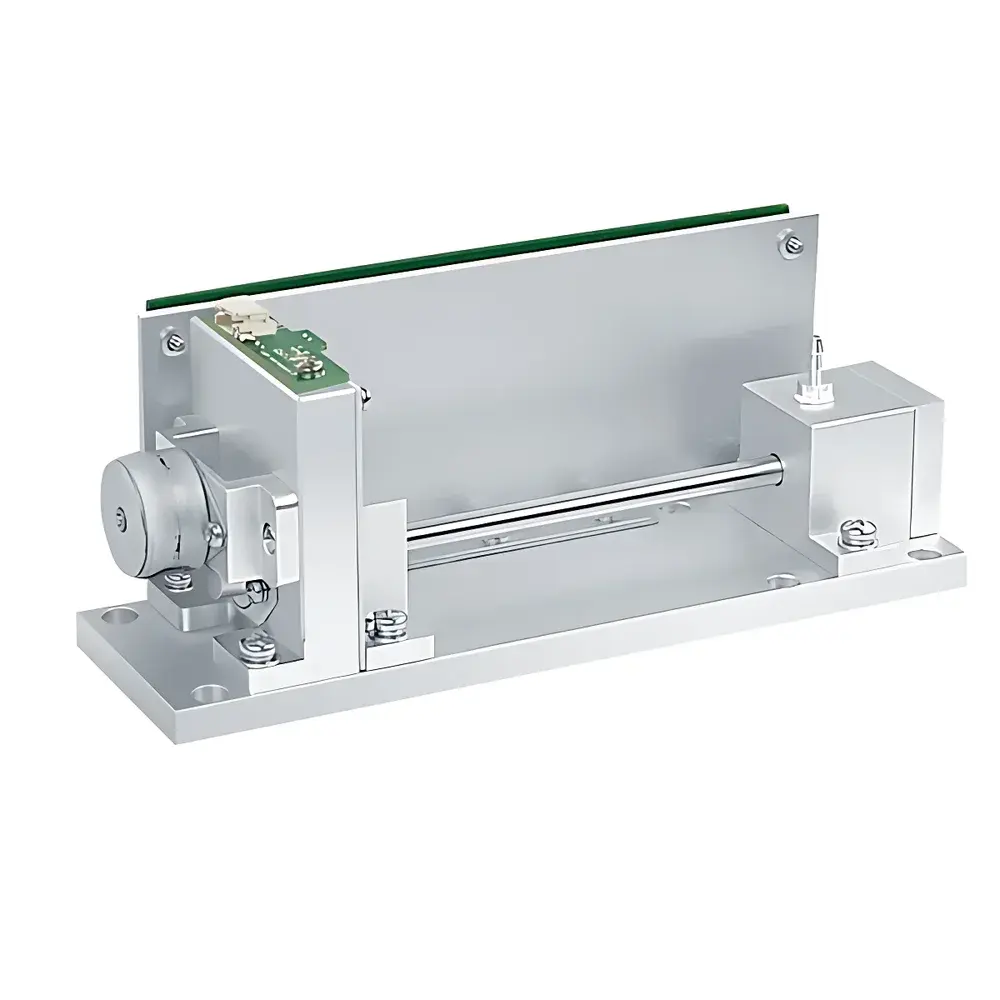

Cubic Gasboard-2050 NDIR Gas Sensor Platform for DLCO Measurement Systems

Overview

The Cubic Gasboard-2050 is a high-performance, OEM-grade NDIR (Non-Dispersive Infrared) gas sensor platform engineered specifically for clinical and research applications requiring precise, real-time quantification of carbon monoxide (CO), methane (CH₄), and carbon dioxide (CO₂) in low-concentration respiratory gas streams. Its core architecture leverages dual-wavelength NDIR detection with fast mechanical chopper modulation—eliminating the need for thermoelectric coolers or optical filters while ensuring exceptional signal-to-noise ratio and long-term baseline stability. Designed to meet the stringent metrological demands of diffusing capacity of the lung for carbon monoxide (DLCO) testing systems, the Gasboard-2050 delivers sub-second response dynamics (<300 ms T_10–T90 at 1 L/min flow) and robust immunity to ambient humidity fluctuations and cross-interference from common background gases (e.g., H₂O vapor, N₂, O₂). The integrated microcontroller performs on-board signal conditioning, auto-zeroing, span calibration routines, and digital output formatting—enabling seamless integration into automated breath analysis workstations compliant with ISO 26782:2021 (pulmonary function testing) and ASTM D6245-22 (indoor air CO measurement protocols).

Key Features

• True dual-channel NDIR detection optimized for simultaneous CO and CH₄ quantification at trace levels (down to 1 ppm resolution), with independent CO₂ channel supporting 0–10% vol range
• Mechanical chopper modulation operating at ultra-high frequency (>1 kHz), minimizing thermal drift and enhancing signal fidelity under variable flow conditions
• Factory-calibrated linear response across full scale, validated against NIST-traceable gas standards; ±1% FS accuracy maintained over 12-month operational intervals without field recalibration
• Compact, modular form factor (183 × 65.6 × 70 mm) with standardized RS232 serial interface (115200 bps, 16 Hz data refresh) compatible with LabVIEW, MATLAB, and custom embedded control firmware
• Low-power design (≤600 mA @ +12 V DC) suitable for battery-backed portable DLCO analyzers and fixed-site pulmonary function laboratories
• Robust environmental tolerance: operational reliability verified from −10°C to +45°C and 0–90% RH (non-condensing), with internal temperature compensation algorithms active across entire range

Sample Compatibility & Compliance

The Gasboard-2050 is validated for direct integration into volumetric DLCO measurement systems per ATS/ERS 2017 guidelines, where rapid, synchronized acquisition of CO depletion and CO₂ production during single-breath maneuvers is critical. It accepts dry or humidified sample gas streams at flow rates of 0.5–2.0 L/min without condensation-induced signal attenuation. All internal optics and detector elements are sealed against particulate ingress (IP54-rated enclosure), and the sensor housing complies with IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity to electrostatic discharge and RF fields). While not a standalone medical device, the platform meets essential requirements for Class IIa accessory components under EU MDR Annex II, and supports audit-ready calibration logs required for GLP-compliant pulmonary physiology labs.

Software & Data Management

The sensor operates autonomously via embedded firmware that implements configurable auto-zero cycles (user-definable interval and duration), multi-point span verification routines, and real-time diagnostic flags (e.g., low signal amplitude, excessive zero drift, communication timeout). Raw analog outputs are digitized at 16-bit resolution and formatted as ASCII packets containing timestamped concentration values, status codes, and internal sensor diagnostics. Optional PC-based configuration utility (Windows/Linux/macOS) enables firmware updates, calibration coefficient editing, and export of CSV-formatted time-series datasets compatible with FDA 21 CFR Part 11–compliant electronic lab notebooks (ELNs) when deployed within validated laboratory information management systems (LIMS).

Applications

• Clinical DLCO analyzers for assessment of alveolar-capillary membrane integrity in COPD, interstitial lung disease, and pulmonary hypertension
• Research-grade exhaled breath condensate (EBC) and breath volatile organic compound (VOC) studies requiring orthogonal CO/CH₄ tracking
• Calibration verification modules for reference gas delivery systems used in spirometry quality assurance programs
• Industrial hygiene monitors adapted for confined-space entry safety where CO and CH₄ co-detection is mandated (OSHA 1910.146)
• Environmental chamber controllers for simulating controlled atmospheric compositions in respiratory toxicology studies

FAQ

Is the Gasboard-2050 certified for medical use?
No—it is an industrial-grade sensor module intended for integration into Class II medical devices by OEMs. Final system-level regulatory clearance (e.g., FDA 510(k), CE-IVDR) remains the responsibility of the end-product manufacturer.

Can it operate continuously without manual zeroing?
Yes. The onboard auto-zero algorithm executes programmable cycles (default: every 2 hours) using internal reference gas pathways, maintaining baseline stability for >30 days under typical lab conditions.

What is the recommended calibration frequency?
Annual factory recalibration is advised for clinical applications; biannual verification using certified span gases (e.g., 50 ppm CO in N₂, 5% CO₂ in air) satisfies ISO 17025 traceability requirements.

Does it support analog voltage output?
Not natively—only RS232 digital output is provided. Analog conversion requires external DAC circuitry or OEM-level hardware modification.

How is cross-sensitivity to water vapor mitigated?
Through proprietary spectral deconvolution algorithms applied to dual-detector NDIR signals, combined with real-time relative humidity input (if external RH sensor is interfaced) for dynamic compensation.
