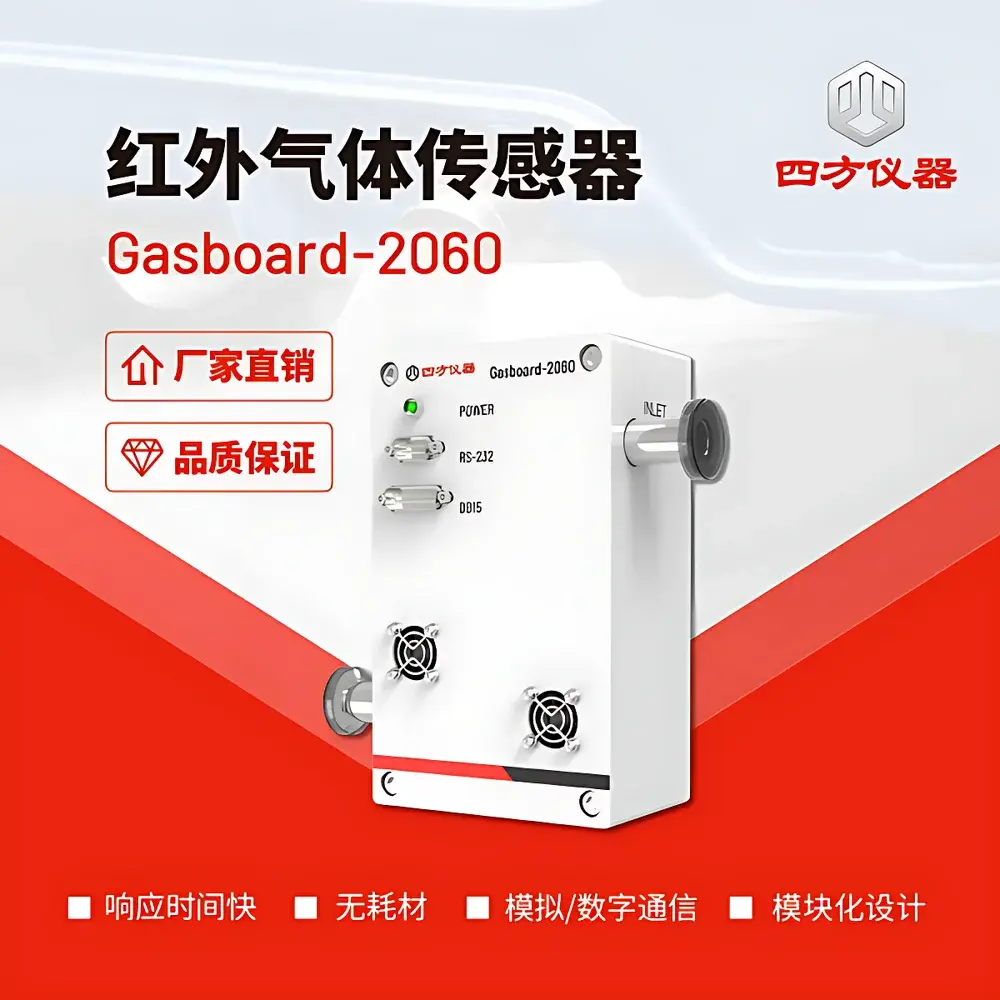

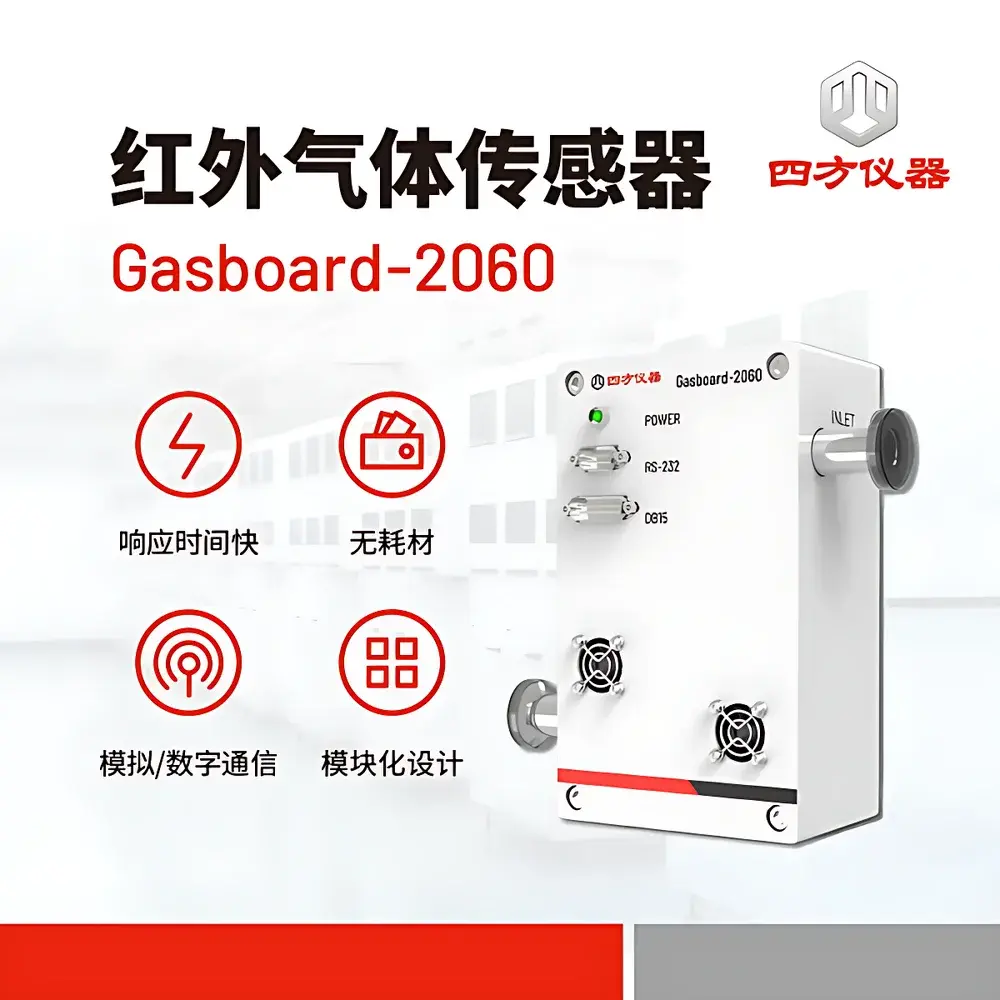

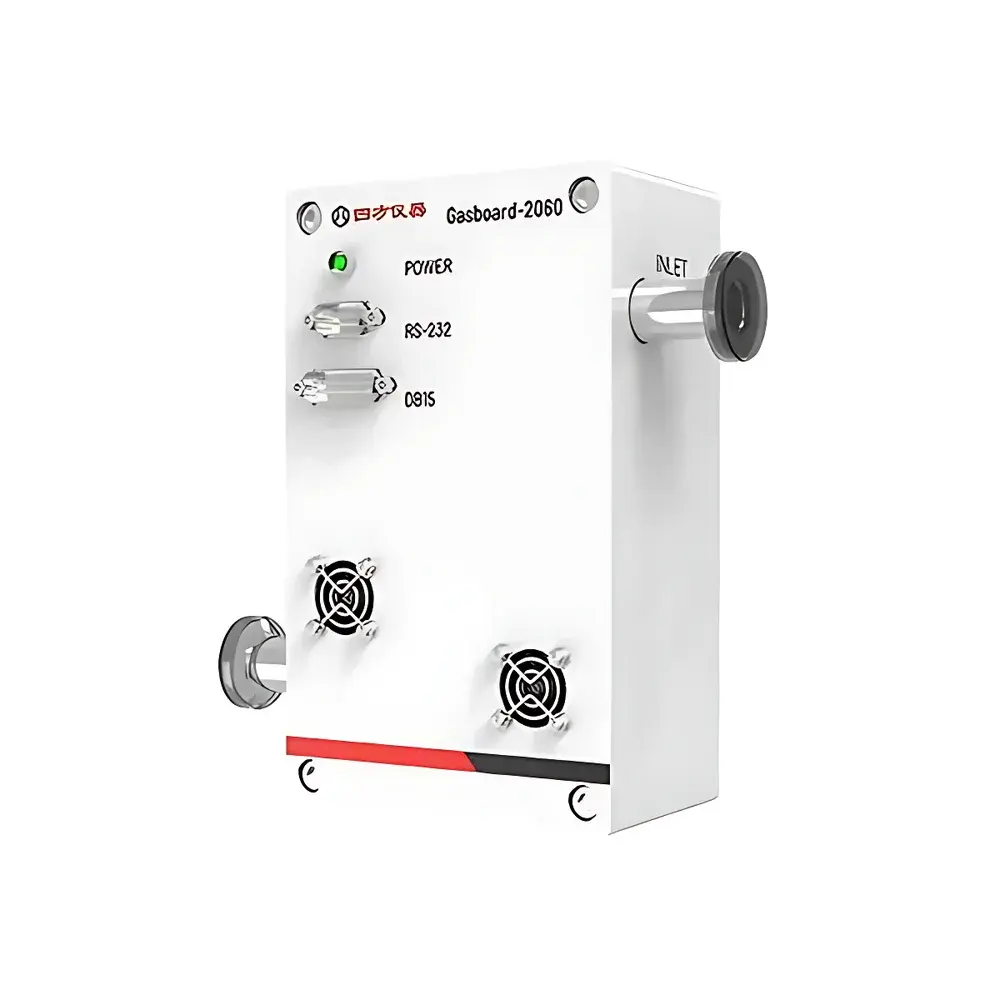

CUBIC INSTRUMENTS Gasboard-2060 NDIR Infrared Gas Sensor for Endpoint Detection in Semiconductor CVD and Etch Processes

Overview

The CUBIC INSTRUMENTS Gasboard-2060 is a vacuum-rated, process-integrated NDIR (Non-Dispersive Infrared) gas sensor engineered for real-time endpoint detection (EPD) and chamber cleaning monitoring in semiconductor thin-film processing equipment—particularly low-pressure chemical vapor deposition (LPCVD), plasma-enhanced CVD (PECVD), and reactive ion etching (RIE) systems. Unlike catalytic or electrochemical sensors, the Gasboard-2060 leverages dual-beam NDIR spectroscopy with thermopile detectors and narrowband optical filters tuned to fundamental absorption bands of fluorinated and carbon-based process gases (SiF₄ at 10.7 µm, CF₄ at 12.8 µm, SF₆ at 10.6 µm, NF₃ at 10.3 µm, and CO₂ at 4.26 µm). This enables selective, interference-resistant quantification under dynamic vacuum conditions without consumables or calibration drift. Its design conforms to SEMI E10 standards for measurement equipment reliability and supports integration into tool-level control architectures via standardized analog and Modbus RTU interfaces.

Key Features

• Vacuum-optimized NDIR architecture rated for continuous operation at pressures down to 200 mTorr, with CF-40 flange mounting and 316L wetted materials compliant with high-purity semiconductor process environments.
• Simultaneous multi-gas detection capability for five critical process gases—SiF₄, CF₄, SF₆, NF₃, and CO₂—using dedicated optical channels and temperature-compensated signal processing.
• Fast response time (T₉₀ < 2 seconds) and sub-ppm detection limit (1 ppm) ensure precise identification of endpoint transients during film deposition termination or chamber purge completion.
• Zero-consumable design eliminates recalibration cycles, sensor replacement downtime, and cross-sensitivity artifacts common in metal-oxide or amperometric alternatives.
• Modular electronics housing with configurable analog (4–20 mA) and digital (RS485/Modbus RTU) outputs simplifies OEM integration into existing tool controllers (e.g., Brooks Automation, MKS Instruments platforms).
• Factory-trimmed linearity (±1% F.S.) and repeatability (±0.5% of reading) validated per ISO 17025-accredited procedures, supporting traceable process documentation.

Sample Compatibility & Compliance

The Gasboard-2060 is designed for direct installation in CVD and etch chamber exhaust lines or inline process manifolds where gas composition reflects reaction progress. It maintains stable performance in the presence of condensable byproducts, particulate-laden effluents, and transient pressure fluctuations typical of pulsed plasma processes. The sensor meets SEMI F20 (Safety Guidelines for Semiconductor Manufacturing Equipment) mechanical interface requirements and complies with CE marking directives (EMC Directive 2014/30/EU, RoHS 2011/65/EU). While not intrinsically safe-certified for Class I Div 1 zones, its 316L construction and sealed optics support use in ISO Class 1–5 cleanroom environments per ISO 14644-1. Data integrity aligns with FDA 21 CFR Part 11 expectations when paired with audit-trail-enabled host SCADA systems.

Software & Data Management

The sensor operates autonomously without embedded firmware requiring user configuration; all calibration coefficients and gas-specific algorithms are stored in non-volatile memory. Host systems access real-time concentration data, diagnostic status (lamp intensity, detector offset, temperature stability), and self-test logs via Modbus registers. CUBIC provides a Windows-based configuration utility (Gasboard ConfigTool v3.2) for setting alarm thresholds, scaling analog outputs, and exporting timestamped CSV reports—compatible with LabVIEW, MATLAB, and Siemens SIMATIC WinCC. Raw spectral data is not exposed; only validated concentration values are transmitted, ensuring deterministic behavior in automated recipe control loops.

Applications

• Endpoint detection in SiO₂, SiNₓ, and low-k dielectric CVD processes using SiF₄ or NF₃ as precursors or etchants.
• Monitoring SF₆/CF₄ breakthrough during chamber cleaning cycles in tungsten or polysilicon etch tools to minimize over-purge and reduce perfluorocompound (PFC) emissions.
• Real-time tracking of CO₂ evolution during photoresist ashing or post-etch residue removal, enabling adaptive endpoint logic.
• Integration into cluster tool load-lock purge verification sequences to confirm residual O₂/H₂O levels prior to wafer transfer.
• Support for DOE-based process optimization studies requiring high-temporal-resolution gas kinetics data under varying RF power, pressure, and precursor flow conditions.

FAQ

Is the Gasboard-2060 certified for use in Class 100 cleanrooms?
Yes—the sensor’s 316L stainless steel body, electropolished internal surfaces, and particle-free optical path meet ISO 14644-1 Class 5 (Class 100) particulate limits when installed with appropriate gasketing and purge protocols.
Can it distinguish between SiF₄ and other fluorinated gases in mixed streams?
Yes—its multi-channel NDIR architecture uses spectrally isolated detection windows and proprietary cross-interference compensation algorithms trained on >200 binary and ternary gas mixtures, achieving <3% cross-sensitivity between SiF₄ and CF₄/SF₆ under typical process ratios.
Does it require periodic field calibration?
No—factory calibration is retained for the sensor’s operational lifetime (≥5 years) under specified environmental conditions; zero/span verification can be performed using certified NIST-traceable gas standards if required by internal QA protocols.
What vacuum compatibility certifications does it hold?
It is rated for continuous operation at ≤200 mTorr and has passed helium leak testing per SEMI E179 (Leak Integrity Testing of Vacuum Components) with a maximum leak rate of 1×10⁻⁹ atm·cm³/s.
How is data integrity ensured for regulatory submissions?
When integrated with a 21 CFR Part 11-compliant host system, the sensor’s immutable register-based data stream—including timestamps, diagnostic flags, and hardware revision codes—supports full audit trail generation for FDA or ISO 13485 audits.
