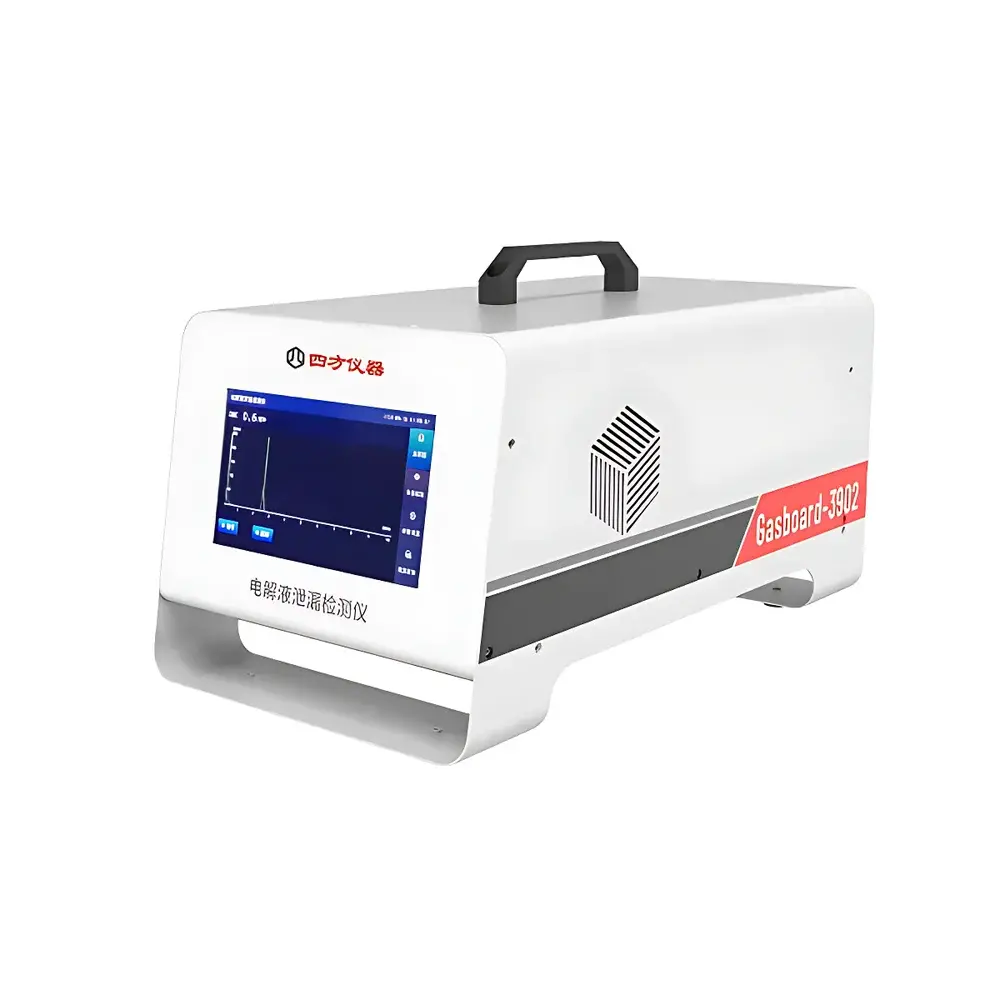

CUBIC INSTRUMENTS Gasboard-3902 Electrolyte Leak Detector

Overview

The CUBIC INSTRUMENTS Gasboard-3902 Electrolyte Leak Detector is a purpose-built, portable NDIR-based gas analyzer engineered for continuous, real-time monitoring of dimethyl carbonate (DMC)—a key volatile organic component in lithium-ion battery electrolytes. Designed specifically for early-stage detection of electrolyte leakage during battery manufacturing, storage, transportation, and thermal runaway evaluation, the instrument leverages non-dispersive infrared absorption spectroscopy at a characteristic wavelength band optimized for DMC’s C=O and C–O vibrational modes. Its optical architecture integrates a temperature-stabilized dual-beam NDIR sensor module with a corrosion-resistant gas path, precision signal conditioning circuitry, and active thermal management to ensure baseline stability under variable ambient conditions. Unlike broad-spectrum VOC sensors, the Gasboard-3902 delivers compound-specific quantification—minimizing cross-sensitivity to CO₂, alcohols, or hydrocarbons commonly present in battery testing environments.

Key Features

• NDIR-based selective detection of dimethyl carbonate (DMC) with 1 ppm detection limit and ≤±2% full-scale linearity error
• Integrated thermally regulated optical cell and reference detector for long-term zero drift suppression (<0.5% F.S./month)
• Corrosion-resistant wetted materials (316L stainless steel, PTFE, and fluorosilicone seals) compatible with aggressive electrolyte vapors
• Real-time concentration display with auto-scaled time-series curve visualization (sampling interval configurable from 1 s to 60 s)
• On-device data logging capacity for ≥30 days of 1-second resolution measurements; exportable via USB or serial interface in CSV format
• Built-in rechargeable lithium-ion battery supporting ≥8 hours of continuous operation at 3 L/min flow rate
• Configurable alarm thresholds with relay output (NO/NC) and visual/audible alerts for immediate operator notification

Sample Compatibility & Compliance

The Gasboard-3902 is validated for direct sampling of ambient air, enclosure headspace, and forced-draft exhaust streams containing DMC vapor at concentrations up to 100 ppm. It complies with IEC 61000-4 electromagnetic immunity standards and meets IP54 ingress protection rating for dust and water resistance. While not certified for hazardous area use (e.g., ATEX or IECEx), its design aligns with functional safety principles outlined in ISO 26262 ASIL-A for automotive diagnostic support applications. The device supports GLP-compliant data integrity through timestamped measurement records, user-accessible audit logs, and immutable internal storage—enabling traceability required for QC documentation in battery production facilities subject to ISO 9001 and IATF 16949 audits.

Software & Data Management

The instrument operates standalone but interfaces seamlessly with host systems via Modbus RTU over RS-485 or ASCII protocol over RS-232. Optional PC software provides remote configuration, live graphing, batch export, and alarm event filtering. All stored datasets include embedded metadata: sensor ID, calibration date, firmware version, ambient T/RH, and flow rate. Data files conform to ASTM E2500-17 guidelines for analytical instrument data archiving, including checksum validation and sequential record numbering. No cloud connectivity or proprietary drivers are required—ensuring compatibility with legacy SCADA, MES, and battery test bench control platforms.

Applications

• Early-warning monitoring of electrolyte leakage in pouch, prismatic, and cylindrical Li-ion cells during formation, aging, and abuse testing
• In-line quality assurance in dry room environments where trace DMC indicates seal failure or separator degradation
• Thermal runaway simulation studies—correlating DMC release onset with temperature ramp profiles and vent gas composition
• Mobile inspection of EV battery modules pre-shipment or post-accident assessment
• Validation of fume extraction system performance in battery pack assembly lines

FAQ

What gas species does the Gasboard-3902 detect?
It is calibrated and optimized exclusively for dimethyl carbonate (DMC), the dominant volatile solvent in carbonate-based lithium-ion battery electrolytes.
Can it detect other electrolyte components such as EC or DEC?
No—the optical filter and algorithm are specific to DMC’s infrared absorption signature; cross-sensitivity to ethylene carbonate (EC) or diethyl carbonate (DEC) is below 3% under standard test conditions.
Is field calibration possible without specialized equipment?
Yes—zero calibration can be performed using nitrogen or clean synthetic air; span calibration requires certified 10 ppm DMC standard gas and is recommended annually or after sensor exposure to >500 ppm concentrations.
Does the device meet FDA 21 CFR Part 11 requirements?
It supports electronic record retention and user authentication via optional password-protected configuration mode, though formal Part 11 validation must be conducted by the end-user per their SOPs.
What maintenance is required for sustained accuracy?
Filter replacement every 6 months (part number GB-FIL-01), annual verification against traceable gas standard, and visual inspection of inlet tubing for condensate accumulation.
