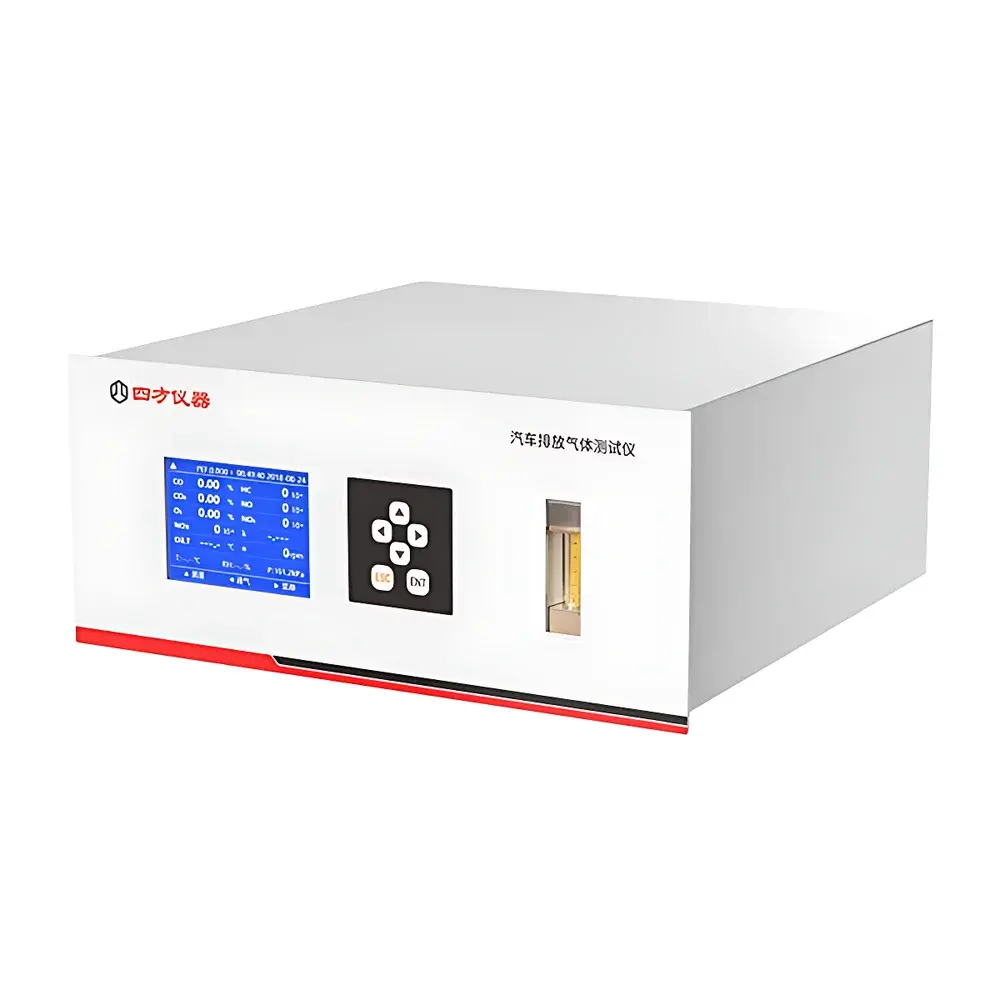

CUBIC INSTRUMENTS Gasboard-5230 Automotive Exhaust Gas Analyzer for Diesel Vehicles

Overview

The CUBIC INSTRUMENTS Gasboard-5230 is an online automotive exhaust gas analyzer engineered specifically for regulatory compliance testing of diesel-powered vehicles in official inspection and maintenance (I/M) programs. It implements three distinct, physically independent optical detection principles within a single integrated platform: non-dispersive infrared (NDIR) absorption for carbon dioxide (CO₂), a proprietary micro-flow dual-chamber infrared sensing architecture—protected under international PCT patent PCT/CN2018100767—for nitric oxide (NO), and non-dispersive ultraviolet (NDUV) absorption for nitrogen dioxide (NO₂). This multi-technology approach eliminates the need for catalytic NO_x converters, enabling direct, simultaneous, and interference-resistant measurement of NO and NO₂ without cross-sensitivity or thermal drift-induced calibration drift. Designed to meet the stringent metrological requirements of China’s national standard GB 3847–2018 (“Limits and Measurement Methods for Pollutants from Diesel Vehicles – Free Acceleration and Loaded Mode Testing”) and JJG 688–2017 (“Verification Regulation for Automotive Exhaust Gas Analyzers”, Class 00 accuracy grade), the Gasboard-5230 delivers traceable, repeatable, and legally defensible data for official emissions certification.

Key Features

• Direct dual-gas NO/NO₂ quantification using NDUV and patented dual-cell micro-flow IR—no NO_x converter required, reducing system complexity and long-term maintenance burden
• Multi-stage particulate and moisture filtration system upstream of optical cells, enhancing sensor longevity and operational robustness in high-humidity, high-soot environments typical of diesel exhaust streams
• Embedded real-time signal processing algorithms performing dynamic linearization and temperature-compensated baseline correction, ensuring stable output across ambient fluctuations (10–40 °C operating range)
• Modular integration capability with Gasboard-6000 transmittance-type opacity meters via standardized digital interface, enabling synchronized opacity and gaseous pollutant reporting per GB 3847–2018 Annex D
• Ruggedized industrial enclosure rated IP54, conforming to electromagnetic compatibility (EMC) requirements per GB/T 18268.1–2010 for laboratory and roadside testing environments

Sample Compatibility & Compliance

The Gasboard-5230 is validated for continuous sampling of raw, unconditioned diesel exhaust gas at temperatures up to 200 °C and dew points up to 95 °C. Its optical path design inherently rejects water vapor spectral interference—critical for accurate CO₂ and NO quantification in humid exhaust matrices. The analyzer complies with metrological traceability requirements defined in JJG 688–2017 (Class 00), including zero and span verification protocols, linearity assessment over full scale, and repeatability testing under variable flow conditions (5–15 L/min). All measurement uncertainties are documented per ISO/IEC 17025:2017 Annex A.3 guidance, supporting GLP-aligned quality assurance frameworks in third-party testing laboratories.

Software & Data Management

The embedded firmware supports dual communication protocols (RS-232 and RS-485 Modbus RTU) for seamless integration into centralized I/M station management systems. Raw analog outputs (4–20 mA) are available for legacy PLC interfacing. Calibration logs, diagnostic events, and measurement timestamps are stored internally with audit-trail functionality compliant with basic data integrity principles aligned with FDA 21 CFR Part 11 Annex A expectations (user authentication, immutable event logging, and electronic signature readiness). Exportable CSV reports include gas concentration values, T90 response confirmation flags, and internal temperature/humidity monitoring data—facilitating retrospective method validation and QA/QC review.

Applications

• Official motor vehicle emission inspection stations accredited under CNAS (China National Accreditation Service) and provincial ecological environment bureaus
• OEM engine development labs conducting R&D-level diesel aftertreatment system characterization (e.g., SCR efficiency mapping, DPF regeneration profiling)
• Independent repair facilities performing post-repair verification per GB 18565–2016 (“Technical Conditions for Operating Vehicles”)
• Research institutions studying real-world driving emissions (RDE) and evaluating low-temperature NO_x conversion kinetics in exhaust aftertreatment catalysts
• Environmental monitoring agencies deploying mobile lab units for roadside enforcement campaigns targeting high-emitting diesel fleets

FAQ

Does the Gasboard-5230 require periodic NO_x converter replacement?
No. The instrument measures NO and NO₂ independently using NDUV and patented dual-cell IR technology—eliminating catalytic converters entirely.
Is the analyzer suitable for gasoline vehicle testing?
It is optimized for diesel exhaust per GB 3847–2018; while CO₂ and NO can be measured in gasoline exhaust, NO₂ detection sensitivity and dynamic range are calibrated specifically for diesel NO_x profiles.
What verification documentation is provided for metrological compliance?
Each unit ships with a factory calibration certificate traceable to NIM (National Institute of Metrology, China), plus a full JJG 688–2017 verification report template and SOPs for in-field verification.
Can the Gasboard-5230 operate continuously during extended testing cycles?
Yes. Rated for uninterrupted operation ≥ 8 hours at nominal load; thermal management ensures optical cell stability without recalibration between consecutive vehicle tests.
Is remote firmware update supported?
Firmware updates are performed locally via USB or serial interface using authenticated binaries; no cloud connectivity or OTA capability is implemented to preserve data sovereignty and cybersecurity integrity.
