CuDDI Copper Corrosion Digital Imaging System by AYALYTICAL

Overview

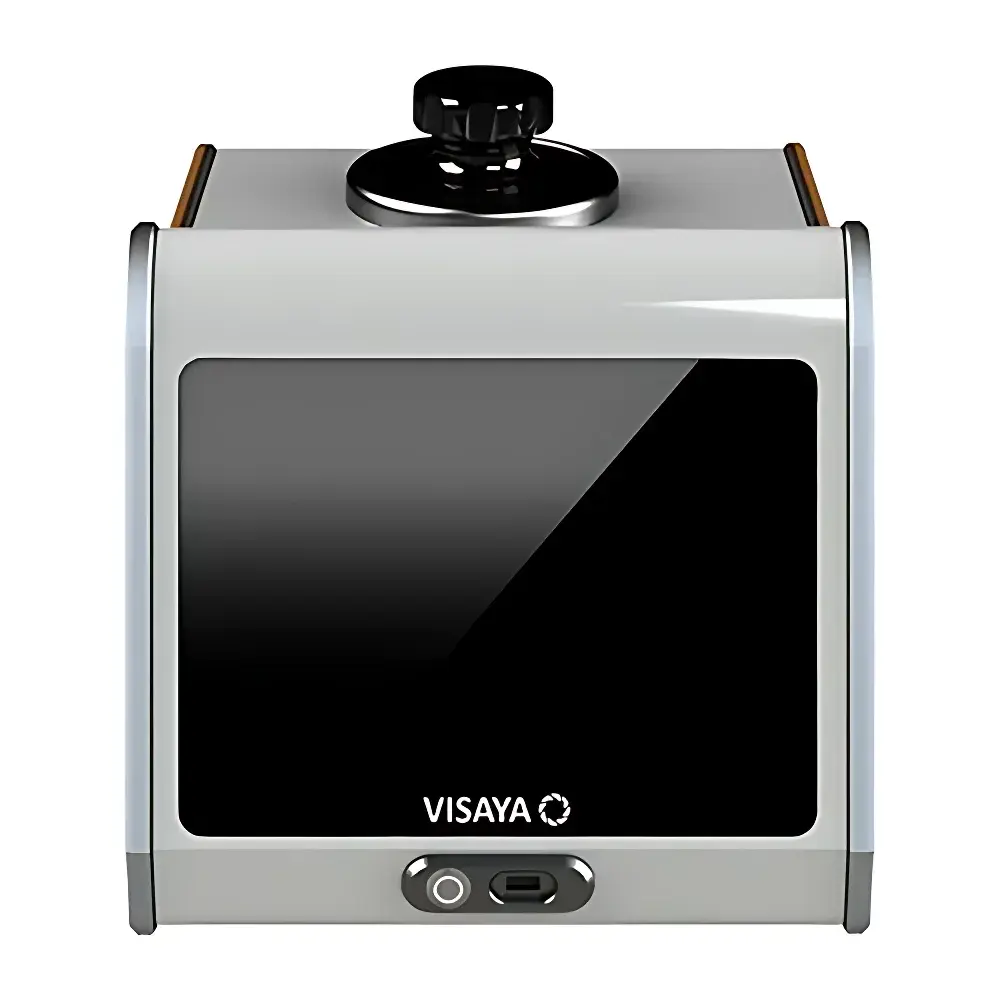

The CuDDI Copper Corrosion Digital Imaging System is an engineered solution for objective, repeatable, and traceable assessment of copper strip corrosion in petroleum products—primarily in accordance with ASTM D130, IP 154, and ISO 2160. Unlike conventional visual inspection methods, which rely on subjective human interpretation of discoloration, tarnish, and staining patterns on polished copper strips after exposure to test samples, the CuDDI system applies high-resolution digital imaging coupled with standardized colorimetric analysis to quantify corrosion severity. It operates on the principle that surface oxidation and sulfide-induced reaction products produce spectrally distinct chromatic shifts across the copper strip surface. By capturing calibrated RGB and CIELAB color space data under controlled illumination and geometric conditions, the system converts qualitative judgments into quantitative metrics—including ΔE*_ab, L* (lightness), a* (green–red axis), and b* (blue–yellow axis)—enabling statistical process control and inter-laboratory comparability.

Key Features

• Automated image acquisition with uniform LED illumination and fixed-focus macro lens optimized for 75 × 12.7 mm ASTM-standard copper strips
• Pre-calibrated color profiling using NIST-traceable reference tiles to ensure long-term photometric stability
• Corrosion grade classification engine aligned with ASTM D130’s five-tier rating scale (1a–4b), including intermediate sub-grades (e.g., 2c, 3a)
• Integrated pass/fail logic based on user-defined specification thresholds (e.g., max allowable ΔE*_ab = 12.5 for Grade 1 compliance)
• Rugged benchtop enclosure rated IP52 for laboratory environments; compatible with standard fume hood integration
• USB 3.0 interface with low-latency frame transfer and hardware-triggered capture synchronization

Sample Compatibility & Compliance

The CuDDI system accepts all copper strips prepared per ASTM D130 Section 6—i.e., electrolytic tough pitch (ETP) copper, 99.9% minimum purity, polished to a mirror finish, and dimensionally conforming to 75 ± 1 mm length × 12.7 ± 0.5 mm width × 1.5 ± 0.2 mm thickness. It supports testing of gasoline, diesel, jet fuel, lubricating oils, biodiesel blends, and hydroprocessed feedstocks. The system’s measurement protocol satisfies the “objective evaluation” requirement outlined in ASTM D130 Annex A2 and is designed to support GLP-compliant workflows. Audit trails—including image metadata (timestamp, operator ID, calibration status), raw pixel data, and grade assignment history—are stored in encrypted SQLite databases compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed with optional audit log module.

Software & Data Management

CuDDI Control Suite v3.2 (Windows 10/11 64-bit) provides full instrument control, real-time preview, batch processing, and report generation. Each analysis session automatically generates a PDF report containing annotated images, color space plots, grade determination rationale, and conformance statements against selected specifications (e.g., API RP 1529, MIL-DTL-83133). Raw TIFF images are preserved with embedded EXIF metadata, including ICC profile, exposure settings, and calibration checksums. Data export options include CSV (for LMS/LIMS integration), XML (ASTM E1461-compliant), and structured JSON for automated QA pipelines. Optional cloud sync enables multi-site comparison studies while maintaining on-premise data sovereignty via configurable firewall rules and TLS 1.3 encryption.

Applications

• Refinery QC labs verifying post-hydrotreating sulfur removal efficacy
• Fuel additive formulation labs correlating mercaptan scavenger dosage with corrosion suppression
• Independent testing laboratories performing third-party certification to ASTM, ISO, or regional specifications (e.g., GB/T 5096 in China, JIS K 2514 in Japan)
• Research institutions studying copper-catalyzed oxidation kinetics in bio-derived fuels
• Regulatory agencies conducting proficiency testing and method validation studies

FAQ

Does CuDDI replace ASTM D130 testing—or only the visual assessment step?
CuDDI does not alter the core test procedure (sample heating, strip immersion, cleaning); it replaces only the subjective visual grading step with objective digital analysis—fully preserving ASTM D130’s chemical and thermal protocol.
Can CuDDI distinguish between sulfur-induced tarnish and oxidation due to moisture or air exposure?
Yes—the system’s spectral sensitivity and spatial pattern recognition algorithms differentiate localized sulfide staining (typically brown-to-black, non-uniform) from generalized oxide films (uniform dulling, higher L* values), supported by multivariate clustering in CIELAB space.
Is hardware calibration required before each use?
No—daily verification uses a built-in ceramic reference tile; full recalibration is recommended every 90 days or after lens cleaning, following the included NIST-traceable procedure.
How is operator bias eliminated during image capture?
The system enforces strict positioning via machined strip holder and fixed optical path; no manual focusing, zooming, or lighting adjustment is permitted—ensuring identical acquisition geometry across users and shifts.
Does CuDDI support custom corrosion grading scales beyond ASTM D130?
Yes—users may define proprietary grading matrices with weighted color parameters, threshold logic, and pass/fail rules via the Configuration Editor, with version-controlled deployment across networked instruments.
