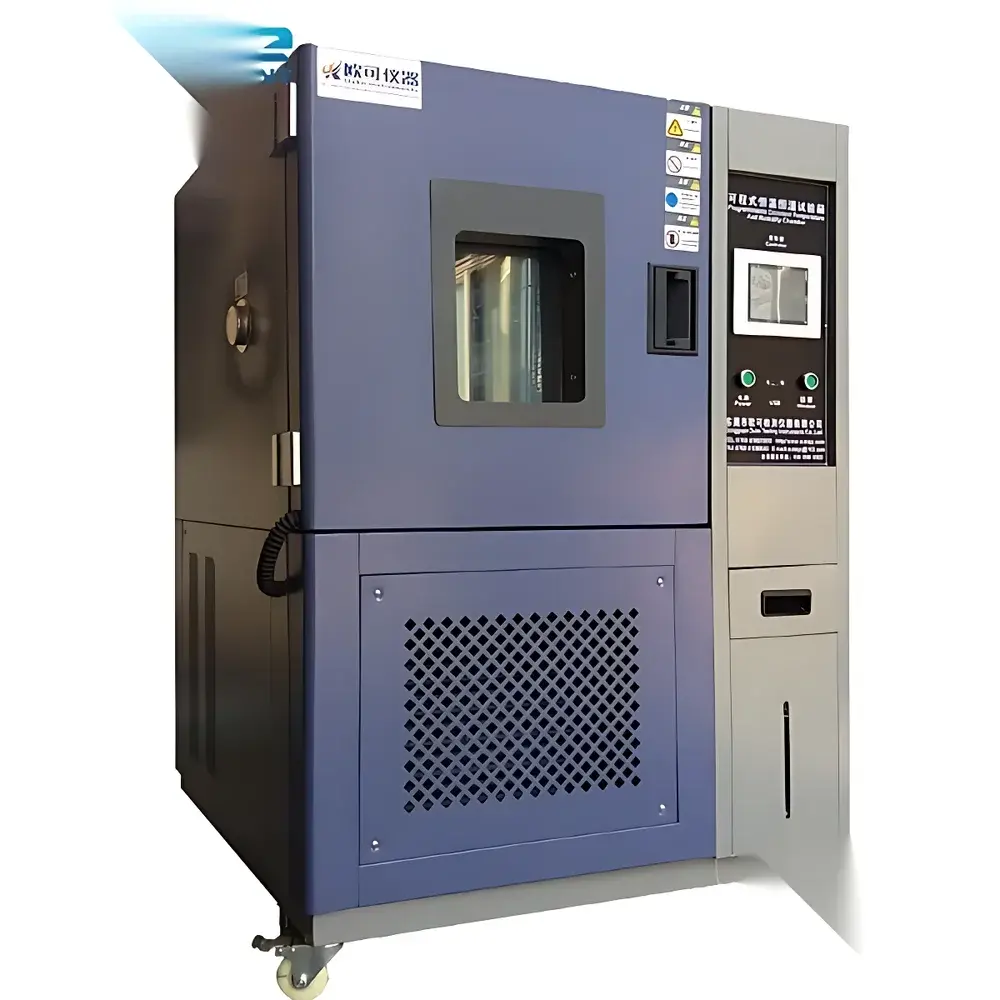

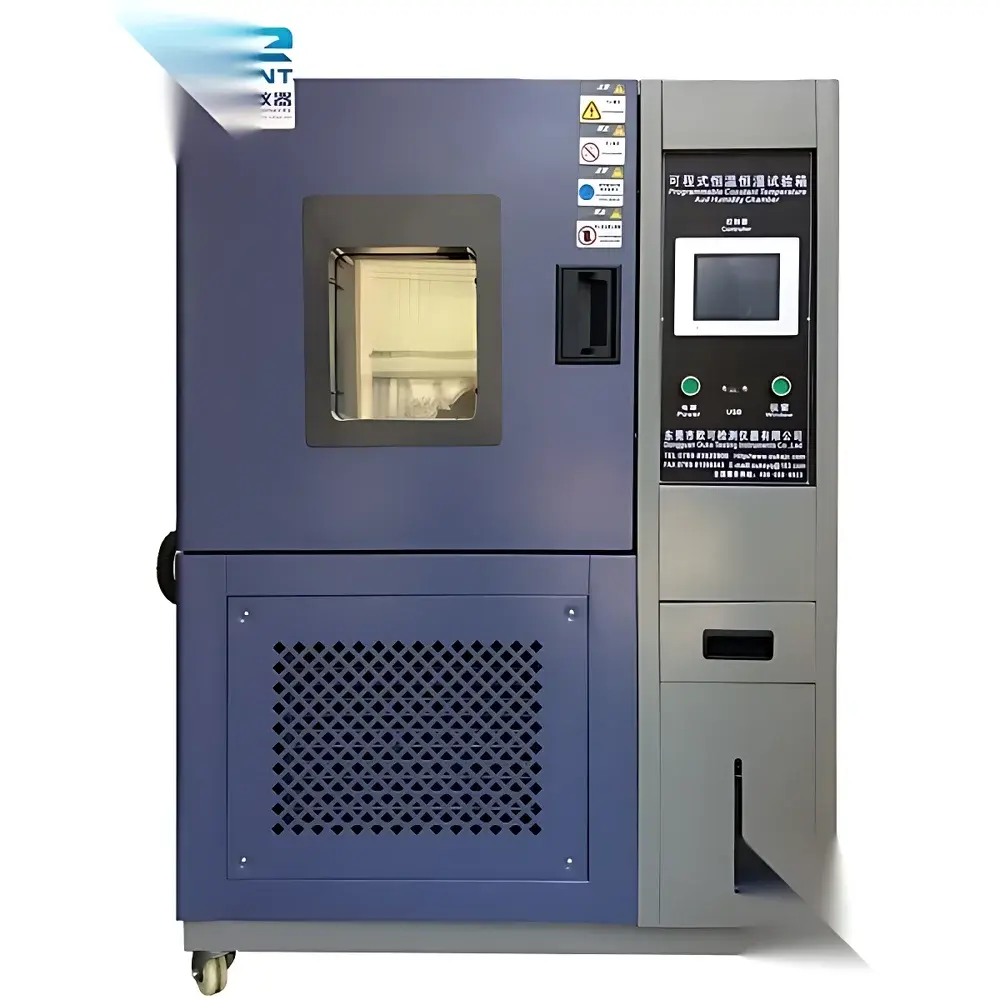

Custom-Built Temperature and Humidity Controlled Environmental Test Chamber

Overview

The Custom-Built Temperature and Humidity Controlled Environmental Test Chamber is an engineered solution for accelerated environmental stress testing of electronic components, aerospace subsystems, automotive modules, pharmaceutical packaging, and industrial materials. Designed in accordance with fundamental principles of thermodynamic equilibrium and psychrometric control, the chamber maintains precise, stable, and reproducible climatic conditions across wide operational ranges. Its dual-stage refrigeration architecture—combined with PID-controlled heating and steam-based humidification—enables simultaneous regulation of temperature and relative humidity under both steady-state (constant) and dynamic (cyclic) profiles. This system supports deterministic evaluation of product reliability, degradation kinetics, and failure modes induced by thermal expansion, condensation, hygroscopic swelling, or moisture ingress—critical parameters defined in international test standards such as IEC 60068-2, MIL-STD-810, and GB/T 2423 series.

Key Features

• Full-customizable internal cavity dimensions (from 80 L to 1000 L), accommodating prototype assemblies, PCB panels, or full-scale enclosures per client specifications.
• SUS#304 stainless steel construction throughout interior and exterior surfaces ensures long-term corrosion resistance, cleanroom compatibility, and compliance with ISO 14644-1 particulate control requirements.
• Multi-layer tempered observation window with embedded conductive film prevents fogging and enables real-time optical monitoring without compromising chamber integrity or thermal stability.
• Microprocessor-based touchscreen controller with intuitive GUI supports multi-segment programmable cycles, data logging at user-defined intervals (1–60 sec), and password-protected parameter locking for GLP/GMP environments.
• Integrated Ø50 mm test port on left-side wall allows external signal/power feedthrough while maintaining pressure and humidity containment via silicone gasket seal.
• Comprehensive safety architecture includes over-temperature cutoff, compressor high-pressure shutdown, humidity sensor fault detection, and automatic mains disconnection upon critical anomaly.

Sample Compatibility & Compliance

The chamber accommodates diverse sample geometries—including stacked circuit boards, sealed medical device housings, polymer films, and coated metal substrates—without requiring structural modification. Its uniformity performance (±0.5°C / ±2.5% RH) meets Class II tolerances specified in ASTM E145-22 (Standard Specification for Gravity-Convection and Forced-Ventilation Ovens) and IEC 60068-3-5 (Environmental Testing – Part 3-5: Supporting Documentation and Guidance – Confirmation of the Performance of Temperature Chambers). All configurations are validated against GJB 150.3–150.4 (Chinese military standards equivalent to MIL-STD-810H Methods 501.7 & 502.7), GB/T 2423.1–2423.4 (national equivalents of IEC 60068-2-1, -2, -30), and ISO 16750-4 (Road Vehicles – Environmental Conditions and Testing for Electrical and Electronic Equipment). Optional validation packages include IQ/OQ documentation and NIST-traceable calibration certificates.

Software & Data Management

The embedded controller logs time-stamped temperature and humidity values internally (up to 10,000 records) and exports CSV-formatted datasets via USB interface. For networked operation, optional Ethernet or RS485 communication modules enable integration into centralized laboratory information management systems (LIMS) and support remote monitoring via secure web interface. Audit trail functionality complies with FDA 21 CFR Part 11 requirements when paired with user access controls, electronic signatures, and immutable log archiving. Data export formats align with ASTM E2500-22 (Standard Guide for Specification, Design, and Verification of Pharmaceutical and Biopharmaceutical Manufacturing Systems) for traceability in regulated manufacturing environments.

Applications

• Accelerated life testing of lithium-ion battery packs under combined thermal-humidity stress (IEC 62660-2).
• Validation of moisture barrier performance in flexible OLED encapsulation layers (ISO 15106-3).
• Qualification of avionics cooling systems per DO-160G Section 4 (Temperature Variation) and Section 5 (Humidity).
• Stability assessment of sterile barrier systems per ISO 11607-1 and AAMI TIR17.
• Material compatibility screening for adhesive curing, paint drying, and polymer annealing processes.

FAQ

Can this chamber be configured for rapid temperature transition testing (e.g., thermal shock)?

No—this model is optimized for controlled ramp rates (~4°C/min heating, ~1°C/min cooling) and sustained environmental conditioning. For thermal shock applications, a dedicated two-zone or three-zone shock chamber is recommended.
Is NIST-traceable calibration included with purchase?

Calibration is performed pre-shipment using certified reference sensors. Full NIST-traceable certification with uncertainty budget is available as an optional add-on service.
What electrical infrastructure is required for installation?

Standard configuration requires 3-phase 380 VAC ±5%, 50 Hz ±0.5 Hz, 5-wire supply with dedicated grounding. Voltage stabilization and harmonic filtering are advised for facilities with unstable grid conditions.
Are custom insulation thicknesses or extended humidity ranges available?

Yes—enhanced insulation (up to 150 mm polyurethane foam) and ultra-low humidity capability (down to 5% RH) can be integrated during manufacturing based on application-specific risk assessments.
Does the controller support protocol-based automation (e.g., Modbus TCP)?

Modbus RTU (RS485) is standard; Modbus TCP and OPC UA drivers are available through optional communication gateway modules.
