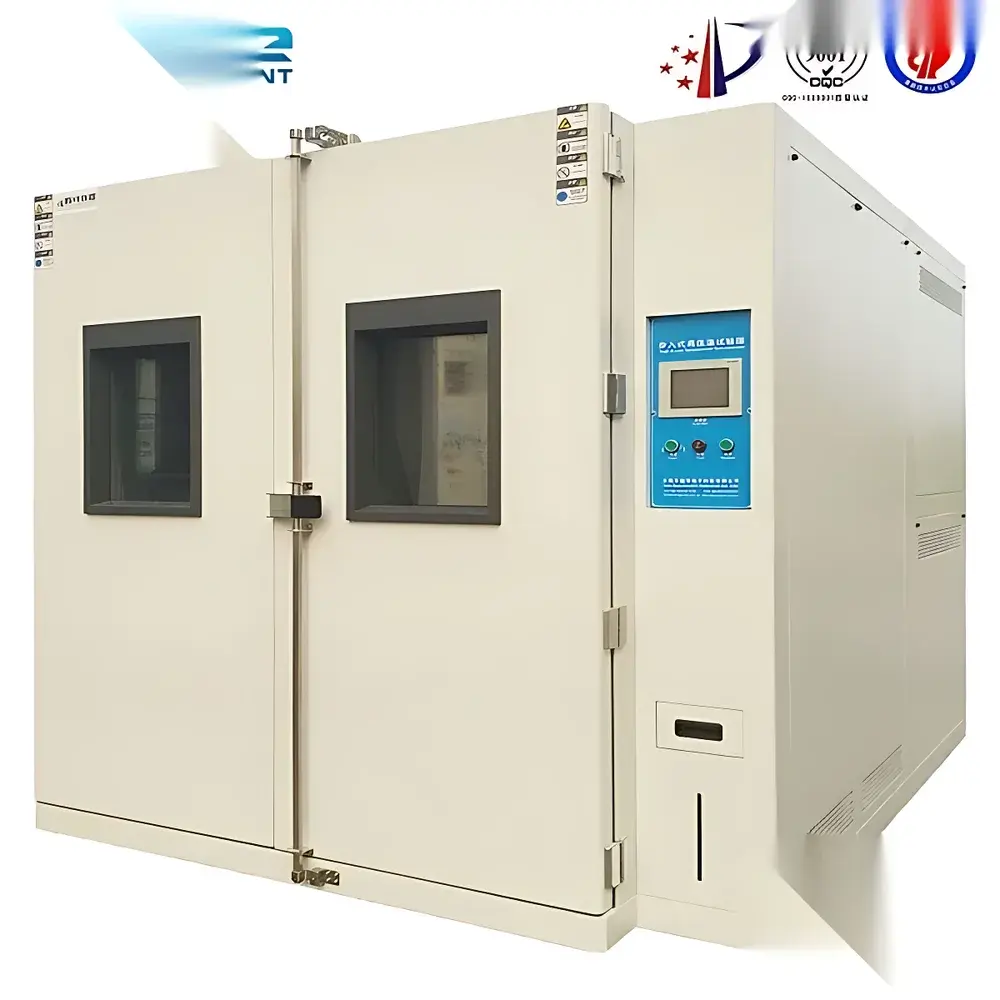

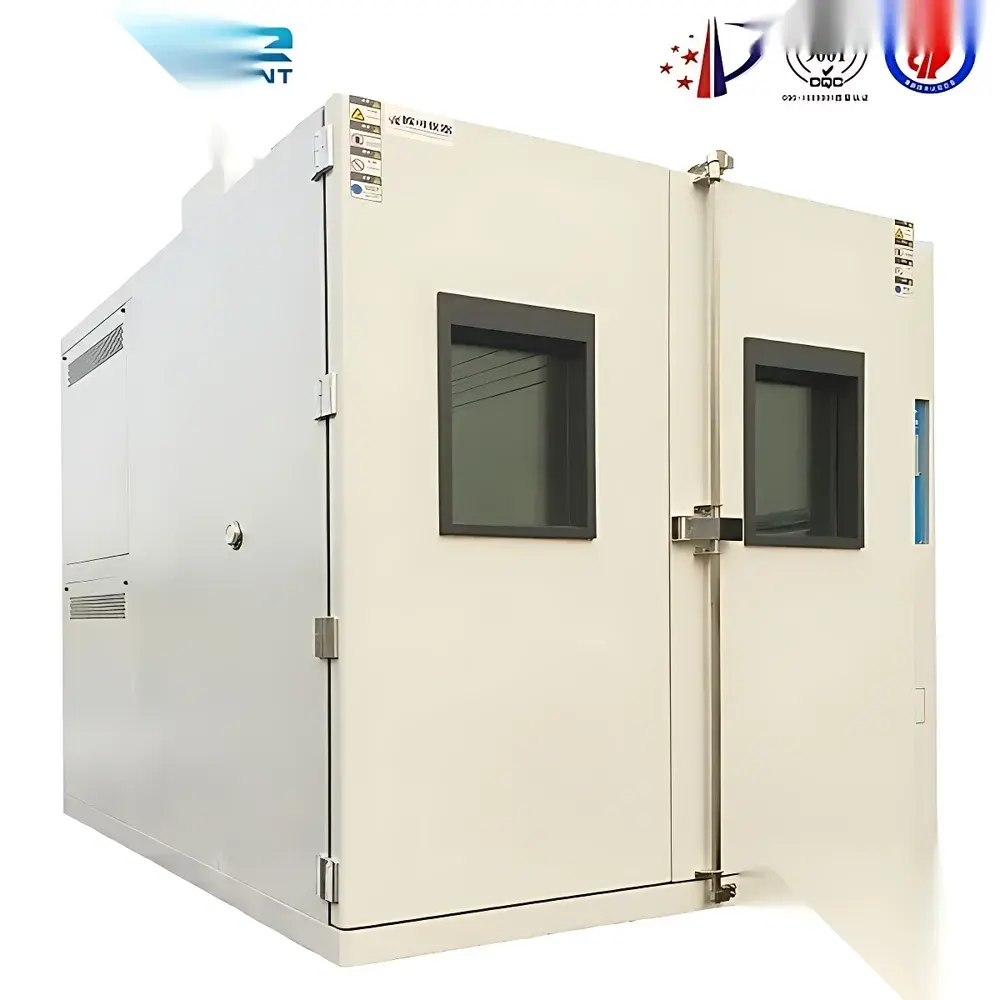

Custom-Built Walk-In Environmental Test Chamber

Overview

The Custom-Built Walk-In Environmental Test Chamber is an engineered climatic simulation system designed for large-scale, long-duration environmental stress testing of industrial components, electronics assemblies, automotive subsystems, and materials under precisely controlled temperature and humidity conditions. Based on the principles of forced-air convection, refrigerant-based cooling (mechanical compression cycle), and steam-humidification with PID-controlled dry/wet bulb regulation, this chamber enables reproducible exposure to defined thermal and hygrothermal profiles per international environmental test standards. Its walk-in architecture accommodates full-size prototypes, production batches, or multi-unit test configurations—making it suitable for validation labs operating under ISO/IEC 17025, IATF 16949, or internal reliability engineering protocols. The chamber’s structural design integrates double-wall insulated panels with high-density polyurethane foam (≥100 mm thickness), hermetically sealed access doors with magnetic gaskets, and a stainless-steel interior chamber lining for corrosion resistance and cleanability.

Key Features

• Wide operational envelope: programmable temperature range from –40 °C to +100 °C and humidity range from 30 %RH to 98 %RH, supporting both steady-state and dynamic cycling tests.
• High-stability climate control: microprocessor-based controller with dual-sensor feedback ensures temperature uniformity within ±0.5 °C and humidity deviation maintained at +2 to –3 %RH across the working volume.
• Controlled ramp rates: adjustable heating and cooling rates between 0.5 and 1.2 °C/min, enabling compliance with standardized thermal shock and gradient-based test methods (e.g., GB2423.22).
• Comprehensive safety architecture: integrated protections include overcurrent and short-circuit interruption on power and control circuits; motor overload and compressor high-pressure cutouts; independent overtemperature limiters; grounding fault detection; and automatic power cutoff with audible alarm upon any fault condition.
• Robust mechanical construction: floor-standing modular design with leveling feet, reinforced steel frame, and ≥600 mm service clearance on all sides for maintenance accessibility and airflow management.

Sample Compatibility & Compliance

The chamber accommodates test specimens up to standard pallet dimensions (W×D×H: 2400 mm × 2000 mm × 2200 mm) with optional internal lighting, observation windows, and cable/port penetrations. It is certified to meet the essential performance and safety requirements outlined in multiple Chinese national standards—including GB10589 (low-temperature chambers), GB10592 (combined temperature/humidity chambers), GB11158 (high-temperature chambers), and GB/T5170.2 & GB/T5170.5 (calibration methodologies for temperature and humidity equipment). While not pre-certified to IEC 60068 or ASTM E1525, its operational parameters and control fidelity are fully compatible with test execution per those frameworks when configured with appropriate validation documentation and sensor traceability (NIST-traceable calibration certificates available upon request).

Software & Data Management

The embedded controller supports local programming of multi-step test profiles (up to 99 segments), real-time data logging at user-defined intervals (minimum 1-second resolution), and export of time-stamped CSV files via USB interface. Optional Ethernet connectivity enables remote monitoring and integration into centralized lab data acquisition systems. All logged data includes timestamp, setpoint, actual chamber values, and alarm status flags—supporting GLP-compliant record retention. Audit trail functionality (user login, profile edits, start/stop commands) is available in firmware version 3.2+, satisfying basic FDA 21 CFR Part 11 requirements for electronic records when deployed with organizational procedural controls.

Applications

This chamber is routinely deployed for accelerated life testing of printed circuit board assemblies (PCBAs), battery modules, HVAC components, packaging materials, and medical device enclosures. Typical use cases include: thermal cycling per GB2423.22; high-humidity storage evaluation per GB2423.5; low-temperature functional verification per GB2423.1; and combined temperature/humidity stress screening per GB2423.3. It also serves as a conditioning environment for pre-test stabilization of samples prior to mechanical or electrical characterization, and as a stable ambient reference space during metrology-grade measurements requiring thermal equilibrium.

FAQ

What are the minimum site requirements for installation?

Ambient temperature must be maintained between 15 °C and 35 °C; relative humidity ≤85 %RH; no direct solar radiation or strong air currents impinging on the chamber; adequate ventilation and dedicated grounded power supply (3-phase, 380 V ±10 %, 50 Hz, min. 32 A).

Is validation support provided with the system?

Yes—users receive IQ/OQ documentation templates, calibration certificates for internal sensors (traceable to national standards), and guidance for performing temperature/humidity uniformity mapping per GB/T5170.2 and GB/T5170.5.

What post-warranty service options are available?

Extended service contracts include preventive maintenance visits, spare parts availability, firmware updates, and remote diagnostics support. All field service engineers hold manufacturer-authorized certification.

Can the chamber be integrated into an existing LIMS or MES platform?

Via optional Modbus TCP or OPC UA gateway module (sold separately), enabling bidirectional communication for test initiation, status reporting, and raw data streaming to enterprise systems.

Are software upgrades included after purchase?

All firmware and controller software updates released during the first 12 months post-acceptance are provided at no cost. Subsequent updates follow a standard maintenance agreement model.
