Cycle SOPRANO-1550 High-Energy Femtosecond Laser System (4.5 µJ Pulse Energy)

Overview

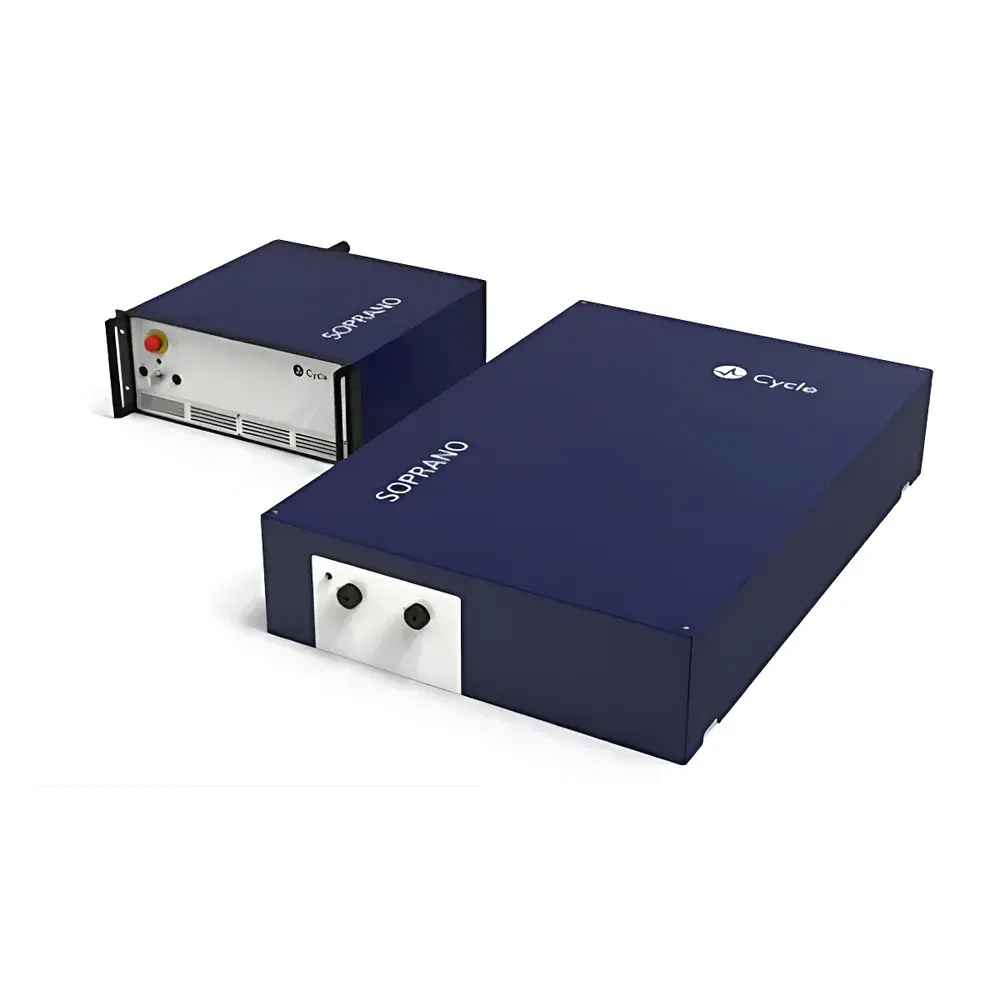

The Cycle SOPRANO-1550 is a turnkey, industrial-grade femtosecond laser system engineered for high-repetition-rate, high-pulse-energy applications in advanced photonics research and precision manufacturing. Developed by Cycle GmbH—a spin-off of the Deutsches Elektronen-Synchrotron (DESY) in Hamburg—the SOPRANO platform leverages fiber-based oscillator-amplifier architecture to deliver robust, maintenance-free 24/7 operation. Its fundamental emission at 1550 nm—combined with optional synchronous 775 nm second-harmonic output—enables broad compatibility with nonlinear optical processes requiring low-dispersion, eye-safe near-infrared excitation. The system operates at pulse energies up to 4.5 µJ and average powers up to 4.5 W, with pulse durations consistently below 350 fs (transform-limited), ensuring high peak intensities (>50 MW at 1 MHz) essential for efficient multiphoton excitation, optical parametric amplification, and ultrafast material ablation.

Key Features

• Fiber-integrated, all-solid-state design optimized for long-term stability and minimal alignment drift
• Dual-wavelength output (1550 nm + 775 nm) with precise temporal synchronization (<100 fs jitter) for pump-probe and harmonic generation experiments
• Factory-configured repetition rate (1–30 MHz range), selected at time of order to match application-specific duty cycle and thermal load requirements
• Diffraction-limited beam quality (M² < 1.5, TEM₀₀) enabling tight focusing for high spatial resolution in microscopy and microfabrication
• Integrated collimated free-space output with standardized 99.5 mm beam height for seamless integration into OEM optical benches and commercial microscope platforms
• Rack-mountable controller with Ethernet and RS-232 interfaces supporting remote monitoring, interlock management, and firmware updates via secure protocols
• Compliance with IEC 60825-1:2014 Class 4 laser safety standards; full documentation package includes laser safety classification report and operational risk assessment

Sample Compatibility & Compliance

The SOPRANO-1550 is routinely deployed in environments requiring strict adherence to international laboratory and industrial standards. Its 1550 nm emission falls within the low-absorption window of silicon and fused silica, making it suitable for semiconductor inspection (e.g., OBIC imaging), transparent material processing (e.g., glass waveguide writing), and deep-tissue biological imaging. The system supports GLP-compliant workflows through hardware-enforced safety interlocks, real-time power monitoring with ±2% calibration traceability to NIST-traceable standards, and audit-ready log files for laser-on duration, temperature history, and error events. While not inherently FDA 21 CFR Part 11 compliant, its controller architecture allows integration with validated third-party data acquisition software meeting regulatory requirements for GMP-aligned biophotonics labs.

Software & Data Management

Operation is managed via Cycle’s SOPRANO Control Suite—a Windows-based application providing intuitive GUI control over output enable/disable, repetition rate verification (via integrated photodiode monitor), and thermal status reporting. All operational parameters are timestamped and exportable in CSV format for traceability. For automated integration, the system exposes a comprehensive SCPI command set over TCP/IP, enabling synchronization with motion controllers (e.g., PI, Aerotech), data acquisition systems (e.g., National Instruments DAQ), and custom Python/Matlab scripts. Firmware updates are delivered as signed binary packages with SHA-256 checksum validation to ensure integrity and prevent unauthorized modification.

Applications

• Three-photon fluorescence microscopy (3PEF): Simultaneous generation of ~1300 nm and ~1700 nm spectral components via supercontinuum seeding enables optimal excitation of red-shifted fluorophores with reduced out-of-focus photodamage
• Optical parametric amplifier (OPA) and optical parametric chirped-pulse amplifier (OPCPA) pumping: High pulse energy and transform-limited bandwidth support broadband mid-IR generation (2–20 µm) for time-resolved vibrational spectroscopy
• Nonlinear optical characterization: SHG/THG imaging of unstained biological tissues and crystalline materials, leveraging phase-matching advantages at 1550 nm in BBO and BiBO crystals
• Semiconductor failure analysis: OBIC (optical beam-induced current) mapping of buried junctions in SiC and GaN devices, where 1550 nm penetrates passivation layers without carrier screening
• Ultrafast laser micromachining: Precision ablation of dielectrics (e.g., fused quartz, sapphire) with sub-µm feature size and negligible heat-affected zone due to nonlinear absorption dominance

FAQ

Is the 1550 nm output tunable?
No—the SOPRANO-1550 delivers fixed-wavelength emission at 1550 nm (and optionally 775 nm). Tunability requires external wavelength conversion stages such as OPA or DFG modules.
Can the repetition rate be adjusted in real time during operation?
No—repetition rate is factory-set and fixed per unit. It is selected at time of order based on thermal management and pulse energy trade-offs; dynamic adjustment would compromise pulse-to-pulse stability and amplifier gain uniformity.
What cooling method does the laser employ?
The system uses forced-air convection with redundant thermal sensors and automatic shutdown if ambient temperature exceeds 35 °C or internal heatsink temperature exceeds 60 °C.
Does the laser include beam delivery optics?
Yes—a collimated free-space output is provided with adjustable kinematic mounts. Optional accessories include motorized attenuators, polarization rotators, and harmonic separators compatible with standard 1-inch optical rails.
Is remote diagnostics supported?
Yes—Ethernet connectivity enables remote firmware updates, diagnostic log retrieval, and live status monitoring (output power, diode current, coolant flow, cabinet temperature) via HTTPS-enabled web interface.
